SDO HMI 2014-11-20 10:00:26 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 1.80 | 32.88 | 0.96 | 17.48 | -12.88 | 224.76 | -15.08 | 135.76 | 0.3664 | -315.0 | -292.4 | |
|
previous
or next observation for the same group /

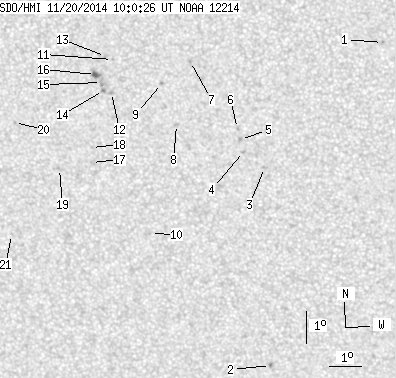

back to the solar disc SDO HMI 2014-11-20 10:00:26 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.12 | 0.00 | 0.57 | -10.36 | 232.05 | -7.79 | 148.49 | 0.2561 | -943.0 | -773.3 | |
| 0.00 | 1.46 | 0.00 | 0.80 | -20.44 | 228.05 | -11.79 | 153.53 | 0.4312 | -924.0 | -810.2 | |
| 0.00 | 1.54 | 0.00 | 0.81 | -14.21 | 228.27 | -11.57 | 145.42 | 0.3440 | 716.0 | 505.1 | |
| 0.00 | 1.63 | 0.00 | 0.86 | -13.72 | 227.64 | -12.19 | 143.14 | 0.3436 | 754.0 | 649.0 | |
| 0.00 | 1.80 | 0.00 | 0.95 | -13.35 | 227.57 | -12.27 | 142.30 | 0.3396 | 1032.0 | 808.2 | |
| 0.00 | 1.37 | 0.00 | 0.72 | -13.01 | 227.49 | -12.34 | 141.49 | 0.3360 | 956.0 | 693.6 | |
| 0.00 | 1.29 | 0.00 | 0.67 | -10.97 | 226.14 | -13.70 | 134.32 | 0.3265 | 864.0 | 633.3 | |
| 0.00 | 1.72 | 0.00 | 0.91 | -12.90 | 225.59 | -14.24 | 137.28 | 0.3550 | -741.0 | -540.0 | |
| 0.00 | 1.37 | 0.00 | 0.72 | -11.65 | 225.20 | -14.64 | 133.93 | 0.3453 | 961.0 | 752.7 | |
| 0.00 | 1.03 | 0.00 | 0.56 | -16.29 | 224.53 | -15.30 | 141.28 | 0.4068 | -720.0 | -582.9 | |
| 0.00 | 1.03 | 0.00 | 0.55 | -10.93 | 223.70 | -16.14 | 129.64 | 0.3559 | -779.0 | -532.0 | |
| 0.00 | 1.89 | 0.00 | 1.00 | -11.94 | 223.61 | -16.23 | 131.64 | 0.3675 | -723.0 | -541.0 | |
| 0.00 | 1.46 | 0.00 | 0.77 | -10.85 | 223.49 | -16.35 | 129.07 | 0.3577 | -832.0 | -692.8 | |
| 0.00 | 1.63 | 0.00 | 0.87 | -11.88 | 223.36 | -16.48 | 131.09 | 0.3699 | -840.0 | -746.0 | |
| 0.00 | 3.35 | 0.00 | 1.78 | -11.64 | 223.31 | -16.52 | 130.50 | 0.3680 | -888.0 | -800.4 | |
| 1.80 | 4.21 | 0.96 | 2.24 | -11.40 | 223.14 | -16.70 | 129.69 | 0.3677 | -1051.7 | -937.8 | |
| 0.00 | 0.60 | 0.00 | 0.32 | -14.10 | 222.82 | -17.02 | 134.54 | 0.3999 | -728.0 | -615.7 | |
| 0.00 | 0.60 | 0.00 | 0.32 | -13.64 | 222.86 | -16.98 | 133.73 | 0.3945 | -778.0 | -490.7 | |
| 0.00 | 2.32 | 0.00 | 1.26 | -14.30 | 221.78 | -18.06 | 133.23 | 0.4140 | -652.0 | -602.5 | |
| 0.00 | 1.03 | 0.00 | 0.56 | -12.90 | 220.45 | -19.39 | 128.63 | 0.4160 | -678.0 | -496.7 | |
| 0.00 | 0.43 | 0.00 | 0.24 | -16.37 | 220.02 | -19.82 | 134.22 | 0.4558 | -650.0 | -422.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
