SDO HMI 2014-11-20 11:00:26 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 59.38 | 489.55 | 116.45 | 1022.80 | -13.36 | 164.66 | -74.63 | 104.42 | 0.9687 | 126.7 | -184.9 | |
|
previous
or next observation for the same group /

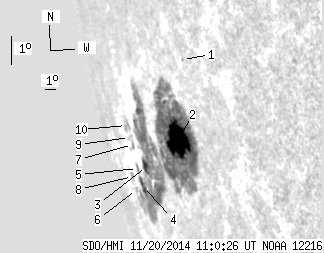

back to the solar disc SDO HMI 2014-11-20 11:00:26 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.77 | 0.00 | 1.21 | -10.45 | 168.55 | -70.74 | 101.79 | 0.9498 | 165.0 | 188.1 | |
| 46.94 | 470.93 | 83.66 | 969.21 | -12.99 | 166.41 | -72.88 | 104.21 | 0.9618 | 313.7 | -197.1 | |
| 6.86 | -2.00 | 17.15 | -2.00 | -13.97 | 161.73 | -77.56 | 104.74 | 0.9808 | -546.6 | 999999 | |
| 5.58 | -2.00 | 15.64 | -2.00 | -14.64 | 160.43 | -78.86 | 105.30 | 0.9850 | -84.6 | 999999 | |
| 0.00 | 2.75 | 0.00 | 7.80 | -14.09 | 160.18 | -79.11 | 104.73 | 0.9856 | 306.0 | 181.1 | |
| 0.00 | 1.46 | 0.00 | 4.71 | -14.78 | 158.99 | -80.30 | 105.33 | 0.9889 | 353.0 | 356.2 | |
| 0.00 | 3.00 | 0.00 | 8.37 | -13.35 | 160.32 | -78.97 | 103.99 | 0.9850 | -365.0 | -321.8 | |
| 0.00 | 2.83 | 0.00 | 9.25 | -14.39 | 158.87 | -80.43 | 104.92 | 0.9892 | -367.0 | -124.7 | |
| 0.00 | 1.97 | 0.00 | 5.61 | -13.14 | 160.08 | -79.21 | 103.76 | 0.9856 | -44.0 | -89.1 | |
| 0.00 | 5.84 | 0.00 | 16.64 | -12.78 | 160.04 | -79.25 | 103.39 | 0.9857 | 52.0 | 89.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
