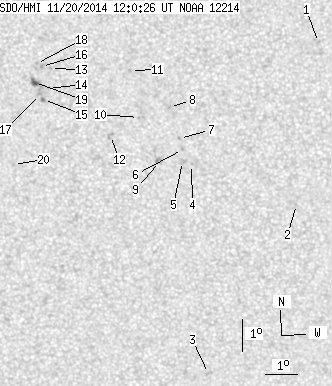

SDO HMI 2014-11-20 12:00:26 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 2.06 | 37.24 | 1.09 | 19.64 | -12.88 | 225.47 | -13.27 | 139.19 | 0.3470 | -174.1 | -171.8 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-11-20 12:00:26 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.77 | 0.00 | 0.39 | -10.09 | 231.94 | -6.81 | 151.25 | 0.2438 | -935.0 | -718.0 | |
| 0.00 | 0.60 | 0.00 | 0.31 | -15.06 | 231.11 | -7.63 | 156.62 | 0.3245 | -639.0 | -530.3 | |
| 0.00 | 2.40 | 0.00 | 1.31 | -20.40 | 228.06 | -10.69 | 155.64 | 0.4232 | -888.0 | -695.5 | |
| 0.00 | 0.51 | 0.00 | 0.27 | -13.84 | 227.91 | -10.83 | 146.51 | 0.3321 | 777.0 | 576.5 | |
| 0.00 | 3.52 | 0.00 | 1.85 | -13.74 | 227.64 | -11.11 | 145.69 | 0.3334 | 717.0 | 592.0 | |
| 0.00 | 0.94 | 0.00 | 0.49 | -13.38 | 227.66 | -11.09 | 145.08 | 0.3283 | 1026.0 | 812.5 | |
| 0.00 | 1.29 | 0.00 | 0.67 | -13.04 | 227.58 | -11.16 | 144.28 | 0.3245 | 848.0 | 654.1 | |
| 0.00 | 1.20 | 0.00 | 0.63 | -12.09 | 227.31 | -11.43 | 141.80 | 0.3148 | 881.0 | 726.9 | |
| 0.00 | 3.95 | 0.00 | 2.08 | -13.75 | 226.92 | -11.82 | 144.03 | 0.3403 | 634.0 | 659.6 | |
| 0.00 | 1.12 | 0.00 | 0.58 | -12.40 | 226.34 | -12.41 | 140.15 | 0.3289 | 826.0 | 625.2 | |
| 0.00 | 1.29 | 0.00 | 0.67 | -10.97 | 226.16 | -12.59 | 136.72 | 0.3134 | 836.0 | 651.1 | |
| 0.00 | 3.00 | 0.00 | 1.58 | -12.96 | 225.44 | -13.31 | 139.29 | 0.3455 | -744.0 | -626.7 | |
| 0.00 | 1.03 | 0.00 | 0.54 | -10.93 | 223.67 | -15.07 | 131.53 | 0.3425 | -785.0 | -567.6 | |
| 0.00 | 0.94 | 0.00 | 0.50 | -11.54 | 223.58 | -15.17 | 132.68 | 0.3502 | -845.0 | -660.6 | |
| 0.00 | 2.15 | 0.00 | 1.14 | -11.88 | 223.40 | -15.34 | 133.07 | 0.3560 | -908.0 | -706.2 | |
| 0.00 | 1.37 | 0.00 | 0.72 | -10.87 | 223.40 | -15.35 | 130.88 | 0.3453 | -942.0 | -872.1 | |
| 0.00 | 1.89 | 0.00 | 1.00 | -11.73 | 223.28 | -15.46 | 132.54 | 0.3558 | -794.0 | -756.8 | |
| 0.00 | 0.94 | 0.00 | 0.50 | -10.78 | 223.24 | -15.50 | 130.41 | 0.3463 | -900.0 | -720.4 | |
| 2.06 | 7.04 | 1.09 | 3.72 | -11.36 | 223.15 | -15.59 | 131.51 | 0.3535 | -1092.7 | -788.6 | |
| 0.00 | 1.29 | 0.00 | 0.69 | -13.88 | 222.32 | -16.42 | 135.12 | 0.3907 | -472.0 | -424.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
