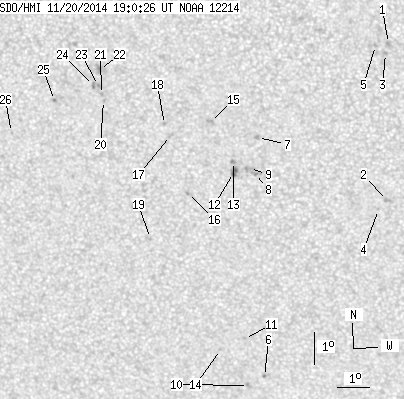

SDO HMI 2014-11-20 19:00:26 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 55.23 | 0.00 | 28.76 | -13.52 | 227.03 | -7.86 | 154.03 | 0.3070 | -438.5 | -145.9 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-11-20 19:00:26 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 2.66 | 0.00 | 1.35 | -10.03 | 232.13 | -2.76 | 167.38 | 0.2180 | -1058.0 | -657.9 | |
| 0.00 | 3.43 | 0.00 | 1.78 | -14.84 | 232.04 | -2.85 | 170.69 | 0.2982 | -937.0 | -662.8 | |
| 0.00 | 1.54 | 0.00 | 0.78 | -10.34 | 232.03 | -2.85 | 167.28 | 0.2234 | -997.0 | -870.9 | |
| 0.00 | 1.03 | 0.00 | 0.53 | -15.12 | 231.76 | -3.13 | 169.96 | 0.3036 | -646.0 | -509.1 | |
| 0.00 | 1.54 | 0.00 | 0.78 | -10.09 | 231.74 | -3.15 | 165.73 | 0.2206 | -911.0 | -674.4 | |
| 0.00 | 1.29 | 0.00 | 0.70 | -20.39 | 228.04 | -6.85 | 163.77 | 0.4015 | -920.0 | -768.8 | |
| 0.00 | 2.14 | 0.00 | 1.11 | -12.91 | 228.10 | -6.79 | 156.13 | 0.2859 | 839.0 | 673.4 | |
| 0.00 | 3.86 | 0.00 | 2.01 | -14.01 | 228.01 | -6.88 | 157.38 | 0.3035 | 762.0 | 660.3 | |
| 0.00 | 4.29 | 0.00 | 2.23 | -13.86 | 227.83 | -7.06 | 156.64 | 0.3023 | 489.0 | 653.7 | |
| 0.00 | 2.40 | 0.00 | 1.30 | -20.68 | 227.52 | -7.37 | 162.83 | 0.4084 | -747.0 | -589.0 | |
| 0.00 | 1.11 | 0.00 | 0.60 | -19.18 | 227.46 | -7.42 | 161.47 | 0.3858 | -783.0 | -591.0 | |
| 0.00 | 4.89 | 0.00 | 2.54 | -13.99 | 227.33 | -7.56 | 155.37 | 0.3076 | 807.0 | 803.3 | |
| 0.00 | 2.32 | 0.00 | 1.20 | -13.65 | 227.34 | -7.54 | 154.92 | 0.3024 | 884.0 | 721.0 | |
| 0.00 | 0.69 | 0.00 | 0.37 | -19.53 | 226.69 | -8.20 | 160.02 | 0.3952 | -716.0 | -635.6 | |
| 0.00 | 3.26 | 0.00 | 1.69 | -12.42 | 226.68 | -8.21 | 151.04 | 0.2893 | 880.0 | 712.5 | |
| 0.00 | 1.37 | 0.00 | 0.72 | -14.64 | 225.89 | -9.00 | 152.37 | 0.3279 | -981.0 | -727.2 | |
| 0.00 | 1.80 | 0.00 | 0.94 | -12.86 | 225.43 | -9.45 | 148.29 | 0.3060 | -915.0 | -734.9 | |
| 0.00 | 1.37 | 0.00 | 0.71 | -12.52 | 225.26 | -9.62 | 147.22 | 0.3029 | 764.0 | 575.6 | |
| 0.00 | 1.11 | 0.00 | 0.59 | -16.05 | 224.67 | -10.22 | 151.37 | 0.3575 | -790.0 | -611.5 | |
| 0.00 | 1.20 | 0.00 | 0.63 | -11.80 | 223.41 | -11.47 | 141.07 | 0.3113 | -793.0 | -655.4 | |
| 0.00 | 1.37 | 0.00 | 0.71 | -11.62 | 223.36 | -11.53 | 140.56 | 0.3095 | -871.0 | -695.9 | |
| 0.00 | 5.06 | 0.00 | 2.63 | -10.85 | 223.33 | -11.56 | 138.83 | 0.3003 | -936.0 | -778.0 | |
| 0.00 | 1.29 | 0.00 | 0.67 | -11.34 | 223.28 | -11.61 | 139.78 | 0.3069 | -980.0 | -823.4 | |
| 0.00 | 1.89 | 0.00 | 0.98 | -11.34 | 223.12 | -11.76 | 139.41 | 0.3086 | -1109.0 | -900.5 | |
| 0.00 | 1.46 | 0.00 | 0.76 | -11.81 | 221.90 | -12.99 | 137.61 | 0.3278 | -953.0 | -741.5 | |
| 0.00 | 0.86 | 0.00 | 0.45 | -12.80 | 220.50 | -14.39 | 136.75 | 0.3552 | -782.0 | -612.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
