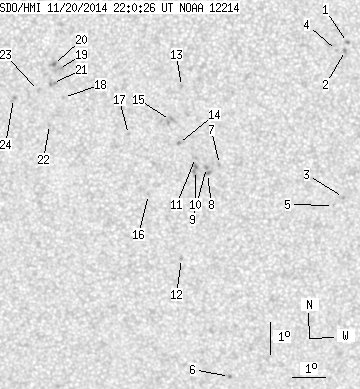

SDO HMI 2014-11-20 22:00:26 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 47.60 | 0.00 | 24.63 | -12.79 | 226.44 | -6.79 | 156.17 | 0.2885 | -291.0 | -96.5 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-11-20 22:00:26 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.37 | 0.00 | 0.70 | -10.07 | 232.16 | -1.07 | 175.04 | 0.2140 | -1051.0 | -810.0 | |
| 0.00 | 1.72 | 0.00 | 0.87 | -10.32 | 232.09 | -1.13 | 174.86 | 0.2182 | -1045.0 | -898.5 | |
| 0.00 | 0.94 | 0.00 | 0.49 | -14.82 | 232.01 | -1.22 | 175.97 | 0.2944 | -938.0 | -803.8 | |
| 0.00 | 0.94 | 0.00 | 0.48 | -10.32 | 231.82 | -1.40 | 173.64 | 0.2187 | -846.0 | -741.3 | |
| 0.00 | 1.03 | 0.00 | 0.53 | -15.07 | 231.70 | -1.53 | 175.03 | 0.2989 | -748.0 | -487.3 | |
| 0.00 | 1.29 | 0.00 | 0.69 | -20.46 | 228.35 | -4.88 | 168.31 | 0.3947 | -974.0 | -817.3 | |
| 0.00 | 1.46 | 0.00 | 0.75 | -13.80 | 228.23 | -5.00 | 162.90 | 0.2892 | 771.0 | 623.4 | |
| 0.00 | 2.57 | 0.00 | 1.33 | -14.08 | 227.85 | -5.37 | 162.01 | 0.2956 | 778.0 | 682.9 | |
| 0.00 | 1.72 | 0.00 | 0.89 | -13.90 | 227.83 | -5.40 | 161.73 | 0.2928 | 1023.0 | 865.0 | |
| 0.00 | 5.32 | 0.00 | 2.76 | -13.99 | 227.49 | -5.74 | 160.77 | 0.2961 | 719.0 | 726.6 | |
| 0.00 | 2.14 | 0.00 | 1.11 | -13.59 | 227.50 | -5.73 | 160.34 | 0.2897 | 1033.0 | 668.8 | |
| 0.00 | 1.20 | 0.00 | 0.63 | -16.72 | 226.97 | -6.26 | 162.14 | 0.3417 | -818.0 | -673.4 | |
| 0.00 | 1.11 | 0.00 | 0.57 | -11.42 | 227.12 | -6.10 | 156.07 | 0.2581 | 947.0 | 766.1 | |
| 0.00 | 1.29 | 0.00 | 0.66 | -13.16 | 226.99 | -6.24 | 158.18 | 0.2860 | 963.0 | 803.0 | |
| 0.00 | 5.49 | 0.00 | 2.83 | -12.46 | 226.76 | -6.46 | 156.47 | 0.2766 | 817.0 | 737.4 | |
| 0.00 | 0.94 | 0.00 | 0.49 | -14.74 | 226.02 | -7.21 | 157.34 | 0.3164 | -792.0 | -611.5 | |
| 0.00 | 1.11 | 0.00 | 0.58 | -12.89 | 225.47 | -7.76 | 153.11 | 0.2924 | -843.0 | -684.2 | |
| 0.00 | 0.94 | 0.00 | 0.49 | -11.77 | 223.51 | -9.72 | 145.51 | 0.2931 | -830.0 | -651.9 | |
| 0.00 | 3.95 | 0.00 | 2.04 | -10.91 | 223.39 | -9.84 | 143.41 | 0.2828 | -719.0 | -714.4 | |
| 0.00 | 2.66 | 0.00 | 1.37 | -10.76 | 223.24 | -9.99 | 142.68 | 0.2822 | -1139.0 | -887.7 | |
| 0.00 | 3.26 | 0.00 | 1.69 | -11.34 | 223.19 | -10.04 | 143.77 | 0.2905 | -962.0 | -861.9 | |
| 0.00 | 1.29 | 0.00 | 0.67 | -12.59 | 223.05 | -10.18 | 145.87 | 0.3088 | -552.0 | -490.8 | |
| 0.00 | 1.54 | 0.00 | 0.80 | -11.56 | 222.75 | -10.48 | 143.06 | 0.2977 | -890.0 | -739.1 | |
| 0.00 | 2.32 | 0.00 | 1.21 | -11.81 | 221.97 | -11.26 | 141.59 | 0.3089 | -887.0 | -763.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
