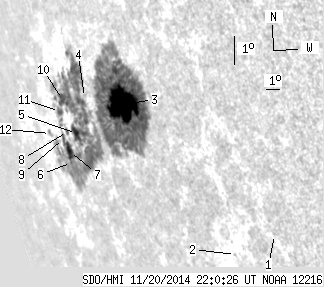

SDO HMI 2014-11-20 22:00:26 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 92.98 | 718.78 | 135.90 | 1071.78 | -13.35 | 164.23 | -69.00 | 105.05 | 0.9410 | 182.0 | -169.2 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-11-20 22:00:26 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.77 | 0.00 | 0.79 | -16.72 | 174.60 | -58.63 | 110.55 | 0.8753 | 94.0 | 161.0 | |
| 0.00 | 0.51 | 0.00 | 0.57 | -17.45 | 171.77 | -61.46 | 110.71 | 0.8979 | 316.0 | 282.2 | |
| 64.32 | 709.01 | 85.71 | 1055.41 | -13.00 | 166.25 | -66.98 | 104.94 | 0.9298 | 570.3 | -168.7 | |
| 0.00 | 3.00 | 0.00 | 4.61 | -12.90 | 163.10 | -70.12 | 104.42 | 0.9479 | -443.0 | -405.3 | |
| 7.72 | -3.00 | 13.00 | -3.00 | -14.06 | 161.53 | -71.70 | 105.44 | 0.9568 | -611.8 | 999999 | |
| 0.26 | -3.00 | 0.47 | -3.00 | -15.00 | 160.23 | -73.00 | 106.26 | 0.9634 | -280.7 | 999999 | |
| 7.98 | -3.00 | 14.35 | -3.00 | -14.66 | 160.32 | -72.91 | 105.91 | 0.9628 | -297.8 | 999999 | |
| 1.29 | 2.49 | 2.28 | 4.40 | -14.03 | 160.64 | -72.59 | 105.30 | 0.9610 | -428.9 | -371.2 | |
| 1.63 | -3.00 | 2.99 | -3.00 | -14.27 | 160.02 | -73.21 | 105.48 | 0.9640 | 113.5 | 999999 | |
| 6.69 | -3.00 | 11.57 | -3.00 | -13.04 | 160.90 | -72.33 | 104.30 | 0.9593 | -626.6 | 999999 | |
| 3.09 | -3.00 | 5.53 | -3.00 | -13.43 | 160.28 | -72.94 | 104.64 | 0.9623 | -445.1 | 999999 | |
| 0.00 | 3.00 | 0.00 | 6.00 | -14.17 | 158.65 | -74.58 | 105.22 | 0.9698 | -214.0 | -65.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
