SDO HMI 2014-11-20 23:00:26 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 91.95 | 730.25 | 129.80 | 1061.31 | -13.31 | 164.43 | -68.24 | 105.10 | 0.9367 | 234.6 | -173.2 | |
|
previous
or next observation for the same group /

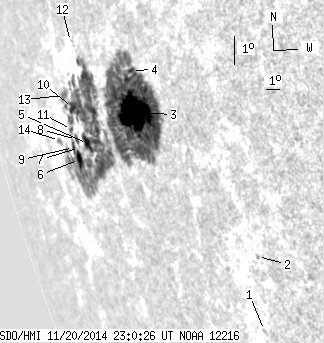

back to the solar disc SDO HMI 2014-11-20 23:00:26 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.46 | 0.00 | 1.64 | -19.59 | 171.46 | -61.22 | 113.10 | 0.8996 | 397.0 | 370.7 | |
| 0.00 | 2.14 | 0.00 | 2.30 | -17.22 | 172.43 | -60.24 | 110.73 | 0.8885 | 505.0 | 395.8 | |
| 64.24 | 717.13 | 83.71 | 1040.35 | -12.98 | 166.24 | -66.43 | 105.00 | 0.9263 | 591.8 | -179.2 | |
| 2.32 | -3.00 | 2.94 | -3.00 | -11.69 | 166.67 | -66.01 | 103.66 | 0.9224 | 466.5 | 999999 | |
| 7.98 | -3.00 | 13.00 | -3.00 | -14.10 | 161.52 | -71.16 | 105.55 | 0.9541 | -642.8 | 999999 | |
| 7.46 | -3.00 | 13.04 | -3.00 | -14.64 | 160.30 | -72.38 | 105.96 | 0.9604 | -261.7 | 999999 | |
| 0.00 | 0.26 | 0.00 | 0.44 | -14.26 | 160.61 | -72.07 | 105.60 | 0.9587 | -414.0 | -372.0 | |
| 1.63 | -3.00 | 2.80 | -3.00 | -14.02 | 160.50 | -72.18 | 105.34 | 0.9591 | -449.3 | 999999 | |
| 1.03 | -3.00 | 1.83 | -3.00 | -14.29 | 159.97 | -72.70 | 105.55 | 0.9617 | 109.9 | 999999 | |
| 5.40 | -3.00 | 9.06 | -3.00 | -13.03 | 160.85 | -71.83 | 104.35 | 0.9568 | -643.0 | 999999 | |
| 1.20 | -3.00 | 2.10 | -3.00 | -13.72 | 160.22 | -72.45 | 105.00 | 0.9602 | -355.9 | 999999 | |
| 0.00 | 0.34 | 0.00 | 0.53 | -10.97 | 161.97 | -70.70 | 102.33 | 0.9498 | -345.0 | -363.8 | |
| 0.00 | 6.00 | 0.00 | 10.41 | -12.68 | 160.19 | -72.49 | 103.92 | 0.9598 | 155.0 | 112.6 | |
| 0.69 | 2.92 | 1.32 | 5.64 | -14.12 | 158.59 | -74.08 | 105.23 | 0.9677 | -145.9 | -47.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
