SDO HMI 2014-11-21 00:00:26 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 89.73 | 733.15 | 123.19 | 1038.10 | -13.38 | 164.43 | -67.69 | 105.25 | 0.9335 | 272.2 | -169.6 | |
|
previous
or next observation for the same group /

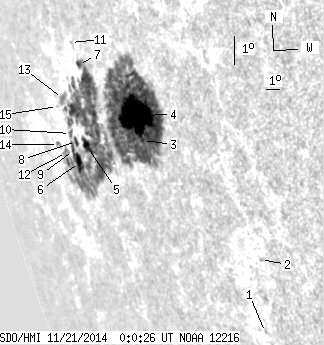

back to the solar disc SDO HMI 2014-11-21 00:00:26 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.12 | 0.00 | 1.23 | -19.58 | 171.37 | -60.75 | 113.19 | 0.8962 | 438.0 | 354.5 | |
| 0.00 | 1.20 | 0.00 | 1.26 | -17.24 | 172.43 | -59.69 | 110.87 | 0.8844 | 457.0 | 432.4 | |
| 0.26 | 712.47 | 0.33 | 1003.58 | -13.76 | 166.33 | -65.80 | 105.92 | 0.9229 | 351.7 | -178.3 | |
| 65.02 | -3.00 | 82.78 | -3.00 | -13.00 | 166.21 | -65.91 | 105.09 | 0.9230 | 623.8 | 999999 | |
| 7.98 | -3.00 | 12.64 | -3.00 | -14.12 | 161.52 | -70.60 | 105.63 | 0.9513 | -647.7 | 999999 | |
| 10.12 | -3.00 | 17.16 | -3.00 | -14.66 | 160.34 | -71.78 | 106.04 | 0.9575 | -282.5 | 999999 | |
| 2.23 | -3.00 | 3.33 | -3.00 | -11.58 | 162.34 | -69.78 | 103.07 | 0.9452 | -443.5 | 999999 | |
| 2.14 | -3.00 | 3.58 | -3.00 | -14.00 | 160.56 | -71.57 | 105.39 | 0.9561 | -455.0 | 999999 | |
| 0.69 | -3.00 | 1.18 | -3.00 | -14.30 | 160.03 | -72.10 | 105.63 | 0.9588 | 5.2 | 999999 | |
| 1.29 | 3.26 | 2.19 | 5.54 | -13.77 | 160.14 | -71.98 | 105.10 | 0.9580 | -353.0 | -247.9 | |
| 0.00 | 0.60 | 0.00 | 0.91 | -10.93 | 161.99 | -70.13 | 102.34 | 0.9467 | -341.0 | -326.7 | |
| 0.00 | 4.89 | 0.00 | 8.81 | -14.39 | 159.23 | -72.90 | 105.63 | 0.9626 | 124.0 | 147.1 | |
| 0.00 | 6.26 | 0.00 | 10.56 | -12.70 | 160.13 | -71.99 | 103.99 | 0.9574 | 160.0 | 134.0 | |
| 0.00 | 3.09 | 0.00 | 5.76 | -14.17 | 158.56 | -73.57 | 105.33 | 0.9655 | -139.0 | -45.0 | |
| 0.00 | 0.26 | 0.00 | 0.45 | -12.97 | 159.43 | -72.70 | 104.19 | 0.9609 | -181.0 | -202.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
