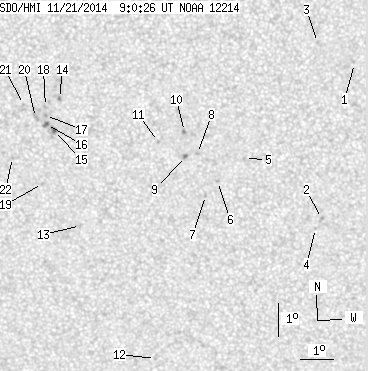

SDO HMI 2014-11-21 09:00:26 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 1.89 | 33.46 | 0.97 | 17.23 | -13.01 | 225.39 | -1.81 | 173.12 | 0.2691 | -331.2 | -300.4 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-11-21 09:00:26 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.60 | 0.00 | 0.31 | -10.39 | 232.22 | 5.02 | 201.72 | 0.2337 | -649.0 | -578.7 | |
| 0.00 | 1.89 | 0.00 | 0.98 | -15.14 | 231.30 | 4.10 | 193.10 | 0.3055 | -984.0 | -635.9 | |
| 0.00 | 1.20 | 0.00 | 0.61 | -9.75 | 231.10 | 3.90 | 198.08 | 0.2169 | -856.0 | -655.1 | |
| 0.00 | 0.86 | 0.00 | 0.45 | -15.45 | 231.12 | 3.92 | 192.33 | 0.3099 | -697.0 | -518.5 | |
| 0.00 | 1.03 | 0.00 | 0.53 | -13.28 | 228.92 | 1.72 | 186.28 | 0.2680 | 733.0 | 535.2 | |
| 0.00 | 1.29 | 0.00 | 0.66 | -13.98 | 228.10 | 0.90 | 183.15 | 0.2787 | 937.0 | 712.7 | |
| 0.00 | 1.12 | 0.00 | 0.58 | -14.41 | 227.74 | 0.53 | 181.82 | 0.2857 | 738.0 | 604.5 | |
| 0.00 | 1.12 | 0.00 | 0.57 | -13.12 | 227.49 | 0.29 | 181.07 | 0.2638 | 815.0 | 668.3 | |
| 0.43 | 2.06 | 0.22 | 1.06 | -13.21 | 227.13 | -0.08 | 179.72 | 0.2653 | 1051.2 | 880.2 | |
| 0.00 | 1.54 | 0.00 | 0.79 | -12.45 | 227.10 | -0.11 | 179.59 | 0.2523 | 1134.0 | 935.9 | |
| 0.00 | 1.20 | 0.00 | 0.62 | -12.75 | 226.31 | -0.89 | 176.60 | 0.2579 | 836.0 | 603.6 | |
| 0.00 | 0.94 | 0.00 | 0.50 | -19.52 | 226.17 | -1.03 | 177.37 | 0.3705 | -761.0 | -600.4 | |
| 0.00 | 1.29 | 0.00 | 0.67 | -15.34 | 223.90 | -3.31 | 169.49 | 0.3062 | -829.0 | -437.2 | |
| 0.00 | 1.63 | 0.00 | 0.83 | -11.44 | 223.32 | -3.88 | 164.17 | 0.2444 | -1048.0 | -942.5 | |
| 0.69 | 2.49 | 0.35 | 1.28 | -12.42 | 223.15 | -4.05 | 164.61 | 0.2611 | -1047.1 | -939.1 | |
| 0.77 | 2.92 | 0.40 | 1.50 | -12.23 | 222.91 | -4.29 | 163.54 | 0.2592 | -1023.9 | -815.2 | |
| 0.00 | 1.37 | 0.00 | 0.70 | -11.96 | 222.89 | -4.32 | 163.13 | 0.2549 | -1054.0 | -839.6 | |
| 0.00 | 1.54 | 0.00 | 0.79 | -11.68 | 222.89 | -4.31 | 162.82 | 0.2504 | -828.0 | -650.7 | |
| 0.00 | 1.37 | 0.00 | 0.71 | -14.04 | 222.76 | -4.45 | 164.86 | 0.2893 | -917.0 | -705.9 | |
| 0.00 | 3.60 | 0.00 | 1.85 | -12.02 | 222.58 | -4.62 | 162.09 | 0.2574 | -778.0 | -709.0 | |
| 0.00 | 0.86 | 0.00 | 0.44 | -11.62 | 222.22 | -4.98 | 160.28 | 0.2530 | -885.0 | -643.9 | |
| 0.00 | 1.54 | 0.00 | 0.80 | -13.25 | 221.86 | -5.35 | 161.07 | 0.2809 | -949.0 | -554.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
