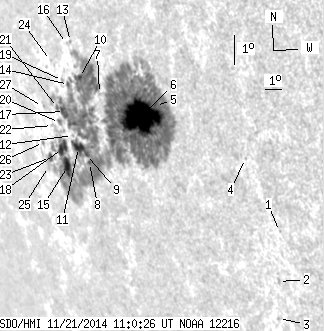

SDO HMI 2014-11-21 11:00:26 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 120.09 | 919.97 | 134.28 | 1029.58 | -13.38 | 163.91 | -62.20 | 106.09 | 0.8965 | 139.5 | -149.0 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-11-21 11:00:26 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.69 | 0.00 | 0.61 | -16.34 | 172.52 | -53.59 | 111.35 | 0.8314 | 553.0 | 534.5 | |
| 0.00 | 1.80 | 0.00 | 1.64 | -17.93 | 171.79 | -54.32 | 112.99 | 0.8417 | 590.0 | 418.6 | |
| 0.00 | 1.03 | 0.00 | 0.96 | -19.11 | 171.22 | -54.89 | 114.18 | 0.8494 | 496.0 | 376.4 | |
| 0.00 | 0.60 | 0.00 | 0.54 | -14.11 | 171.58 | -54.53 | 108.49 | 0.8350 | 320.0 | 307.0 | |
| 0.26 | 898.60 | 0.26 | 1003.80 | -12.62 | 167.09 | -59.02 | 105.80 | 0.8715 | 984.7 | -149.9 | |
| 75.05 | -5.00 | 77.84 | -5.00 | -12.99 | 166.04 | -60.07 | 106.02 | 0.8806 | 641.3 | 999999 | |
| 0.00 | 1.97 | 0.00 | 2.20 | -12.36 | 163.68 | -62.43 | 104.91 | 0.8979 | -114.0 | -130.2 | |
| 1.46 | -5.00 | 1.75 | -5.00 | -14.54 | 161.95 | -64.16 | 107.00 | 0.9127 | -707.5 | 999999 | |
| 1.63 | -5.00 | 1.96 | -5.00 | -14.30 | 161.87 | -64.24 | 106.72 | 0.9130 | -685.9 | 999999 | |
| 2.06 | -5.00 | 2.38 | -5.00 | -11.92 | 162.53 | -63.58 | 104.23 | 0.9058 | -815.1 | 999999 | |
| 7.55 | -5.00 | 9.22 | -5.00 | -14.10 | 161.40 | -64.71 | 106.43 | 0.9160 | -679.3 | 999999 | |
| 0.00 | 0.77 | 0.00 | 0.95 | -13.74 | 161.16 | -64.95 | 106.00 | 0.9172 | -593.0 | -567.3 | |
| 0.00 | 0.51 | 0.00 | 0.60 | -10.83 | 162.36 | -63.75 | 103.01 | 0.9059 | -443.0 | -437.2 | |
| 1.37 | -5.00 | 1.64 | -5.00 | -12.16 | 161.65 | -64.46 | 104.36 | 0.9123 | -681.8 | 999999 | |
| 10.21 | -5.00 | 13.11 | -5.00 | -14.72 | 160.23 | -65.88 | 106.91 | 0.9243 | -375.8 | 999999 | |
| 0.00 | 0.26 | 0.00 | 0.30 | -10.90 | 162.06 | -64.05 | 103.05 | 0.9082 | -226.0 | -265.0 | |
| 6.69 | -5.00 | 8.27 | -5.00 | -13.01 | 160.95 | -65.16 | 105.18 | 0.9178 | -730.8 | 999999 | |
| 10.04 | -5.00 | 12.85 | -5.00 | -14.17 | 160.18 | -65.93 | 106.31 | 0.9241 | -418.9 | 999999 | |
| 0.00 | 1.46 | 0.00 | 1.77 | -12.05 | 161.27 | -64.84 | 104.19 | 0.9148 | -496.0 | -394.0 | |
| 0.00 | 2.57 | 0.00 | 3.25 | -13.36 | 160.40 | -65.71 | 105.48 | 0.9219 | -506.0 | -459.2 | |
| 0.94 | -5.00 | 1.19 | -5.00 | -12.90 | 160.49 | -65.62 | 104.99 | 0.9208 | -272.7 | 999999 | |
| 0.00 | 0.26 | 0.00 | 0.33 | -13.47 | 159.81 | -66.30 | 105.51 | 0.9258 | -251.0 | -261.7 | |
| 2.83 | 5.75 | 3.81 | 7.70 | -14.48 | 159.06 | -67.05 | 106.48 | 0.9314 | -65.8 | -50.3 | |
| 0.00 | 0.43 | 0.00 | 0.53 | -11.46 | 160.67 | -65.44 | 103.46 | 0.9183 | -455.0 | -456.0 | |
| 0.00 | 1.12 | 0.00 | 1.52 | -14.77 | 158.72 | -67.39 | 106.73 | 0.9337 | 289.0 | 272.2 | |
| 0.00 | 1.46 | 0.00 | 1.98 | -14.03 | 158.78 | -67.33 | 105.96 | 0.9327 | -181.0 | -136.3 | |
| 0.00 | 0.69 | 0.00 | 0.90 | -12.91 | 159.35 | -66.76 | 104.84 | 0.9282 | -352.0 | -387.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
