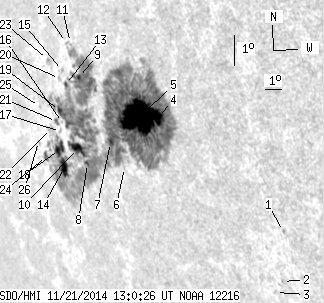

SDO HMI 2014-11-21 13:00:26 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 125.12 | 957.31 | 134.55 | 1034.94 | -13.46 | 163.90 | -61.12 | 106.35 | 0.8884 | 131.8 | -151.7 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-11-21 13:00:26 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.86 | 0.00 | 0.74 | -16.34 | 172.57 | -52.44 | 111.68 | 0.8209 | 565.0 | 488.4 | |
| 0.00 | 1.03 | 0.00 | 0.91 | -17.92 | 171.87 | -53.15 | 113.33 | 0.8313 | 424.0 | 390.0 | |
| 0.00 | 0.26 | 0.00 | 0.23 | -18.28 | 171.34 | -53.68 | 113.59 | 0.8369 | 496.0 | 519.0 | |
| 9.35 | 935.01 | 9.11 | 1008.83 | -12.99 | 167.04 | -57.98 | 106.41 | 0.8633 | 1055.5 | -148.2 | |
| 68.86 | -4.00 | 69.42 | -4.00 | -13.02 | 165.91 | -59.11 | 106.23 | 0.8728 | 610.8 | 999999 | |
| 0.00 | 0.86 | 0.00 | 0.91 | -14.61 | 164.37 | -60.65 | 107.71 | 0.8873 | -248.0 | -221.8 | |
| 3.34 | -4.00 | 3.61 | -4.00 | -13.86 | 163.83 | -61.19 | 106.77 | 0.8904 | -567.2 | 999999 | |
| 1.89 | -4.00 | 2.18 | -4.00 | -14.56 | 161.96 | -63.05 | 107.21 | 0.9050 | -674.2 | 999999 | |
| 1.72 | -4.00 | 1.91 | -4.00 | -11.91 | 162.59 | -62.42 | 104.40 | 0.8973 | -836.5 | 999999 | |
| 12.26 | -4.00 | 14.34 | -4.00 | -14.12 | 161.51 | -63.51 | 106.64 | 0.9077 | -678.2 | 999999 | |
| 0.00 | 0.34 | 0.00 | 0.38 | -10.85 | 162.48 | -62.53 | 103.21 | 0.8970 | -493.0 | -527.2 | |
| 0.00 | 1.37 | 0.00 | 1.54 | -10.85 | 162.21 | -62.80 | 103.18 | 0.8990 | -393.0 | -349.7 | |
| 1.46 | -4.00 | 1.68 | -4.00 | -12.15 | 161.62 | -63.40 | 104.52 | 0.9048 | -642.9 | 999999 | |
| 10.55 | -4.00 | 12.99 | -4.00 | -14.74 | 160.25 | -64.77 | 107.11 | 0.9171 | -400.5 | 999999 | |
| 0.00 | 1.20 | 0.00 | 1.38 | -11.73 | 161.59 | -63.42 | 104.05 | 0.9045 | -454.0 | -426.8 | |
| 0.00 | 2.06 | 0.00 | 2.46 | -13.34 | 160.85 | -64.16 | 105.69 | 0.9114 | -576.0 | -578.2 | |
| 0.00 | 1.37 | 0.00 | 1.66 | -13.63 | 160.57 | -64.45 | 105.96 | 0.9137 | -601.0 | -547.0 | |
| 8.92 | -4.00 | 10.95 | -4.00 | -14.19 | 160.19 | -64.82 | 106.51 | 0.9168 | -465.2 | 999999 | |
| 2.49 | -4.00 | 2.96 | -4.00 | -12.97 | 160.82 | -64.19 | 105.29 | 0.9113 | -657.9 | 999999 | |
| 0.00 | 1.72 | 0.00 | 2.00 | -11.98 | 161.28 | -63.74 | 104.28 | 0.9070 | -447.0 | -369.2 | |
| 1.54 | 2.74 | 1.87 | 3.32 | -13.32 | 160.43 | -64.58 | 105.61 | 0.9143 | -509.9 | -462.5 | |
| 0.00 | 5.49 | 0.00 | 6.80 | -13.56 | 159.88 | -65.14 | 105.77 | 0.9183 | -184.0 | -201.6 | |
| 0.00 | 0.77 | 0.00 | 0.92 | -11.42 | 160.68 | -64.33 | 103.58 | 0.9107 | -479.0 | -393.9 | |
| 2.74 | -4.00 | 3.53 | -4.00 | -14.44 | 159.09 | -65.93 | 106.60 | 0.9243 | -106.9 | 999999 | |
| 0.00 | 0.69 | 0.00 | 0.86 | -12.90 | 159.41 | -65.61 | 104.99 | 0.9207 | -399.0 | -375.1 | |
| 0.00 | 1.54 | 0.00 | 2.00 | -13.99 | 158.74 | -66.28 | 106.07 | 0.9261 | -158.0 | -144.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
