SDO HMI 2014-11-21 16:00:26 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 29.73 | 0.00 | 15.25 | -12.30 | 225.64 | 2.28 | 188.57 | 0.2574 | -49.2 | -175.4 | |
|
previous
or next observation for the same group /

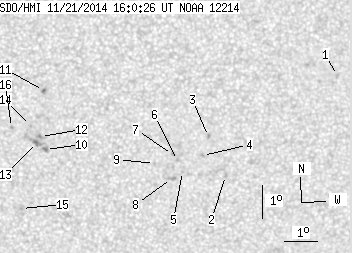

back to the solar disc SDO HMI 2014-11-21 16:00:26 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 2.23 | 0.00 | 1.14 | -10.21 | 232.14 | 8.77 | 215.23 | 0.2614 | -860.0 | -596.8 | |
| 0.00 | 1.71 | 0.00 | 0.88 | -13.24 | 228.80 | 5.43 | 199.24 | 0.2810 | 674.0 | 604.0 | |
| 0.00 | 1.71 | 0.00 | 0.88 | -12.05 | 228.26 | 4.89 | 198.87 | 0.2590 | 914.0 | 662.9 | |
| 0.00 | 1.63 | 0.00 | 0.84 | -12.63 | 228.08 | 4.72 | 197.56 | 0.2674 | 960.0 | 691.5 | |
| 0.00 | 0.94 | 0.00 | 0.49 | -13.11 | 227.48 | 4.12 | 194.95 | 0.2724 | 769.0 | 620.2 | |
| 0.00 | 1.03 | 0.00 | 0.53 | -12.78 | 227.33 | 3.96 | 194.73 | 0.2663 | 913.0 | 746.0 | |
| 0.00 | 1.11 | 0.00 | 0.57 | -12.59 | 227.17 | 3.81 | 194.35 | 0.2626 | 1119.0 | 957.0 | |
| 0.00 | 3.00 | 0.00 | 1.55 | -13.33 | 227.15 | 3.79 | 193.60 | 0.2746 | 848.0 | 755.0 | |
| 0.00 | 1.20 | 0.00 | 0.62 | -12.87 | 226.63 | 3.26 | 192.14 | 0.2650 | 836.0 | 608.1 | |
| 0.00 | 2.23 | 0.00 | 1.14 | -12.43 | 223.32 | -0.05 | 179.81 | 0.2517 | -951.0 | -806.0 | |
| 0.00 | 1.54 | 0.00 | 0.78 | -10.63 | 223.26 | -0.11 | 179.53 | 0.2211 | -1174.0 | -931.8 | |
| 0.00 | 2.49 | 0.00 | 1.27 | -12.03 | 223.17 | -0.20 | 179.20 | 0.2450 | -1042.0 | -839.5 | |
| 0.00 | 6.17 | 0.00 | 3.16 | -12.22 | 223.04 | -0.32 | 178.73 | 0.2481 | -1169.0 | -870.8 | |
| 0.00 | 0.94 | 0.00 | 0.48 | -11.70 | 222.86 | -0.50 | 177.95 | 0.2394 | -833.0 | -678.3 | |
| 0.00 | 1.03 | 0.00 | 0.53 | -14.24 | 222.58 | -0.78 | 177.30 | 0.2826 | -840.0 | -681.9 | |
| 0.00 | 0.77 | 0.00 | 0.39 | -11.76 | 222.29 | -1.07 | 175.61 | 0.2410 | -951.0 | -813.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
