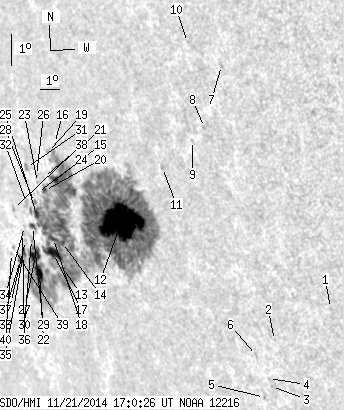

SDO HMI 2014-11-21 17:00:26 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 141.45 | 1019.95 | 142.76 | 1027.94 | -13.34 | 163.92 | -58.90 | 106.65 | 0.8706 | 174.0 | -154.8 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-11-21 17:00:26 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.29 | 0.00 | 0.99 | -15.38 | 175.65 | -47.17 | 112.22 | 0.7661 | 184.0 | 180.2 | |
| 0.00 | 0.60 | 0.00 | 0.49 | -16.46 | 172.67 | -50.14 | 112.53 | 0.7993 | 595.0 | 513.1 | |
| 0.00 | 0.94 | 0.00 | 0.79 | -17.92 | 171.97 | -50.85 | 114.05 | 0.8102 | 481.0 | 337.3 | |
| 0.00 | 0.51 | 0.00 | 0.43 | -17.67 | 171.92 | -50.90 | 113.74 | 0.8100 | 401.0 | 457.0 | |
| 0.00 | 1.11 | 0.00 | 0.95 | -18.28 | 171.47 | -51.34 | 114.31 | 0.8159 | 417.0 | 371.4 | |
| 0.00 | 1.80 | 0.00 | 1.52 | -16.96 | 171.60 | -51.21 | 112.79 | 0.8110 | 367.0 | 336.8 | |
| 0.00 | 2.14 | 0.00 | 1.70 | -8.07 | 172.37 | -50.44 | 102.06 | 0.7829 | 192.0 | 188.0 | |
| 0.00 | 1.46 | 0.00 | 1.19 | -9.97 | 171.17 | -51.64 | 104.18 | 0.7988 | 228.0 | 339.4 | |
| 0.00 | 1.03 | 0.00 | 0.86 | -10.38 | 170.49 | -52.33 | 104.54 | 0.8066 | 212.0 | 255.4 | |
| 0.00 | 1.37 | 0.00 | 1.12 | -7.42 | 170.85 | -51.96 | 100.95 | 0.7978 | 248.0 | 180.0 | |
| 0.00 | 1.29 | 0.00 | 1.12 | -11.25 | 168.74 | -54.07 | 105.21 | 0.8252 | 332.0 | 318.7 | |
| 85.55 | 973.93 | 80.82 | 980.05 | -12.98 | 165.99 | -56.83 | 106.65 | 0.8534 | 832.0 | -157.8 | |
| 1.37 | -12.00 | 1.47 | -12.00 | -14.56 | 161.89 | -60.92 | 107.59 | 0.8894 | -742.7 | 999999 | |
| 1.89 | -12.00 | 2.00 | -12.00 | -13.75 | 162.20 | -60.62 | 106.75 | 0.8859 | -759.3 | 999999 | |
| 3.17 | -12.00 | 3.29 | -12.00 | -11.81 | 162.55 | -60.26 | 104.65 | 0.8805 | -810.1 | 999999 | |
| 0.00 | 0.26 | 0.00 | 0.26 | -10.70 | 162.88 | -59.94 | 103.46 | 0.8764 | -438.0 | -401.7 | |
| 12.26 | -12.00 | 13.33 | -12.00 | -14.11 | 161.46 | -61.35 | 107.02 | 0.8920 | -729.7 | 999999 | |
| 4.03 | -12.00 | 4.34 | -12.00 | -13.64 | 161.67 | -61.14 | 106.54 | 0.8897 | -747.7 | 999999 | |
| 0.00 | 0.77 | 0.00 | 0.80 | -10.99 | 162.35 | -60.46 | 103.70 | 0.8810 | -494.0 | -456.1 | |
| 1.97 | -12.00 | 2.10 | -12.00 | -12.17 | 161.72 | -61.09 | 104.91 | 0.8874 | -761.1 | 999999 | |
| 0.00 | 0.94 | 0.00 | 1.00 | -11.77 | 161.82 | -61.00 | 104.48 | 0.8862 | -334.0 | -346.9 | |
| 10.80 | -12.00 | 12.30 | -12.00 | -14.77 | 160.22 | -62.60 | 107.51 | 0.9020 | -436.1 | 999999 | |
| 0.00 | 1.20 | 0.00 | 1.29 | -11.94 | 161.37 | -61.44 | 104.59 | 0.8899 | -460.0 | -410.8 | |
| 0.00 | 0.69 | 0.00 | 0.74 | -12.25 | 161.25 | -61.57 | 104.91 | 0.8912 | -396.0 | -386.8 | |
| 3.69 | -12.00 | 4.05 | -12.00 | -12.90 | 160.91 | -61.91 | 105.58 | 0.8946 | -740.8 | 999999 | |
| 0.00 | 1.71 | 0.00 | 1.84 | -11.72 | 161.39 | -61.42 | 104.36 | 0.8895 | -394.0 | -356.7 | |
| 9.00 | -12.00 | 10.20 | -12.00 | -14.21 | 160.23 | -62.58 | 106.90 | 0.9012 | -535.2 | 999999 | |
| 0.94 | 2.40 | 1.03 | 2.63 | -12.56 | 160.92 | -61.89 | 105.21 | 0.8941 | -520.8 | -442.7 | |
| 1.80 | -12.00 | 2.01 | -12.00 | -13.31 | 160.46 | -62.35 | 105.96 | 0.8984 | -541.2 | 999999 | |
| 0.00 | 1.37 | 0.00 | 1.55 | -13.72 | 160.20 | -62.61 | 106.36 | 0.9008 | -563.0 | -406.8 | |
| 0.00 | 2.57 | 0.00 | 2.81 | -11.50 | 160.83 | -61.98 | 104.01 | 0.8935 | -494.0 | -401.2 | |
| 0.00 | 3.77 | 0.00 | 4.21 | -12.58 | 160.39 | -62.42 | 105.14 | 0.8981 | 147.0 | 136.2 | |
| 0.00 | 1.11 | 0.00 | 1.28 | -13.76 | 159.78 | -63.04 | 106.34 | 0.9040 | -393.0 | -364.2 | |
| 0.00 | 0.43 | 0.00 | 0.49 | -13.33 | 159.92 | -62.90 | 105.88 | 0.9024 | -354.0 | -302.8 | |
| 2.49 | 10.29 | 2.89 | 12.04 | -14.14 | 159.45 | -63.36 | 106.70 | 0.9067 | -175.7 | -124.0 | |
| 0.00 | 1.80 | 0.00 | 2.07 | -13.55 | 159.67 | -63.14 | 106.09 | 0.9044 | -293.0 | -301.9 | |
| 2.49 | -35.00 | 2.93 | -35.00 | -14.37 | 159.12 | -63.69 | 106.89 | 0.9093 | -176.1 | 999999 | |
| 0.00 | 1.71 | 0.00 | 1.98 | -12.80 | 159.42 | -63.40 | 105.22 | 0.9054 | -369.0 | -339.4 | |
| 0.00 | 1.03 | 0.00 | 1.22 | -14.01 | 158.82 | -63.99 | 106.44 | 0.9110 | -240.0 | -198.6 | |
| 0.00 | 0.43 | 0.00 | 0.52 | -14.20 | 158.58 | -64.23 | 106.61 | 0.9128 | -138.0 | -87.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
