SDO HMI 2014-11-21 18:00:26 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.69 | 38.65 | 0.35 | 19.87 | -12.57 | 225.40 | 3.14 | 191.49 | 0.2645 | -233.5 | -315.1 | |
|
previous
or next observation for the same group /

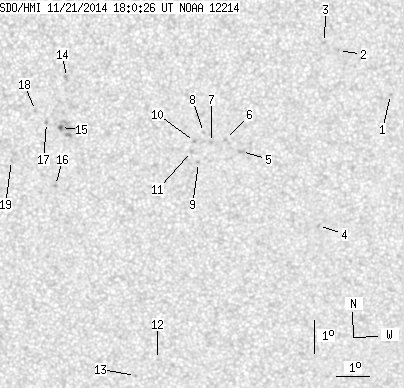

back to the solar disc SDO HMI 2014-11-21 18:00:26 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.86 | 0.00 | 0.44 | -11.26 | 233.11 | 10.86 | 218.75 | 0.2964 | -776.0 | -685.9 | |
| 0.00 | 0.94 | 0.00 | 0.48 | -9.92 | 231.48 | 9.22 | 217.28 | 0.2618 | -925.0 | -720.0 | |
| 0.00 | 1.37 | 0.00 | 0.70 | -9.67 | 231.05 | 8.79 | 216.55 | 0.2541 | -842.0 | -633.4 | |
| 0.00 | 1.11 | 0.00 | 0.59 | -15.27 | 231.05 | 8.79 | 206.34 | 0.3337 | -834.0 | -716.6 | |
| 0.00 | 3.17 | 0.00 | 1.64 | -12.97 | 228.60 | 6.34 | 202.54 | 0.2822 | 801.0 | 675.6 | |
| 0.00 | 1.03 | 0.00 | 0.53 | -12.60 | 228.11 | 5.85 | 201.44 | 0.2733 | 919.0 | 740.5 | |
| 0.00 | 0.94 | 0.00 | 0.49 | -12.69 | 227.68 | 5.42 | 199.89 | 0.2722 | 805.0 | 657.0 | |
| 0.00 | 1.11 | 0.00 | 0.57 | -12.39 | 227.43 | 5.17 | 199.43 | 0.2659 | 876.0 | 709.3 | |
| 0.00 | 1.20 | 0.00 | 0.62 | -13.30 | 227.30 | 5.04 | 197.87 | 0.2798 | 991.0 | 821.4 | |
| 0.00 | 1.20 | 0.00 | 0.62 | -12.66 | 227.16 | 4.90 | 198.16 | 0.2688 | 1079.0 | 834.1 | |
| 0.00 | 2.40 | 0.00 | 1.24 | -12.97 | 227.08 | 4.82 | 197.51 | 0.2733 | 896.0 | 673.2 | |
| 0.00 | 0.60 | 0.00 | 0.32 | -19.45 | 226.16 | 3.90 | 189.92 | 0.3741 | -678.0 | -594.4 | |
| 0.00 | 0.86 | 0.00 | 0.46 | -19.96 | 225.48 | 3.22 | 188.01 | 0.3805 | -901.0 | -751.9 | |
| 0.00 | 3.09 | 0.00 | 1.57 | -10.70 | 223.27 | 1.01 | 184.48 | 0.2228 | -978.0 | -786.3 | |
| 0.69 | 13.80 | 0.35 | 7.06 | -12.22 | 223.09 | 0.83 | 183.29 | 0.2485 | -1126.4 | -774.7 | |
| 0.00 | 1.46 | 0.00 | 0.75 | -14.00 | 222.94 | 0.68 | 182.39 | 0.2784 | -894.0 | -659.9 | |
| 0.00 | 1.37 | 0.00 | 0.70 | -12.07 | 222.67 | 0.41 | 181.63 | 0.2456 | -958.0 | -762.2 | |
| 0.00 | 1.20 | 0.00 | 0.61 | -11.70 | 222.34 | 0.08 | 180.31 | 0.2392 | -820.0 | -678.3 | |
| 0.00 | 0.94 | 0.00 | 0.48 | -13.23 | 221.60 | -0.66 | 177.58 | 0.2654 | -759.0 | -621.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
