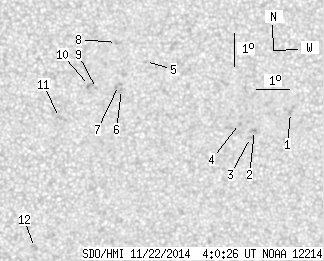

SDO HMI 2014-11-22 04:00:26 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 22.03 | 0.00 | 11.42 | -13.08 | 224.05 | 7.30 | 205.32 | 0.2924 | -254.7 | -272.9 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-11-22 04:00:26 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 2.14 | 0.00 | 1.12 | -12.84 | 228.72 | 11.98 | 218.37 | 0.3274 | 774.0 | 634.6 | |
| 0.00 | 1.54 | 0.00 | 0.81 | -13.38 | 227.63 | 10.88 | 214.75 | 0.3237 | 929.0 | 806.7 | |
| 0.00 | 1.63 | 0.00 | 0.85 | -13.59 | 227.52 | 10.77 | 214.08 | 0.3255 | 780.0 | 603.7 | |
| 0.00 | 1.03 | 0.00 | 0.54 | -13.16 | 227.16 | 10.41 | 213.97 | 0.3163 | 854.0 | 756.4 | |
| 0.00 | 1.03 | 0.00 | 0.53 | -11.25 | 224.21 | 7.46 | 209.08 | 0.2633 | -637.0 | -532.2 | |
| 0.00 | 0.77 | 0.00 | 0.40 | -12.10 | 223.50 | 6.75 | 205.28 | 0.2705 | -818.0 | -650.6 | |
| 0.00 | 3.34 | 0.00 | 1.72 | -11.97 | 223.41 | 6.66 | 205.17 | 0.2680 | -654.0 | -707.2 | |
| 0.00 | 1.20 | 0.00 | 0.61 | -10.66 | 223.32 | 6.57 | 207.15 | 0.2475 | -892.0 | -731.5 | |
| 0.00 | 1.03 | 0.00 | 0.53 | -12.06 | 222.74 | 5.99 | 202.79 | 0.2647 | -937.0 | -681.2 | |
| 0.00 | 2.66 | 0.00 | 1.36 | -11.97 | 222.52 | 5.78 | 202.19 | 0.2619 | -925.0 | -813.5 | |
| 0.00 | 2.49 | 0.00 | 1.28 | -12.94 | 221.63 | 4.88 | 197.82 | 0.2722 | -829.0 | -564.8 | |
| 0.00 | 3.17 | 0.00 | 1.67 | -16.97 | 220.94 | 4.19 | 192.14 | 0.3340 | -701.0 | -603.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
