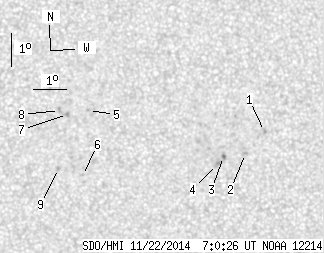

SDO HMI 2014-11-22 07:00:26 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.34 | 16.02 | 0.18 | 8.37 | -13.01 | 225.39 | 10.28 | 213.39 | 0.3143 | -137.7 | -65.2 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-11-22 07:00:26 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.54 | 0.00 | 0.81 | -12.69 | 228.88 | 13.77 | 222.61 | 0.3446 | 644.0 | 600.9 | |
| 0.00 | 1.97 | 0.00 | 1.04 | -13.36 | 228.33 | 13.21 | 220.13 | 0.3466 | 772.0 | 528.7 | |
| 0.34 | 1.63 | 0.18 | 0.86 | -13.45 | 227.64 | 12.53 | 218.49 | 0.3406 | 984.5 | 782.8 | |
| 0.00 | 2.74 | 0.00 | 1.45 | -13.69 | 227.47 | 12.36 | 217.65 | 0.3419 | 632.0 | 633.7 | |
| 0.00 | 0.94 | 0.00 | 0.49 | -12.01 | 223.42 | 8.31 | 210.33 | 0.2811 | -1084.0 | -838.0 | |
| 0.00 | 1.11 | 0.00 | 0.58 | -14.00 | 223.30 | 8.19 | 206.67 | 0.3092 | -766.0 | -613.2 | |
| 0.00 | 2.32 | 0.00 | 1.19 | -12.13 | 222.78 | 7.67 | 208.17 | 0.2775 | -876.0 | -736.7 | |
| 0.00 | 2.23 | 0.00 | 1.15 | -12.00 | 222.53 | 7.42 | 207.61 | 0.2738 | -903.0 | -778.2 | |
| 0.00 | 1.54 | 0.00 | 0.80 | -13.78 | 222.55 | 7.44 | 204.86 | 0.3005 | -845.0 | -603.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
