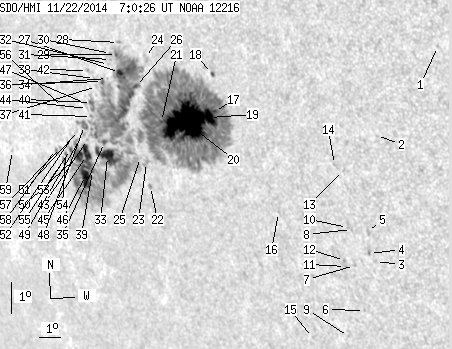

SDO HMI 2014-11-22 07:00:26 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 182.79 | 1186.51 | 152.01 | 981.48 | -13.51 | 163.65 | -51.46 | 108.53 | 0.8034 | 177.7 | -106.1 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-11-22 07:00:26 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.86 | 0.00 | 0.56 | -10.46 | 176.85 | -38.27 | 108.88 | 0.6460 | 671.0 | 551.7 | |
| 0.00 | 0.86 | 0.00 | 0.59 | -13.24 | 173.95 | -41.17 | 111.64 | 0.6917 | 547.0 | 493.9 | |
| 0.00 | 1.11 | 0.00 | 0.79 | -17.16 | 172.94 | -42.17 | 116.48 | 0.7190 | 646.0 | 522.5 | |
| 0.00 | 1.63 | 0.00 | 1.16 | -16.92 | 172.76 | -42.35 | 116.07 | 0.7199 | 583.0 | 507.3 | |
| 0.00 | 2.40 | 0.00 | 1.70 | -16.23 | 172.86 | -42.25 | 115.21 | 0.7159 | 685.0 | 526.5 | |
| 0.00 | 0.86 | 0.00 | 0.62 | -18.73 | 172.00 | -43.11 | 118.05 | 0.7357 | 647.0 | 549.1 | |
| 0.00 | 0.94 | 0.00 | 0.68 | -17.31 | 172.01 | -43.10 | 116.24 | 0.7296 | 667.0 | 578.0 | |
| 0.00 | 0.86 | 0.00 | 0.61 | -16.18 | 172.20 | -42.91 | 114.86 | 0.7230 | 457.0 | 379.9 | |
| 0.00 | 0.94 | 0.00 | 0.70 | -19.58 | 171.02 | -44.09 | 118.66 | 0.7494 | 576.0 | 417.7 | |
| 0.00 | 1.03 | 0.00 | 0.74 | -16.12 | 172.05 | -43.06 | 114.71 | 0.7244 | 630.0 | 541.2 | |
| 0.00 | 0.86 | 0.00 | 0.62 | -17.35 | 171.61 | -43.50 | 116.12 | 0.7341 | 569.0 | 464.4 | |
| 0.00 | 1.37 | 0.00 | 1.00 | -17.16 | 171.63 | -43.48 | 115.88 | 0.7332 | 598.0 | 489.1 | |
| 0.00 | 1.03 | 0.00 | 0.73 | -14.35 | 172.34 | -42.77 | 112.49 | 0.7144 | 679.0 | 567.1 | |
| 0.00 | 1.20 | 0.00 | 0.85 | -14.17 | 172.00 | -43.11 | 112.12 | 0.7176 | 550.0 | 478.9 | |
| 0.00 | 0.43 | 0.00 | 0.33 | -19.65 | 169.39 | -45.72 | 118.02 | 0.7661 | 414.0 | 379.8 | |
| 0.00 | 0.94 | 0.00 | 0.71 | -15.73 | 169.17 | -45.94 | 113.04 | 0.7540 | 464.0 | 398.0 | |
| 1.03 | 1119.97 | 0.79 | 926.26 | -12.67 | 167.13 | -47.98 | 108.45 | 0.7664 | 1312.6 | -99.4 | |
| 0.86 | 2.66 | 0.65 | 2.02 | -11.50 | 167.32 | -47.79 | 107.02 | 0.7614 | 642.1 | 413.2 | |
| 10.38 | -17.00 | 8.02 | -17.00 | -12.86 | 166.85 | -48.26 | 108.61 | 0.7699 | 1220.6 | 999999 | |
| 92.89 | -17.00 | 73.55 | -17.00 | -13.04 | 165.69 | -49.42 | 108.50 | 0.7825 | 987.3 | 999999 | |
| 0.26 | -17.00 | 0.21 | -17.00 | -13.04 | 164.55 | -50.56 | 108.18 | 0.7942 | -37.7 | 999999 | |
| 0.00 | 1.72 | 0.00 | 1.44 | -15.08 | 163.37 | -51.74 | 110.31 | 0.8107 | -822.0 | -712.7 | |
| 0.00 | 5.32 | 0.00 | 4.45 | -14.33 | 163.42 | -51.69 | 109.44 | 0.8084 | -516.0 | -508.6 | |
| 0.00 | 3.69 | 0.00 | 2.98 | -11.10 | 164.30 | -50.81 | 105.71 | 0.7924 | -327.0 | -342.1 | |
| 0.00 | 1.20 | 0.00 | 1.01 | -14.19 | 163.17 | -51.94 | 109.19 | 0.8105 | -634.0 | -511.6 | |
| 2.06 | -17.00 | 1.70 | -17.00 | -12.00 | 163.58 | -51.53 | 106.64 | 0.8016 | 16.2 | 999999 | |
| 2.92 | -17.00 | 2.44 | -17.00 | -11.59 | 162.90 | -52.21 | 105.98 | 0.8075 | -1023.4 | 999999 | |
| 0.00 | 1.63 | 0.00 | 1.35 | -10.68 | 163.09 | -52.02 | 104.90 | 0.8038 | -666.0 | -553.5 | |
| 0.77 | -17.00 | 0.64 | -17.00 | -11.04 | 162.90 | -52.22 | 105.31 | 0.8065 | -672.9 | 999999 | |
| 0.00 | 1.63 | 0.00 | 1.37 | -11.02 | 162.60 | -52.51 | 105.21 | 0.8093 | -618.0 | -557.2 | |
| 0.00 | 0.69 | 0.00 | 0.58 | -11.21 | 162.56 | -52.56 | 105.43 | 0.8102 | -667.0 | -659.4 | |
| 0.00 | 1.11 | 0.00 | 0.94 | -11.36 | 162.41 | -52.70 | 105.58 | 0.8119 | -538.0 | -497.5 | |
| 20.67 | -17.00 | 18.07 | -17.00 | -14.20 | 161.49 | -53.62 | 108.76 | 0.8265 | -777.3 | 999999 | |
| 0.00 | 0.60 | 0.00 | 0.51 | -11.79 | 162.25 | -52.87 | 106.07 | 0.8143 | -638.0 | -593.7 | |
| 1.72 | -17.00 | 1.50 | -17.00 | -13.77 | 161.48 | -53.63 | 108.25 | 0.8257 | -841.5 | 999999 | |
| 1.29 | -17.00 | 1.10 | -17.00 | -11.89 | 161.96 | -53.15 | 106.12 | 0.8173 | -874.5 | 999999 | |
| 0.00 | 1.37 | 0.00 | 1.18 | -12.05 | 161.61 | -53.50 | 106.23 | 0.8210 | -651.0 | -609.3 | |
| 0.00 | 0.94 | 0.00 | 0.81 | -11.81 | 161.58 | -53.53 | 105.94 | 0.8208 | -555.0 | -514.2 | |
| 1.63 | -17.00 | 1.46 | -17.00 | -14.66 | 160.54 | -54.57 | 109.06 | 0.8362 | -695.8 | 999999 | |
| 1.54 | -17.00 | 1.35 | -17.00 | -12.55 | 161.20 | -53.91 | 106.74 | 0.8258 | -779.1 | 999999 | |
| 0.00 | 1.29 | 0.00 | 1.13 | -12.99 | 161.07 | -54.05 | 107.22 | 0.8280 | -830.0 | -744.1 | |
| 0.00 | 1.37 | 0.00 | 1.19 | -11.58 | 161.29 | -53.82 | 105.59 | 0.8232 | -609.0 | -520.9 | |
| 0.00 | 0.86 | 0.00 | 0.76 | -13.70 | 160.62 | -54.50 | 107.96 | 0.8336 | -673.0 | -661.7 | |
| 0.00 | 1.29 | 0.00 | 1.13 | -12.75 | 160.93 | -54.18 | 106.90 | 0.8287 | -533.0 | -510.5 | |
| 12.44 | -17.00 | 11.17 | -17.00 | -14.20 | 160.39 | -54.73 | 108.49 | 0.8367 | -775.1 | 999999 | |
| 18.35 | -17.00 | 16.67 | -17.00 | -14.83 | 160.10 | -55.01 | 109.15 | 0.8405 | -565.3 | 999999 | |
| 0.00 | 1.03 | 0.00 | 0.91 | -12.59 | 160.88 | -54.23 | 106.71 | 0.8290 | -492.0 | -394.0 | |
| 3.09 | 6.95 | 2.75 | 6.19 | -13.28 | 160.60 | -54.51 | 107.45 | 0.8328 | -678.4 | -530.8 | |
| 0.00 | 2.74 | 0.00 | 2.46 | -13.56 | 160.40 | -54.71 | 107.73 | 0.8352 | -728.0 | -613.1 | |
| 8.41 | -17.00 | 7.64 | -17.00 | -14.22 | 159.95 | -55.16 | 108.40 | 0.8406 | -540.8 | 999999 | |
| 0.00 | 0.43 | 0.00 | 0.39 | -13.44 | 160.23 | -54.88 | 107.56 | 0.8366 | -317.0 | -366.8 | |
| 0.00 | 0.94 | 0.00 | 0.86 | -13.64 | 159.84 | -55.27 | 107.69 | 0.8405 | -368.0 | -315.9 | |
| 0.94 | -17.00 | 0.86 | -17.00 | -14.04 | 159.58 | -55.53 | 108.11 | 0.8436 | -366.4 | 999999 | |
| 0.34 | 1.54 | 0.32 | 1.43 | -14.17 | 159.26 | -55.85 | 108.19 | 0.8467 | -230.0 | -233.9 | |
| 0.86 | 2.23 | 0.80 | 2.08 | -14.40 | 159.07 | -56.04 | 108.40 | 0.8488 | -212.5 | -114.7 | |
| 0.00 | 1.11 | 0.00 | 1.01 | -12.75 | 159.60 | -55.51 | 106.61 | 0.8410 | -479.0 | -391.3 | |
| 0.00 | 1.20 | 0.00 | 1.12 | -14.00 | 159.05 | -56.06 | 107.93 | 0.8482 | -384.0 | -292.9 | |
| 0.34 | 2.57 | 0.32 | 2.41 | -14.07 | 158.75 | -56.36 | 107.95 | 0.8510 | -287.5 | -235.0 | |
| 0.00 | 1.11 | 0.00 | 1.12 | -14.17 | 156.24 | -58.87 | 107.52 | 0.8724 | -368.0 | -309.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
