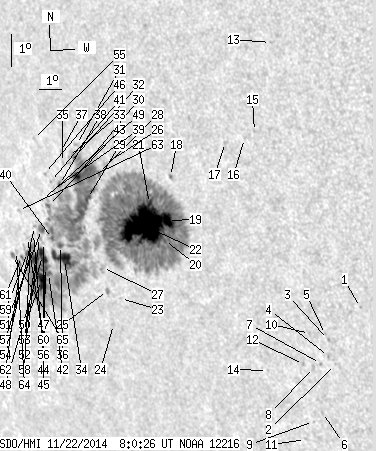

SDO HMI 2014-11-22 08:00:26 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 191.25 | 1211.41 | 156.10 | 991.52 | -13.48 | 163.54 | -51.02 | 108.60 | 0.7990 | 237.4 | -136.2 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-11-22 08:00:26 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.86 | 0.00 | 0.58 | -15.34 | 174.47 | -40.09 | 115.02 | 0.6878 | 633.0 | 552.0 | |
| 0.00 | 0.94 | 0.00 | 0.66 | -17.15 | 172.99 | -41.58 | 116.74 | 0.7124 | 594.0 | 537.1 | |
| 0.00 | 1.20 | 0.00 | 0.84 | -16.37 | 172.91 | -41.66 | 115.67 | 0.7099 | 743.0 | 659.0 | |
| 0.00 | 1.03 | 0.00 | 0.73 | -16.91 | 172.76 | -41.80 | 116.31 | 0.7138 | 742.0 | 660.0 | |
| 0.00 | 0.69 | 0.00 | 0.48 | -16.22 | 172.82 | -41.74 | 115.43 | 0.7102 | 542.0 | 476.0 | |
| 0.00 | 1.46 | 0.00 | 1.05 | -18.68 | 171.99 | -42.58 | 118.24 | 0.7299 | 614.0 | 491.4 | |
| 0.00 | 1.03 | 0.00 | 0.73 | -17.13 | 172.36 | -42.20 | 116.42 | 0.7191 | 627.0 | 491.7 | |
| 0.00 | 2.23 | 0.00 | 1.59 | -17.27 | 172.03 | -42.53 | 116.44 | 0.7233 | 652.0 | 580.4 | |
| 0.00 | 0.69 | 0.00 | 0.50 | -18.98 | 171.51 | -43.06 | 118.39 | 0.7363 | 521.0 | 463.0 | |
| 0.00 | 0.51 | 0.00 | 0.36 | -16.20 | 172.16 | -42.41 | 115.10 | 0.7175 | 544.0 | 408.3 | |
| 0.00 | 0.34 | 0.00 | 0.25 | -19.56 | 170.97 | -43.60 | 118.87 | 0.7444 | 507.0 | 440.5 | |
| 0.00 | 1.11 | 0.00 | 0.80 | -17.18 | 171.63 | -42.93 | 116.15 | 0.7273 | 601.0 | 489.0 | |
| 0.00 | 0.94 | 0.00 | 0.64 | -7.32 | 172.27 | -42.30 | 102.89 | 0.6871 | 444.0 | 310.1 | |
| 0.00 | 0.69 | 0.00 | 0.51 | -17.41 | 170.01 | -44.55 | 115.73 | 0.7454 | 476.0 | 426.1 | |
| 0.00 | 0.77 | 0.00 | 0.54 | -10.03 | 171.22 | -43.34 | 106.39 | 0.7069 | 695.0 | 605.2 | |
| 0.00 | 0.86 | 0.00 | 0.60 | -10.25 | 170.77 | -43.80 | 106.56 | 0.7129 | 563.0 | 379.8 | |
| 0.00 | 2.06 | 0.00 | 1.47 | -10.39 | 169.94 | -44.63 | 106.49 | 0.7229 | 434.0 | 270.2 | |
| 0.43 | 1.11 | 0.32 | 0.84 | -11.49 | 167.32 | -47.24 | 107.16 | 0.7554 | 651.6 | 657.2 | |
| 11.92 | 622.06 | 9.11 | 488.20 | -12.85 | 166.86 | -47.70 | 108.76 | 0.7639 | 1226.5 | 143.7 | |
| 1.54 | -19.00 | 1.19 | -19.00 | -13.47 | 166.56 | -48.00 | 109.45 | 0.7688 | 763.4 | 999999 | |
| 3.09 | -19.00 | 2.39 | -19.00 | -12.34 | 166.17 | -48.40 | 107.91 | 0.7700 | 1036.0 | 999999 | |
| 101.80 | -19.00 | 79.70 | -19.00 | -13.03 | 165.71 | -48.85 | 108.64 | 0.7766 | 955.4 | 999999 | |
| 0.00 | 0.94 | 0.00 | 0.78 | -15.33 | 163.93 | -50.64 | 110.94 | 0.8007 | 264.0 | 237.7 | |
| 0.00 | 2.14 | 0.00 | 1.80 | -16.15 | 163.29 | -51.27 | 111.74 | 0.8090 | -147.0 | -211.1 | |
| 0.00 | 2.57 | 0.00 | 2.14 | -15.09 | 163.37 | -51.20 | 110.49 | 0.8055 | -814.0 | -652.5 | |
| 0.00 | 3.17 | 0.00 | 2.53 | -11.17 | 164.40 | -50.16 | 105.96 | 0.7858 | -163.0 | -198.9 | |
| 0.00 | 4.29 | 0.00 | 3.55 | -14.38 | 163.36 | -51.21 | 109.63 | 0.8038 | -480.0 | -478.6 | |
| 1.11 | 524.71 | 0.90 | 450.34 | -11.49 | 163.99 | -50.57 | 106.25 | 0.7907 | 159.6 | -414.7 | |
| 2.74 | -28.00 | 2.25 | -28.00 | -12.27 | 163.26 | -51.31 | 107.02 | 0.7999 | 6.6 | 999999 | |
| 3.95 | -28.00 | 3.25 | -28.00 | -11.58 | 162.90 | -51.66 | 106.09 | 0.8020 | -992.0 | 999999 | |
| 0.00 | 1.80 | 0.00 | 1.47 | -10.63 | 163.14 | -51.42 | 104.98 | 0.7976 | -607.0 | -510.2 | |
| 0.00 | 1.37 | 0.00 | 1.14 | -11.19 | 162.66 | -51.90 | 105.55 | 0.8036 | -743.0 | -680.9 | |
| 0.00 | 0.69 | 0.00 | 0.57 | -11.01 | 162.66 | -51.91 | 105.33 | 0.8033 | -638.0 | -600.5 | |
| 20.41 | -28.00 | 17.62 | -28.00 | -14.19 | 161.52 | -53.05 | 108.89 | 0.8211 | -790.7 | 999999 | |
| 0.00 | 1.46 | 0.00 | 1.22 | -11.20 | 162.31 | -52.25 | 105.48 | 0.8071 | -599.0 | -536.7 | |
| 2.23 | -28.00 | 1.92 | -28.00 | -13.76 | 161.46 | -53.11 | 108.36 | 0.8207 | -841.8 | 999999 | |
| 0.00 | 0.86 | 0.00 | 0.72 | -10.87 | 162.30 | -52.27 | 105.07 | 0.8066 | -486.0 | -405.4 | |
| 1.29 | -28.00 | 1.09 | -28.00 | -11.88 | 161.98 | -52.58 | 106.23 | 0.8118 | -821.7 | 999999 | |
| 0.00 | 1.46 | 0.00 | 1.24 | -12.04 | 161.63 | -52.93 | 106.34 | 0.8155 | -685.0 | -650.1 | |
| 1.29 | -28.00 | 1.12 | -28.00 | -13.55 | 161.12 | -53.45 | 108.03 | 0.8235 | -881.7 | 999999 | |
| 0.00 | 0.51 | 0.00 | 0.44 | -11.80 | 161.55 | -53.02 | 106.03 | 0.8158 | -566.0 | -506.2 | |
| 3.86 | -28.00 | 3.43 | -28.00 | -14.65 | 160.53 | -54.04 | 109.18 | 0.8313 | -707.7 | 999999 | |
| 1.03 | -28.00 | 0.89 | -28.00 | -12.54 | 161.23 | -53.33 | 106.85 | 0.8203 | -814.8 | 999999 | |
| 0.94 | -28.00 | 0.84 | -28.00 | -14.46 | 160.44 | -54.13 | 108.94 | 0.8317 | -778.4 | 999999 | |
| 0.26 | -28.00 | 0.23 | -28.00 | -14.56 | 160.35 | -54.22 | 109.03 | 0.8327 | -758.7 | 999999 | |
| 0.00 | 1.03 | 0.00 | 0.88 | -11.56 | 161.31 | -53.25 | 105.69 | 0.8177 | -599.0 | -517.0 | |
| 0.00 | 0.94 | 0.00 | 0.83 | -13.69 | 160.60 | -53.96 | 108.07 | 0.8286 | -690.0 | -661.5 | |
| 8.15 | -28.00 | 7.22 | -28.00 | -14.10 | 160.41 | -54.16 | 108.50 | 0.8312 | -810.5 | 999999 | |
| 0.00 | 0.69 | 0.00 | 0.59 | -12.36 | 160.98 | -53.59 | 106.58 | 0.8224 | -354.0 | -352.4 | |
| 10.81 | -28.00 | 9.70 | -28.00 | -14.88 | 160.07 | -54.49 | 109.33 | 0.8359 | -576.0 | 999999 | |
| 2.66 | 5.32 | 2.33 | 4.66 | -13.29 | 160.63 | -53.93 | 107.60 | 0.8275 | -699.8 | -584.0 | |
| 0.00 | 2.49 | 0.00 | 2.19 | -13.54 | 160.45 | -54.12 | 107.85 | 0.8298 | -703.0 | -626.9 | |
| 6.43 | -28.00 | 5.77 | -28.00 | -14.23 | 159.99 | -54.57 | 108.55 | 0.8353 | -586.6 | 999999 | |
| 0.00 | 1.11 | 0.00 | 0.99 | -13.21 | 160.29 | -54.27 | 107.42 | 0.8305 | -539.0 | -495.0 | |
| 0.00 | 0.94 | 0.00 | 0.81 | -10.51 | 161.03 | -53.53 | 104.36 | 0.8184 | -455.0 | -392.3 | |
| 0.00 | 0.77 | 0.00 | 0.69 | -13.43 | 160.17 | -54.40 | 107.65 | 0.8321 | -462.0 | -414.1 | |
| 1.54 | -28.00 | 1.38 | -28.00 | -13.86 | 159.97 | -54.60 | 108.12 | 0.8348 | -505.3 | 999999 | |
| 0.00 | 0.34 | 0.00 | 0.31 | -13.65 | 159.93 | -54.63 | 107.86 | 0.8347 | -381.0 | -346.5 | |
| 1.37 | -28.00 | 1.24 | -28.00 | -14.03 | 159.64 | -54.92 | 108.23 | 0.8381 | -356.5 | 999999 | |
| 0.00 | 1.20 | 0.00 | 1.08 | -13.56 | 159.81 | -54.76 | 107.72 | 0.8357 | -344.0 | -264.4 | |
| 0.60 | 1.72 | 0.55 | 1.56 | -14.16 | 159.27 | -55.30 | 108.30 | 0.8417 | -230.9 | -201.3 | |
| 0.60 | 2.14 | 0.55 | 1.97 | -14.41 | 159.12 | -55.44 | 108.55 | 0.8435 | -214.4 | -150.5 | |
| 0.00 | 1.37 | 0.00 | 1.23 | -12.74 | 159.60 | -54.96 | 106.71 | 0.8360 | -518.0 | -382.9 | |
| 0.00 | 2.06 | 0.00 | 1.89 | -14.01 | 159.05 | -55.51 | 108.07 | 0.8434 | -343.0 | -232.1 | |
| 1.20 | 2.74 | 1.11 | 2.53 | -14.14 | 158.79 | -55.78 | 108.16 | 0.8460 | -298.4 | -190.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
