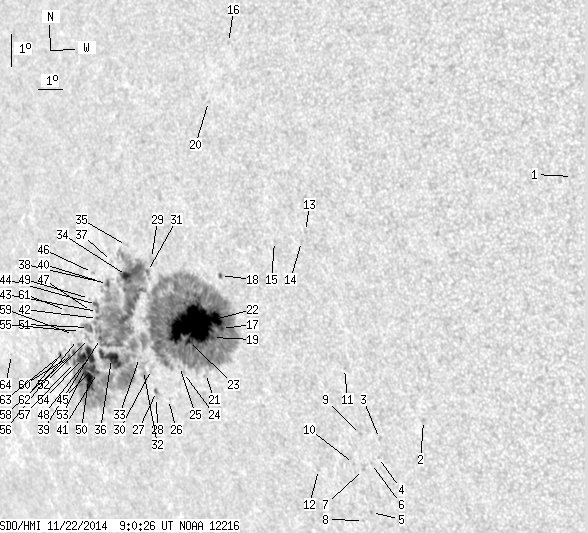

SDO HMI 2014-11-22 09:00:26 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 193.21 | 1209.90 | 156.19 | 977.92 | -13.42 | 163.88 | -50.15 | 108.77 | 0.7900 | 226.1 | -105.6 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-11-22 09:00:26 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.94 | 0.00 | 0.56 | -8.18 | 181.63 | -32.39 | 107.88 | 0.5593 | 406.0 | 298.1 | |
| 0.00 | 1.89 | 0.00 | 1.27 | -15.76 | 174.87 | -39.15 | 116.06 | 0.6788 | 672.0 | 506.0 | |
| 0.00 | 1.37 | 0.00 | 0.95 | -16.36 | 172.94 | -41.08 | 115.93 | 0.7034 | 731.0 | 582.6 | |
| 0.00 | 0.77 | 0.00 | 0.54 | -16.96 | 172.74 | -41.28 | 116.62 | 0.7083 | 741.0 | 662.8 | |
| 0.00 | 1.29 | 0.00 | 0.92 | -18.71 | 171.94 | -42.08 | 118.51 | 0.7247 | 622.0 | 552.4 | |
| 0.00 | 0.69 | 0.00 | 0.48 | -17.16 | 172.40 | -41.62 | 116.72 | 0.7129 | 665.0 | 517.8 | |
| 0.00 | 1.37 | 0.00 | 0.97 | -17.35 | 172.01 | -42.01 | 116.79 | 0.7180 | 633.0 | 517.3 | |
| 0.00 | 0.94 | 0.00 | 0.68 | -18.97 | 171.52 | -42.50 | 118.64 | 0.7304 | 427.0 | 415.5 | |
| 0.00 | 1.37 | 0.00 | 0.96 | -16.26 | 172.18 | -41.84 | 115.43 | 0.7114 | 592.0 | 412.7 | |
| 0.00 | 0.86 | 0.00 | 0.61 | -17.17 | 171.64 | -42.38 | 116.38 | 0.7213 | 630.0 | 441.9 | |
| 0.00 | 0.94 | 0.00 | 0.66 | -14.21 | 172.03 | -41.99 | 112.62 | 0.7050 | 587.0 | 425.5 | |
| 0.00 | 0.94 | 0.00 | 0.69 | -17.40 | 170.08 | -43.94 | 115.97 | 0.7389 | 537.0 | 423.6 | |
| 0.00 | 1.11 | 0.00 | 0.77 | -10.05 | 171.25 | -42.77 | 106.60 | 0.7001 | 545.0 | 433.1 | |
| 0.00 | 1.29 | 0.00 | 0.89 | -10.36 | 171.03 | -42.99 | 106.96 | 0.7036 | 649.0 | 472.4 | |
| 0.00 | 0.94 | 0.00 | 0.67 | -10.39 | 169.90 | -44.12 | 106.63 | 0.7170 | 380.0 | 288.8 | |
| 0.00 | 1.20 | 0.00 | 0.85 | -4.44 | 168.74 | -45.28 | 98.16 | 0.7180 | 34.0 | 78.4 | |
| 1.46 | 1134.17 | 1.10 | 917.12 | -13.11 | 167.01 | -47.01 | 109.31 | 0.7572 | 1046.7 | -101.4 | |
| 0.94 | 2.06 | 0.70 | 1.53 | -11.48 | 167.35 | -46.67 | 107.31 | 0.7490 | 458.5 | 431.4 | |
| 0.26 | -17.00 | 0.20 | -17.00 | -13.40 | 166.54 | -47.49 | 109.52 | 0.7631 | 808.0 | 999999 | |
| 0.00 | 0.86 | 0.00 | 0.62 | -6.23 | 167.71 | -46.31 | 100.41 | 0.7332 | 405.0 | 365.8 | |
| 0.00 | 2.66 | 0.00 | 2.07 | -14.52 | 165.90 | -48.12 | 110.74 | 0.7730 | -54.0 | -103.3 | |
| 112.69 | -17.00 | 87.07 | -17.00 | -13.02 | 165.82 | -48.21 | 108.82 | 0.7697 | 985.3 | 999999 | |
| 2.74 | -17.00 | 2.14 | -17.00 | -13.55 | 165.40 | -48.63 | 109.36 | 0.7755 | 398.3 | 999999 | |
| 0.00 | 1.63 | 0.00 | 1.29 | -14.52 | 164.88 | -49.14 | 110.40 | 0.7835 | -53.0 | -73.4 | |
| 0.00 | 0.69 | 0.00 | 0.55 | -14.33 | 164.75 | -49.27 | 110.14 | 0.7843 | -300.0 | -273.8 | |
| 0.00 | 0.34 | 0.00 | 0.28 | -15.38 | 163.89 | -50.13 | 111.15 | 0.7957 | 324.0 | 211.2 | |
| 0.94 | 2.49 | 0.78 | 2.04 | -15.14 | 163.39 | -50.63 | 110.71 | 0.8001 | -596.2 | -504.0 | |
| 0.00 | 1.29 | 0.00 | 1.06 | -15.33 | 163.33 | -50.69 | 110.92 | 0.8012 | -255.0 | -316.3 | |
| 0.00 | 3.00 | 0.00 | 2.37 | -11.04 | 164.31 | -49.71 | 105.91 | 0.7807 | -306.0 | -279.3 | |
| 0.00 | 3.00 | 0.00 | 2.46 | -14.46 | 163.37 | -50.65 | 109.88 | 0.7985 | -421.0 | -502.0 | |
| 0.60 | -17.00 | 0.48 | -17.00 | -11.45 | 164.03 | -49.99 | 106.34 | 0.7846 | 200.3 | 999999 | |
| 0.00 | 12.44 | 0.00 | 10.27 | -14.51 | 162.97 | -51.05 | 109.82 | 0.8026 | -262.0 | -302.5 | |
| 0.00 | 1.20 | 0.00 | 0.99 | -14.11 | 162.90 | -51.12 | 109.31 | 0.8023 | -441.0 | -441.5 | |
| 5.40 | -17.00 | 4.40 | -17.00 | -11.60 | 162.99 | -51.03 | 106.26 | 0.7957 | -1051.2 | 999999 | |
| 0.00 | 0.60 | 0.00 | 0.48 | -10.68 | 163.21 | -50.81 | 105.18 | 0.7914 | -533.0 | -456.9 | |
| 18.78 | -17.00 | 16.01 | -17.00 | -14.18 | 161.48 | -52.54 | 109.01 | 0.8162 | -810.6 | 999999 | |
| 0.00 | 1.29 | 0.00 | 1.06 | -11.19 | 162.36 | -51.66 | 105.60 | 0.8011 | -563.0 | -544.9 | |
| 1.97 | -17.00 | 1.64 | -17.00 | -11.87 | 161.98 | -52.04 | 106.35 | 0.8063 | -773.7 | 999999 | |
| 1.46 | -17.00 | 1.25 | -17.00 | -13.57 | 161.12 | -52.90 | 108.19 | 0.8183 | -967.2 | 999999 | |
| 0.00 | 0.26 | 0.00 | 0.22 | -11.82 | 161.60 | -52.42 | 106.19 | 0.8100 | -474.0 | -521.7 | |
| 1.37 | -17.00 | 1.20 | -17.00 | -14.63 | 160.61 | -53.41 | 109.32 | 0.8254 | -623.0 | 999999 | |
| 0.60 | -17.00 | 0.51 | -17.00 | -12.96 | 161.17 | -52.85 | 107.46 | 0.8166 | -808.0 | 999999 | |
| 0.60 | -17.00 | 0.51 | -17.00 | -12.74 | 161.23 | -52.79 | 107.22 | 0.8155 | -859.0 | 999999 | |
| 2.06 | -17.00 | 1.75 | -17.00 | -12.53 | 161.25 | -52.77 | 106.97 | 0.8149 | -747.4 | 999999 | |
| 4.63 | -17.00 | 4.06 | -17.00 | -14.52 | 160.39 | -53.63 | 109.13 | 0.8272 | -727.8 | 999999 | |
| 0.00 | 1.29 | 0.00 | 1.09 | -11.55 | 161.32 | -52.70 | 105.80 | 0.8122 | -583.0 | -465.7 | |
| 0.00 | 0.60 | 0.00 | 0.51 | -12.75 | 160.93 | -53.09 | 107.16 | 0.8185 | -506.0 | -520.0 | |
| 8.92 | -17.00 | 7.80 | -17.00 | -14.11 | 160.43 | -53.59 | 108.66 | 0.8260 | -799.9 | 999999 | |
| 0.00 | 0.94 | 0.00 | 0.81 | -12.35 | 160.94 | -53.08 | 106.68 | 0.8175 | -276.0 | -339.3 | |
| 10.12 | -17.00 | 8.96 | -17.00 | -14.86 | 160.06 | -53.96 | 109.45 | 0.8311 | -615.7 | 999999 | |
| 3.94 | 7.20 | 3.42 | 6.24 | -13.25 | 160.62 | -53.40 | 107.68 | 0.8224 | -653.3 | -580.9 | |
| 0.00 | 5.15 | 0.00 | 4.48 | -13.59 | 160.50 | -53.52 | 108.06 | 0.8242 | -577.0 | -629.7 | |
| 0.26 | -17.00 | 0.23 | -17.00 | -14.53 | 160.02 | -54.00 | 109.04 | 0.8306 | -566.0 | 999999 | |
| 8.58 | -17.00 | 7.59 | -17.00 | -14.22 | 159.98 | -54.04 | 108.67 | 0.8304 | -603.2 | 999999 | |
| 0.00 | 1.03 | 0.00 | 0.90 | -13.38 | 160.16 | -53.86 | 107.73 | 0.8270 | -436.0 | -403.1 | |
| 0.00 | 0.51 | 0.00 | 0.45 | -13.64 | 159.92 | -54.10 | 107.97 | 0.8298 | -352.0 | -347.5 | |
| 1.20 | -17.00 | 1.07 | -17.00 | -14.36 | 159.51 | -54.51 | 108.71 | 0.8350 | -231.6 | 999999 | |
| 1.46 | -17.00 | 1.30 | -17.00 | -14.05 | 159.56 | -54.46 | 108.36 | 0.8339 | -332.6 | 999999 | |
| 0.00 | 1.97 | 0.00 | 1.75 | -13.49 | 159.76 | -54.26 | 107.75 | 0.8310 | -280.0 | -302.6 | |
| 0.94 | -17.00 | 0.85 | -17.00 | -14.18 | 159.31 | -54.71 | 108.45 | 0.8365 | -79.1 | 999999 | |
| 0.00 | 1.72 | 0.00 | 1.52 | -12.76 | 159.63 | -54.39 | 106.86 | 0.8307 | -258.0 | -298.8 | |
| 0.00 | 0.77 | 0.00 | 0.70 | -13.97 | 159.11 | -54.91 | 108.16 | 0.8378 | -149.0 | -149.0 | |
| 1.29 | 2.57 | 1.17 | 2.34 | -14.16 | 158.83 | -55.19 | 108.32 | 0.8408 | -311.1 | -217.7 | |
| 0.00 | 0.26 | 0.00 | 0.25 | -14.21 | 156.07 | -57.95 | 107.75 | 0.8648 | -293.0 | -240.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
