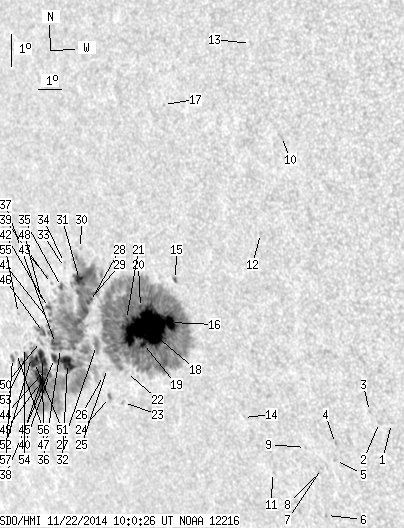

SDO HMI 2014-11-22 10:00:26 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 181.90 | 1237.46 | 145.44 | 989.15 | -13.41 | 163.78 | -49.69 | 108.89 | 0.7854 | 202.9 | -97.1 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-11-22 10:00:26 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.51 | 0.00 | 0.34 | -15.74 | 175.36 | -38.12 | 116.57 | 0.6667 | 677.0 | 630.5 | |
| 0.00 | 1.63 | 0.00 | 1.09 | -15.72 | 174.89 | -38.59 | 116.30 | 0.6720 | 513.0 | 317.4 | |
| 0.00 | 1.03 | 0.00 | 0.69 | -15.39 | 174.57 | -38.90 | 115.67 | 0.6742 | 697.0 | 530.1 | |
| 0.00 | 1.46 | 0.00 | 1.00 | -16.42 | 172.96 | -40.52 | 116.27 | 0.6973 | 757.0 | 516.9 | |
| 0.00 | 1.11 | 0.00 | 0.77 | -16.95 | 172.82 | -40.66 | 116.91 | 0.7013 | 755.0 | 641.1 | |
| 0.00 | 1.11 | 0.00 | 0.79 | -18.70 | 171.95 | -41.53 | 118.77 | 0.7188 | 634.0 | 582.8 | |
| 0.00 | 1.11 | 0.00 | 0.78 | -17.21 | 172.17 | -41.30 | 116.94 | 0.7096 | 711.0 | 570.4 | |
| 0.00 | 1.03 | 0.00 | 0.72 | -17.34 | 172.05 | -41.42 | 117.06 | 0.7115 | 598.0 | 531.8 | |
| 0.00 | 0.94 | 0.00 | 0.66 | -16.57 | 171.68 | -41.79 | 115.86 | 0.7122 | 243.0 | 254.7 | |
| 0.00 | 2.83 | 0.00 | 1.88 | -7.06 | 172.49 | -40.98 | 102.87 | 0.6700 | 264.0 | 291.6 | |
| 0.00 | 0.60 | 0.00 | 0.44 | -17.39 | 170.06 | -43.42 | 116.19 | 0.7333 | 539.0 | 460.7 | |
| 0.00 | 1.11 | 0.00 | 0.76 | -10.01 | 171.25 | -42.23 | 106.72 | 0.6934 | 610.0 | 497.7 | |
| 0.00 | 1.29 | 0.00 | 0.86 | -4.31 | 171.51 | -41.97 | 98.58 | 0.6767 | 670.0 | 457.5 | |
| 0.00 | 0.43 | 0.00 | 0.31 | -15.69 | 169.30 | -44.18 | 113.67 | 0.7349 | 470.0 | 378.2 | |
| 0.77 | 2.14 | 0.57 | 1.58 | -11.50 | 167.38 | -46.09 | 107.50 | 0.7426 | 484.8 | 470.6 | |
| 10.55 | 1186.20 | 7.90 | 949.24 | -12.83 | 166.86 | -46.62 | 109.07 | 0.7521 | 1224.8 | -97.5 | |
| 0.00 | 1.03 | 0.00 | 0.74 | -6.22 | 167.73 | -45.75 | 100.51 | 0.7266 | 348.0 | 355.8 | |
| 91.67 | -16.00 | 70.22 | -16.00 | -13.04 | 165.73 | -47.75 | 108.98 | 0.7649 | 960.6 | 999999 | |
| 3.69 | -16.00 | 2.84 | -16.00 | -13.50 | 165.46 | -48.01 | 109.49 | 0.7690 | 483.0 | 999999 | |
| 1.37 | -16.00 | 1.05 | -16.00 | -12.40 | 165.61 | -47.86 | 108.13 | 0.7644 | 789.5 | 999999 | |
| 1.03 | -16.00 | 0.80 | -16.00 | -12.78 | 164.88 | -48.60 | 108.40 | 0.7732 | 245.9 | 999999 | |
| 0.00 | 1.63 | 0.00 | 1.29 | -14.42 | 164.42 | -49.06 | 110.31 | 0.7824 | -288.0 | -235.2 | |
| 0.00 | 1.46 | 0.00 | 1.17 | -15.36 | 163.98 | -49.50 | 111.33 | 0.7894 | 202.0 | 205.4 | |
| 0.00 | 2.83 | 0.00 | 2.30 | -15.22 | 163.36 | -50.12 | 110.97 | 0.7952 | -741.0 | -588.2 | |
| 0.00 | 1.54 | 0.00 | 1.24 | -14.32 | 163.55 | -49.93 | 109.92 | 0.7909 | -525.0 | -483.4 | |
| 0.00 | 1.03 | 0.00 | 0.83 | -14.55 | 163.29 | -50.19 | 110.12 | 0.7941 | -560.0 | -517.3 | |
| 0.00 | 7.97 | 0.00 | 6.44 | -13.63 | 163.23 | -50.24 | 108.97 | 0.7923 | -234.0 | -214.3 | |
| 0.77 | -16.00 | 0.62 | -16.00 | -12.21 | 163.39 | -50.09 | 107.27 | 0.7873 | 152.9 | 999999 | |
| 1.29 | -16.00 | 1.03 | -16.00 | -12.28 | 163.23 | -50.25 | 107.30 | 0.7891 | 27.3 | 999999 | |
| 0.00 | 0.77 | 0.00 | 0.61 | -10.67 | 163.25 | -50.23 | 105.30 | 0.7854 | -342.0 | -373.9 | |
| 5.23 | -16.00 | 4.21 | -16.00 | -11.61 | 162.97 | -50.51 | 106.41 | 0.7903 | -1046.4 | 999999 | |
| 14.84 | -16.00 | 12.45 | -16.00 | -14.22 | 161.63 | -51.84 | 109.25 | 0.8096 | -823.9 | 999999 | |
| 0.00 | 0.86 | 0.00 | 0.70 | -11.27 | 162.34 | -51.14 | 105.82 | 0.7960 | -560.0 | -542.7 | |
| 0.00 | 0.77 | 0.00 | 0.63 | -11.11 | 162.37 | -51.10 | 105.64 | 0.7953 | -533.0 | -547.4 | |
| 1.72 | -16.00 | 1.41 | -16.00 | -11.85 | 162.04 | -51.44 | 106.47 | 0.8003 | -765.4 | 999999 | |
| 1.20 | -16.00 | 1.01 | -16.00 | -13.77 | 161.43 | -52.05 | 108.64 | 0.8105 | -826.6 | 999999 | |
| 3.94 | -16.00 | 3.33 | -16.00 | -13.62 | 161.23 | -52.25 | 108.41 | 0.8121 | -859.9 | 999999 | |
| 4.12 | -16.00 | 3.50 | -16.00 | -14.08 | 161.02 | -52.45 | 108.92 | 0.8151 | -766.2 | 999999 | |
| 0.00 | 1.03 | 0.00 | 0.85 | -11.77 | 161.57 | -51.91 | 106.26 | 0.8048 | -579.0 | -533.0 | |
| 1.29 | -16.00 | 1.11 | -16.00 | -14.59 | 160.60 | -52.88 | 109.41 | 0.8203 | -684.0 | 999999 | |
| 0.34 | -16.00 | 0.29 | -16.00 | -12.92 | 161.14 | -52.33 | 107.54 | 0.8114 | -829.8 | 999999 | |
| 1.63 | -16.00 | 1.37 | -16.00 | -12.52 | 161.21 | -52.26 | 107.08 | 0.8099 | -761.3 | 999999 | |
| 0.00 | 1.37 | 0.00 | 1.14 | -11.54 | 161.39 | -52.09 | 105.93 | 0.8061 | -438.0 | -453.8 | |
| 0.86 | -16.00 | 0.74 | -16.00 | -14.44 | 160.45 | -53.03 | 109.19 | 0.8214 | -725.9 | 999999 | |
| 1.89 | -16.00 | 1.64 | -16.00 | -14.60 | 160.29 | -53.19 | 109.34 | 0.8233 | -738.6 | 999999 | |
| 1.37 | -16.00 | 1.17 | -16.00 | -13.29 | 160.72 | -52.75 | 107.89 | 0.8163 | -583.1 | 999999 | |
| 8.40 | -16.00 | 7.25 | -16.00 | -14.10 | 160.41 | -53.07 | 108.78 | 0.8210 | -793.2 | 999999 | |
| 0.00 | 0.86 | 0.00 | 0.72 | -12.37 | 160.95 | -52.52 | 106.84 | 0.8121 | -315.0 | -322.1 | |
| 13.38 | -16.00 | 11.69 | -16.00 | -14.85 | 160.04 | -53.43 | 109.57 | 0.8261 | -621.2 | 999999 | |
| 0.00 | 3.77 | 0.00 | 3.24 | -13.58 | 160.48 | -52.99 | 108.17 | 0.8192 | -662.0 | -657.7 | |
| 7.29 | -16.00 | 6.36 | -16.00 | -14.24 | 159.95 | -53.52 | 108.82 | 0.8256 | -591.2 | 999999 | |
| 0.26 | -16.00 | 0.22 | -16.00 | -14.09 | 159.85 | -53.63 | 108.62 | 0.8263 | -535.3 | 999999 | |
| 1.46 | -16.00 | 1.28 | -16.00 | -14.03 | 159.61 | -53.87 | 108.49 | 0.8284 | -371.2 | 999999 | |
| 0.00 | 0.77 | 0.00 | 0.68 | -13.79 | 159.59 | -53.89 | 108.19 | 0.8281 | -265.0 | -232.6 | |
| 0.00 | 1.03 | 0.00 | 0.90 | -12.74 | 159.62 | -53.86 | 106.96 | 0.8257 | -327.0 | -334.8 | |
| 0.00 | 1.29 | 0.00 | 1.15 | -13.99 | 159.10 | -54.38 | 108.31 | 0.8330 | -362.0 | -266.5 | |
| 1.54 | 2.92 | 1.38 | 2.61 | -14.15 | 158.83 | -54.64 | 108.43 | 0.8358 | -248.5 | -195.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
