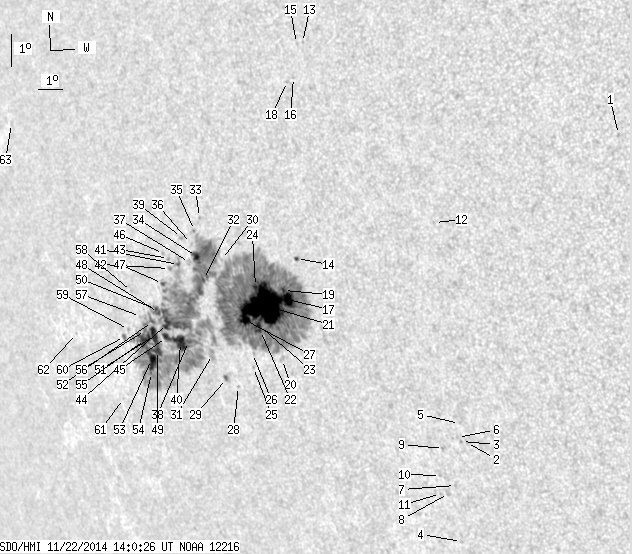

SDO HMI 2014-11-22 14:00:26 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 192.83 | 1264.19 | 147.75 | 967.47 | -13.43 | 163.73 | -47.56 | 109.56 | 0.7632 | 189.2 | -96.7 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-11-22 14:00:26 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.20 | 0.00 | 0.70 | -7.51 | 180.20 | -31.08 | 107.32 | 0.5383 | 736.0 | 593.3 | |
| 0.00 | 1.03 | 0.00 | 0.69 | -17.06 | 173.11 | -38.17 | 118.35 | 0.6738 | 664.0 | 555.7 | |
| 0.00 | 1.03 | 0.00 | 0.69 | -17.03 | 172.92 | -38.37 | 118.21 | 0.6758 | 556.0 | 565.0 | |
| 0.00 | 1.37 | 0.00 | 0.95 | -20.21 | 172.05 | -39.24 | 121.94 | 0.7019 | 60.0 | 135.2 | |
| 0.00 | 0.60 | 0.00 | 0.40 | -16.47 | 172.98 | -38.31 | 117.47 | 0.6724 | 746.0 | 590.0 | |
| 0.00 | 0.77 | 0.00 | 0.52 | -16.91 | 172.79 | -38.49 | 117.97 | 0.6767 | 573.0 | 563.9 | |
| 0.00 | 0.77 | 0.00 | 0.53 | -18.42 | 172.32 | -38.97 | 119.76 | 0.6896 | 439.0 | 360.3 | |
| 0.00 | 2.57 | 0.00 | 1.77 | -18.68 | 171.96 | -39.32 | 119.91 | 0.6948 | 381.0 | 459.3 | |
| 0.00 | 1.63 | 0.00 | 1.11 | -17.26 | 172.14 | -39.14 | 118.11 | 0.6858 | 713.0 | 655.2 | |
| 0.00 | 0.86 | 0.00 | 0.59 | -18.12 | 171.80 | -39.49 | 119.07 | 0.6938 | 484.0 | 457.1 | |
| 0.00 | 0.94 | 0.00 | 0.65 | -18.69 | 171.64 | -39.65 | 119.74 | 0.6984 | 467.0 | 417.5 | |
| 0.00 | 0.94 | 0.00 | 0.61 | -10.29 | 173.18 | -38.11 | 108.66 | 0.6432 | 460.0 | 450.2 | |
| 0.00 | 0.94 | 0.00 | 0.64 | -4.99 | 168.59 | -42.69 | 99.41 | 0.6870 | 608.0 | 518.3 | |
| 1.11 | 2.31 | 0.79 | 1.64 | -11.51 | 167.44 | -43.85 | 108.24 | 0.7171 | 661.4 | 522.4 | |
| 0.00 | 0.86 | 0.00 | 0.58 | -5.02 | 168.35 | -42.94 | 99.41 | 0.6902 | 586.0 | 404.9 | |
| 0.00 | 0.86 | 0.00 | 0.59 | -6.04 | 168.13 | -43.15 | 100.82 | 0.6948 | 503.0 | 453.5 | |
| 10.80 | 1208.30 | 7.78 | 925.52 | -12.78 | 166.79 | -44.50 | 109.71 | 0.7284 | 1182.5 | -97.2 | |
| 0.00 | 1.63 | 0.00 | 1.12 | -6.17 | 167.87 | -43.41 | 100.94 | 0.6983 | 530.0 | 449.2 | |
| 1.20 | -17.00 | 0.86 | -17.00 | -12.51 | 166.68 | -44.61 | 109.31 | 0.7288 | 1007.1 | 999999 | |
| 0.00 | 2.91 | 0.00 | 2.15 | -14.64 | 166.11 | -45.17 | 111.91 | 0.7419 | -191.0 | -117.3 | |
| 90.26 | -17.00 | 66.31 | -17.00 | -12.99 | 165.75 | -45.54 | 109.62 | 0.7407 | 986.3 | 999999 | |
| 1.63 | -17.00 | 1.21 | -17.00 | -13.76 | 165.38 | -45.91 | 110.51 | 0.7471 | 471.5 | 999999 | |
| 2.66 | -17.00 | 1.97 | -17.00 | -13.61 | 165.33 | -45.95 | 110.29 | 0.7472 | 452.2 | 999999 | |
| 1.54 | -17.00 | 1.14 | -17.00 | -12.41 | 165.49 | -45.80 | 108.79 | 0.7419 | 662.1 | 999999 | |
| 0.00 | 1.03 | 0.00 | 0.78 | -14.92 | 164.76 | -46.53 | 111.77 | 0.7575 | 244.0 | 167.3 | |
| 0.00 | 0.69 | 0.00 | 0.52 | -14.48 | 164.83 | -46.45 | 111.24 | 0.7553 | -2.0 | -54.0 | |
| 5.83 | -17.00 | 4.37 | -17.00 | -13.47 | 164.79 | -46.49 | 109.93 | 0.7526 | 560.9 | 999999 | |
| 0.00 | 0.77 | 0.00 | 0.59 | -15.53 | 163.90 | -47.39 | 112.24 | 0.7684 | 328.0 | 275.4 | |
| 1.11 | 2.49 | 0.87 | 1.93 | -15.29 | 163.42 | -47.86 | 111.78 | 0.7726 | -681.5 | -595.8 | |
| 0.00 | 0.86 | 0.00 | 0.64 | -11.62 | 164.17 | -47.12 | 107.35 | 0.7543 | 179.0 | 148.0 | |
| 0.00 | 6.86 | 0.00 | 5.35 | -14.56 | 163.00 | -48.29 | 110.72 | 0.7748 | -295.0 | -320.9 | |
| 1.11 | -17.00 | 0.86 | -17.00 | -12.26 | 163.21 | -48.08 | 107.88 | 0.7663 | 42.9 | 999999 | |
| 0.00 | 1.03 | 0.00 | 0.78 | -10.37 | 163.45 | -47.83 | 105.52 | 0.7590 | -536.0 | -526.9 | |
| 3.51 | -17.00 | 2.70 | -17.00 | -11.56 | 163.05 | -48.23 | 106.94 | 0.7662 | -1002.6 | 999999 | |
| 0.00 | 1.03 | 0.00 | 0.79 | -10.77 | 163.14 | -48.14 | 105.95 | 0.7634 | -636.0 | -605.7 | |
| 0.00 | 0.94 | 0.00 | 0.72 | -11.17 | 162.92 | -48.37 | 106.41 | 0.7667 | -814.0 | -714.8 | |
| 0.00 | 2.66 | 0.00 | 2.06 | -11.75 | 162.69 | -48.60 | 107.09 | 0.7706 | -668.0 | -612.9 | |
| 2.14 | -17.00 | 1.70 | -17.00 | -14.19 | 161.99 | -49.30 | 109.94 | 0.7841 | -748.8 | 999999 | |
| 0.00 | 1.37 | 0.00 | 1.06 | -11.00 | 162.50 | -48.79 | 106.07 | 0.7708 | -764.0 | -678.8 | |
| 13.80 | -17.00 | 11.06 | -17.00 | -14.23 | 161.60 | -49.69 | 109.87 | 0.7882 | -837.1 | 999999 | |
| 1.11 | -17.00 | 0.87 | -17.00 | -11.83 | 162.16 | -49.12 | 107.04 | 0.7763 | -876.9 | 999999 | |
| 0.00 | 1.97 | 0.00 | 1.56 | -11.96 | 161.71 | -49.58 | 107.08 | 0.7814 | -737.0 | -657.3 | |
| 0.00 | 1.37 | 0.00 | 1.08 | -11.65 | 161.74 | -49.55 | 106.70 | 0.7804 | -631.0 | -566.6 | |
| 6.51 | -17.00 | 5.25 | -17.00 | -13.66 | 161.15 | -50.14 | 109.03 | 0.7913 | -884.9 | 999999 | |
| 4.20 | -17.00 | 3.40 | -17.00 | -14.09 | 160.97 | -50.31 | 109.52 | 0.7942 | -776.4 | 999999 | |
| 0.00 | 1.29 | 0.00 | 1.02 | -11.51 | 161.54 | -49.75 | 106.47 | 0.7821 | -557.0 | -490.7 | |
| 1.03 | -17.00 | 0.82 | -17.00 | -12.43 | 161.26 | -50.03 | 107.54 | 0.7872 | -763.3 | 999999 | |
| 1.71 | -17.00 | 1.39 | -17.00 | -13.33 | 160.81 | -50.47 | 108.53 | 0.7939 | -792.5 | 999999 | |
| 6.26 | -17.00 | 5.15 | -17.00 | -14.51 | 160.40 | -50.88 | 109.86 | 0.8009 | -752.7 | 999999 | |
| 2.14 | -17.00 | 1.74 | -17.00 | -13.24 | 160.74 | -50.54 | 108.40 | 0.7943 | -740.2 | 999999 | |
| 8.40 | -17.00 | 6.90 | -17.00 | -14.05 | 160.40 | -50.88 | 109.30 | 0.7997 | -839.7 | 999999 | |
| 0.94 | -17.00 | 0.77 | -17.00 | -13.61 | 160.44 | -50.85 | 108.78 | 0.7983 | -811.5 | 999999 | |
| 11.74 | -17.00 | 9.76 | -17.00 | -14.80 | 160.02 | -51.27 | 110.10 | 0.8054 | -598.6 | 999999 | |
| 0.26 | -17.00 | 0.22 | -17.00 | -15.20 | 159.88 | -51.41 | 110.54 | 0.8077 | -451.3 | 999999 | |
| 9.86 | -17.00 | 8.20 | -17.00 | -14.18 | 159.92 | -51.36 | 109.33 | 0.8048 | -561.0 | 999999 | |
| 0.86 | -17.00 | 0.71 | -17.00 | -13.90 | 160.01 | -51.28 | 109.01 | 0.8033 | -551.5 | 999999 | |
| 0.00 | 1.11 | 0.00 | 0.92 | -13.48 | 159.90 | -51.39 | 108.46 | 0.8034 | -397.0 | -323.1 | |
| 0.00 | 1.03 | 0.00 | 0.85 | -12.72 | 159.68 | -51.61 | 107.48 | 0.8038 | -441.0 | -376.6 | |
| 0.00 | 1.20 | 0.00 | 1.01 | -13.89 | 159.17 | -52.11 | 108.77 | 0.8114 | -282.0 | -257.7 | |
| 1.11 | 2.57 | 0.95 | 2.19 | -14.12 | 158.90 | -52.39 | 108.97 | 0.8146 | -337.5 | -212.5 | |
| 0.00 | 0.26 | 0.00 | 0.22 | -16.06 | 158.15 | -53.14 | 111.07 | 0.8261 | -466.0 | -443.0 | |
| 0.00 | 0.77 | 0.00 | 0.70 | -14.09 | 156.42 | -54.87 | 108.31 | 0.8377 | -272.0 | -270.6 | |
| 0.00 | 1.37 | 0.00 | 1.25 | -7.77 | 154.73 | -56.55 | 100.54 | 0.8431 | -421.0 | -294.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
