SDO HMI 2014-11-22 16:00:26 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 200.78 | 1280.00 | 150.87 | 958.93 | -13.41 | 163.55 | -46.63 | 109.84 | 0.7531 | 129.3 | -79.0 | |
|
previous
or next observation for the same group /

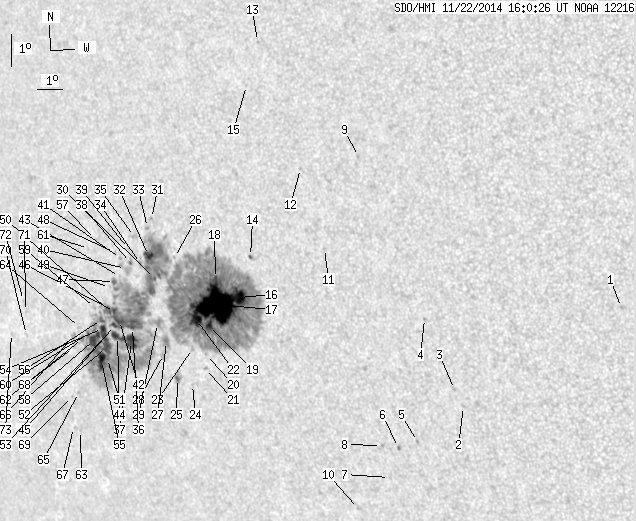

back to the solar disc SDO HMI 2014-11-22 16:00:26 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.29 | 0.00 | 0.75 | -12.77 | 181.20 | -28.99 | 117.88 | 0.5368 | 622.0 | 483.9 | |
| 0.00 | 1.54 | 0.00 | 0.98 | -15.93 | 174.97 | -35.22 | 118.51 | 0.6334 | 597.0 | 539.1 | |
| 0.00 | 1.29 | 0.00 | 0.82 | -15.41 | 174.73 | -35.45 | 117.61 | 0.6333 | 558.0 | 400.5 | |
| 0.00 | 1.37 | 0.00 | 0.87 | -13.24 | 174.00 | -36.18 | 113.99 | 0.6313 | 668.0 | 532.2 | |
| 0.00 | 1.03 | 0.00 | 0.68 | -17.07 | 172.95 | -37.23 | 118.90 | 0.6630 | 755.0 | 606.8 | |
| 0.00 | 1.71 | 0.00 | 1.14 | -17.27 | 172.16 | -38.03 | 118.73 | 0.6732 | 775.0 | 694.7 | |
| 0.00 | 0.34 | 0.00 | 0.23 | -18.23 | 171.56 | -38.63 | 119.68 | 0.6849 | 416.0 | 461.2 | |
| 0.00 | 0.77 | 0.00 | 0.52 | -17.22 | 171.50 | -38.69 | 118.29 | 0.6804 | 559.0 | 532.9 | |
| 0.00 | 1.46 | 0.00 | 0.93 | -8.36 | 172.22 | -37.96 | 105.77 | 0.6348 | 305.0 | 407.5 | |
| 0.00 | 1.54 | 0.00 | 1.08 | -19.24 | 170.01 | -40.17 | 120.17 | 0.7068 | 595.0 | 488.2 | |
| 0.00 | 0.94 | 0.00 | 0.62 | -11.17 | 170.51 | -39.68 | 109.31 | 0.6660 | 589.0 | 475.3 | |
| 0.00 | 0.86 | 0.00 | 0.57 | -8.77 | 169.92 | -40.26 | 105.58 | 0.6654 | 522.0 | 423.4 | |
| 0.00 | 1.03 | 0.00 | 0.69 | -4.99 | 168.62 | -41.56 | 99.65 | 0.6727 | 624.0 | 515.8 | |
| 0.86 | 2.49 | 0.60 | 1.73 | -11.48 | 167.47 | -42.71 | 108.59 | 0.7037 | 604.8 | 540.3 | |
| 0.00 | 0.94 | 0.00 | 0.64 | -6.32 | 168.06 | -42.12 | 101.46 | 0.6826 | 462.0 | 377.5 | |
| 10.80 | 1185.62 | 7.63 | 887.88 | -12.75 | 166.75 | -43.43 | 110.06 | 0.7162 | 1193.2 | -66.7 | |
| 86.98 | -16.00 | 62.72 | -16.00 | -12.99 | 165.68 | -44.50 | 109.99 | 0.7291 | 1056.0 | 999999 | |
| 1.54 | -16.00 | 1.10 | -16.00 | -12.19 | 165.86 | -44.32 | 108.99 | 0.7246 | 929.8 | 999999 | |
| 4.54 | -16.00 | 3.31 | -16.00 | -13.65 | 165.27 | -44.91 | 110.70 | 0.7358 | 455.6 | 999999 | |
| 0.00 | 0.86 | 0.00 | 0.63 | -14.55 | 164.91 | -45.27 | 111.75 | 0.7427 | -110.0 | -227.8 | |
| 0.00 | 1.20 | 0.00 | 0.89 | -14.98 | 164.75 | -45.43 | 112.25 | 0.7459 | 417.0 | 310.6 | |
| 10.54 | -16.00 | 7.75 | -16.00 | -13.47 | 164.75 | -45.43 | 110.29 | 0.7410 | 573.4 | 999999 | |
| 0.00 | 2.23 | 0.00 | 1.66 | -14.38 | 164.34 | -45.84 | 111.32 | 0.7483 | -326.0 | -275.2 | |
| 0.00 | 0.69 | 0.00 | 0.52 | -15.50 | 164.03 | -46.15 | 112.64 | 0.7553 | 360.0 | 289.0 | |
| 1.37 | 6.26 | 1.04 | 4.76 | -15.33 | 163.41 | -46.78 | 112.20 | 0.7613 | -708.7 | -470.3 | |
| 0.00 | 1.20 | 0.00 | 0.88 | -11.59 | 164.23 | -45.96 | 107.65 | 0.7413 | 253.0 | 183.4 | |
| 0.00 | 7.03 | 0.00 | 5.33 | -14.19 | 163.24 | -46.95 | 110.69 | 0.7596 | -343.0 | -373.3 | |
| 0.00 | 5.06 | 0.00 | 3.86 | -14.59 | 162.99 | -47.20 | 111.12 | 0.7635 | -343.0 | -403.6 | |
| 0.00 | 11.83 | 0.00 | 8.99 | -13.64 | 162.98 | -47.20 | 109.91 | 0.7607 | -66.0 | -145.8 | |
| 1.03 | -16.00 | 0.77 | -16.00 | -12.26 | 163.19 | -46.99 | 108.20 | 0.7546 | 66.4 | 999999 | |
| 0.00 | 1.03 | 0.00 | 0.76 | -10.43 | 163.46 | -46.73 | 105.90 | 0.7469 | -619.0 | -541.2 | |
| 5.74 | -16.00 | 4.31 | -16.00 | -11.56 | 163.08 | -47.10 | 107.27 | 0.7539 | -1066.8 | 999999 | |
| 0.00 | 1.46 | 0.00 | 1.09 | -10.71 | 163.22 | -46.96 | 106.20 | 0.7502 | -688.0 | -609.4 | |
| 0.00 | 1.97 | 0.00 | 1.49 | -11.81 | 162.67 | -47.51 | 107.47 | 0.7591 | -771.0 | -647.3 | |
| 0.00 | 3.94 | 0.00 | 2.98 | -11.00 | 162.58 | -47.60 | 106.39 | 0.7580 | -710.0 | -606.2 | |
| 1.71 | -16.00 | 1.33 | -16.00 | -13.79 | 161.80 | -48.39 | 109.73 | 0.7736 | -800.6 | 999999 | |
| 13.80 | -16.00 | 10.80 | -16.00 | -14.23 | 161.63 | -48.56 | 110.22 | 0.7766 | -852.4 | 999999 | |
| 0.86 | 2.83 | 0.66 | 2.16 | -11.80 | 162.22 | -47.96 | 107.32 | 0.7639 | -825.7 | -713.8 | |
| 0.00 | 0.86 | 0.00 | 0.65 | -11.37 | 162.23 | -47.95 | 106.77 | 0.7627 | -574.0 | -493.8 | |
| 0.00 | 8.48 | 0.00 | 6.53 | -11.98 | 161.95 | -48.24 | 107.48 | 0.7673 | -485.0 | -505.3 | |
| 0.00 | 1.11 | 0.00 | 0.86 | -11.68 | 161.79 | -48.39 | 107.06 | 0.7682 | -682.0 | -599.2 | |
| 5.23 | -16.00 | 4.11 | -16.00 | -13.59 | 161.25 | -48.93 | 109.31 | 0.7788 | -999.0 | 999999 | |
| 0.00 | 0.77 | 0.00 | 0.60 | -12.24 | 161.61 | -48.57 | 107.71 | 0.7715 | -702.0 | -629.8 | |
| 7.63 | -16.00 | 6.04 | -16.00 | -14.09 | 161.01 | -49.17 | 109.85 | 0.7826 | -787.2 | 999999 | |
| 2.06 | -16.00 | 1.63 | -16.00 | -13.75 | 160.97 | -49.21 | 109.42 | 0.7821 | -886.2 | 999999 | |
| 2.91 | -16.00 | 2.29 | -16.00 | -13.32 | 161.09 | -49.09 | 108.92 | 0.7797 | -990.6 | 999999 | |
| 1.54 | -16.00 | 1.20 | -16.00 | -12.40 | 161.34 | -48.84 | 107.83 | 0.7748 | -769.8 | 999999 | |
| 0.00 | 0.94 | 0.00 | 0.73 | -11.51 | 161.56 | -48.63 | 106.77 | 0.7703 | -552.0 | -410.0 | |
| 0.00 | 0.34 | 0.00 | 0.27 | -12.59 | 161.06 | -49.12 | 107.99 | 0.7782 | -556.0 | -524.0 | |
| 4.37 | -16.00 | 3.46 | -16.00 | -13.30 | 160.82 | -49.36 | 108.81 | 0.7825 | -822.9 | 999999 | |
| 1.11 | -16.00 | 0.90 | -16.00 | -14.79 | 160.33 | -49.86 | 110.50 | 0.7914 | -701.3 | 999999 | |
| 5.31 | -16.00 | 4.26 | -16.00 | -14.45 | 160.39 | -49.80 | 110.10 | 0.7899 | -758.3 | 999999 | |
| 3.94 | -16.00 | 3.16 | -16.00 | -14.11 | 160.40 | -49.79 | 109.69 | 0.7889 | -901.1 | 999999 | |
| 4.03 | -16.00 | 3.23 | -16.00 | -13.86 | 160.37 | -49.81 | 109.38 | 0.7885 | -844.2 | 999999 | |
| 8.91 | -16.00 | 7.24 | -16.00 | -14.86 | 160.02 | -50.16 | 110.50 | 0.7947 | -646.6 | 999999 | |
| 2.40 | -16.00 | 1.92 | -16.00 | -13.58 | 160.41 | -49.78 | 109.05 | 0.7874 | -796.2 | 999999 | |
| 0.00 | 0.51 | 0.00 | 0.40 | -11.13 | 160.77 | -49.42 | 106.08 | 0.7778 | -528.0 | -499.0 | |
| 9.51 | -16.00 | 7.72 | -16.00 | -14.21 | 159.89 | -50.30 | 109.67 | 0.7943 | -590.1 | 999999 | |
| 0.00 | 1.46 | 0.00 | 1.17 | -13.22 | 160.18 | -50.00 | 108.53 | 0.7889 | -473.0 | -368.1 | |
| 0.86 | -16.00 | 0.70 | -16.00 | -14.03 | 159.65 | -50.53 | 109.38 | 0.7962 | -370.8 | 999999 | |
| 0.00 | 0.60 | 0.00 | 0.48 | -11.42 | 160.37 | -49.81 | 106.33 | 0.7826 | -282.0 | -322.4 | |
| 1.20 | -16.00 | 0.99 | -16.00 | -14.20 | 159.31 | -50.87 | 109.48 | 0.8000 | -362.9 | 999999 | |
| 0.00 | 0.69 | 0.00 | 0.59 | -17.08 | 158.18 | -52.00 | 112.61 | 0.8182 | -485.0 | -388.6 | |
| 0.00 | 1.54 | 0.00 | 1.27 | -13.86 | 159.27 | -50.91 | 109.06 | 0.7996 | -354.0 | -231.1 | |
| 0.00 | 1.20 | 0.00 | 1.01 | -15.89 | 158.54 | -51.64 | 111.30 | 0.8117 | -590.0 | -481.6 | |
| 0.00 | 3.26 | 0.00 | 2.70 | -14.12 | 158.90 | -51.29 | 109.27 | 0.8039 | -377.0 | -256.8 | |
| 0.00 | 0.43 | 0.00 | 0.37 | -17.00 | 157.86 | -52.32 | 112.41 | 0.8209 | -278.0 | -292.6 | |
| 0.00 | 1.46 | 0.00 | 1.21 | -14.49 | 158.78 | -51.41 | 109.68 | 0.8060 | -280.0 | -196.4 | |
| 0.00 | 0.77 | 0.00 | 0.66 | -16.02 | 158.19 | -51.99 | 111.35 | 0.8154 | -456.0 | -363.1 | |
| 0.00 | 1.71 | 0.00 | 1.50 | -14.15 | 156.51 | -53.67 | 108.67 | 0.8268 | -375.0 | -284.5 | |
| 0.00 | 0.34 | 0.00 | 0.30 | -13.44 | 156.70 | -53.48 | 107.87 | 0.8235 | -372.0 | -301.8 | |
| 0.00 | 0.86 | 0.00 | 0.74 | -13.10 | 156.71 | -53.48 | 107.47 | 0.8228 | -289.0 | -306.9 | |
| 0.00 | 0.86 | 0.00 | 0.76 | -14.14 | 155.73 | -54.45 | 108.47 | 0.8340 | -356.0 | -267.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
