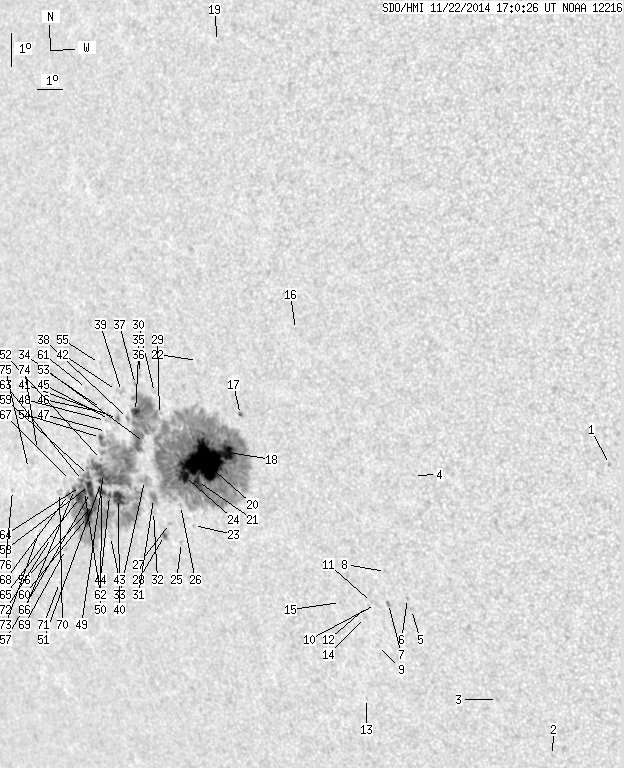

SDO HMI 2014-11-22 17:00:26 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 217.16 | 1286.56 | 161.62 | 954.16 | -13.47 | 163.55 | -46.08 | 110.10 | 0.7475 | 142.9 | -77.7 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-11-22 17:00:26 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.29 | 0.00 | 0.75 | -12.79 | 181.10 | -28.54 | 118.28 | 0.5311 | 668.0 | 532.7 | |
| 0.00 | 0.77 | 0.00 | 0.50 | -22.00 | 177.32 | -32.31 | 128.98 | 0.6399 | 442.0 | 414.9 | |
| 0.00 | 1.03 | 0.00 | 0.66 | -20.23 | 175.68 | -33.95 | 125.38 | 0.6451 | 87.0 | 109.6 | |
| 0.00 | 0.94 | 0.00 | 0.60 | -13.26 | 173.98 | -35.65 | 114.31 | 0.6248 | 644.0 | 519.1 | |
| 0.00 | 0.94 | 0.00 | 0.62 | -17.43 | 173.06 | -36.57 | 119.80 | 0.6574 | 445.0 | 406.6 | |
| 0.00 | 1.03 | 0.00 | 0.67 | -17.09 | 172.98 | -36.65 | 119.27 | 0.6564 | 744.0 | 573.7 | |
| 0.00 | 1.97 | 0.00 | 1.31 | -17.26 | 172.20 | -37.43 | 119.05 | 0.6663 | 712.0 | 623.3 | |
| 0.00 | 1.46 | 0.00 | 0.96 | -16.26 | 172.32 | -37.31 | 117.73 | 0.6598 | 536.0 | 422.3 | |
| 0.00 | 1.63 | 0.00 | 1.10 | -18.60 | 171.43 | -38.20 | 120.42 | 0.6821 | 515.0 | 377.9 | |
| 0.00 | 0.60 | 0.00 | 0.40 | -17.30 | 171.68 | -37.95 | 118.81 | 0.6725 | 697.0 | 632.9 | |
| 0.00 | 0.43 | 0.00 | 0.29 | -17.24 | 171.54 | -38.09 | 118.65 | 0.6738 | 641.0 | 590.6 | |
| 0.00 | 0.94 | 0.00 | 0.63 | -17.34 | 171.40 | -38.24 | 118.70 | 0.6759 | 516.0 | 421.8 | |
| 0.00 | 0.94 | 0.00 | 0.65 | -20.30 | 170.50 | -39.13 | 122.12 | 0.7013 | 488.0 | 363.5 | |
| 0.00 | 0.94 | 0.00 | 0.64 | -17.72 | 171.14 | -38.49 | 119.08 | 0.6807 | 571.0 | 503.3 | |
| 0.00 | 0.69 | 0.00 | 0.47 | -17.27 | 170.30 | -39.34 | 118.01 | 0.6879 | 696.0 | 602.0 | |
| 0.00 | 0.86 | 0.00 | 0.56 | -8.90 | 170.14 | -39.49 | 106.05 | 0.6561 | 610.0 | 541.0 | |
| 0.77 | 1.89 | 0.53 | 1.30 | -11.53 | 167.53 | -42.10 | 108.88 | 0.6966 | 733.6 | 592.5 | |
| 13.20 | 1190.33 | 9.24 | 882.55 | -12.71 | 166.80 | -42.83 | 110.22 | 0.7091 | 1215.2 | -64.5 | |
| 0.00 | 0.26 | 0.00 | 0.17 | -0.36 | 167.68 | -41.95 | 92.72 | 0.6716 | 645.0 | 599.3 | |
| 94.17 | -18.00 | 67.25 | -18.00 | -13.01 | 165.69 | -43.94 | 110.21 | 0.7229 | 1095.6 | 999999 | |
| 7.46 | -18.00 | 5.38 | -18.00 | -13.63 | 165.29 | -44.34 | 110.89 | 0.7294 | 463.3 | 999999 | |
| 0.00 | 0.77 | 0.00 | 0.54 | -9.93 | 166.04 | -43.59 | 106.15 | 0.7094 | 371.0 | 298.9 | |
| 0.00 | 1.20 | 0.00 | 0.88 | -15.00 | 164.77 | -44.87 | 112.49 | 0.7398 | 390.0 | 352.9 | |
| 9.08 | -18.00 | 6.61 | -18.00 | -13.49 | 164.76 | -44.87 | 110.52 | 0.7348 | 599.2 | 999999 | |
| 0.00 | 1.11 | 0.00 | 0.83 | -15.54 | 164.09 | -45.54 | 112.93 | 0.7490 | 413.0 | 361.5 | |
| 0.00 | 1.71 | 0.00 | 1.26 | -14.39 | 164.36 | -45.27 | 111.55 | 0.7422 | -314.0 | -296.2 | |
| 0.00 | 1.63 | 0.00 | 1.22 | -14.97 | 163.72 | -45.91 | 112.05 | 0.7510 | -658.0 | -582.4 | |
| 1.54 | 6.34 | 1.16 | 4.77 | -15.35 | 163.39 | -46.24 | 112.41 | 0.7557 | -667.4 | -459.2 | |
| 0.00 | 0.60 | 0.00 | 0.44 | -11.61 | 164.11 | -45.52 | 107.82 | 0.7365 | -161.0 | -50.3 | |
| 0.00 | 1.29 | 0.00 | 0.94 | -10.95 | 164.03 | -45.60 | 106.91 | 0.7355 | -425.0 | -400.4 | |
| 0.00 | 9.43 | 0.00 | 7.08 | -14.21 | 163.22 | -46.41 | 110.90 | 0.7539 | -335.0 | -398.1 | |
| 0.00 | 3.00 | 0.00 | 2.26 | -14.61 | 163.11 | -46.52 | 111.38 | 0.7564 | -324.0 | -376.2 | |
| 0.00 | 13.97 | 0.00 | 10.51 | -13.66 | 162.97 | -46.67 | 110.11 | 0.7550 | -139.0 | -124.7 | |
| 0.00 | 0.94 | 0.00 | 0.70 | -12.49 | 163.26 | -46.37 | 108.69 | 0.7484 | 114.0 | 65.9 | |
| 0.00 | 2.14 | 0.00 | 1.57 | -10.39 | 163.49 | -46.14 | 106.00 | 0.7402 | -510.0 | -447.1 | |
| 4.71 | -18.00 | 3.50 | -18.00 | -11.55 | 163.07 | -46.56 | 107.41 | 0.7479 | -1030.1 | 999999 | |
| 0.00 | 1.37 | 0.00 | 1.01 | -10.72 | 163.25 | -46.38 | 106.38 | 0.7438 | -745.0 | -680.6 | |
| 0.00 | 2.31 | 0.00 | 1.73 | -11.77 | 162.67 | -46.96 | 107.58 | 0.7529 | -719.0 | -672.6 | |
| 0.00 | 2.14 | 0.00 | 1.60 | -10.95 | 162.58 | -47.05 | 106.49 | 0.7518 | -771.0 | -686.3 | |
| 12.43 | -18.00 | 9.62 | -18.00 | -14.25 | 161.63 | -48.00 | 110.42 | 0.7709 | -872.7 | 999999 | |
| 0.69 | 3.94 | 0.52 | 2.98 | -11.78 | 162.22 | -47.41 | 107.46 | 0.7579 | -827.9 | -635.2 | |
| 0.00 | 0.94 | 0.00 | 0.71 | -10.93 | 162.36 | -47.27 | 106.40 | 0.7541 | -662.0 | -594.7 | |
| 0.00 | 1.54 | 0.00 | 1.22 | -15.44 | 160.90 | -48.73 | 111.66 | 0.7819 | -398.0 | -365.2 | |
| 1.37 | -18.00 | 1.07 | -18.00 | -14.17 | 161.24 | -48.39 | 110.19 | 0.7747 | -794.1 | 999999 | |
| 0.00 | 2.49 | 0.00 | 1.89 | -11.82 | 161.85 | -47.78 | 107.41 | 0.7620 | -742.0 | -676.9 | |
| 0.00 | 1.11 | 0.00 | 0.85 | -11.64 | 161.80 | -47.83 | 107.16 | 0.7620 | -667.0 | -617.5 | |
| 0.00 | 0.77 | 0.00 | 0.59 | -12.19 | 161.63 | -48.01 | 107.81 | 0.7654 | -685.0 | -543.8 | |
| 0.00 | 0.77 | 0.00 | 0.59 | -11.86 | 161.66 | -47.97 | 107.40 | 0.7641 | -618.0 | -552.3 | |
| 19.45 | -18.00 | 15.14 | -18.00 | -13.49 | 161.15 | -48.48 | 109.32 | 0.7738 | -898.6 | 999999 | |
| 4.20 | -18.00 | 3.29 | -18.00 | -14.05 | 160.90 | -48.73 | 109.94 | 0.7779 | -832.0 | 999999 | |
| 2.40 | -18.00 | 1.88 | -18.00 | -13.74 | 160.99 | -48.64 | 109.58 | 0.7762 | -886.7 | 999999 | |
| 0.00 | 1.03 | 0.00 | 0.80 | -13.06 | 161.18 | -48.46 | 108.78 | 0.7724 | -877.0 | -777.0 | |
| 0.00 | 1.03 | 0.00 | 0.79 | -11.50 | 161.56 | -48.07 | 106.90 | 0.7643 | -626.0 | -503.2 | |
| 1.63 | -18.00 | 1.26 | -18.00 | -12.39 | 161.30 | -48.33 | 107.96 | 0.7693 | -754.5 | 999999 | |
| 0.00 | 0.77 | 0.00 | 0.58 | -10.13 | 161.77 | -47.86 | 105.19 | 0.7588 | -503.0 | -457.6 | |
| 8.31 | -18.00 | 6.60 | -18.00 | -14.46 | 160.40 | -49.23 | 110.30 | 0.7841 | -780.0 | 999999 | |
| 4.80 | -18.00 | 3.81 | -18.00 | -14.10 | 160.37 | -49.26 | 109.83 | 0.7835 | -875.6 | 999999 | |
| 4.80 | -18.00 | 3.80 | -18.00 | -13.88 | 160.39 | -49.24 | 109.57 | 0.7827 | -874.7 | 999999 | |
| 1.89 | -18.00 | 1.49 | -18.00 | -13.57 | 160.43 | -49.20 | 109.20 | 0.7815 | -796.2 | 999999 | |
| 9.43 | -18.00 | 7.57 | -18.00 | -14.84 | 160.00 | -49.63 | 110.64 | 0.7892 | -670.9 | 999999 | |
| 0.00 | 1.03 | 0.00 | 0.79 | -10.90 | 161.01 | -48.62 | 105.99 | 0.7688 | -587.0 | -451.5 | |
| 2.23 | -18.00 | 1.78 | -18.00 | -14.07 | 160.10 | -49.53 | 109.72 | 0.7862 | -677.9 | 999999 | |
| 1.46 | -18.00 | 1.16 | -18.00 | -13.73 | 160.10 | -49.53 | 109.30 | 0.7853 | -577.1 | 999999 | |
| 1.37 | -18.00 | 1.10 | -18.00 | -13.92 | 159.95 | -49.68 | 109.49 | 0.7873 | -531.1 | 999999 | |
| 6.68 | -18.00 | 5.37 | -18.00 | -14.26 | 159.80 | -49.83 | 109.87 | 0.7897 | -556.2 | 999999 | |
| 1.63 | -18.00 | 1.31 | -18.00 | -14.02 | 159.64 | -49.99 | 109.52 | 0.7908 | -363.5 | 999999 | |
| 0.00 | 0.94 | 0.00 | 0.76 | -13.75 | 159.53 | -50.10 | 109.15 | 0.7912 | -259.0 | -228.4 | |
| 1.46 | -18.00 | 1.18 | -18.00 | -14.19 | 159.30 | -50.33 | 109.62 | 0.7946 | -365.4 | 999999 | |
| 0.00 | 1.54 | 0.00 | 1.28 | -15.90 | 158.58 | -51.05 | 111.49 | 0.8061 | -545.0 | -375.5 | |
| 0.00 | 3.43 | 0.00 | 2.81 | -14.13 | 158.88 | -50.75 | 109.44 | 0.7986 | -318.0 | -254.7 | |
| 0.00 | 1.20 | 0.00 | 1.02 | -16.95 | 157.89 | -51.74 | 112.53 | 0.8154 | -327.0 | -299.2 | |
| 0.00 | 0.94 | 0.00 | 0.79 | -15.55 | 158.02 | -51.62 | 110.90 | 0.8106 | -382.0 | -284.3 | |
| 0.00 | 0.43 | 0.00 | 0.36 | -15.35 | 157.49 | -52.14 | 110.50 | 0.8151 | -304.0 | -268.2 | |
| 0.00 | 0.77 | 0.00 | 0.64 | -12.83 | 158.20 | -51.43 | 107.66 | 0.8023 | -383.0 | -308.3 | |
| 0.00 | 1.89 | 0.00 | 1.58 | -13.43 | 157.58 | -52.05 | 108.23 | 0.8098 | -439.0 | -343.2 | |
| 0.00 | 1.11 | 0.00 | 0.96 | -14.14 | 156.54 | -53.09 | 108.80 | 0.8213 | -438.0 | -359.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
