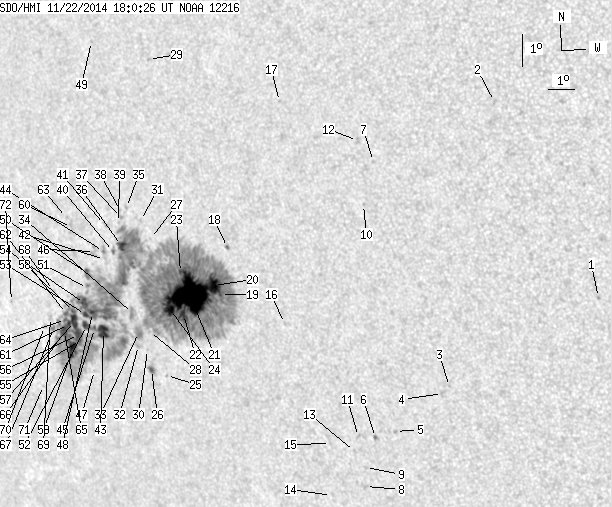

SDO HMI 2014-11-22 18:00:26 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 204.37 | 1292.43 | 150.68 | 947.06 | -13.41 | 163.61 | -45.47 | 110.23 | 0.7405 | 180.8 | -61.5 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-11-22 18:00:26 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.11 | 0.00 | 0.65 | -12.79 | 181.10 | -27.98 | 118.71 | 0.5238 | 719.0 | 592.2 | |
| 0.00 | 2.23 | 0.00 | 1.30 | -6.91 | 178.09 | -30.99 | 106.28 | 0.5347 | 667.0 | 399.0 | |
| 0.00 | 0.94 | 0.00 | 0.59 | -15.63 | 175.35 | -33.73 | 119.01 | 0.6138 | 658.0 | 487.9 | |
| 0.00 | 2.74 | 0.00 | 1.72 | -15.85 | 175.05 | -34.03 | 119.15 | 0.6187 | 675.0 | 567.2 | |
| 0.00 | 1.46 | 0.00 | 0.95 | -17.08 | 173.01 | -36.07 | 119.61 | 0.6497 | 713.0 | 521.4 | |
| 0.51 | 2.06 | 0.34 | 1.35 | -17.28 | 172.19 | -36.89 | 119.40 | 0.6602 | 797.0 | 612.4 | |
| 0.00 | 0.94 | 0.00 | 0.58 | -8.79 | 173.58 | -35.50 | 107.44 | 0.6038 | 411.0 | 405.5 | |
| 0.00 | 2.57 | 0.00 | 1.73 | -18.84 | 171.41 | -37.67 | 121.06 | 0.6775 | 501.0 | 428.9 | |
| 0.00 | 1.37 | 0.00 | 0.91 | -18.24 | 171.56 | -37.51 | 120.34 | 0.6725 | 577.0 | 484.7 | |
| 0.00 | 0.77 | 0.00 | 0.48 | -10.10 | 173.05 | -36.03 | 109.27 | 0.6158 | 730.0 | 571.1 | |
| 0.00 | 1.97 | 0.00 | 1.31 | -17.27 | 171.53 | -37.55 | 118.99 | 0.6677 | 610.0 | 554.2 | |
| 0.00 | 2.74 | 0.00 | 1.71 | -8.17 | 173.06 | -36.02 | 106.22 | 0.6086 | 553.0 | 520.2 | |
| 0.00 | 1.46 | 0.00 | 0.97 | -17.74 | 171.26 | -37.82 | 119.48 | 0.6733 | 583.0 | 406.1 | |
| 0.00 | 0.43 | 0.00 | 0.29 | -19.16 | 169.96 | -39.12 | 120.64 | 0.6951 | 250.0 | 310.6 | |
| 0.00 | 1.03 | 0.00 | 0.69 | -17.51 | 170.36 | -38.72 | 118.66 | 0.6821 | 120.0 | 229.8 | |
| 0.00 | 0.94 | 0.00 | 0.63 | -13.81 | 169.39 | -39.69 | 113.06 | 0.6764 | 537.0 | 388.5 | |
| 0.00 | 0.86 | 0.00 | 0.55 | -7.06 | 170.23 | -38.85 | 103.48 | 0.6425 | 548.0 | 451.2 | |
| 0.60 | 1.97 | 0.41 | 1.34 | -11.52 | 167.55 | -41.53 | 109.08 | 0.6897 | 734.7 | 590.2 | |
| 0.26 | 1195.94 | 0.18 | 877.49 | -12.97 | 166.98 | -42.10 | 110.86 | 0.7015 | 1093.7 | -52.6 | |
| 12.77 | -19.00 | 8.86 | -19.00 | -12.70 | 166.75 | -42.33 | 110.40 | 0.7033 | 1205.3 | 999999 | |
| 87.32 | -19.00 | 61.78 | -19.00 | -13.00 | 165.69 | -43.39 | 110.40 | 0.7166 | 1155.1 | 999999 | |
| 4.71 | -19.00 | 3.37 | -19.00 | -13.62 | 165.29 | -43.79 | 111.09 | 0.7231 | 515.5 | 999999 | |
| 0.86 | -19.00 | 0.61 | -19.00 | -12.33 | 165.45 | -43.63 | 109.42 | 0.7170 | 653.2 | 999999 | |
| 8.48 | -19.00 | 6.12 | -19.00 | -13.48 | 164.77 | -44.31 | 110.71 | 0.7285 | 609.9 | 999999 | |
| 0.00 | 1.20 | 0.00 | 0.88 | -15.53 | 164.07 | -45.01 | 113.12 | 0.7433 | 434.0 | 314.2 | |
| 2.23 | 5.48 | 1.66 | 4.08 | -15.36 | 163.46 | -45.62 | 112.66 | 0.7492 | -614.6 | -488.7 | |
| 0.00 | 0.26 | 0.00 | 0.18 | -11.32 | 164.39 | -44.69 | 107.70 | 0.7262 | 383.0 | 416.7 | |
| 0.00 | 1.11 | 0.00 | 0.82 | -14.18 | 163.69 | -45.39 | 111.23 | 0.7428 | -333.0 | -280.5 | |
| 0.00 | 1.20 | 0.00 | 0.83 | -5.92 | 165.12 | -43.96 | 100.46 | 0.7044 | 549.0 | 496.3 | |
| 0.00 | 0.86 | 0.00 | 0.64 | -14.75 | 163.45 | -45.63 | 111.87 | 0.7472 | -708.0 | -596.2 | |
| 0.00 | 1.29 | 0.00 | 0.93 | -10.78 | 164.07 | -45.01 | 106.87 | 0.7283 | -310.0 | -274.2 | |
| 0.00 | 3.08 | 0.00 | 2.30 | -14.63 | 163.09 | -45.99 | 111.59 | 0.7508 | -312.0 | -382.9 | |
| 0.00 | 9.94 | 0.00 | 7.39 | -14.23 | 163.20 | -45.88 | 111.11 | 0.7483 | -340.0 | -385.4 | |
| 0.00 | 7.71 | 0.00 | 5.73 | -13.65 | 163.08 | -46.00 | 110.32 | 0.7477 | -106.0 | -85.5 | |
| 0.00 | 1.46 | 0.00 | 1.06 | -10.40 | 163.54 | -45.54 | 106.20 | 0.7334 | -552.0 | -464.0 | |
| 6.08 | -19.00 | 4.47 | -19.00 | -11.57 | 163.09 | -45.99 | 107.61 | 0.7416 | -1074.3 | 999999 | |
| 0.00 | 1.46 | 0.00 | 1.06 | -10.71 | 163.27 | -45.81 | 106.53 | 0.7373 | -802.0 | -704.5 | |
| 0.00 | 0.94 | 0.00 | 0.69 | -10.50 | 163.26 | -45.82 | 106.25 | 0.7368 | -416.0 | -386.5 | |
| 0.00 | 0.69 | 0.00 | 0.50 | -10.87 | 163.10 | -45.97 | 106.69 | 0.7395 | -779.0 | -692.8 | |
| 0.77 | 2.83 | 0.57 | 2.10 | -11.76 | 162.70 | -46.38 | 107.74 | 0.7465 | -720.6 | -580.9 | |
| 0.00 | 1.11 | 0.00 | 0.83 | -10.95 | 162.47 | -46.60 | 106.61 | 0.7468 | -758.0 | -610.9 | |
| 0.00 | 0.60 | 0.00 | 0.45 | -12.02 | 162.24 | -46.84 | 107.93 | 0.7522 | -401.0 | -389.0 | |
| 11.82 | -19.00 | 9.06 | -19.00 | -14.24 | 161.63 | -47.45 | 110.58 | 0.7651 | -887.9 | 999999 | |
| 0.51 | 2.91 | 0.38 | 2.18 | -11.77 | 162.25 | -46.83 | 107.62 | 0.7514 | -833.7 | -678.9 | |
| 1.20 | -19.00 | 0.93 | -19.00 | -14.15 | 161.24 | -47.84 | 110.35 | 0.7689 | -788.3 | 999999 | |
| 0.00 | 6.17 | 0.00 | 4.65 | -11.78 | 161.85 | -47.23 | 107.51 | 0.7559 | -727.0 | -606.3 | |
| 0.00 | 0.69 | 0.00 | 0.54 | -15.46 | 160.85 | -48.23 | 111.86 | 0.7768 | -476.0 | -480.9 | |
| 2.14 | -19.00 | 1.65 | -19.00 | -13.66 | 161.29 | -47.79 | 109.74 | 0.7670 | -1105.1 | 999999 | |
| 0.00 | 0.86 | 0.00 | 0.62 | -5.43 | 162.76 | -46.32 | 99.32 | 0.7319 | 480.0 | 423.2 | |
| 3.51 | -19.00 | 2.68 | -19.00 | -12.46 | 161.37 | -47.71 | 108.25 | 0.7629 | -823.0 | 999999 | |
| 0.00 | 3.77 | 0.00 | 2.89 | -12.93 | 161.25 | -47.82 | 108.80 | 0.7653 | -776.0 | -786.5 | |
| 4.97 | -19.00 | 3.86 | -19.00 | -14.07 | 160.90 | -48.18 | 110.13 | 0.7723 | -829.5 | 999999 | |
| 2.66 | -19.00 | 2.06 | -19.00 | -13.73 | 160.95 | -48.13 | 109.72 | 0.7708 | -897.1 | 999999 | |
| 6.17 | -19.00 | 4.76 | -19.00 | -13.39 | 161.00 | -48.08 | 109.31 | 0.7694 | -987.9 | 999999 | |
| 2.06 | -19.00 | 1.61 | -19.00 | -14.54 | 160.48 | -48.59 | 110.59 | 0.7779 | -752.7 | 999999 | |
| 9.08 | -19.00 | 7.13 | -19.00 | -14.36 | 160.45 | -48.63 | 110.35 | 0.7778 | -777.1 | 999999 | |
| 8.23 | -19.00 | 6.45 | -19.00 | -13.96 | 160.38 | -48.70 | 109.83 | 0.7774 | -907.8 | 999999 | |
| 1.80 | -19.00 | 1.41 | -19.00 | -13.65 | 160.42 | -48.66 | 109.46 | 0.7761 | -858.6 | 999999 | |
| 9.34 | -19.00 | 7.41 | -19.00 | -14.83 | 160.02 | -49.06 | 110.81 | 0.7834 | -688.3 | 999999 | |
| 0.00 | 4.71 | 0.00 | 3.60 | -11.07 | 160.97 | -48.11 | 106.35 | 0.7637 | -391.0 | -389.7 | |
| 2.74 | -19.00 | 2.16 | -19.00 | -14.06 | 160.07 | -49.01 | 109.86 | 0.7808 | -738.7 | 999999 | |
| 1.80 | -19.00 | 1.42 | -19.00 | -13.72 | 160.07 | -49.01 | 109.44 | 0.7799 | -559.2 | 999999 | |
| 0.00 | 1.37 | 0.00 | 1.05 | -10.77 | 160.81 | -48.27 | 105.92 | 0.7647 | -447.0 | -416.9 | |
| 1.46 | -19.00 | 1.15 | -19.00 | -13.91 | 159.97 | -49.11 | 109.64 | 0.7814 | -551.5 | 999999 | |
| 7.20 | -19.00 | 5.72 | -19.00 | -14.28 | 159.81 | -49.27 | 110.06 | 0.7840 | -560.5 | 999999 | |
| 1.89 | -19.00 | 1.51 | -19.00 | -14.51 | 159.51 | -49.57 | 110.24 | 0.7877 | -261.3 | 999999 | |
| 1.20 | -19.00 | 0.96 | -19.00 | -14.20 | 159.32 | -49.76 | 109.81 | 0.7889 | -370.9 | 999999 | |
| 0.00 | 0.94 | 0.00 | 0.75 | -13.03 | 159.66 | -49.42 | 108.45 | 0.7824 | -471.0 | -446.8 | |
| 0.00 | 2.40 | 0.00 | 1.92 | -13.87 | 159.28 | -49.80 | 109.38 | 0.7884 | -327.0 | -225.2 | |
| 0.00 | 1.89 | 0.00 | 1.52 | -14.15 | 158.90 | -50.18 | 109.63 | 0.7929 | -409.0 | -312.8 | |
| 0.00 | 0.94 | 0.00 | 0.78 | -15.99 | 158.24 | -50.83 | 111.67 | 0.8042 | -262.0 | -250.7 | |
| 0.00 | 1.03 | 0.00 | 0.85 | -13.42 | 157.52 | -51.55 | 108.35 | 0.8049 | -494.0 | -439.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
