SDO HMI 2014-11-22 21:00:26 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 29.73 | 0.00 | 16.09 | -13.13 | 225.86 | 18.44 | 229.89 | 0.4046 | 17.3 | -15.4 | |
|
previous
or next observation for the same group /

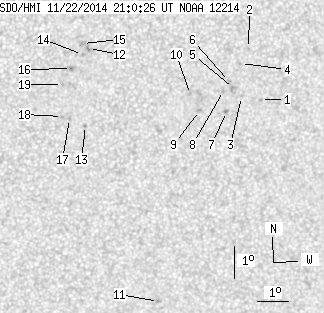

back to the solar disc SDO HMI 2014-11-22 21:00:26 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.20 | 0.00 | 0.66 | -13.19 | 229.12 | 21.70 | 234.29 | 0.4452 | 505.0 | 475.8 | |
| 0.00 | 0.77 | 0.00 | 0.42 | -11.63 | 228.59 | 21.17 | 236.70 | 0.4251 | 654.0 | 536.1 | |
| 0.00 | 1.11 | 0.00 | 0.61 | -13.09 | 228.49 | 21.07 | 233.70 | 0.4363 | 689.0 | 483.8 | |
| 0.00 | 1.20 | 0.00 | 0.66 | -12.08 | 228.37 | 20.95 | 235.52 | 0.4260 | 864.0 | 605.4 | |
| 0.00 | 3.08 | 0.00 | 1.69 | -12.84 | 228.21 | 20.79 | 233.82 | 0.4305 | 818.0 | 732.8 | |
| 0.00 | 1.29 | 0.00 | 0.70 | -12.63 | 228.06 | 20.64 | 234.05 | 0.4267 | 828.0 | 698.5 | |
| 0.00 | 1.80 | 0.00 | 0.99 | -13.55 | 228.04 | 20.62 | 232.27 | 0.4347 | 829.0 | 717.6 | |
| 0.00 | 1.63 | 0.00 | 0.89 | -12.90 | 227.89 | 20.47 | 233.30 | 0.4269 | 830.0 | 721.9 | |
| 0.00 | 1.89 | 0.00 | 1.03 | -13.50 | 227.16 | 19.74 | 231.16 | 0.4234 | 830.0 | 692.4 | |
| 0.00 | 0.94 | 0.00 | 0.51 | -13.01 | 226.83 | 19.41 | 231.66 | 0.4146 | 811.0 | 664.2 | |
| 0.00 | 1.89 | 0.00 | 1.06 | -19.46 | 226.43 | 19.01 | 220.23 | 0.4776 | -733.0 | -642.1 | |
| 0.00 | 2.31 | 0.00 | 1.23 | -11.56 | 223.48 | 16.06 | 229.41 | 0.3585 | -825.0 | -791.8 | |
| 0.00 | 1.20 | 0.00 | 0.64 | -13.92 | 223.54 | 16.12 | 224.73 | 0.3846 | -823.0 | -684.4 | |
| 0.00 | 0.86 | 0.00 | 0.45 | -11.75 | 223.30 | 15.88 | 228.71 | 0.3582 | -841.0 | -747.5 | |
| 0.00 | 3.00 | 0.00 | 1.59 | -11.41 | 223.28 | 15.87 | 229.40 | 0.3545 | -908.0 | -722.7 | |
| 0.00 | 1.71 | 0.00 | 0.91 | -12.17 | 222.98 | 15.56 | 227.24 | 0.3588 | -1071.0 | -881.7 | |
| 0.00 | 1.54 | 0.00 | 0.82 | -13.70 | 223.02 | 15.60 | 224.22 | 0.3762 | -745.0 | -613.7 | |
| 0.00 | 1.37 | 0.00 | 0.73 | -13.64 | 222.79 | 15.37 | 223.93 | 0.3729 | -599.0 | -546.5 | |
| 0.00 | 0.94 | 0.00 | 0.50 | -12.65 | 222.73 | 15.31 | 225.76 | 0.3612 | -784.0 | -665.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
