SDO HMI 2014-11-22 21:00:26 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 197.69 | 1326.43 | 141.96 | 946.01 | -13.43 | 163.35 | -44.07 | 110.74 | 0.7249 | 103.8 | -38.1 | |
|
previous
or next observation for the same group /

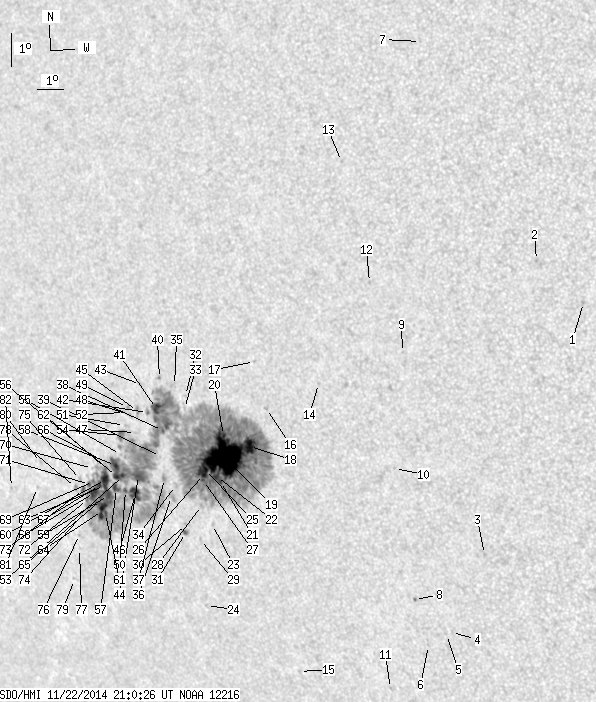

back to the solar disc SDO HMI 2014-11-22 21:00:26 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.80 | 0.00 | 1.02 | -8.07 | 179.57 | -27.85 | 110.17 | 0.4948 | 748.0 | 642.4 | |
| 0.00 | 1.11 | 0.00 | 0.64 | -6.83 | 178.06 | -29.36 | 106.93 | 0.5109 | 644.0 | 500.2 | |
| 0.00 | 1.20 | 0.00 | 0.74 | -15.83 | 175.13 | -32.29 | 120.29 | 0.5975 | 716.0 | 524.2 | |
| 0.00 | 0.77 | 0.00 | 0.49 | -18.30 | 173.40 | -34.02 | 122.66 | 0.6333 | 673.0 | 552.9 | |
| 0.00 | 0.77 | 0.00 | 0.49 | -18.37 | 173.20 | -34.22 | 122.62 | 0.6360 | 476.0 | 344.3 | |
| 0.00 | 1.11 | 0.00 | 0.72 | -18.73 | 172.43 | -34.99 | 122.59 | 0.6469 | 445.0 | 384.4 | |
| 0.00 | 0.60 | 0.00 | 0.36 | -0.38 | 174.28 | -33.14 | 93.66 | 0.5499 | 552.0 | 459.4 | |
| 0.43 | 1.37 | 0.28 | 0.88 | -17.29 | 172.23 | -35.19 | 120.45 | 0.6406 | 778.6 | 640.1 | |
| 0.00 | 0.51 | 0.00 | 0.32 | -9.69 | 173.07 | -34.35 | 109.38 | 0.5919 | 663.0 | 579.0 | |
| 0.00 | 0.86 | 0.00 | 0.54 | -13.23 | 172.26 | -35.15 | 114.52 | 0.6184 | 559.0 | 434.4 | |
| 0.00 | 1.03 | 0.00 | 0.69 | -20.13 | 170.59 | -36.83 | 123.28 | 0.6756 | 639.0 | 487.2 | |
| 0.00 | 1.11 | 0.00 | 0.69 | -7.60 | 172.09 | -35.33 | 105.55 | 0.5973 | 724.0 | 592.5 | |
| 0.00 | 0.86 | 0.00 | 0.53 | -4.00 | 171.33 | -36.09 | 99.37 | 0.5979 | 486.0 | 377.4 | |
| 0.00 | 0.94 | 0.00 | 0.60 | -10.69 | 169.80 | -37.62 | 109.44 | 0.6384 | 558.0 | 430.4 | |
| 0.00 | 0.69 | 0.00 | 0.48 | -19.67 | 167.05 | -40.37 | 120.60 | 0.7110 | 511.0 | 380.6 | |
| 0.00 | 1.71 | 0.00 | 1.14 | -11.49 | 167.66 | -39.76 | 109.72 | 0.6681 | 666.0 | 540.7 | |
| 0.00 | 0.86 | 0.00 | 0.57 | -10.07 | 167.42 | -40.00 | 107.56 | 0.6662 | 467.0 | 415.2 | |
| 9.60 | 1254.85 | 6.49 | 895.24 | -12.67 | 166.77 | -40.65 | 111.02 | 0.6833 | 1222.5 | -29.6 | |
| 79.69 | -18.00 | 54.91 | -18.00 | -13.03 | 165.68 | -41.74 | 111.08 | 0.6974 | 1232.6 | 999999 | |
| 0.86 | -18.00 | 0.59 | -18.00 | -12.36 | 165.78 | -41.64 | 110.18 | 0.6939 | 1129.3 | 999999 | |
| 1.80 | -18.00 | 1.25 | -18.00 | -13.77 | 165.36 | -42.06 | 111.96 | 0.7040 | 510.5 | 999999 | |
| 2.83 | -18.00 | 1.97 | -18.00 | -13.62 | 165.22 | -42.19 | 111.70 | 0.7049 | 499.4 | 999999 | |
| 0.00 | 0.94 | 0.00 | 0.67 | -15.11 | 164.70 | -42.72 | 113.49 | 0.7164 | 447.0 | 322.3 | |
| 0.00 | 0.86 | 0.00 | 0.63 | -17.66 | 163.74 | -43.68 | 116.39 | 0.7370 | -599.0 | -502.6 | |
| 1.89 | -18.00 | 1.32 | -18.00 | -13.42 | 164.82 | -42.60 | 111.26 | 0.7089 | 712.4 | 999999 | |
| 2.23 | -18.00 | 1.56 | -18.00 | -13.57 | 164.70 | -42.72 | 111.42 | 0.7108 | 628.4 | 999999 | |
| 2.31 | -18.00 | 1.63 | -18.00 | -13.76 | 164.65 | -42.76 | 111.66 | 0.7120 | 524.4 | 999999 | |
| 0.00 | 2.49 | 0.00 | 1.76 | -14.54 | 164.39 | -43.03 | 112.59 | 0.7178 | -324.0 | -294.1 | |
| 0.00 | 1.37 | 0.00 | 0.98 | -15.59 | 164.07 | -43.35 | 113.86 | 0.7253 | 437.0 | 283.6 | |
| 0.00 | 1.80 | 0.00 | 1.30 | -15.14 | 163.60 | -43.82 | 113.07 | 0.7288 | -721.0 | -586.8 | |
| 1.54 | 2.83 | 1.12 | 2.04 | -15.39 | 163.49 | -43.93 | 113.35 | 0.7309 | -600.7 | -544.1 | |
| 0.00 | 0.86 | 0.00 | 0.60 | -11.17 | 164.45 | -42.97 | 108.05 | 0.7057 | 302.0 | 263.9 | |
| 0.00 | 1.20 | 0.00 | 0.84 | -11.57 | 164.33 | -43.09 | 108.55 | 0.7083 | 272.0 | 157.5 | |
| 0.00 | 1.97 | 0.00 | 1.41 | -13.94 | 163.43 | -43.99 | 111.42 | 0.7264 | -234.0 | -213.9 | |
| 0.00 | 2.23 | 0.00 | 1.56 | -10.87 | 164.05 | -43.37 | 107.51 | 0.7095 | -456.0 | -329.4 | |
| 0.00 | 6.00 | 0.00 | 4.33 | -14.29 | 163.18 | -44.24 | 111.78 | 0.7304 | -386.0 | -288.0 | |
| 0.00 | 3.51 | 0.00 | 2.54 | -13.74 | 163.01 | -44.41 | 110.99 | 0.7304 | -27.0 | -81.7 | |
| 1.29 | -18.00 | 0.92 | -18.00 | -12.26 | 163.26 | -44.15 | 109.12 | 0.7228 | 166.3 | 999999 | |
| 0.00 | 0.77 | 0.00 | 0.56 | -13.06 | 163.00 | -44.42 | 110.10 | 0.7283 | 179.0 | 134.0 | |
| 0.00 | 1.20 | 0.00 | 0.85 | -10.68 | 163.45 | -43.96 | 107.04 | 0.7159 | -773.0 | -682.5 | |
| 5.74 | -18.00 | 4.10 | -18.00 | -11.59 | 163.15 | -44.27 | 108.19 | 0.7221 | -1110.5 | 999999 | |
| 0.60 | 2.23 | 0.43 | 1.60 | -11.73 | 162.74 | -44.68 | 108.23 | 0.7272 | -671.0 | -578.1 | |
| 0.00 | 1.20 | 0.00 | 0.86 | -10.88 | 162.61 | -44.81 | 107.05 | 0.7262 | -600.0 | -603.7 | |
| 13.71 | -18.00 | 10.09 | -18.00 | -13.67 | 161.90 | -45.51 | 110.51 | 0.7425 | -623.0 | 999999 | |
| 0.00 | 3.86 | 0.00 | 2.79 | -11.70 | 162.32 | -45.10 | 108.06 | 0.7320 | -773.0 | -682.0 | |
| 10.54 | -18.00 | 7.83 | -18.00 | -14.23 | 161.63 | -45.79 | 111.14 | 0.7473 | -904.1 | 999999 | |
| 0.00 | 1.11 | 0.00 | 0.81 | -12.35 | 162.09 | -45.33 | 108.84 | 0.7364 | -350.0 | -302.3 | |
| 0.00 | 1.63 | 0.00 | 1.19 | -11.81 | 161.91 | -45.51 | 108.06 | 0.7369 | -668.0 | -576.5 | |
| 0.00 | 1.29 | 0.00 | 0.94 | -11.59 | 161.91 | -45.51 | 107.78 | 0.7362 | -767.0 | -710.9 | |
| 1.54 | -18.00 | 1.15 | -18.00 | -14.15 | 161.21 | -46.21 | 110.88 | 0.7515 | -836.8 | 999999 | |
| 0.00 | 0.69 | 0.00 | 0.50 | -12.15 | 161.66 | -45.76 | 108.43 | 0.7406 | -690.0 | -632.2 | |
| 0.00 | 1.29 | 0.00 | 0.94 | -11.75 | 161.74 | -45.68 | 107.93 | 0.7385 | -613.0 | -503.4 | |
| 2.74 | -18.00 | 2.04 | -18.00 | -13.69 | 161.24 | -46.18 | 110.30 | 0.7498 | -1052.4 | 999999 | |
| 4.11 | -18.00 | 3.04 | -18.00 | -12.46 | 161.45 | -45.97 | 108.77 | 0.7438 | -839.5 | 999999 | |
| 0.00 | 1.20 | 0.00 | 0.89 | -13.04 | 161.27 | -46.15 | 109.47 | 0.7475 | -821.0 | -737.0 | |
| 4.54 | -18.00 | 3.41 | -18.00 | -13.73 | 160.92 | -46.50 | 110.24 | 0.7533 | -967.5 | 999999 | |
| 4.71 | -18.00 | 3.55 | -18.00 | -14.10 | 160.82 | -46.60 | 110.68 | 0.7555 | -861.7 | 999999 | |
| 9.00 | -18.00 | 6.73 | -18.00 | -13.39 | 160.96 | -46.46 | 109.82 | 0.7519 | -962.2 | 999999 | |
| 3.77 | -18.00 | 2.86 | -18.00 | -14.32 | 160.40 | -47.02 | 110.83 | 0.7607 | -796.5 | 999999 | |
| 6.08 | -18.00 | 4.61 | -18.00 | -13.83 | 160.40 | -47.02 | 110.20 | 0.7592 | -942.2 | 999999 | |
| 1.54 | -18.00 | 1.18 | -18.00 | -14.89 | 160.11 | -47.31 | 111.44 | 0.7655 | -673.1 | 999999 | |
| 0.26 | -18.00 | 0.19 | -18.00 | -13.49 | 160.49 | -46.93 | 109.79 | 0.7573 | -802.3 | 999999 | |
| 0.26 | -18.00 | 0.20 | -18.00 | -14.02 | 160.31 | -47.11 | 110.41 | 0.7608 | -1086.7 | 999999 | |
| 8.74 | -18.00 | 6.71 | -18.00 | -14.80 | 160.00 | -47.42 | 111.29 | 0.7664 | -718.5 | 999999 | |
| 1.54 | -18.00 | 1.18 | -18.00 | -14.46 | 160.05 | -47.37 | 110.88 | 0.7648 | -683.6 | 999999 | |
| 0.00 | 0.86 | 0.00 | 0.65 | -13.22 | 160.34 | -47.08 | 109.40 | 0.7582 | -523.0 | -450.9 | |
| 1.37 | -18.00 | 1.05 | -18.00 | -14.02 | 160.08 | -47.34 | 110.34 | 0.7632 | -804.6 | 999999 | |
| 7.54 | -18.00 | 5.80 | -18.00 | -14.25 | 159.79 | -47.63 | 110.52 | 0.7669 | -612.5 | 999999 | |
| 1.03 | -18.00 | 0.79 | -18.00 | -13.91 | 159.84 | -47.58 | 110.11 | 0.7654 | -431.2 | 999999 | |
| 0.00 | 0.26 | 0.00 | 0.20 | -13.51 | 159.90 | -47.52 | 109.62 | 0.7636 | -302.0 | -309.7 | |
| 1.46 | -18.00 | 1.12 | -18.00 | -14.00 | 159.63 | -47.79 | 110.17 | 0.7679 | -382.1 | 999999 | |
| 0.77 | -18.00 | 0.60 | -18.00 | -14.47 | 159.41 | -48.01 | 110.68 | 0.7716 | -188.0 | 999999 | |
| 1.63 | -18.00 | 1.26 | -18.00 | -14.17 | 159.31 | -48.11 | 110.27 | 0.7717 | -369.3 | 999999 | |
| 0.00 | 1.11 | 0.00 | 0.87 | -14.98 | 158.98 | -48.44 | 111.17 | 0.7775 | -336.0 | -256.8 | |
| 0.00 | 1.71 | 0.00 | 1.33 | -13.86 | 159.26 | -48.16 | 109.87 | 0.7714 | -330.0 | -277.0 | |
| 0.00 | 0.86 | 0.00 | 0.68 | -15.57 | 158.70 | -48.72 | 111.82 | 0.7821 | -413.0 | -391.3 | |
| 0.00 | 0.26 | 0.00 | 0.20 | -16.01 | 158.55 | -48.87 | 112.31 | 0.7848 | -529.0 | -453.3 | |
| 0.00 | 2.31 | 0.00 | 1.81 | -14.11 | 158.96 | -48.46 | 110.09 | 0.7753 | -470.0 | -276.5 | |
| 0.00 | 1.29 | 0.00 | 1.04 | -16.99 | 157.98 | -49.44 | 113.31 | 0.7935 | -463.0 | -441.3 | |
| 0.00 | 1.46 | 0.00 | 1.17 | -13.38 | 157.53 | -49.89 | 108.75 | 0.7881 | -569.0 | -429.6 | |
| 0.00 | 0.94 | 0.00 | 0.76 | -14.16 | 157.15 | -50.27 | 109.60 | 0.7938 | -595.0 | -450.0 | |
| 0.00 | 0.69 | 0.00 | 0.57 | -14.20 | 155.87 | -51.55 | 109.28 | 0.8065 | -441.0 | -421.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
