SDO HMI 2014-11-22 22:00:26 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 252.57 | 1331.37 | 180.03 | 941.53 | -13.36 | 163.60 | -43.26 | 110.94 | 0.7155 | 102.5 | -52.7 | |
|
previous
or next observation for the same group /

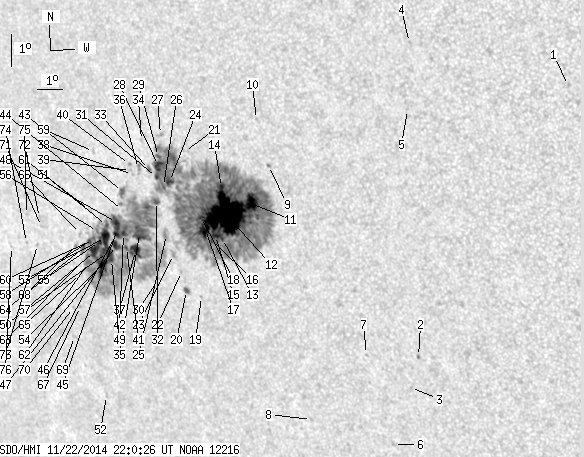

back to the solar disc SDO HMI 2014-11-22 22:00:26 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.80 | 0.00 | 1.03 | -8.86 | 178.85 | -28.02 | 111.56 | 0.5011 | 701.0 | 578.3 | |
| 0.00 | 1.20 | 0.00 | 0.77 | -17.28 | 172.28 | -34.59 | 120.82 | 0.6335 | 734.0 | 704.4 | |
| 0.00 | 0.60 | 0.00 | 0.39 | -18.26 | 171.75 | -35.11 | 121.86 | 0.6454 | 635.0 | 489.4 | |
| 0.00 | 1.03 | 0.00 | 0.62 | -7.65 | 173.41 | -33.45 | 106.42 | 0.5718 | 693.0 | 520.8 | |
| 0.00 | 0.86 | 0.00 | 0.52 | -9.68 | 173.13 | -33.74 | 109.67 | 0.5836 | 698.0 | 569.4 | |
| 0.00 | 1.46 | 0.00 | 0.97 | -20.09 | 170.63 | -36.23 | 123.61 | 0.6689 | 616.0 | 536.3 | |
| 0.00 | 0.77 | 0.00 | 0.51 | -17.26 | 170.30 | -36.57 | 119.54 | 0.6563 | 398.0 | 409.9 | |
| 0.00 | 1.54 | 0.00 | 1.06 | -19.36 | 167.57 | -39.30 | 120.79 | 0.6979 | 302.0 | 284.0 | |
| 0.00 | 1.54 | 0.00 | 1.02 | -11.48 | 167.66 | -39.21 | 109.93 | 0.6613 | 569.0 | 462.4 | |
| 0.00 | 1.11 | 0.00 | 0.73 | -10.09 | 167.41 | -39.46 | 107.79 | 0.6595 | 445.0 | 356.5 | |
| 14.40 | 816.50 | 9.66 | 561.00 | -12.66 | 166.73 | -40.13 | 111.23 | 0.6770 | 1215.5 | 158.3 | |
| 90.84 | -11.00 | 62.03 | -11.00 | -13.02 | 165.70 | -41.17 | 111.29 | 0.6907 | 1218.5 | 999999 | |
| 0.26 | -11.00 | 0.18 | -11.00 | -13.76 | 165.38 | -41.49 | 112.18 | 0.6973 | 546.7 | 999999 | |
| 2.66 | -11.00 | 1.81 | -11.00 | -12.20 | 165.66 | -41.21 | 110.13 | 0.6882 | 976.5 | 999999 | |
| 2.40 | -11.00 | 1.66 | -11.00 | -13.68 | 165.11 | -41.76 | 111.95 | 0.7000 | 577.0 | 999999 | |
| 1.46 | -11.00 | 1.01 | -11.00 | -13.84 | 164.91 | -41.96 | 112.09 | 0.7029 | 301.5 | 999999 | |
| 10.20 | -11.00 | 7.09 | -11.00 | -13.50 | 164.74 | -42.13 | 111.56 | 0.7037 | 625.8 | 999999 | |
| 2.66 | -11.00 | 1.84 | -11.00 | -13.14 | 164.65 | -42.21 | 111.03 | 0.7034 | 590.8 | 999999 | |
| 0.00 | 0.94 | 0.00 | 0.67 | -15.58 | 164.07 | -42.80 | 114.07 | 0.7191 | 348.0 | 316.3 | |
| 1.71 | 3.17 | 1.23 | 2.27 | -15.41 | 163.48 | -43.38 | 113.60 | 0.7250 | -643.8 | -591.8 | |
| 0.00 | 0.94 | 0.00 | 0.65 | -11.13 | 164.35 | -42.51 | 108.15 | 0.7001 | 229.0 | 170.7 | |
| 0.00 | 1.20 | 0.00 | 0.86 | -14.83 | 163.42 | -43.44 | 112.80 | 0.7235 | -802.0 | -738.7 | |
| 0.00 | 4.54 | 0.00 | 3.25 | -14.31 | 163.21 | -43.65 | 112.03 | 0.7239 | -314.0 | -267.6 | |
| 4.71 | -11.00 | 3.32 | -11.00 | -12.06 | 163.55 | -43.32 | 109.14 | 0.7125 | -40.8 | 999999 | |
| 0.00 | 7.20 | 0.00 | 5.15 | -13.69 | 163.06 | -43.80 | 111.16 | 0.7235 | -29.0 | -61.7 | |
| 1.54 | -11.00 | 1.09 | -11.00 | -12.22 | 163.27 | -43.60 | 109.26 | 0.7163 | 156.9 | 999999 | |
| 0.00 | 2.74 | 0.00 | 1.92 | -10.64 | 163.45 | -43.42 | 107.16 | 0.7093 | -794.0 | -676.2 | |
| 5.91 | -11.00 | 4.18 | -11.00 | -11.58 | 163.19 | -43.68 | 108.36 | 0.7152 | -1119.8 | 999999 | |
| 1.29 | -11.00 | 0.91 | -11.00 | -11.31 | 163.24 | -43.63 | 108.01 | 0.7138 | -965.3 | 999999 | |
| 0.00 | 1.03 | 0.00 | 0.75 | -15.07 | 162.38 | -44.49 | 112.70 | 0.7359 | -290.0 | -237.2 | |
| 1.63 | -11.00 | 1.15 | -11.00 | -11.95 | 163.03 | -43.84 | 108.81 | 0.7182 | -688.4 | 999999 | |
| 2.74 | 444.24 | 1.96 | 329.60 | -12.69 | 162.87 | -44.00 | 109.74 | 0.7223 | 113.7 | -405.5 | |
| 0.77 | 2.14 | 0.55 | 1.52 | -11.71 | 162.78 | -44.09 | 108.40 | 0.7203 | -710.9 | -591.1 | |
| 0.00 | 1.54 | 0.00 | 1.10 | -10.84 | 162.62 | -44.25 | 107.16 | 0.7197 | -701.0 | -628.2 | |
| 13.37 | -32.00 | 9.75 | -32.00 | -13.69 | 161.91 | -44.96 | 110.73 | 0.7364 | -624.9 | 999999 | |
| 0.00 | 3.51 | 0.00 | 2.52 | -11.69 | 162.32 | -44.55 | 108.22 | 0.7256 | -863.0 | -708.4 | |
| 10.11 | -32.00 | 7.44 | -32.00 | -14.22 | 161.60 | -45.27 | 111.31 | 0.7415 | -897.1 | 999999 | |
| 0.00 | 0.94 | 0.00 | 0.68 | -11.88 | 162.02 | -44.84 | 108.38 | 0.7295 | -547.0 | -483.1 | |
| 0.00 | 1.29 | 0.00 | 0.93 | -11.76 | 161.96 | -44.90 | 108.20 | 0.7298 | -717.0 | -613.0 | |
| 0.00 | 1.29 | 0.00 | 0.93 | -11.58 | 161.96 | -44.91 | 107.95 | 0.7294 | -740.0 | -692.3 | |
| 1.63 | -32.00 | 1.21 | -32.00 | -14.14 | 161.23 | -45.64 | 111.07 | 0.7453 | -813.8 | 999999 | |
| 2.06 | -32.00 | 1.52 | -32.00 | -13.71 | 161.21 | -45.66 | 110.50 | 0.7441 | -1066.0 | 999999 | |
| 2.40 | 7.20 | 1.75 | 5.26 | -12.42 | 161.47 | -45.39 | 108.90 | 0.7372 | -862.6 | -754.9 | |
| 0.00 | 0.69 | 0.00 | 0.50 | -13.00 | 161.34 | -45.53 | 109.62 | 0.7405 | -869.0 | -804.4 | |
| 1.29 | -32.00 | 0.95 | -32.00 | -13.56 | 160.98 | -45.88 | 110.23 | 0.7461 | -1117.0 | 999999 | |
| 2.74 | -32.00 | 2.04 | -32.00 | -13.72 | 160.90 | -45.97 | 110.40 | 0.7475 | -984.2 | 999999 | |
| 5.40 | -32.00 | 4.02 | -32.00 | -14.09 | 160.80 | -46.06 | 110.85 | 0.7497 | -850.9 | 999999 | |
| 3.77 | -32.00 | 2.79 | -32.00 | -13.38 | 160.98 | -45.88 | 109.99 | 0.7456 | -1013.7 | 999999 | |
| 2.49 | -32.00 | 1.87 | -32.00 | -14.53 | 160.46 | -46.40 | 111.29 | 0.7548 | -769.5 | 999999 | |
| 10.54 | -32.00 | 7.94 | -32.00 | -14.31 | 160.34 | -46.52 | 110.98 | 0.7554 | -789.3 | 999999 | |
| 1.97 | -32.00 | 1.47 | -32.00 | -13.48 | 160.52 | -46.35 | 109.97 | 0.7510 | -793.0 | 999999 | |
| 0.00 | 1.54 | 0.00 | 1.23 | -18.81 | 158.83 | -48.04 | 116.02 | 0.7856 | -539.0 | -453.9 | |
| 11.40 | -32.00 | 8.55 | -32.00 | -13.85 | 160.38 | -46.49 | 110.40 | 0.7536 | -919.6 | 999999 | |
| 17.48 | -32.00 | 13.27 | -32.00 | -14.69 | 160.01 | -46.85 | 111.35 | 0.7601 | -686.9 | 999999 | |
| 3.09 | -32.00 | 2.33 | -32.00 | -13.98 | 160.07 | -46.79 | 110.46 | 0.7572 | -733.3 | 999999 | |
| 0.77 | -32.00 | 0.58 | -32.00 | -13.68 | 160.07 | -46.80 | 110.07 | 0.7564 | -573.0 | 999999 | |
| 9.17 | -32.00 | 6.98 | -32.00 | -14.30 | 159.76 | -47.10 | 110.76 | 0.7615 | -579.6 | 999999 | |
| 1.11 | -32.00 | 0.84 | -32.00 | -13.90 | 159.83 | -47.04 | 110.27 | 0.7596 | -468.9 | 999999 | |
| 0.00 | 1.63 | 0.00 | 1.20 | -11.22 | 160.47 | -46.40 | 107.01 | 0.7451 | -414.0 | -390.3 | |
| 1.89 | -32.00 | 1.44 | -32.00 | -13.99 | 159.62 | -47.24 | 110.33 | 0.7621 | -431.2 | 999999 | |
| 0.00 | 1.80 | 0.00 | 1.36 | -13.04 | 159.87 | -46.99 | 109.18 | 0.7567 | -601.0 | -437.8 | |
| 2.31 | -32.00 | 1.78 | -32.00 | -14.65 | 159.39 | -47.47 | 111.08 | 0.7665 | 120.9 | 999999 | |
| 0.60 | -32.00 | 0.46 | -32.00 | -14.46 | 159.36 | -47.51 | 110.83 | 0.7663 | -214.6 | 999999 | |
| 1.80 | -32.00 | 1.38 | -32.00 | -14.19 | 159.30 | -47.57 | 110.46 | 0.7661 | -358.6 | 999999 | |
| 0.00 | 0.94 | 0.00 | 0.73 | -15.00 | 158.92 | -47.94 | 111.36 | 0.7724 | -412.0 | -306.2 | |
| 0.00 | 1.63 | 0.00 | 1.25 | -13.76 | 159.28 | -47.59 | 109.91 | 0.7651 | -338.0 | -251.3 | |
| 0.00 | 1.03 | 0.00 | 0.81 | -16.03 | 158.60 | -48.27 | 112.53 | 0.7788 | -479.0 | -426.4 | |
| 0.00 | 1.29 | 0.00 | 0.99 | -14.13 | 158.99 | -47.87 | 110.30 | 0.7692 | -282.0 | -233.9 | |
| 0.00 | 1.89 | 0.00 | 1.51 | -16.98 | 158.00 | -48.87 | 113.49 | 0.7878 | -510.0 | -383.3 | |
| 0.00 | 1.37 | 0.00 | 1.09 | -16.07 | 158.26 | -48.61 | 112.47 | 0.7824 | -521.0 | -411.5 | |
| 0.00 | 0.86 | 0.00 | 0.68 | -13.59 | 157.53 | -49.34 | 109.16 | 0.7829 | -372.0 | -325.1 | |
| 0.00 | 1.03 | 0.00 | 0.81 | -13.31 | 157.51 | -49.36 | 108.81 | 0.7824 | -548.0 | -491.7 | |
| 0.00 | 0.86 | 0.00 | 0.69 | -14.15 | 157.17 | -49.69 | 109.75 | 0.7880 | -548.0 | -447.2 | |
| 0.00 | 0.94 | 0.00 | 0.76 | -14.10 | 156.66 | -50.21 | 109.54 | 0.7930 | -443.0 | -332.9 | |
| 0.00 | 1.29 | 0.00 | 1.03 | -13.23 | 156.92 | -49.95 | 108.54 | 0.7882 | -210.0 | -200.5 | |
| 0.00 | 0.26 | 0.00 | 0.21 | -14.24 | 155.89 | -50.98 | 109.49 | 0.8010 | -443.0 | -472.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
