SDO HMI 2014-11-23 00:00:26 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 357.31 | 1944.35 | 239.67 | 1299.86 | -15.34 | 244.20 | 38.43 | 243.86 | 0.6678 | -446.2 | -195.1 | |
|
previous
or next observation for the same group /

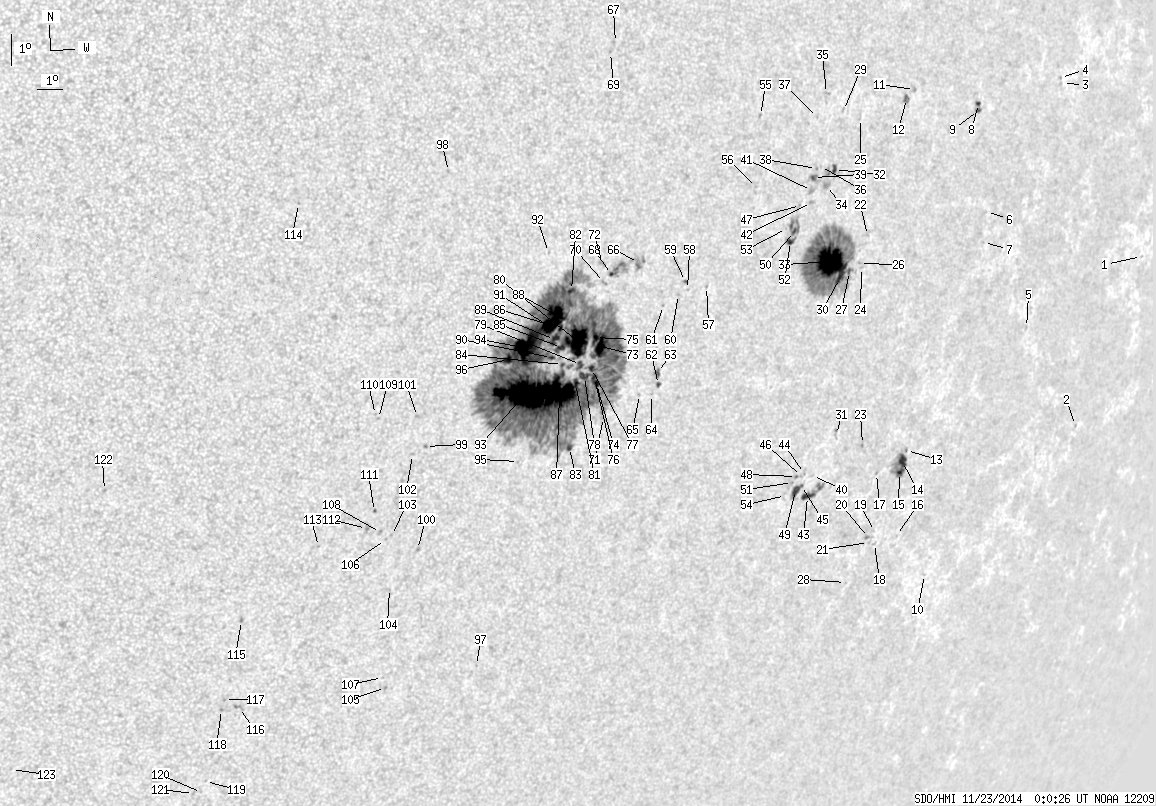

back to the solar disc SDO HMI 2014-11-23 00:00:26 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.51 | 0.00 | 0.59 | -13.13 | 268.91 | 63.15 | 254.45 | 0.9037 | 355.0 | 344.5 | |
| 0.00 | 0.94 | 0.00 | 1.06 | -18.32 | 267.29 | 61.53 | 248.47 | 0.8990 | 301.0 | 287.5 | |
| 0.00 | 0.77 | 0.00 | 0.71 | -7.70 | 262.39 | 56.63 | 259.59 | 0.8436 | 466.0 | 522.4 | |
| 0.00 | 1.11 | 0.00 | 1.02 | -7.51 | 262.25 | 56.48 | 259.78 | 0.8421 | 633.0 | 611.4 | |
| 0.00 | 1.54 | 0.00 | 1.48 | -15.12 | 262.69 | 56.92 | 251.01 | 0.8576 | 342.0 | 280.2 | |
| 0.00 | 0.86 | 0.00 | 0.74 | -11.47 | 259.29 | 53.53 | 254.52 | 0.8200 | 587.0 | 508.8 | |
| 0.00 | 0.77 | 0.00 | 0.67 | -12.42 | 259.41 | 53.64 | 253.41 | 0.8229 | 582.0 | 507.4 | |
| 1.37 | 5.31 | 1.13 | 4.40 | -8.17 | 258.13 | 52.37 | 258.30 | 0.8028 | 655.8 | 537.2 | |
| 1.29 | -8.00 | 1.06 | -8.00 | -8.39 | 258.17 | 52.41 | 258.04 | 0.8036 | 609.2 | 999999 | |
| 0.00 | 0.69 | 0.00 | 0.66 | -22.88 | 260.90 | 55.14 | 241.75 | 0.8603 | 494.0 | 463.0 | |
| 0.00 | 1.89 | 0.00 | 1.45 | -7.67 | 255.00 | 49.24 | 258.33 | 0.7688 | -590.0 | -420.0 | |
| 0.00 | 4.29 | 0.00 | 3.29 | -7.93 | 254.68 | 48.91 | 257.92 | 0.7657 | -784.0 | -570.0 | |
| 0.00 | 1.11 | 0.00 | 0.97 | -18.82 | 257.83 | 52.06 | 245.39 | 0.8233 | 444.0 | 417.5 | |
| 6.94 | 25.71 | 6.03 | 22.31 | -19.17 | 257.78 | 52.01 | 244.97 | 0.8238 | 786.9 | 543.8 | |
| 1.71 | -14.00 | 1.49 | -14.00 | -19.51 | 257.78 | 52.02 | 244.57 | 0.8248 | 624.6 | 999999 | |
| 0.00 | 0.34 | 0.00 | 0.31 | -21.55 | 258.62 | 52.85 | 242.50 | 0.8380 | 239.0 | 361.2 | |
| 0.00 | 1.29 | 0.00 | 1.09 | -19.51 | 256.61 | 50.85 | 244.17 | 0.8143 | 408.0 | 375.0 | |
| 0.00 | 1.37 | 0.00 | 1.21 | -21.78 | 257.58 | 51.82 | 241.88 | 0.8298 | 309.0 | 292.2 | |
| 0.00 | 0.69 | 0.00 | 0.60 | -21.39 | 257.38 | 51.62 | 242.26 | 0.8269 | 557.0 | 520.9 | |
| 0.00 | 2.23 | 0.00 | 1.94 | -21.57 | 257.17 | 51.41 | 241.97 | 0.8256 | 673.0 | 576.4 | |
| 0.00 | 0.60 | 0.00 | 0.53 | -21.74 | 257.25 | 51.49 | 241.81 | 0.8268 | 523.0 | 462.1 | |
| 0.00 | 1.37 | 0.00 | 1.05 | -12.05 | 253.71 | 47.95 | 252.39 | 0.7643 | 258.0 | 189.9 | |
| 0.00 | 1.03 | 0.00 | 0.85 | -18.57 | 255.53 | 49.76 | 244.92 | 0.8013 | -328.0 | -302.8 | |
| 0.00 | 1.03 | 0.00 | 0.79 | -13.02 | 253.68 | 47.92 | 251.13 | 0.7665 | -124.0 | 33.3 | |
| 0.00 | 1.11 | 0.00 | 0.82 | -8.48 | 252.70 | 46.94 | 256.76 | 0.7447 | -434.0 | -315.2 | |
| 0.00 | 0.77 | 0.00 | 0.59 | -12.90 | 253.56 | 47.80 | 251.26 | 0.7648 | 408.0 | 310.2 | |
| 1.20 | 256.95 | 0.91 | 191.55 | -13.13 | 253.17 | 47.40 | 250.83 | 0.7613 | 373.7 | 405.4 | |
| 0.00 | 0.34 | 0.00 | 0.30 | -23.02 | 256.73 | 50.96 | 240.15 | 0.8264 | 220.0 | 287.8 | |
| 0.00 | 1.63 | 0.00 | 1.19 | -8.22 | 251.92 | 46.15 | 256.92 | 0.7351 | -373.0 | -333.8 | |
| 3.09 | -27.00 | 2.33 | -27.00 | -13.34 | 252.77 | 47.00 | 250.45 | 0.7576 | 507.4 | 999999 | |
| 0.00 | 2.57 | 0.00 | 2.05 | -18.21 | 254.15 | 48.38 | 244.84 | 0.7869 | 553.0 | 501.3 | |
| 2.23 | 7.46 | 1.63 | 5.44 | -9.99 | 251.82 | 46.06 | 254.52 | 0.7381 | -652.5 | -594.7 | |
| 48.08 | -27.00 | 35.89 | -27.00 | -12.80 | 252.23 | 46.47 | 250.96 | 0.7503 | 1065.7 | 999999 | |
| 0.00 | 4.63 | 0.00 | 3.38 | -10.47 | 251.56 | 45.80 | 253.81 | 0.7364 | -194.0 | -190.3 | |
| 0.00 | 2.06 | 0.00 | 1.47 | -7.69 | 251.11 | 45.35 | 257.44 | 0.7246 | -658.0 | -479.6 | |
| 0.00 | 0.60 | 0.00 | 0.43 | -9.89 | 251.19 | 45.43 | 254.49 | 0.7307 | -487.0 | -487.0 | |
| 0.00 | 0.69 | 0.00 | 0.49 | -8.40 | 250.83 | 45.06 | 256.40 | 0.7228 | -483.0 | -433.1 | |
| 0.00 | 1.11 | 0.00 | 0.80 | -9.94 | 251.03 | 45.27 | 254.37 | 0.7290 | -777.0 | -691.4 | |
| 1.11 | 5.66 | 0.80 | 4.08 | -10.21 | 250.95 | 45.19 | 253.98 | 0.7288 | -817.5 | -539.6 | |
| 0.00 | 0.94 | 0.00 | 0.75 | -19.49 | 253.50 | 47.74 | 243.05 | 0.7850 | -96.0 | -103.7 | |
| 0.00 | 4.29 | 0.00 | 3.09 | -10.61 | 250.94 | 45.18 | 253.45 | 0.7297 | -215.0 | -183.6 | |
| 0.00 | 2.31 | 0.00 | 1.67 | -10.97 | 251.01 | 45.25 | 252.98 | 0.7314 | 130.0 | 79.7 | |
| 4.97 | 15.68 | 3.98 | 12.59 | -20.16 | 253.54 | 47.77 | 242.26 | 0.7877 | -576.8 | -385.3 | |
| 0.00 | 0.60 | 0.00 | 0.47 | -19.42 | 253.10 | 47.34 | 242.98 | 0.7808 | -292.0 | -317.1 | |
| 0.26 | 9.77 | 0.20 | 7.72 | -19.80 | 253.11 | 47.35 | 242.52 | 0.7823 | -520.7 | -507.3 | |
| 0.00 | 1.71 | 0.00 | 1.35 | -19.51 | 253.00 | 47.23 | 242.83 | 0.7801 | -616.0 | -498.3 | |
| 0.00 | 0.60 | 0.00 | 0.43 | -11.05 | 250.55 | 44.79 | 252.73 | 0.7264 | -397.0 | -337.1 | |
| 0.00 | 1.20 | 0.00 | 0.94 | -19.50 | 252.76 | 47.00 | 242.74 | 0.7778 | -662.0 | -593.5 | |
| 4.89 | -45.00 | 3.86 | -45.00 | -19.95 | 252.89 | 47.13 | 242.25 | 0.7807 | -703.6 | 999999 | |
| 1.37 | 19.46 | 0.99 | 13.98 | -11.84 | 250.46 | 44.69 | 251.64 | 0.7276 | 656.2 | 454.7 | |
| 0.00 | 0.69 | 0.00 | 0.54 | -19.69 | 252.65 | 46.89 | 242.47 | 0.7774 | -702.0 | -652.6 | |
| 2.40 | -50.00 | 1.73 | -50.00 | -12.14 | 250.35 | 44.58 | 251.20 | 0.7273 | 826.4 | 999999 | |
| 0.00 | 1.03 | 0.00 | 0.74 | -11.74 | 250.09 | 44.33 | 251.66 | 0.7232 | 662.0 | 529.4 | |
| 0.00 | 0.60 | 0.00 | 0.47 | -20.10 | 252.48 | 46.72 | 241.90 | 0.7773 | -563.0 | -594.9 | |
| 0.00 | 1.54 | 0.00 | 1.06 | -8.28 | 248.43 | 42.67 | 255.91 | 0.6939 | -615.0 | -437.2 | |
| 0.00 | 0.60 | 0.00 | 0.42 | -10.46 | 248.60 | 42.84 | 252.91 | 0.7019 | -646.0 | -587.1 | |
| 0.00 | 1.11 | 0.00 | 0.76 | -13.44 | 247.12 | 41.36 | 248.22 | 0.6944 | -575.0 | -479.2 | |
| 0.00 | 0.34 | 0.00 | 0.23 | -13.51 | 246.37 | 40.61 | 247.80 | 0.6859 | 211.0 | 346.5 | |
| 0.00 | 1.80 | 0.00 | 1.22 | -13.26 | 246.24 | 40.47 | 248.09 | 0.6833 | 740.0 | 624.7 | |
| 0.00 | 0.86 | 0.00 | 0.58 | -13.66 | 246.04 | 40.27 | 247.45 | 0.6825 | 472.0 | 402.9 | |
| 0.00 | 0.94 | 0.00 | 0.63 | -13.98 | 245.50 | 39.74 | 246.75 | 0.6776 | 526.0 | 393.3 | |
| 0.94 | 2.31 | 0.65 | 1.58 | -16.44 | 245.86 | 40.10 | 243.55 | 0.6924 | -502.3 | -381.4 | |
| 1.46 | 4.80 | 0.99 | 3.27 | -16.06 | 245.73 | 39.97 | 243.99 | 0.6892 | -642.9 | -483.6 | |
| 0.00 | 0.86 | 0.00 | 0.59 | -16.74 | 245.66 | 39.89 | 243.03 | 0.6915 | 251.0 | 315.7 | |
| 0.00 | 1.29 | 0.00 | 0.87 | -16.73 | 245.17 | 39.41 | 242.79 | 0.6859 | -313.0 | -182.1 | |
| 0.00 | 11.14 | 0.00 | 7.30 | -12.64 | 244.26 | 38.50 | 248.10 | 0.6570 | 560.0 | 535.9 | |
| 0.00 | 0.77 | 0.00 | 0.48 | -5.96 | 242.55 | 36.78 | 257.65 | 0.6120 | -590.0 | -592.2 | |
| 1.20 | 14.14 | 0.78 | 9.19 | -12.98 | 243.28 | 37.52 | 247.12 | 0.6464 | -677.3 | -135.4 | |
| 0.00 | 0.60 | 0.00 | 0.37 | -6.25 | 242.38 | 36.62 | 257.12 | 0.6106 | -551.0 | -453.7 | |
| 0.00 | 2.14 | 0.00 | 1.38 | -13.22 | 243.05 | 37.29 | 246.66 | 0.6447 | -597.0 | -438.9 | |
| 0.00 | 1.46 | 0.00 | 0.98 | -17.42 | 243.91 | 38.14 | 241.17 | 0.6750 | 183.0 | 169.3 | |
| 0.00 | 3.43 | 0.00 | 2.20 | -12.64 | 242.88 | 37.11 | 247.43 | 0.6399 | 303.0 | 453.0 | |
| 13.28 | 1457.04 | 8.70 | 938.46 | -15.20 | 243.28 | 37.52 | 243.92 | 0.6567 | -838.6 | -344.6 | |
| 3.00 | -73.00 | 1.98 | -73.00 | -16.35 | 243.38 | 37.61 | 242.35 | 0.6635 | -620.4 | 999999 | |
| 2.83 | -73.00 | 1.84 | -73.00 | -14.91 | 243.03 | 37.27 | 244.19 | 0.6523 | -811.3 | 999999 | |
| 2.66 | -73.00 | 1.75 | -73.00 | -16.16 | 243.26 | 37.49 | 242.55 | 0.6611 | -597.8 | 999999 | |
| 2.74 | -73.00 | 1.80 | -73.00 | -15.87 | 243.08 | 37.31 | 242.85 | 0.6576 | -690.0 | 999999 | |
| 4.80 | -73.00 | 3.14 | -73.00 | -16.12 | 242.86 | 37.10 | 242.38 | 0.6563 | -696.3 | 999999 | |
| 2.57 | -73.00 | 1.67 | -73.00 | -15.74 | 242.62 | 36.86 | 242.78 | 0.6516 | -697.9 | 999999 | |
| 37.37 | -73.00 | 24.15 | -73.00 | -15.02 | 242.36 | 36.60 | 243.66 | 0.6448 | -1037.8 | 999999 | |
| 1.54 | -73.00 | 1.01 | -73.00 | -16.33 | 242.56 | 36.79 | 241.91 | 0.6538 | -728.9 | 999999 | |
| 2.66 | -73.00 | 1.69 | -73.00 | -13.44 | 241.84 | 36.07 | 245.69 | 0.6307 | -674.8 | 999999 | |
| 2.23 | -73.00 | 1.48 | -73.00 | -18.34 | 242.79 | 37.03 | 239.27 | 0.6674 | 4.2 | 999999 | |
| 0.86 | -73.00 | 0.55 | -73.00 | -15.72 | 241.93 | 36.17 | 242.40 | 0.6433 | -910.8 | 999999 | |
| 3.34 | -73.00 | 2.15 | -73.00 | -15.19 | 241.78 | 36.02 | 243.08 | 0.6388 | -969.3 | 999999 | |
| 1.97 | -73.00 | 1.26 | -73.00 | -14.60 | 241.63 | 35.87 | 243.86 | 0.6339 | -810.7 | 999999 | |
| 40.28 | -73.00 | 26.16 | -73.00 | -16.63 | 242.01 | 36.24 | 241.16 | 0.6490 | -985.9 | 999999 | |
| 20.40 | -73.00 | 12.97 | -73.00 | -14.20 | 241.41 | 35.64 | 244.33 | 0.6291 | -1200.2 | 999999 | |
| 6.34 | -73.00 | 4.05 | -73.00 | -14.94 | 241.47 | 35.71 | 243.27 | 0.6337 | -988.8 | 999999 | |
| 1.71 | -73.00 | 1.10 | -73.00 | -15.50 | 241.46 | 35.70 | 242.46 | 0.6365 | -1090.2 | 999999 | |
| 13.88 | -73.00 | 8.81 | -73.00 | -14.53 | 241.17 | 35.40 | 243.69 | 0.6279 | -1217.4 | 999999 | |
| 0.00 | 0.77 | 0.00 | 0.48 | -12.25 | 240.78 | 35.02 | 246.92 | 0.6119 | 205.0 | 236.0 | |
| 82.62 | -73.00 | 52.76 | -73.00 | -16.63 | 240.67 | 34.91 | 240.33 | 0.6334 | -1298.4 | 999999 | |
| 19.63 | -73.00 | 12.38 | -73.00 | -15.16 | 240.31 | 34.55 | 242.24 | 0.6208 | 679.5 | 999999 | |
| 0.00 | 0.60 | 0.00 | 0.39 | -18.74 | 240.92 | 35.15 | 237.52 | 0.6487 | -435.0 | -440.6 | |
| 6.09 | -73.00 | 3.82 | -73.00 | -15.53 | 239.85 | 34.09 | 241.42 | 0.6173 | -1136.4 | 999999 | |
| 0.00 | 0.69 | 0.00 | 0.47 | -25.35 | 241.16 | 35.40 | 229.15 | 0.6944 | -548.0 | -444.4 | |
| 0.00 | 1.37 | 0.00 | 0.81 | -9.72 | 236.86 | 31.10 | 248.84 | 0.5480 | -633.0 | -484.7 | |
| 0.00 | 1.54 | 0.00 | 0.96 | -18.19 | 237.31 | 31.55 | 235.69 | 0.6040 | -817.0 | -647.0 | |
| 0.00 | 1.54 | 0.00 | 0.98 | -21.48 | 237.75 | 31.99 | 231.47 | 0.6324 | -649.0 | -499.5 | |
| 0.00 | 1.80 | 0.00 | 1.10 | -17.24 | 236.84 | 31.07 | 236.71 | 0.5919 | -68.0 | -148.9 | |
| 0.00 | 1.46 | 0.00 | 0.90 | -18.44 | 236.89 | 31.12 | 235.00 | 0.6008 | -675.0 | -572.1 | |
| 0.00 | 1.11 | 0.00 | 0.70 | -21.01 | 236.67 | 30.91 | 231.22 | 0.6173 | -679.0 | -542.8 | |
| 0.00 | 1.11 | 0.00 | 0.71 | -22.73 | 237.01 | 31.25 | 229.22 | 0.6341 | -533.0 | -412.1 | |
| 0.00 | 1.29 | 0.00 | 0.85 | -26.01 | 237.77 | 32.01 | 225.76 | 0.6672 | -727.0 | -609.6 | |
| 0.00 | 0.69 | 0.00 | 0.43 | -21.13 | 236.47 | 30.71 | 230.89 | 0.6162 | -565.0 | -466.2 | |
| 0.00 | 0.26 | 0.00 | 0.17 | -25.67 | 237.55 | 31.79 | 225.99 | 0.6625 | -399.0 | -523.7 | |
| 0.00 | 2.31 | 0.00 | 1.45 | -20.91 | 236.24 | 30.48 | 231.00 | 0.6119 | -746.0 | -517.3 | |
| 0.00 | 0.77 | 0.00 | 0.47 | -17.28 | 235.44 | 29.68 | 235.52 | 0.5757 | -734.0 | -620.0 | |
| 0.00 | 0.86 | 0.00 | 0.52 | -17.15 | 235.31 | 29.55 | 235.61 | 0.5733 | -663.0 | -508.0 | |
| 0.00 | 1.11 | 0.00 | 0.69 | -20.23 | 235.87 | 30.11 | 231.62 | 0.6027 | -689.0 | -552.6 | |
| 0.00 | 3.77 | 0.00 | 2.34 | -20.77 | 235.69 | 29.93 | 230.72 | 0.6049 | -683.0 | -591.5 | |
| 0.00 | 0.60 | 0.00 | 0.37 | -21.31 | 234.06 | 28.30 | 228.50 | 0.5920 | -714.0 | -628.4 | |
| 0.00 | 0.94 | 0.00 | 0.53 | -10.60 | 231.80 | 26.03 | 243.68 | 0.4833 | -719.0 | -637.5 | |
| 0.00 | 1.54 | 0.00 | 0.94 | -23.68 | 231.79 | 26.03 | 223.13 | 0.5900 | -780.0 | -655.3 | |
| 0.00 | 3.86 | 0.00 | 2.44 | -26.58 | 232.39 | 26.63 | 220.22 | 0.6230 | -587.0 | -638.5 | |
| 0.00 | 0.86 | 0.00 | 0.54 | -26.30 | 231.77 | 26.00 | 219.91 | 0.6149 | -598.0 | -554.1 | |
| 0.00 | 1.20 | 0.00 | 0.75 | -26.64 | 231.74 | 25.97 | 219.49 | 0.6178 | -660.0 | -562.9 | |
| 0.00 | 0.94 | 0.00 | 0.61 | -29.09 | 231.77 | 26.01 | 216.80 | 0.6421 | -524.0 | -407.8 | |
| 0.00 | 0.69 | 0.00 | 0.44 | -29.47 | 231.73 | 25.96 | 216.35 | 0.6454 | -413.0 | -364.5 | |
| 0.00 | 1.71 | 0.00 | 1.11 | -29.50 | 231.43 | 25.67 | 216.02 | 0.6434 | -480.0 | -419.3 | |
| 0.00 | 1.37 | 0.00 | 0.78 | -19.40 | 226.31 | 20.54 | 222.47 | 0.4922 | -711.0 | -570.2 | |
| 0.00 | 0.51 | 0.00 | 0.31 | -28.57 | 224.55 | 18.79 | 209.21 | 0.5818 | -506.0 | -400.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
