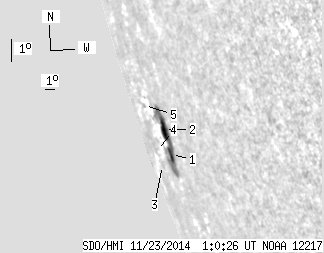

SDO HMI 2014-11-23 01:00:26 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 18.52 | 51.60 | 57.95 | 171.68 | -18.61 | 125.16 | -80.05 | 109.17 | 0.9888 | 202.9 | -47.2 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-11-23 01:00:26 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 7.29 | 47.49 | 23.17 | 152.76 | -19.05 | 125.33 | -79.88 | 109.63 | 0.9886 | 97.4 | 11.8 | |
| 11.23 | -1.00 | 34.78 | -1.00 | -18.26 | 125.60 | -79.61 | 108.85 | 0.9877 | 322.4 | 999999 | |
| 0.00 | 1.46 | 0.00 | 6.92 | -19.51 | 122.30 | -82.91 | 109.85 | 0.9949 | -315.0 | -293.9 | |
| 0.00 | 1.54 | 0.00 | 7.26 | -19.03 | 122.37 | -82.84 | 109.37 | 0.9948 | -356.0 | -353.9 | |
| 0.00 | 1.11 | 0.00 | 4.74 | -17.60 | 122.89 | -82.32 | 107.97 | 0.9936 | -433.0 | -396.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
