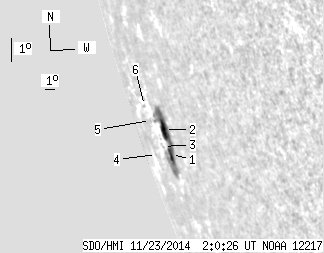

SDO HMI 2014-11-23 02:00:26 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 14.91 | 54.27 | 44.43 | 165.84 | -18.53 | 125.37 | -79.29 | 109.15 | 0.9870 | 190.6 | 51.7 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-11-23 02:00:26 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 5.91 | 51.95 | 17.85 | 156.98 | -19.03 | 125.35 | -79.32 | 109.65 | 0.9872 | 87.3 | 82.0 | |
| 9.00 | -1.00 | 26.58 | -1.00 | -18.24 | 125.59 | -79.07 | 108.87 | 0.9863 | 336.5 | 999999 | |
| 0.00 | 0.26 | 0.00 | 0.87 | -18.82 | 124.32 | -80.35 | 109.35 | 0.9897 | -282.0 | -295.3 | |
| 0.00 | 0.26 | 0.00 | 1.19 | -19.15 | 121.99 | -82.67 | 109.50 | 0.9945 | -335.0 | -329.0 | |
| 0.00 | 0.94 | 0.00 | 3.51 | -18.03 | 123.36 | -81.30 | 108.48 | 0.9917 | -411.0 | -384.5 | |
| 0.00 | 0.86 | 0.00 | 3.29 | -17.57 | 123.08 | -81.58 | 108.00 | 0.9922 | -242.0 | -289.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
