SDO HMI 2014-11-23 08:00:26 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 359.46 | 1760.08 | 261.39 | 1262.34 | -15.35 | 244.51 | 43.12 | 246.18 | 0.7203 | -418.3 | -167.5 | |
|
previous
or next observation for the same group /

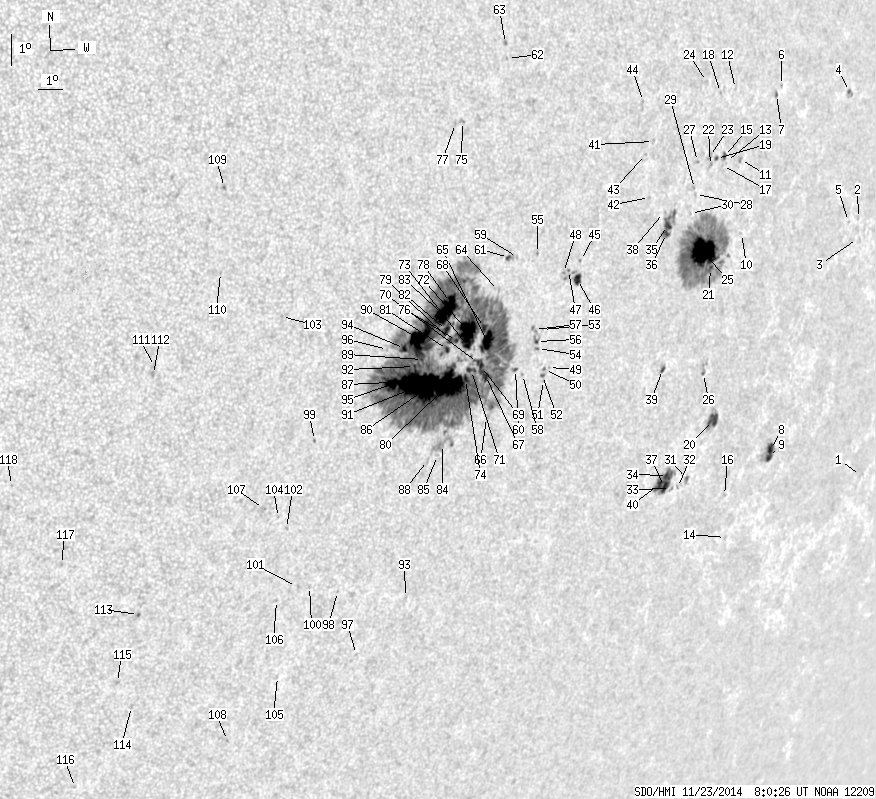

back to the solar disc SDO HMI 2014-11-23 08:00:26 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.89 | 0.00 | 2.26 | -20.14 | 264.50 | 63.11 | 246.85 | 0.9124 | 102.0 | 211.5 | |
| 0.00 | 0.94 | 0.00 | 0.93 | -12.03 | 260.13 | 58.75 | 254.96 | 0.8679 | 432.0 | 349.0 | |
| 0.00 | 0.34 | 0.00 | 0.34 | -12.64 | 260.30 | 58.91 | 254.29 | 0.8701 | 140.0 | 155.0 | |
| 0.77 | 3.60 | 0.72 | 3.35 | -8.14 | 258.51 | 57.13 | 259.18 | 0.8486 | 602.6 | 468.9 | |
| 0.00 | 0.34 | 0.00 | 0.33 | -12.10 | 259.58 | 58.19 | 254.77 | 0.8632 | 336.0 | 469.2 | |
| 0.00 | 1.03 | 0.00 | 0.87 | -7.86 | 254.86 | 53.47 | 258.93 | 0.8134 | -222.0 | -299.0 | |
| 0.00 | 1.80 | 0.00 | 1.52 | -8.12 | 254.66 | 53.27 | 258.57 | 0.8117 | -581.0 | -516.0 | |
| 6.09 | 18.78 | 5.95 | 18.31 | -19.13 | 258.17 | 56.78 | 246.46 | 0.8642 | 727.1 | 492.4 | |
| 3.17 | -8.00 | 3.11 | -8.00 | -19.38 | 258.19 | 56.80 | 246.18 | 0.8649 | 599.5 | 999999 | |
| 0.00 | 0.86 | 0.00 | 0.72 | -12.31 | 253.90 | 52.51 | 253.32 | 0.8115 | 391.0 | 348.0 | |
| 0.00 | 2.31 | 0.00 | 1.90 | -10.04 | 253.27 | 51.88 | 255.94 | 0.8009 | 582.0 | 434.4 | |
| 0.00 | 0.86 | 0.00 | 0.69 | -7.89 | 252.60 | 51.21 | 258.49 | 0.7903 | -325.0 | -238.8 | |
| 0.00 | 0.94 | 0.00 | 0.77 | -10.09 | 252.60 | 51.21 | 255.74 | 0.7941 | -413.0 | -347.5 | |
| 0.00 | 1.80 | 0.00 | 1.75 | -21.90 | 257.15 | 55.76 | 243.06 | 0.8625 | 621.0 | 464.3 | |
| 1.29 | 3.17 | 1.04 | 2.56 | -9.93 | 252.47 | 51.08 | 255.90 | 0.7925 | -605.8 | -498.0 | |
| 0.00 | 1.37 | 0.00 | 1.29 | -20.53 | 256.32 | 54.93 | 244.35 | 0.8524 | 302.0 | 238.6 | |
| 0.00 | 0.60 | 0.00 | 0.49 | -10.20 | 252.43 | 51.05 | 255.56 | 0.7926 | -371.0 | -364.1 | |
| 0.00 | 1.03 | 0.00 | 0.82 | -7.99 | 251.90 | 50.52 | 258.23 | 0.7830 | -469.0 | -408.3 | |
| 0.69 | 1.80 | 0.55 | 1.44 | -9.98 | 252.10 | 50.71 | 255.76 | 0.7887 | -594.0 | -501.6 | |
| 9.00 | 16.63 | 7.96 | 14.70 | -18.11 | 254.50 | 53.11 | 246.59 | 0.8306 | 660.1 | 464.6 | |
| 2.14 | 252.31 | 1.77 | 205.03 | -13.34 | 252.66 | 51.28 | 251.74 | 0.8016 | 505.5 | 327.6 | |
| 0.00 | 1.80 | 0.00 | 1.44 | -10.19 | 251.85 | 50.47 | 255.45 | 0.7866 | -523.0 | -506.8 | |
| 0.00 | 3.26 | 0.00 | 2.59 | -9.91 | 251.75 | 50.36 | 255.77 | 0.7849 | -575.0 | -564.9 | |
| 0.00 | 1.37 | 0.00 | 1.07 | -7.64 | 251.19 | 49.80 | 258.53 | 0.7748 | -522.0 | -416.6 | |
| 44.24 | -21.00 | 35.99 | -21.00 | -12.81 | 252.17 | 50.78 | 252.27 | 0.7954 | 1082.7 | 999999 | |
| 0.43 | 4.72 | 0.37 | 4.02 | -16.61 | 253.42 | 52.04 | 248.03 | 0.8169 | 513.2 | 537.9 | |
| 0.00 | 1.20 | 0.00 | 0.95 | -10.05 | 251.21 | 49.83 | 255.47 | 0.7795 | -549.0 | -525.2 | |
| 0.00 | 1.03 | 0.00 | 0.82 | -11.05 | 251.34 | 49.95 | 254.24 | 0.7830 | 245.0 | 277.9 | |
| 0.00 | 0.77 | 0.00 | 0.61 | -10.87 | 251.25 | 49.86 | 254.45 | 0.7816 | -298.0 | -248.6 | |
| 0.00 | 0.77 | 0.00 | 0.61 | -11.63 | 251.24 | 49.85 | 253.49 | 0.7832 | 576.0 | 534.6 | |
| 0.77 | 3.26 | 0.68 | 2.88 | -19.92 | 253.97 | 52.58 | 244.31 | 0.8308 | -397.3 | -256.0 | |
| 0.00 | 0.94 | 0.00 | 0.83 | -20.20 | 253.63 | 52.25 | 243.88 | 0.8286 | -418.0 | -299.5 | |
| 0.00 | 2.06 | 0.00 | 1.80 | -20.22 | 253.28 | 51.90 | 243.74 | 0.8256 | -219.0 | -254.2 | |
| 6.86 | 28.29 | 5.92 | 24.42 | -19.80 | 252.93 | 51.55 | 244.11 | 0.8212 | -600.9 | -410.7 | |
| 3.60 | 22.55 | 2.80 | 17.57 | -11.97 | 250.25 | 48.86 | 252.80 | 0.7736 | 634.8 | 322.4 | |
| 2.23 | -35.00 | 1.74 | -35.00 | -12.21 | 250.26 | 48.88 | 252.49 | 0.7743 | 829.7 | 999999 | |
| 6.43 | -34.00 | 5.57 | -34.00 | -20.15 | 252.94 | 51.56 | 243.71 | 0.8223 | -621.2 | 999999 | |
| 0.00 | 0.51 | 0.00 | 0.40 | -11.56 | 249.97 | 48.58 | 253.23 | 0.7696 | 114.0 | 177.0 | |
| 1.20 | 3.26 | 0.98 | 2.66 | -16.42 | 251.33 | 49.94 | 247.60 | 0.7964 | -446.7 | -334.0 | |
| 6.69 | -34.00 | 5.74 | -34.00 | -20.08 | 252.60 | 51.22 | 243.68 | 0.8191 | -857.6 | 999999 | |
| 0.00 | 1.89 | 0.00 | 1.42 | -9.39 | 249.07 | 47.68 | 255.80 | 0.7548 | -413.0 | -359.7 | |
| 0.00 | 1.46 | 0.00 | 1.11 | -11.09 | 249.22 | 47.84 | 253.64 | 0.7605 | -485.0 | -371.7 | |
| 0.00 | 0.77 | 0.00 | 0.58 | -9.77 | 248.78 | 47.39 | 255.22 | 0.7525 | -589.0 | -518.0 | |
| 0.00 | 0.51 | 0.00 | 0.38 | -8.17 | 248.42 | 47.03 | 257.25 | 0.7450 | -574.0 | -544.5 | |
| 0.00 | 0.94 | 0.00 | 0.69 | -12.94 | 246.59 | 45.20 | 250.41 | 0.7364 | 675.0 | 541.6 | |
| 5.23 | 12.00 | 3.83 | 8.76 | -13.52 | 246.60 | 45.21 | 249.65 | 0.7383 | 579.7 | 488.6 | |
| 0.00 | 1.03 | 0.00 | 0.75 | -13.23 | 246.14 | 44.75 | 249.87 | 0.7323 | 661.0 | 679.0 | |
| 0.00 | 1.29 | 0.00 | 0.93 | -13.29 | 245.94 | 44.55 | 249.72 | 0.7302 | 701.0 | 604.3 | |
| 0.00 | 1.20 | 0.00 | 0.88 | -16.23 | 246.05 | 44.67 | 245.94 | 0.7416 | -295.0 | -374.6 | |
| 0.00 | 1.29 | 0.00 | 0.94 | -16.28 | 245.90 | 44.51 | 245.80 | 0.7401 | -611.0 | -485.4 | |
| 0.00 | 0.94 | 0.00 | 0.69 | -16.63 | 245.95 | 44.57 | 245.38 | 0.7420 | -268.0 | -244.1 | |
| 0.00 | 1.46 | 0.00 | 1.07 | -16.47 | 245.86 | 44.48 | 245.54 | 0.7404 | -684.0 | -502.6 | |
| 0.00 | 0.69 | 0.00 | 0.50 | -15.03 | 245.47 | 44.08 | 247.25 | 0.7309 | -83.0 | -142.4 | |
| 0.00 | 1.20 | 0.00 | 0.87 | -15.62 | 245.41 | 44.02 | 246.46 | 0.7324 | -585.0 | -468.6 | |
| 0.00 | 0.94 | 0.00 | 0.67 | -12.68 | 244.70 | 43.32 | 250.09 | 0.7142 | 757.0 | 647.6 | |
| 0.86 | 4.72 | 0.62 | 3.41 | -15.40 | 245.31 | 43.92 | 246.70 | 0.7305 | -589.0 | -405.6 | |
| 0.00 | 3.00 | 0.00 | 2.16 | -15.03 | 245.12 | 43.74 | 247.12 | 0.7271 | -521.0 | -535.2 | |
| 0.00 | 0.86 | 0.00 | 0.62 | -16.42 | 244.99 | 43.60 | 245.24 | 0.7308 | 638.0 | 513.7 | |
| 0.00 | 1.03 | 0.00 | 0.72 | -12.78 | 243.89 | 42.50 | 249.64 | 0.7052 | -97.0 | -155.2 | |
| 0.60 | 2.31 | 0.43 | 1.66 | -16.25 | 244.64 | 43.26 | 245.31 | 0.7264 | -185.6 | -37.5 | |
| 1.03 | 4.12 | 0.71 | 2.85 | -12.77 | 243.52 | 42.13 | 249.51 | 0.7008 | -634.9 | -453.5 | |
| 0.00 | 0.43 | 0.00 | 0.29 | -6.74 | 242.56 | 41.17 | 257.79 | 0.6712 | -642.0 | -559.0 | |
| 0.00 | 1.80 | 0.00 | 1.20 | -6.29 | 242.43 | 41.05 | 258.42 | 0.6686 | -623.0 | -535.0 | |
| 0.00 | 1.29 | 0.00 | 0.89 | -13.78 | 243.32 | 41.93 | 248.05 | 0.7021 | -113.0 | -113.5 | |
| 17.40 | 1275.16 | 12.15 | 872.34 | -15.35 | 243.23 | 41.85 | 245.89 | 0.7072 | -755.3 | -311.8 | |
| 0.00 | 0.43 | 0.00 | 0.31 | -17.73 | 243.83 | 42.45 | 243.02 | 0.7237 | 134.0 | 130.8 | |
| 6.43 | -65.00 | 4.53 | -65.00 | -16.41 | 243.42 | 42.03 | 244.56 | 0.7136 | -499.6 | 999999 | |
| 3.60 | -65.00 | 2.50 | -65.00 | -14.91 | 243.00 | 41.62 | 246.38 | 0.7028 | -603.2 | 999999 | |
| 4.63 | -65.00 | 3.24 | -65.00 | -16.13 | 243.18 | 41.79 | 244.83 | 0.7097 | -542.1 | 999999 | |
| 2.06 | -65.00 | 1.44 | -65.00 | -16.00 | 242.98 | 41.59 | 244.91 | 0.7070 | -644.8 | 999999 | |
| 3.60 | -65.00 | 2.51 | -65.00 | -16.24 | 242.79 | 41.41 | 244.50 | 0.7059 | -661.5 | 999999 | |
| 34.46 | -65.00 | 23.68 | -65.00 | -14.99 | 242.32 | 40.94 | 245.97 | 0.6954 | -1014.7 | 999999 | |
| 3.77 | -65.00 | 2.60 | -65.00 | -15.46 | 242.44 | 41.05 | 245.39 | 0.6986 | -834.1 | 999999 | |
| 2.66 | -65.00 | 1.85 | -65.00 | -16.52 | 242.62 | 41.23 | 244.05 | 0.7051 | -506.9 | 999999 | |
| 0.00 | 2.31 | 0.00 | 1.52 | -8.59 | 241.00 | 39.61 | 254.57 | 0.6563 | -592.0 | -537.7 | |
| 1.37 | -65.00 | 0.94 | -65.00 | -15.29 | 241.95 | 40.56 | 245.39 | 0.6923 | -968.1 | 999999 | |
| 0.00 | 1.29 | 0.00 | 0.84 | -8.65 | 240.73 | 39.34 | 254.39 | 0.6531 | -697.0 | -514.9 | |
| 14.15 | -65.00 | 9.55 | -65.00 | -14.11 | 241.44 | 40.06 | 246.79 | 0.6815 | -1115.6 | 999999 | |
| 2.74 | -65.00 | 1.87 | -65.00 | -15.28 | 241.70 | 40.32 | 245.28 | 0.6895 | -941.1 | 999999 | |
| 38.49 | -65.00 | 26.56 | -65.00 | -16.63 | 241.99 | 40.61 | 243.60 | 0.6986 | -1023.4 | 999999 | |
| 2.23 | -65.00 | 1.52 | -65.00 | -15.56 | 241.65 | 40.26 | 244.87 | 0.6900 | -1026.1 | 999999 | |
| 3.51 | -65.00 | 2.38 | -65.00 | -14.97 | 241.47 | 40.09 | 245.60 | 0.6854 | -1000.3 | 999999 | |
| 22.29 | -65.00 | 15.02 | -65.00 | -14.47 | 241.20 | 39.82 | 246.17 | 0.6801 | -1226.4 | 999999 | |
| 0.00 | 15.69 | 0.00 | 11.00 | -18.54 | 242.23 | 40.84 | 241.18 | 0.7100 | 55.0 | 14.4 | |
| 0.00 | 0.94 | 0.00 | 0.66 | -18.89 | 242.12 | 40.73 | 240.67 | 0.7105 | 494.0 | 403.0 | |
| 4.54 | -65.00 | 3.11 | -65.00 | -16.55 | 241.44 | 40.06 | 243.43 | 0.6921 | -1176.5 | 999999 | |
| 7.97 | -65.00 | 5.43 | -65.00 | -16.51 | 241.19 | 39.81 | 243.35 | 0.6891 | -1316.9 | 999999 | |
| 0.00 | 1.63 | 0.00 | 1.14 | -19.04 | 241.75 | 40.37 | 240.29 | 0.7073 | 349.0 | 335.5 | |
| 0.26 | -65.00 | 0.17 | -65.00 | -15.85 | 240.71 | 39.33 | 244.02 | 0.6805 | -1071.0 | 999999 | |
| 18.95 | -65.00 | 12.67 | -65.00 | -15.19 | 240.40 | 39.02 | 244.77 | 0.6740 | 602.3 | 999999 | |
| 46.29 | -65.00 | 31.35 | -65.00 | -16.69 | 240.71 | 39.33 | 242.87 | 0.6845 | -1327.4 | 999999 | |
| 1.20 | -65.00 | 0.81 | -65.00 | -16.06 | 240.44 | 39.06 | 243.59 | 0.6784 | -1024.0 | 999999 | |
| 0.00 | 1.03 | 0.00 | 0.75 | -23.46 | 242.30 | 40.92 | 235.03 | 0.7356 | -59.0 | -146.8 | |
| 2.74 | -65.00 | 1.82 | -65.00 | -15.49 | 239.92 | 38.53 | 244.11 | 0.6696 | -1093.9 | 999999 | |
| 10.80 | -65.00 | 7.21 | -65.00 | -16.58 | 239.73 | 38.34 | 242.50 | 0.6727 | -1272.6 | 999999 | |
| 0.00 | 0.86 | 0.00 | 0.56 | -15.51 | 239.25 | 37.87 | 243.73 | 0.6619 | -844.0 | -703.3 | |
| 0.00 | 1.29 | 0.00 | 0.93 | -25.30 | 240.92 | 39.53 | 231.99 | 0.7327 | -364.0 | -323.2 | |
| 0.00 | 0.94 | 0.00 | 0.66 | -23.19 | 239.36 | 37.97 | 233.59 | 0.7051 | -534.0 | -485.2 | |
| 0.00 | 0.94 | 0.00 | 0.61 | -18.30 | 237.06 | 35.67 | 238.53 | 0.6515 | -663.0 | -622.9 | |
| 0.00 | 1.54 | 0.00 | 1.06 | -23.00 | 238.16 | 36.78 | 233.05 | 0.6919 | -415.0 | -359.6 | |
| 0.00 | 0.34 | 0.00 | 0.23 | -22.99 | 237.64 | 36.25 | 232.71 | 0.6865 | -324.0 | -337.2 | |
| 0.00 | 1.37 | 0.00 | 0.91 | -21.09 | 236.69 | 35.30 | 234.51 | 0.6645 | -742.0 | -542.4 | |
| 0.00 | 0.94 | 0.00 | 0.59 | -14.40 | 235.03 | 33.64 | 242.89 | 0.6051 | -745.0 | -634.8 | |
| 0.00 | 0.60 | 0.00 | 0.39 | -20.73 | 236.28 | 34.89 | 234.71 | 0.6578 | -532.0 | -484.1 | |
| 0.00 | 0.69 | 0.00 | 0.48 | -25.96 | 237.86 | 36.48 | 229.22 | 0.7082 | -553.0 | -436.9 | |
| 0.00 | 1.46 | 0.00 | 0.98 | -23.43 | 236.98 | 35.59 | 231.70 | 0.6828 | -461.0 | -398.3 | |
| 0.00 | 2.57 | 0.00 | 1.67 | -20.43 | 235.62 | 34.24 | 234.65 | 0.6488 | -658.0 | -554.9 | |
| 0.00 | 0.86 | 0.00 | 0.60 | -28.10 | 236.59 | 35.21 | 225.83 | 0.7115 | -687.0 | -595.6 | |
| 0.00 | 1.37 | 0.00 | 0.81 | -10.41 | 232.42 | 31.04 | 247.70 | 0.5502 | -804.0 | -678.4 | |
| 0.00 | 0.94 | 0.00 | 0.57 | -13.00 | 232.60 | 31.22 | 243.49 | 0.5665 | -569.0 | -526.5 | |
| 0.00 | 0.69 | 0.00 | 0.41 | -15.86 | 230.69 | 29.30 | 237.46 | 0.5607 | -753.0 | -669.4 | |
| 0.00 | 1.97 | 0.00 | 1.18 | -16.11 | 230.69 | 29.31 | 237.07 | 0.5625 | -762.0 | -691.1 | |
| 0.00 | 1.03 | 0.00 | 0.66 | -23.79 | 231.75 | 30.36 | 227.17 | 0.6330 | -683.0 | -673.2 | |
| 0.00 | 1.20 | 0.00 | 0.79 | -26.86 | 232.34 | 30.96 | 223.93 | 0.6638 | -592.0 | -425.7 | |
| 0.00 | 1.63 | 0.00 | 1.06 | -26.04 | 231.56 | 30.18 | 224.23 | 0.6498 | -725.0 | -492.9 | |
| 0.00 | 0.86 | 0.00 | 0.57 | -29.60 | 231.02 | 29.63 | 219.68 | 0.6757 | -482.0 | -440.5 | |
| 0.00 | 1.29 | 0.00 | 0.78 | -22.10 | 228.53 | 27.14 | 226.38 | 0.5861 | -766.0 | -587.3 | |
| 0.00 | 0.86 | 0.00 | 0.50 | -19.53 | 226.28 | 24.90 | 227.64 | 0.5391 | -635.0 | -562.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
