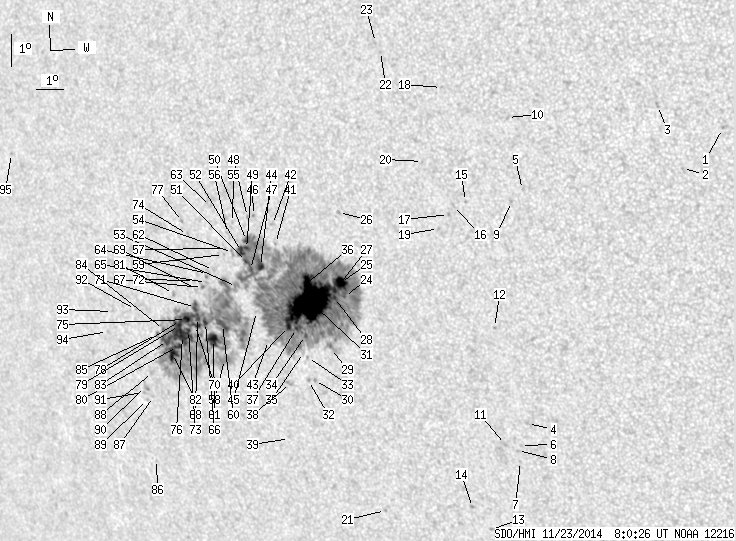

SDO HMI 2014-11-23 08:00:26 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 209.87 | 1371.42 | 136.13 | 890.81 | -13.31 | 163.78 | -37.60 | 113.29 | 0.6480 | 230.2 | -23.2 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-11-23 08:00:26 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.43 | 0.00 | 0.23 | -7.58 | 180.31 | -21.08 | 114.42 | 0.3932 | 833.0 | 677.4 | |
| 0.00 | 0.60 | 0.00 | 0.33 | -8.80 | 178.95 | -22.44 | 115.82 | 0.4208 | 771.0 | 648.9 | |
| 0.00 | 2.14 | 0.00 | 1.17 | -6.91 | 178.25 | -23.14 | 111.03 | 0.4197 | 643.0 | 572.4 | |
| 0.00 | 1.11 | 0.00 | 0.66 | -16.69 | 172.85 | -28.54 | 124.48 | 0.5573 | 679.0 | 575.1 | |
| 0.00 | 0.60 | 0.00 | 0.34 | -9.50 | 173.59 | -27.80 | 112.79 | 0.5010 | 234.0 | 276.9 | |
| 0.00 | 0.77 | 0.00 | 0.46 | -17.38 | 172.48 | -28.90 | 125.22 | 0.5669 | 855.0 | 705.0 | |
| 0.00 | 0.94 | 0.00 | 0.57 | -17.88 | 172.39 | -28.99 | 125.90 | 0.5717 | 703.0 | 601.1 | |
| 0.00 | 0.94 | 0.00 | 0.57 | -17.54 | 172.35 | -29.04 | 125.35 | 0.5696 | 672.0 | 531.5 | |
| 0.00 | 1.03 | 0.00 | 0.59 | -9.87 | 173.18 | -28.21 | 113.19 | 0.5087 | 764.0 | 632.8 | |
| 0.00 | 1.71 | 0.00 | 0.98 | -7.34 | 173.25 | -28.14 | 108.45 | 0.4951 | 366.0 | 292.6 | |
| 0.00 | 1.37 | 0.00 | 0.83 | -17.36 | 171.95 | -29.43 | 124.73 | 0.5729 | 623.0 | 582.4 | |
| 0.00 | 0.94 | 0.00 | 0.56 | -13.72 | 172.14 | -29.25 | 119.14 | 0.5456 | 709.0 | 591.9 | |
| 0.00 | 1.46 | 0.00 | 0.90 | -20.06 | 170.91 | -30.47 | 127.77 | 0.6049 | 678.0 | 491.9 | |
| 0.00 | 1.46 | 0.00 | 0.91 | -19.37 | 170.36 | -31.02 | 126.35 | 0.6059 | 657.0 | 527.8 | |
| 0.00 | 1.11 | 0.00 | 0.65 | -9.89 | 171.59 | -29.79 | 112.17 | 0.5307 | 660.0 | 441.5 | |
| 0.00 | 1.29 | 0.00 | 0.75 | -10.02 | 171.16 | -30.23 | 112.13 | 0.5373 | 607.0 | 505.1 | |
| 0.00 | 1.29 | 0.00 | 0.76 | -10.30 | 170.96 | -30.43 | 112.48 | 0.5414 | 681.0 | 533.7 | |
| 0.00 | 1.03 | 0.00 | 0.60 | -6.47 | 171.05 | -30.33 | 105.65 | 0.5232 | 614.0 | 485.6 | |
| 0.00 | 1.03 | 0.00 | 0.61 | -10.73 | 170.56 | -30.83 | 112.97 | 0.5490 | 767.0 | 593.8 | |
| 0.00 | 0.51 | 0.00 | 0.30 | -8.71 | 170.21 | -31.18 | 109.26 | 0.5442 | 519.0 | 452.8 | |
| 0.00 | 0.94 | 0.00 | 0.61 | -19.52 | 167.08 | -34.31 | 124.07 | 0.6437 | 541.0 | 478.4 | |
| 0.00 | 1.37 | 0.00 | 0.81 | -5.43 | 168.99 | -32.40 | 102.87 | 0.5493 | 655.0 | 444.4 | |
| 0.00 | 1.11 | 0.00 | 0.66 | -5.17 | 168.83 | -32.56 | 102.34 | 0.5508 | 423.0 | 508.8 | |
| 0.26 | 826.19 | 0.16 | 524.88 | -12.86 | 166.88 | -34.50 | 114.23 | 0.6079 | 887.7 | 218.2 | |
| 11.06 | -24.00 | 6.88 | -24.00 | -12.44 | 166.80 | -34.58 | 113.53 | 0.6068 | 1305.8 | 999999 | |
| 0.00 | 1.89 | 0.00 | 1.16 | -10.30 | 167.03 | -34.36 | 110.28 | 0.5942 | 648.0 | 438.2 | |
| 2.74 | -24.00 | 1.71 | -24.00 | -12.69 | 166.54 | -34.85 | 113.77 | 0.6114 | 1081.9 | 999999 | |
| 1.29 | -24.00 | 0.80 | -24.00 | -12.90 | 166.51 | -34.88 | 114.08 | 0.6128 | 996.4 | 999999 | |
| 0.00 | 8.92 | 0.00 | 5.65 | -14.47 | 166.12 | -35.27 | 116.23 | 0.6255 | 100.0 | -80.1 | |
| 0.00 | 1.46 | 0.00 | 0.94 | -15.48 | 165.28 | -36.10 | 117.21 | 0.6409 | -781.0 | -741.5 | |
| 105.02 | -24.00 | 66.52 | -24.00 | -13.04 | 165.55 | -35.84 | 113.76 | 0.6255 | 1182.5 | 999999 | |
| 0.00 | 1.20 | 0.00 | 0.77 | -15.48 | 165.05 | -36.33 | 117.09 | 0.6437 | -732.0 | -633.4 | |
| 0.00 | 0.94 | 0.00 | 0.61 | -14.77 | 165.16 | -36.23 | 116.11 | 0.6388 | 495.0 | 380.5 | |
| 1.54 | -24.00 | 0.99 | -24.00 | -14.09 | 165.21 | -36.17 | 115.15 | 0.6347 | 253.6 | 999999 | |
| 0.00 | 1.29 | 0.00 | 0.83 | -14.62 | 165.03 | -36.35 | 115.82 | 0.6395 | 57.0 | 47.1 | |
| 0.26 | -24.00 | 0.16 | -24.00 | -12.62 | 165.32 | -36.07 | 113.00 | 0.6264 | 870.3 | 999999 | |
| 0.86 | -24.00 | 0.55 | -24.00 | -13.88 | 164.91 | -36.48 | 114.67 | 0.6374 | 635.3 | 999999 | |
| 0.00 | 2.57 | 0.00 | 1.68 | -15.59 | 164.34 | -37.05 | 116.83 | 0.6527 | 715.0 | 476.1 | |
| 0.00 | 0.60 | 0.00 | 0.40 | -17.31 | 163.91 | -37.48 | 119.00 | 0.6665 | -215.0 | -240.9 | |
| 3.51 | -24.00 | 2.26 | -24.00 | -13.83 | 164.61 | -36.77 | 114.43 | 0.6408 | 524.5 | 999999 | |
| 0.00 | 1.11 | 0.00 | 0.71 | -11.29 | 164.55 | -36.84 | 110.61 | 0.6305 | 493.0 | 362.3 | |
| 0.00 | 1.97 | 0.00 | 1.25 | -10.71 | 164.52 | -36.86 | 109.72 | 0.6285 | 475.0 | 253.1 | |
| 0.00 | 2.40 | 0.00 | 1.57 | -14.27 | 163.76 | -37.63 | 114.63 | 0.6532 | -98.0 | -41.6 | |
| 3.94 | -24.00 | 2.54 | -24.00 | -12.00 | 163.86 | -37.52 | 111.36 | 0.6420 | 192.3 | 999999 | |
| 0.00 | 0.77 | 0.00 | 0.50 | -13.39 | 163.47 | -37.92 | 113.21 | 0.6528 | -236.0 | -170.6 | |
| 0.00 | 0.77 | 0.00 | 0.49 | -10.45 | 163.84 | -37.55 | 109.03 | 0.6363 | -859.0 | -745.6 | |
| 2.06 | -24.00 | 1.33 | -24.00 | -12.10 | 163.46 | -37.92 | 111.32 | 0.6474 | -154.2 | 999999 | |
| 0.00 | 0.94 | 0.00 | 0.61 | -10.49 | 163.60 | -37.78 | 108.98 | 0.6394 | -794.0 | -726.5 | |
| 2.06 | -24.00 | 1.33 | -24.00 | -11.46 | 163.42 | -37.97 | 110.36 | 0.6455 | -1120.5 | 999999 | |
| 2.91 | -24.00 | 1.88 | -24.00 | -11.22 | 163.45 | -37.93 | 110.01 | 0.6440 | -966.3 | 999999 | |
| 1.63 | -24.00 | 1.06 | -24.00 | -11.86 | 163.35 | -38.03 | 110.92 | 0.6478 | -706.9 | 999999 | |
| 5.32 | -24.00 | 3.45 | -24.00 | -11.56 | 163.21 | -38.18 | 110.41 | 0.6484 | -985.5 | 999999 | |
| 0.00 | 5.23 | 0.00 | 3.43 | -12.63 | 162.83 | -38.56 | 111.81 | 0.6574 | 187.0 | 53.0 | |
| 0.00 | 2.83 | 0.00 | 1.85 | -11.60 | 162.85 | -38.53 | 110.31 | 0.6530 | -528.0 | -509.5 | |
| 0.00 | 0.86 | 0.00 | 0.56 | -10.68 | 163.00 | -38.39 | 109.01 | 0.6477 | -776.0 | -687.1 | |
| 0.00 | 1.03 | 0.00 | 0.67 | -11.02 | 162.75 | -38.63 | 109.41 | 0.6521 | -729.0 | -586.9 | |
| 0.00 | 1.46 | 0.00 | 0.95 | -11.48 | 162.60 | -38.78 | 110.02 | 0.6557 | -605.0 | -529.8 | |
| 0.00 | 26.75 | 0.00 | 17.98 | -14.90 | 161.90 | -39.48 | 114.59 | 0.6781 | -93.0 | -153.3 | |
| 0.00 | 0.94 | 0.00 | 0.62 | -11.67 | 162.49 | -38.89 | 110.25 | 0.6577 | -765.0 | -542.8 | |
| 6.60 | 424.28 | 4.40 | 287.31 | -13.82 | 162.05 | -39.33 | 113.14 | 0.6717 | -665.8 | -425.6 | |
| 11.66 | -60.00 | 7.85 | -60.00 | -14.29 | 161.60 | -39.79 | 113.59 | 0.6791 | -887.3 | 999999 | |
| 0.00 | 1.03 | 0.00 | 0.68 | -12.16 | 162.01 | -39.37 | 110.76 | 0.6655 | -240.0 | -183.4 | |
| 0.00 | 1.11 | 0.00 | 0.73 | -10.21 | 162.22 | -39.17 | 108.00 | 0.6559 | -724.0 | -638.0 | |
| 0.00 | 3.60 | 0.00 | 2.39 | -12.26 | 161.76 | -39.62 | 110.79 | 0.6690 | -525.0 | -695.7 | |
| 0.00 | 1.20 | 0.00 | 0.80 | -12.54 | 161.67 | -39.72 | 111.15 | 0.6711 | -881.0 | -750.6 | |
| 2.40 | -60.00 | 1.62 | -60.00 | -13.77 | 161.39 | -40.00 | 112.77 | 0.6794 | -1089.0 | 999999 | |
| 0.00 | 1.29 | 0.00 | 0.86 | -12.69 | 161.48 | -39.90 | 111.29 | 0.6740 | -903.0 | -838.3 | |
| 3.86 | -60.00 | 2.61 | -60.00 | -13.62 | 161.10 | -40.29 | 112.43 | 0.6822 | -999.7 | 999999 | |
| 0.00 | 3.09 | 0.00 | 2.07 | -12.76 | 161.27 | -40.12 | 111.29 | 0.6768 | -644.0 | -622.9 | |
| 3.94 | -60.00 | 2.67 | -60.00 | -13.87 | 160.96 | -40.42 | 112.72 | 0.6848 | -949.7 | 999999 | |
| 4.20 | -60.00 | 2.83 | -60.00 | -13.31 | 161.08 | -40.31 | 111.99 | 0.6812 | -982.7 | 999999 | |
| 0.00 | 0.77 | 0.00 | 0.52 | -12.48 | 161.20 | -40.18 | 110.88 | 0.6766 | -614.0 | -500.2 | |
| 1.37 | -60.00 | 0.93 | -60.00 | -14.03 | 160.65 | -40.74 | 112.80 | 0.6891 | -978.6 | 999999 | |
| 0.00 | 1.46 | 0.00 | 0.97 | -11.08 | 161.18 | -40.21 | 108.86 | 0.6718 | -703.0 | -553.8 | |
| 2.91 | -60.00 | 1.98 | -60.00 | -13.69 | 160.64 | -40.75 | 112.33 | 0.6879 | -1112.3 | 999999 | |
| 7.20 | -60.00 | 4.93 | -60.00 | -14.19 | 160.37 | -41.02 | 112.90 | 0.6930 | -887.7 | 999999 | |
| 0.00 | 0.43 | 0.00 | 0.29 | -10.69 | 161.04 | -40.34 | 108.25 | 0.6722 | -564.0 | -434.2 | |
| 0.26 | -60.00 | 0.18 | -60.00 | -13.73 | 160.39 | -41.00 | 112.27 | 0.6910 | -974.0 | 999999 | |
| 2.06 | -60.00 | 1.41 | -60.00 | -13.88 | 160.32 | -41.07 | 112.45 | 0.6925 | -930.5 | 999999 | |
| 3.26 | -60.00 | 2.24 | -60.00 | -14.53 | 160.09 | -41.30 | 113.25 | 0.6977 | -831.5 | 999999 | |
| 0.00 | 1.71 | 0.00 | 1.17 | -12.90 | 160.28 | -41.11 | 111.08 | 0.6892 | -683.0 | -592.7 | |
| 8.92 | -60.00 | 6.17 | -60.00 | -14.76 | 159.83 | -41.55 | 113.43 | 0.7015 | -755.7 | 999999 | |
| 5.83 | -60.00 | 4.04 | -60.00 | -14.36 | 159.72 | -41.67 | 112.84 | 0.7012 | -620.3 | 999999 | |
| 0.94 | -60.00 | 0.65 | -60.00 | -14.02 | 159.63 | -41.75 | 112.35 | 0.7009 | -460.5 | 999999 | |
| 0.00 | 1.97 | 0.00 | 1.37 | -14.18 | 159.35 | -42.04 | 112.45 | 0.7048 | -480.0 | -343.8 | |
| 0.00 | 0.51 | 0.00 | 0.37 | -18.09 | 158.25 | -43.13 | 117.12 | 0.7326 | -487.0 | -486.8 | |
| 0.00 | 0.86 | 0.00 | 0.61 | -16.11 | 158.70 | -42.69 | 114.75 | 0.7196 | -350.0 | -347.7 | |
| 0.00 | 2.49 | 0.00 | 1.76 | -15.36 | 158.85 | -42.53 | 113.83 | 0.7150 | -85.0 | -189.6 | |
| 0.00 | 1.11 | 0.00 | 0.80 | -16.21 | 158.42 | -42.97 | 114.76 | 0.7231 | -501.0 | -411.0 | |
| 0.00 | 3.86 | 0.00 | 2.75 | -15.81 | 158.44 | -42.94 | 114.24 | 0.7212 | -602.0 | -566.5 | |
| 0.00 | 0.34 | 0.00 | 0.25 | -16.00 | 158.26 | -43.12 | 114.41 | 0.7239 | -331.0 | -369.0 | |
| 0.00 | 0.86 | 0.00 | 0.60 | -13.43 | 158.61 | -42.78 | 111.13 | 0.7106 | -641.0 | -509.1 | |
| 0.00 | 0.86 | 0.00 | 0.61 | -13.51 | 157.62 | -43.76 | 110.86 | 0.7221 | -582.0 | -461.1 | |
| 0.00 | 0.60 | 0.00 | 0.43 | -14.13 | 157.26 | -44.13 | 111.55 | 0.7283 | -555.0 | -526.3 | |
| 0.00 | 0.69 | 0.00 | 0.51 | -8.79 | 154.21 | -47.17 | 103.54 | 0.7478 | -613.0 | -528.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
