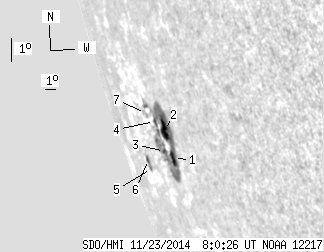

SDO HMI 2014-11-23 08:00:26 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 18.95 | 103.13 | 45.90 | 247.22 | -18.51 | 124.92 | -76.47 | 109.39 | 0.9782 | 254.1 | 24.6 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-11-23 08:00:26 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 5.06 | 94.30 | 11.51 | 219.96 | -19.03 | 125.38 | -76.01 | 109.97 | 0.9770 | 240.8 | 43.3 | |
| 9.69 | -1.00 | 21.81 | -1.00 | -18.15 | 125.41 | -75.98 | 109.07 | 0.9765 | 458.3 | 999999 | |
| 1.37 | -1.00 | 3.35 | -1.00 | -18.84 | 124.42 | -76.96 | 109.68 | 0.9801 | -202.6 | 999999 | |
| 0.26 | -1.00 | 0.62 | -1.00 | -17.90 | 124.39 | -76.99 | 108.72 | 0.9799 | 89.7 | 999999 | |
| 0.77 | 5.57 | 2.59 | 18.65 | -19.49 | 121.17 | -80.21 | 110.03 | 0.9895 | -64.8 | -38.6 | |
| 1.80 | -5.00 | 6.02 | -5.00 | -19.20 | 121.20 | -80.18 | 109.74 | 0.9893 | 56.3 | 999999 | |
| 0.00 | 3.26 | 0.00 | 8.61 | -17.68 | 123.39 | -77.99 | 108.40 | 0.9830 | -397.0 | -297.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
