SDO HMI 2014-11-23 09:00:26 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 339.38 | 1744.07 | 249.71 | 1262.40 | -15.41 | 244.44 | 43.60 | 246.29 | 0.7257 | -426.7 | -164.1 | |
|
previous
or next observation for the same group /

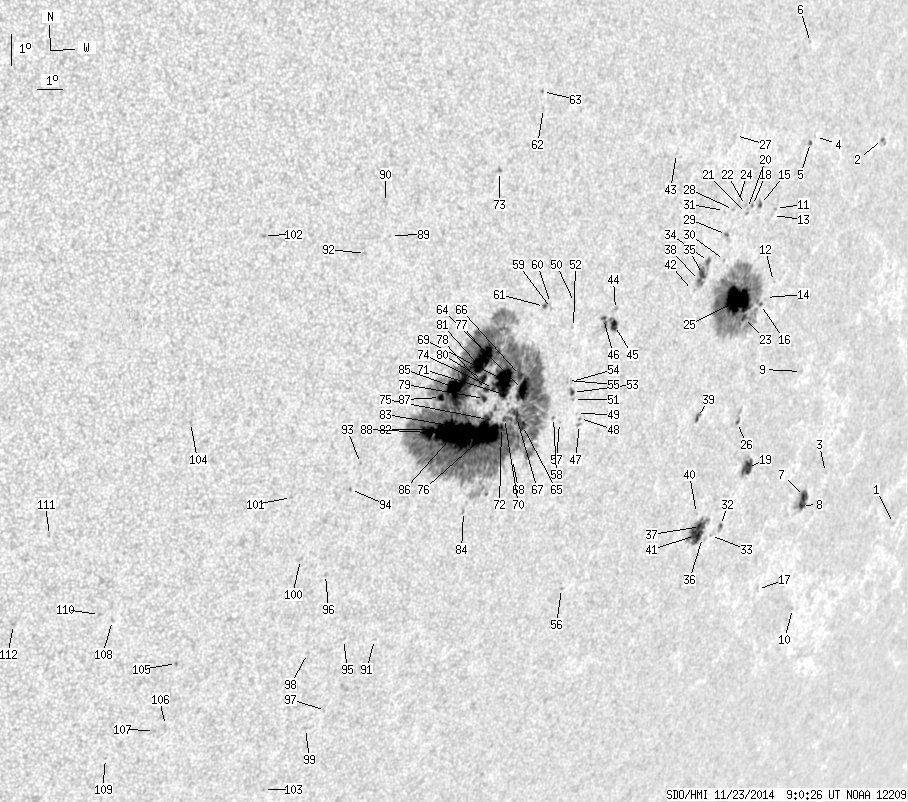

back to the solar disc SDO HMI 2014-11-23 09:00:26 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.03 | 0.00 | 1.27 | -20.13 | 264.66 | 63.82 | 247.01 | 0.9170 | 282.0 | 248.8 | |
| 0.77 | 3.17 | 0.73 | 3.00 | -8.13 | 258.52 | 57.68 | 259.28 | 0.8536 | 537.2 | 442.7 | |
| 0.00 | 1.20 | 0.00 | 1.22 | -18.35 | 259.08 | 58.24 | 247.71 | 0.8742 | 154.0 | 180.4 | |
| 0.00 | 0.69 | 0.00 | 0.59 | -7.94 | 254.89 | 54.05 | 258.93 | 0.8191 | -350.0 | -301.2 | |
| 0.69 | 1.89 | 0.59 | 1.61 | -8.11 | 254.66 | 53.82 | 258.69 | 0.8172 | -511.1 | -424.6 | |
| 0.00 | 0.43 | 0.00 | 0.36 | -5.10 | 254.19 | 53.35 | 262.29 | 0.8087 | -457.0 | -396.8 | |
| 6.00 | 19.03 | 5.96 | 18.88 | -19.08 | 258.24 | 57.39 | 246.68 | 0.8690 | 674.9 | 473.7 | |
| 3.77 | -7.00 | 3.76 | -7.00 | -19.37 | 258.21 | 57.37 | 246.35 | 0.8694 | 612.8 | 999999 | |
| 0.00 | 1.37 | 0.00 | 1.26 | -15.12 | 256.22 | 55.38 | 250.68 | 0.8440 | 133.0 | 205.9 | |
| 0.00 | 0.60 | 0.00 | 0.64 | -22.71 | 259.75 | 58.91 | 243.07 | 0.8880 | 497.0 | 460.7 | |
| 0.00 | 0.94 | 0.00 | 0.79 | -10.06 | 253.32 | 52.48 | 256.05 | 0.8069 | 618.0 | 521.5 | |
| 0.00 | 0.34 | 0.00 | 0.29 | -12.29 | 253.80 | 52.96 | 253.45 | 0.8158 | 247.0 | 344.5 | |
| 0.00 | 0.43 | 0.00 | 0.36 | -10.27 | 253.22 | 52.38 | 255.77 | 0.8063 | 499.0 | 458.8 | |
| 0.00 | 0.51 | 0.00 | 0.44 | -12.77 | 253.53 | 52.69 | 252.80 | 0.8143 | -12.0 | -94.0 | |
| 1.11 | 2.83 | 0.91 | 2.32 | -9.92 | 252.55 | 51.71 | 256.06 | 0.7989 | -602.5 | -481.8 | |
| 0.51 | 255.12 | 0.44 | 209.90 | -12.98 | 253.35 | 52.51 | 252.50 | 0.8129 | 278.0 | 312.8 | |
| 0.00 | 1.63 | 0.00 | 1.61 | -22.02 | 257.19 | 56.35 | 243.11 | 0.8673 | 515.0 | 439.1 | |
| 0.00 | 1.46 | 0.00 | 1.18 | -9.94 | 252.16 | 51.32 | 255.95 | 0.7950 | -698.0 | -596.2 | |
| 9.09 | 17.23 | 8.15 | 15.43 | -18.06 | 254.56 | 53.72 | 246.82 | 0.8359 | 681.6 | 476.3 | |
| 0.00 | 0.94 | 0.00 | 0.76 | -10.02 | 251.94 | 51.10 | 255.80 | 0.7928 | -660.0 | -581.5 | |
| 0.00 | 1.37 | 0.00 | 1.11 | -10.18 | 251.93 | 51.09 | 255.60 | 0.7930 | -453.0 | -449.6 | |
| 0.00 | 1.11 | 0.00 | 0.90 | -9.93 | 251.82 | 50.98 | 255.89 | 0.7914 | -638.0 | -635.8 | |
| 2.66 | -16.00 | 2.22 | -16.00 | -13.36 | 252.61 | 51.77 | 251.86 | 0.8065 | 450.1 | 999999 | |
| 0.00 | 1.63 | 0.00 | 1.30 | -9.83 | 251.47 | 50.63 | 255.93 | 0.7875 | -262.0 | -333.3 | |
| 41.75 | -16.00 | 34.37 | -16.00 | -12.83 | 252.16 | 51.32 | 252.39 | 0.8009 | 1077.5 | 999999 | |
| 0.51 | 5.66 | 0.45 | 4.89 | -16.62 | 253.44 | 52.60 | 248.18 | 0.8222 | 446.7 | 499.6 | |
| 0.00 | 1.03 | 0.00 | 0.81 | -7.80 | 250.95 | 50.11 | 258.39 | 0.7783 | -280.0 | -250.7 | |
| 0.00 | 1.11 | 0.00 | 0.89 | -10.04 | 251.27 | 50.43 | 255.63 | 0.7859 | -593.0 | -478.2 | |
| 0.51 | 3.69 | 0.41 | 2.94 | -10.79 | 251.11 | 50.27 | 254.65 | 0.7857 | -341.8 | 135.9 | |
| 0.00 | 0.60 | 0.00 | 0.48 | -11.58 | 251.20 | 50.36 | 253.68 | 0.7884 | 592.0 | 524.7 | |
| 0.00 | 0.34 | 0.00 | 0.27 | -10.06 | 250.85 | 50.01 | 255.51 | 0.7815 | -407.0 | -431.0 | |
| 0.86 | 3.34 | 0.77 | 3.00 | -19.88 | 253.98 | 53.14 | 244.55 | 0.8355 | -334.6 | -236.6 | |
| 0.00 | 0.77 | 0.00 | 0.69 | -20.19 | 253.60 | 52.76 | 244.07 | 0.8330 | -349.0 | -306.8 | |
| 1.46 | 21.43 | 1.15 | 16.87 | -11.59 | 250.45 | 49.61 | 253.47 | 0.7806 | 98.9 | 375.5 | |
| 3.77 | -34.00 | 2.97 | -34.00 | -11.98 | 250.26 | 49.42 | 252.93 | 0.7795 | 618.3 | 999999 | |
| 0.00 | 0.60 | 0.00 | 0.53 | -20.24 | 253.21 | 52.37 | 243.88 | 0.8297 | -12.0 | -129.1 | |
| 5.92 | 31.63 | 5.17 | 27.63 | -19.88 | 252.94 | 52.10 | 244.21 | 0.8263 | -640.4 | -412.6 | |
| 0.94 | -34.00 | 0.74 | -34.00 | -12.16 | 250.17 | 49.33 | 252.68 | 0.7789 | 850.3 | 999999 | |
| 0.00 | 3.43 | 0.00 | 2.83 | -16.41 | 251.36 | 50.52 | 247.80 | 0.8019 | -544.0 | -444.4 | |
| 0.00 | 0.77 | 0.00 | 0.67 | -19.46 | 252.54 | 51.70 | 244.57 | 0.8215 | -282.0 | -330.3 | |
| 13.03 | -37.00 | 11.39 | -37.00 | -20.16 | 252.81 | 51.97 | 243.84 | 0.8260 | -716.7 | 999999 | |
| 0.00 | 0.34 | 0.00 | 0.27 | -12.46 | 249.92 | 49.08 | 252.24 | 0.7770 | 70.0 | 126.8 | |
| 0.00 | 0.86 | 0.00 | 0.64 | -8.27 | 248.33 | 47.49 | 257.22 | 0.7504 | -452.0 | -447.9 | |
| 0.00 | 1.97 | 0.00 | 1.45 | -12.96 | 246.57 | 45.73 | 250.57 | 0.7423 | 582.0 | 428.1 | |
| 4.97 | 8.74 | 3.67 | 6.46 | -13.45 | 246.64 | 45.80 | 249.96 | 0.7446 | 583.2 | 515.3 | |
| 1.03 | 6.26 | 0.75 | 4.59 | -13.22 | 246.11 | 45.27 | 250.07 | 0.7380 | 797.2 | 678.7 | |
| 0.00 | 1.80 | 0.00 | 1.34 | -16.49 | 245.93 | 45.09 | 245.77 | 0.7470 | -547.0 | -436.0 | |
| 0.00 | 1.11 | 0.00 | 0.83 | -16.30 | 245.88 | 45.04 | 245.99 | 0.7458 | -420.0 | -478.8 | |
| 0.00 | 0.26 | 0.00 | 0.19 | -16.14 | 245.70 | 44.86 | 246.13 | 0.7433 | -307.0 | -416.3 | |
| 0.00 | 0.86 | 0.00 | 0.61 | -12.70 | 244.75 | 43.91 | 250.29 | 0.7210 | 704.0 | 615.5 | |
| 0.00 | 1.29 | 0.00 | 0.94 | -15.70 | 245.44 | 44.60 | 246.59 | 0.7390 | -508.0 | -409.7 | |
| 0.00 | 0.60 | 0.00 | 0.43 | -13.47 | 244.88 | 44.04 | 249.31 | 0.7250 | -420.0 | -316.9 | |
| 1.11 | 2.91 | 0.81 | 2.13 | -15.48 | 245.34 | 44.50 | 246.84 | 0.7371 | -565.9 | -536.5 | |
| 0.00 | 1.20 | 0.00 | 0.87 | -15.14 | 245.21 | 44.36 | 247.23 | 0.7344 | -447.0 | -376.9 | |
| 0.00 | 2.06 | 0.00 | 1.49 | -15.10 | 245.02 | 44.18 | 247.21 | 0.7322 | -620.0 | -502.1 | |
| 0.00 | 0.86 | 0.00 | 0.67 | -21.70 | 246.97 | 46.13 | 239.76 | 0.7776 | -379.0 | -373.2 | |
| 0.00 | 0.86 | 0.00 | 0.63 | -16.40 | 245.04 | 44.20 | 245.52 | 0.7372 | 690.0 | 564.8 | |
| 0.00 | 1.03 | 0.00 | 0.75 | -16.24 | 244.73 | 43.89 | 245.60 | 0.7333 | -203.0 | -172.8 | |
| 0.00 | 1.20 | 0.00 | 0.84 | -12.86 | 243.82 | 42.98 | 249.73 | 0.7108 | -325.0 | -250.4 | |
| 0.00 | 0.60 | 0.00 | 0.42 | -12.70 | 243.74 | 42.90 | 249.91 | 0.7095 | -430.0 | -365.3 | |
| 0.69 | 1.89 | 0.48 | 1.32 | -12.79 | 243.51 | 42.67 | 249.70 | 0.7071 | -721.4 | -558.0 | |
| 0.00 | 0.77 | 0.00 | 0.52 | -6.78 | 242.53 | 41.69 | 257.86 | 0.6779 | -450.0 | -346.0 | |
| 0.00 | 0.86 | 0.00 | 0.57 | -6.27 | 242.44 | 41.60 | 258.59 | 0.6756 | -649.0 | -577.1 | |
| 11.32 | 1282.70 | 7.96 | 884.83 | -15.33 | 243.18 | 42.34 | 246.13 | 0.7126 | -809.3 | -301.7 | |
| 5.14 | -64.00 | 3.66 | -64.00 | -16.46 | 243.47 | 42.63 | 244.77 | 0.7204 | -500.7 | 999999 | |
| 2.91 | -64.00 | 2.04 | -64.00 | -14.90 | 242.99 | 42.15 | 246.64 | 0.7088 | -609.4 | 999999 | |
| 7.03 | -64.00 | 4.97 | -64.00 | -16.17 | 243.14 | 42.30 | 245.01 | 0.7156 | -551.3 | 999999 | |
| 0.00 | 0.43 | 0.00 | 0.31 | -17.52 | 243.35 | 42.51 | 243.33 | 0.7234 | 146.0 | 78.4 | |
| 29.75 | -64.00 | 20.62 | -64.00 | -15.04 | 242.36 | 41.52 | 246.17 | 0.7022 | -1025.2 | 999999 | |
| 1.03 | -64.00 | 0.72 | -64.00 | -16.22 | 242.66 | 41.82 | 244.72 | 0.7104 | -737.3 | 999999 | |
| 3.43 | -64.00 | 2.39 | -64.00 | -15.47 | 242.43 | 41.59 | 245.62 | 0.7047 | -822.7 | 999999 | |
| 0.69 | -64.00 | 0.48 | -64.00 | -16.50 | 242.61 | 41.77 | 244.33 | 0.7110 | -657.4 | 999999 | |
| 0.00 | 0.86 | 0.00 | 0.57 | -8.64 | 241.00 | 40.16 | 254.69 | 0.6635 | -587.0 | -523.1 | |
| 1.20 | -64.00 | 0.83 | -64.00 | -15.27 | 241.97 | 41.13 | 245.67 | 0.6987 | -971.6 | 999999 | |
| 0.26 | -64.00 | 0.18 | -64.00 | -16.24 | 242.00 | 41.16 | 244.39 | 0.7031 | -848.3 | 999999 | |
| 37.29 | -64.00 | 25.96 | -64.00 | -16.67 | 242.03 | 41.19 | 243.82 | 0.7053 | -1002.7 | 999999 | |
| 15.60 | -64.00 | 10.62 | -64.00 | -14.18 | 241.44 | 40.60 | 246.93 | 0.6881 | -1146.8 | 999999 | |
| 2.66 | -64.00 | 1.83 | -64.00 | -15.30 | 241.69 | 40.85 | 245.51 | 0.6956 | -938.7 | 999999 | |
| 2.31 | -64.00 | 1.59 | -64.00 | -15.58 | 241.67 | 40.83 | 245.13 | 0.6966 | -1009.3 | 999999 | |
| 6.17 | -64.00 | 4.22 | -64.00 | -14.98 | 241.45 | 40.61 | 245.83 | 0.6916 | -958.1 | 999999 | |
| 17.66 | -64.00 | 11.99 | -64.00 | -14.52 | 241.19 | 40.35 | 246.36 | 0.6865 | -1225.7 | 999999 | |
| 3.34 | -64.00 | 2.31 | -64.00 | -16.57 | 241.47 | 40.63 | 243.69 | 0.6986 | -1200.4 | 999999 | |
| 8.92 | -64.00 | 6.12 | -64.00 | -16.50 | 241.17 | 40.33 | 243.64 | 0.6949 | -1278.2 | 999999 | |
| 0.00 | 1.71 | 0.00 | 1.21 | -19.12 | 241.77 | 40.93 | 240.48 | 0.7136 | 455.0 | 303.0 | |
| 16.54 | -64.00 | 11.15 | -64.00 | -15.21 | 240.38 | 39.54 | 245.01 | 0.6801 | 609.3 | 999999 | |
| 49.89 | -64.00 | 34.04 | -64.00 | -16.67 | 240.68 | 39.84 | 243.16 | 0.6902 | -1310.2 | 999999 | |
| 3.43 | -64.00 | 2.30 | -64.00 | -15.51 | 239.89 | 39.05 | 244.36 | 0.6757 | -1081.5 | 999999 | |
| 11.66 | -64.00 | 7.84 | -64.00 | -16.59 | 239.74 | 38.90 | 242.78 | 0.6791 | -1259.5 | 999999 | |
| 0.00 | 1.03 | 0.00 | 0.65 | -10.49 | 237.07 | 36.23 | 250.35 | 0.6194 | -554.0 | -435.8 | |
| 0.00 | 2.49 | 0.00 | 1.55 | -9.48 | 236.75 | 35.91 | 251.78 | 0.6114 | -643.0 | -533.2 | |
| 0.00 | 0.94 | 0.00 | 0.66 | -23.17 | 239.38 | 38.54 | 233.97 | 0.7107 | -526.0 | -473.1 | |
| 0.00 | 1.03 | 0.00 | 0.64 | -11.01 | 236.21 | 35.37 | 249.11 | 0.6104 | -163.0 | -168.8 | |
| 0.00 | 0.94 | 0.00 | 0.62 | -17.50 | 237.21 | 36.37 | 240.08 | 0.6549 | -666.0 | -567.6 | |
| 0.00 | 1.03 | 0.00 | 0.67 | -18.32 | 237.02 | 36.18 | 238.83 | 0.6572 | -744.0 | -602.2 | |
| 0.00 | 1.54 | 0.00 | 1.06 | -23.15 | 238.11 | 37.26 | 233.20 | 0.6977 | -560.0 | -453.3 | |
| 0.00 | 1.63 | 0.00 | 1.08 | -21.01 | 236.74 | 35.90 | 235.03 | 0.6704 | -374.0 | -376.1 | |
| 0.00 | 0.60 | 0.00 | 0.42 | -25.49 | 238.17 | 37.33 | 230.38 | 0.7131 | -400.0 | -315.3 | |
| 0.00 | 1.54 | 0.00 | 1.05 | -23.57 | 236.79 | 35.95 | 231.78 | 0.6873 | -571.0 | -443.3 | |
| 0.00 | 2.06 | 0.00 | 1.44 | -26.07 | 237.56 | 36.72 | 229.26 | 0.7112 | -271.0 | -224.2 | |
| 0.00 | 1.54 | 0.00 | 1.01 | -20.51 | 235.64 | 34.80 | 234.94 | 0.6553 | -715.0 | -624.6 | |
| 0.00 | 1.11 | 0.00 | 0.71 | -18.52 | 234.81 | 33.97 | 237.08 | 0.6335 | -721.0 | -616.0 | |
| 0.00 | 1.63 | 0.00 | 0.97 | -10.39 | 232.44 | 31.60 | 248.08 | 0.5577 | -847.0 | -671.1 | |
| 0.00 | 0.86 | 0.00 | 0.61 | -28.11 | 236.59 | 35.75 | 226.20 | 0.7163 | -598.0 | -572.8 | |
| 0.00 | 0.69 | 0.00 | 0.41 | -16.09 | 230.64 | 29.80 | 237.51 | 0.5683 | -791.0 | -652.0 | |
| 0.00 | 1.37 | 0.00 | 0.88 | -23.80 | 231.77 | 30.93 | 227.64 | 0.6387 | -791.0 | -658.9 | |
| 0.00 | 0.86 | 0.00 | 0.56 | -25.86 | 231.92 | 31.08 | 225.23 | 0.6567 | -581.0 | -418.8 | |
| 0.00 | 1.11 | 0.00 | 0.73 | -26.02 | 231.54 | 30.70 | 224.72 | 0.6545 | -442.0 | -469.6 | |
| 0.00 | 1.63 | 0.00 | 1.01 | -22.35 | 229.05 | 28.21 | 227.09 | 0.5991 | -679.0 | -461.1 | |
| 0.00 | 0.60 | 0.00 | 0.39 | -26.93 | 229.93 | 29.09 | 222.21 | 0.6475 | -481.0 | -435.6 | |
| 0.00 | 1.63 | 0.00 | 1.00 | -22.14 | 228.53 | 27.69 | 226.86 | 0.5921 | -698.0 | -531.5 | |
| 0.00 | 1.29 | 0.00 | 0.76 | -19.57 | 226.27 | 25.43 | 228.15 | 0.5453 | -713.0 | -574.9 | |
| 0.00 | 1.54 | 0.00 | 0.92 | -22.42 | 225.51 | 24.67 | 223.38 | 0.5641 | -857.0 | -664.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
