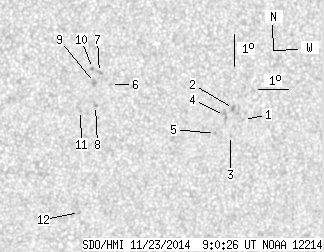

SDO HMI 2014-11-23 09:00:26 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 21.00 | 0.00 | 11.85 | -12.69 | 225.63 | 24.79 | 238.65 | 0.4805 | -123.1 | -28.5 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-11-23 09:00:26 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.51 | 0.00 | 0.30 | -13.07 | 228.53 | 27.69 | 240.72 | 0.5211 | 684.0 | 563.0 | |
| 0.00 | 2.14 | 0.00 | 1.24 | -12.72 | 228.15 | 27.31 | 240.99 | 0.5138 | 875.0 | 747.5 | |
| 0.00 | 1.20 | 0.00 | 0.69 | -13.55 | 228.15 | 27.31 | 239.56 | 0.5194 | 588.0 | 456.4 | |
| 0.00 | 5.14 | 0.00 | 2.96 | -12.93 | 227.87 | 27.03 | 240.38 | 0.5115 | 720.0 | 677.0 | |
| 0.00 | 0.86 | 0.00 | 0.49 | -13.48 | 227.62 | 26.78 | 239.22 | 0.5122 | 787.0 | 633.0 | |
| 0.00 | 0.94 | 0.00 | 0.52 | -11.92 | 223.94 | 23.10 | 238.46 | 0.4524 | -501.0 | -444.3 | |
| 0.00 | 2.49 | 0.00 | 1.37 | -11.55 | 223.55 | 22.71 | 238.76 | 0.4443 | -678.0 | -671.8 | |
| 0.00 | 1.37 | 0.00 | 0.76 | -12.56 | 223.51 | 22.67 | 236.76 | 0.4516 | -821.0 | -636.0 | |
| 0.00 | 3.09 | 0.00 | 1.70 | -11.86 | 223.41 | 22.57 | 238.02 | 0.4448 | -894.0 | -746.8 | |
| 0.00 | 1.37 | 0.00 | 0.76 | -11.43 | 223.31 | 22.47 | 238.75 | 0.4401 | -822.0 | -697.8 | |
| 0.00 | 0.43 | 0.00 | 0.24 | -12.71 | 223.03 | 22.19 | 235.94 | 0.4466 | -744.0 | -704.2 | |
| 0.00 | 1.46 | 0.00 | 0.82 | -15.85 | 223.32 | 22.48 | 230.63 | 0.4778 | -671.0 | -556.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
