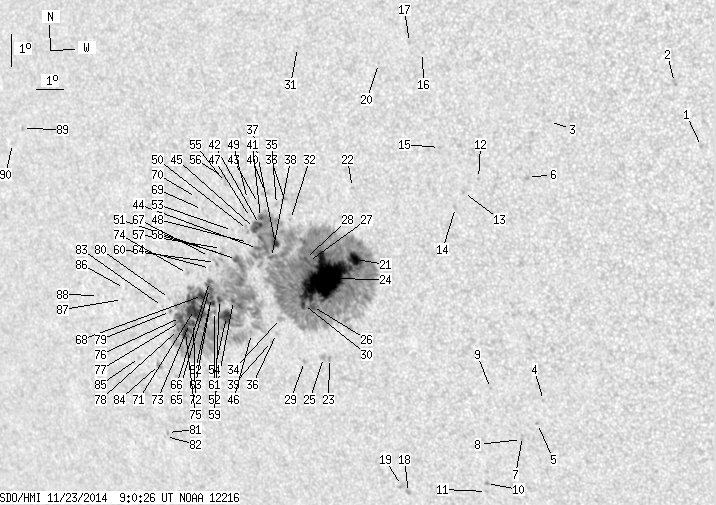

SDO HMI 2014-11-23 09:00:26 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 228.56 | 1415.52 | 147.45 | 912.70 | -13.25 | 163.77 | -37.07 | 113.47 | 0.6413 | 184.6 | -19.5 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-11-23 09:00:26 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.80 | 0.00 | 0.98 | -8.83 | 179.02 | -21.82 | 116.48 | 0.4122 | 740.0 | 606.3 | |
| 0.00 | 2.23 | 0.00 | 1.21 | -6.91 | 178.25 | -22.59 | 111.47 | 0.4115 | 690.0 | 608.2 | |
| 0.00 | 1.11 | 0.00 | 0.63 | -8.14 | 174.06 | -26.78 | 110.87 | 0.4793 | 696.0 | 540.3 | |
| 0.00 | 1.11 | 0.00 | 0.66 | -16.68 | 172.87 | -27.97 | 124.97 | 0.5505 | 682.0 | 571.6 | |
| 0.00 | 0.77 | 0.00 | 0.46 | -17.41 | 172.53 | -28.31 | 125.79 | 0.5600 | 794.0 | 696.8 | |
| 0.00 | 2.49 | 0.00 | 1.42 | -9.84 | 173.18 | -27.66 | 113.51 | 0.5008 | 782.0 | 578.1 | |
| 0.00 | 1.37 | 0.00 | 0.83 | -17.82 | 171.93 | -28.91 | 125.88 | 0.5702 | 552.0 | 382.2 | |
| 0.00 | 0.86 | 0.00 | 0.52 | -17.92 | 171.88 | -28.96 | 125.97 | 0.5716 | 575.0 | 474.5 | |
| 0.00 | 0.94 | 0.00 | 0.57 | -16.34 | 171.05 | -29.79 | 122.87 | 0.5698 | 602.0 | 381.8 | |
| 0.00 | 1.54 | 0.00 | 0.95 | -19.33 | 170.34 | -30.50 | 126.72 | 0.5997 | 662.0 | 522.9 | |
| 0.00 | 1.20 | 0.00 | 0.74 | -19.59 | 170.29 | -30.55 | 127.03 | 0.6022 | 543.0 | 454.2 | |
| 0.00 | 0.77 | 0.00 | 0.45 | -9.89 | 171.50 | -29.34 | 112.45 | 0.5244 | 777.0 | 628.3 | |
| 0.00 | 0.94 | 0.00 | 0.55 | -10.32 | 170.93 | -29.91 | 112.85 | 0.5344 | 731.0 | 628.8 | |
| 0.00 | 1.71 | 0.00 | 1.01 | -10.78 | 170.60 | -30.24 | 113.44 | 0.5413 | 681.0 | 626.0 | |
| 0.00 | 0.94 | 0.00 | 0.55 | -8.97 | 170.23 | -30.61 | 110.04 | 0.5375 | 701.0 | 492.6 | |
| 0.00 | 0.69 | 0.00 | 0.40 | -6.13 | 169.87 | -30.97 | 104.71 | 0.5311 | 682.0 | 558.9 | |
| 0.00 | 1.20 | 0.00 | 0.70 | -5.84 | 169.44 | -31.40 | 103.99 | 0.5363 | 758.0 | 591.2 | |
| 0.00 | 2.23 | 0.00 | 1.43 | -19.67 | 167.37 | -33.47 | 124.87 | 0.6353 | 668.0 | 538.6 | |
| 0.00 | 2.66 | 0.00 | 1.70 | -19.45 | 167.16 | -33.68 | 124.41 | 0.6362 | 570.0 | 457.4 | |
| 0.00 | 0.26 | 0.00 | 0.15 | -6.48 | 168.30 | -32.54 | 104.68 | 0.5546 | 588.0 | 525.0 | |
| 10.12 | 1326.68 | 6.25 | 855.65 | -12.43 | 166.81 | -34.03 | 113.82 | 0.5997 | 1308.3 | -9.0 | |
| 0.00 | 1.20 | 0.00 | 0.73 | -10.24 | 167.00 | -33.84 | 110.43 | 0.5870 | 595.0 | 476.4 | |
| 0.00 | 1.63 | 0.00 | 1.04 | -15.50 | 165.30 | -35.54 | 117.58 | 0.6342 | -857.0 | -717.9 | |
| 117.01 | -21.00 | 73.60 | -21.00 | -13.03 | 165.57 | -35.27 | 114.06 | 0.6184 | 1145.5 | 999999 | |
| 0.00 | 3.77 | 0.00 | 2.42 | -15.48 | 165.08 | -35.76 | 117.41 | 0.6367 | -783.0 | -452.1 | |
| 3.26 | -21.00 | 2.07 | -21.00 | -13.90 | 164.97 | -35.87 | 115.03 | 0.6301 | 624.5 | 999999 | |
| 0.26 | -21.00 | 0.16 | -21.00 | -12.52 | 165.05 | -35.79 | 113.00 | 0.6225 | 476.0 | 999999 | |
| 0.26 | -21.00 | 0.16 | -21.00 | -12.43 | 164.96 | -35.88 | 112.81 | 0.6233 | 361.3 | 999999 | |
| 0.00 | 1.37 | 0.00 | 0.89 | -15.61 | 164.33 | -36.51 | 117.17 | 0.6464 | 721.0 | 587.6 | |
| 2.91 | -21.00 | 1.86 | -21.00 | -13.85 | 164.64 | -36.20 | 114.77 | 0.6339 | 514.6 | 999999 | |
| 0.00 | 0.94 | 0.00 | 0.58 | -6.06 | 165.42 | -35.42 | 102.87 | 0.5935 | 612.0 | 501.1 | |
| 0.00 | 1.11 | 0.00 | 0.70 | -11.25 | 164.58 | -36.26 | 110.82 | 0.6230 | 534.0 | 393.2 | |
| 0.00 | 1.54 | 0.00 | 0.97 | -10.65 | 164.44 | -36.40 | 109.83 | 0.6223 | 429.0 | 268.1 | |
| 0.00 | 3.77 | 0.00 | 2.45 | -14.30 | 163.67 | -37.17 | 114.91 | 0.6478 | -238.0 | -130.8 | |
| 0.00 | 1.54 | 0.00 | 0.98 | -10.81 | 164.11 | -36.73 | 109.92 | 0.6271 | -367.0 | -276.4 | |
| 0.00 | 0.94 | 0.00 | 0.61 | -14.77 | 163.43 | -37.41 | 115.45 | 0.6530 | -692.0 | -547.6 | |
| 4.89 | -21.00 | 3.12 | -21.00 | -12.00 | 163.89 | -36.95 | 111.62 | 0.6347 | 120.7 | 999999 | |
| 1.46 | -21.00 | 0.94 | -21.00 | -12.43 | 163.67 | -37.17 | 112.16 | 0.6394 | 335.3 | 999999 | |
| 0.00 | 0.69 | 0.00 | 0.45 | -15.02 | 163.18 | -37.66 | 115.68 | 0.6571 | -712.0 | -661.8 | |
| 0.00 | 4.11 | 0.00 | 2.62 | -10.45 | 163.75 | -37.09 | 109.21 | 0.6303 | -797.0 | -650.7 | |
| 2.14 | -21.00 | 1.37 | -21.00 | -11.21 | 163.45 | -37.39 | 110.23 | 0.6372 | -1046.5 | 999999 | |
| 4.03 | -21.00 | 2.59 | -21.00 | -11.43 | 163.38 | -37.46 | 110.52 | 0.6389 | -1005.4 | 999999 | |
| 0.00 | 1.11 | 0.00 | 0.71 | -10.79 | 163.44 | -37.40 | 109.59 | 0.6357 | -825.0 | -677.5 | |
| 1.80 | -21.00 | 1.16 | -21.00 | -12.16 | 163.18 | -37.66 | 111.53 | 0.6444 | -322.7 | 999999 | |
| 4.37 | -21.00 | 2.82 | -21.00 | -11.55 | 163.17 | -37.68 | 110.62 | 0.6421 | -943.9 | 999999 | |
| 0.00 | 2.06 | 0.00 | 1.36 | -14.78 | 162.45 | -38.39 | 114.97 | 0.6647 | -274.0 | -268.0 | |
| 0.00 | 0.94 | 0.00 | 0.61 | -11.22 | 163.06 | -37.78 | 110.07 | 0.6420 | -579.0 | -514.8 | |
| 0.00 | 0.51 | 0.00 | 0.33 | -11.99 | 162.86 | -37.98 | 111.12 | 0.6476 | -508.0 | -458.0 | |
| 0.00 | 1.20 | 0.00 | 0.77 | -10.67 | 163.03 | -37.81 | 109.24 | 0.6404 | -749.0 | -634.0 | |
| 0.00 | 2.49 | 0.00 | 1.61 | -11.59 | 162.89 | -37.95 | 110.55 | 0.6457 | -462.0 | -488.8 | |
| 2.74 | -21.00 | 1.80 | -21.00 | -12.52 | 162.31 | -38.53 | 111.64 | 0.6566 | -565.6 | 999999 | |
| 1.54 | -21.00 | 1.02 | -21.00 | -13.78 | 161.95 | -38.89 | 113.29 | 0.6662 | -829.6 | 999999 | |
| 0.00 | 0.77 | 0.00 | 0.50 | -11.63 | 162.30 | -38.54 | 110.35 | 0.6531 | -596.0 | -427.9 | |
| 10.46 | -21.00 | 6.98 | -21.00 | -14.28 | 161.57 | -39.27 | 113.82 | 0.6729 | -898.8 | 999999 | |
| 0.00 | 2.31 | 0.00 | 1.50 | -10.18 | 162.26 | -38.58 | 108.17 | 0.6483 | -543.0 | -534.8 | |
| 0.00 | 1.80 | 0.00 | 1.17 | -10.00 | 162.17 | -38.67 | 107.87 | 0.6488 | -666.0 | -563.0 | |
| 0.00 | 0.60 | 0.00 | 0.40 | -12.19 | 161.78 | -39.06 | 110.93 | 0.6618 | -724.0 | -606.1 | |
| 0.00 | 1.20 | 0.00 | 0.79 | -12.34 | 161.71 | -39.13 | 111.13 | 0.6632 | -936.0 | -871.6 | |
| 2.49 | -21.00 | 1.66 | -21.00 | -13.76 | 161.40 | -39.44 | 113.01 | 0.6727 | -1087.5 | 999999 | |
| 0.00 | 2.91 | 0.00 | 1.93 | -12.62 | 161.47 | -39.37 | 111.42 | 0.6673 | -918.0 | -769.5 | |
| 0.69 | -21.00 | 0.46 | -21.00 | -14.13 | 161.13 | -39.72 | 113.40 | 0.6775 | -750.2 | 999999 | |
| 1.63 | -21.00 | 1.09 | -21.00 | -13.70 | 161.10 | -39.74 | 112.79 | 0.6761 | -1007.7 | 999999 | |
| 4.37 | -21.00 | 2.94 | -21.00 | -13.86 | 161.02 | -39.82 | 112.97 | 0.6776 | -933.3 | 999999 | |
| 0.00 | 2.14 | 0.00 | 1.43 | -12.81 | 161.23 | -39.61 | 111.59 | 0.6709 | -537.0 | -669.4 | |
| 3.26 | -21.00 | 2.18 | -21.00 | -13.43 | 161.07 | -39.77 | 112.39 | 0.6753 | -1017.2 | 999999 | |
| 1.97 | -21.00 | 1.32 | -21.00 | -13.21 | 161.12 | -39.72 | 112.10 | 0.6739 | -953.4 | 999999 | |
| 0.00 | 1.71 | 0.00 | 1.14 | -12.44 | 161.26 | -39.58 | 111.07 | 0.6691 | -504.0 | -568.9 | |
| 7.46 | -21.00 | 5.02 | -21.00 | -13.65 | 160.75 | -40.09 | 112.55 | 0.6800 | -1040.9 | 999999 | |
| 0.00 | 0.86 | 0.00 | 0.57 | -11.01 | 161.24 | -39.60 | 109.00 | 0.6641 | -716.0 | -635.9 | |
| 0.00 | 0.60 | 0.00 | 0.40 | -10.65 | 161.06 | -39.78 | 108.40 | 0.6651 | -537.0 | -483.0 | |
| 26.92 | -21.00 | 18.28 | -21.00 | -14.09 | 160.33 | -40.51 | 112.98 | 0.6867 | -847.3 | 999999 | |
| 1.89 | -21.00 | 1.29 | -21.00 | -14.52 | 160.20 | -40.64 | 113.52 | 0.6900 | -757.5 | 999999 | |
| 1.29 | -21.00 | 0.88 | -21.00 | -14.53 | 160.03 | -40.81 | 113.45 | 0.6919 | -861.7 | 999999 | |
| 0.00 | 1.46 | 0.00 | 0.99 | -12.98 | 160.28 | -40.56 | 111.42 | 0.6829 | -764.0 | -634.6 | |
| 5.14 | -21.00 | 3.54 | -21.00 | -14.81 | 159.81 | -41.03 | 113.73 | 0.6957 | -745.8 | 999999 | |
| 2.40 | -21.00 | 1.65 | -21.00 | -14.35 | 159.71 | -41.13 | 113.06 | 0.6950 | -622.6 | 999999 | |
| 0.26 | -21.00 | 0.18 | -21.00 | -14.47 | 159.68 | -41.16 | 113.22 | 0.6958 | -620.3 | 999999 | |
| 1.54 | -21.00 | 1.06 | -21.00 | -14.72 | 159.54 | -41.30 | 113.50 | 0.6984 | -429.1 | 999999 | |
| 0.00 | 1.71 | 0.00 | 1.18 | -14.17 | 159.34 | -41.50 | 112.66 | 0.6985 | -493.0 | -370.1 | |
| 0.00 | 1.20 | 0.00 | 0.83 | -13.77 | 159.39 | -41.45 | 112.13 | 0.6964 | -457.0 | -357.2 | |
| 0.00 | 1.11 | 0.00 | 0.80 | -17.96 | 158.22 | -42.62 | 117.18 | 0.7265 | -434.0 | -415.4 | |
| 0.00 | 0.26 | 0.00 | 0.19 | -18.09 | 158.10 | -42.75 | 117.29 | 0.7284 | -339.0 | -410.7 | |
| 0.00 | 0.60 | 0.00 | 0.42 | -14.02 | 159.05 | -41.79 | 112.33 | 0.7014 | -369.0 | -303.6 | |
| 0.00 | 4.29 | 0.00 | 3.03 | -15.83 | 158.48 | -42.36 | 114.52 | 0.7148 | -687.0 | -570.5 | |
| 0.00 | 1.11 | 0.00 | 0.80 | -15.63 | 157.69 | -43.15 | 113.91 | 0.7228 | -318.0 | -306.3 | |
| 0.00 | 0.69 | 0.00 | 0.48 | -13.50 | 157.59 | -43.25 | 111.04 | 0.7162 | -470.0 | -484.8 | |
| 0.00 | 0.60 | 0.00 | 0.43 | -13.84 | 157.42 | -43.42 | 111.43 | 0.7193 | -526.0 | -474.9 | |
| 0.00 | 0.86 | 0.00 | 0.62 | -13.74 | 156.43 | -44.41 | 110.92 | 0.7301 | -398.0 | -368.8 | |
| 0.00 | 1.54 | 0.00 | 1.14 | -8.72 | 154.17 | -46.67 | 103.57 | 0.7420 | -493.0 | -399.7 | |
| 0.00 | 0.77 | 0.00 | 0.57 | -9.19 | 153.65 | -47.19 | 104.05 | 0.7489 | -546.0 | -491.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
