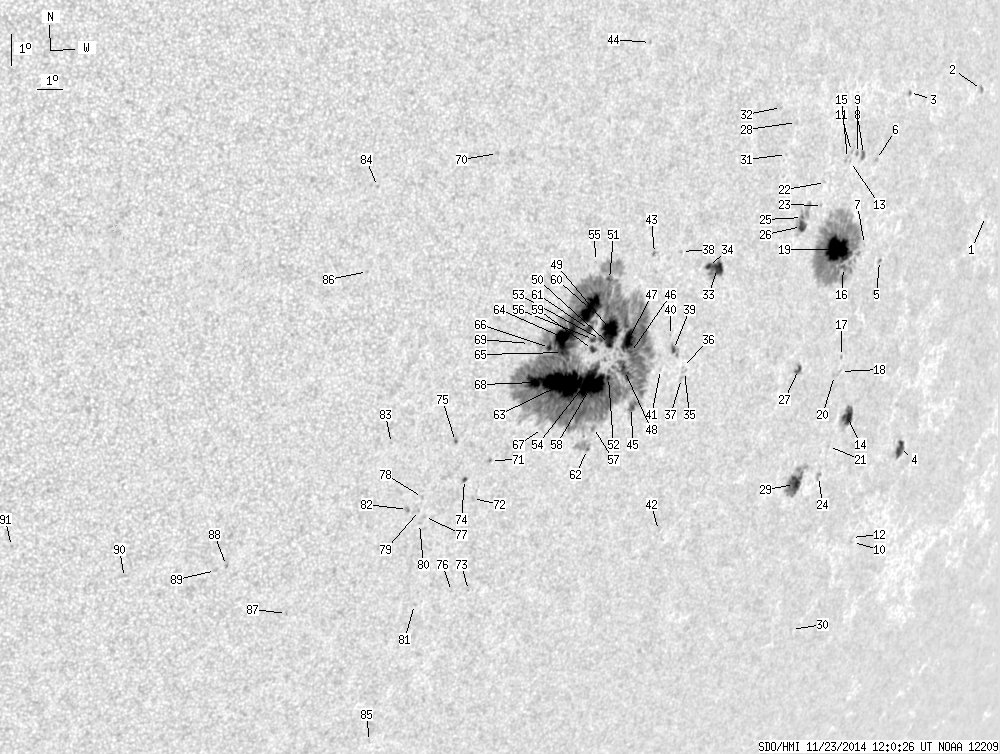

SDO HMI 2014-11-23 12:00:26 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 351.34 | 1702.66 | 266.17 | 1266.26 | -15.46 | 244.44 | 45.24 | 246.92 | 0.7436 | -404.3 | -155.9 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-11-23 12:00:26 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.63 | 0.00 | 1.73 | -12.04 | 260.18 | 60.98 | 255.34 | 0.8860 | 288.0 | 277.1 | |
| 0.60 | 2.49 | 0.60 | 2.48 | -8.16 | 258.73 | 59.53 | 259.51 | 0.8697 | 580.1 | 386.7 | |
| 0.69 | 1.89 | 0.61 | 1.68 | -8.13 | 254.68 | 55.48 | 258.94 | 0.8332 | -367.4 | -338.6 | |
| 8.40 | 13.28 | 8.78 | 13.87 | -19.17 | 258.31 | 59.11 | 247.01 | 0.8824 | 574.1 | 456.1 | |
| 0.34 | 1.80 | 0.31 | 1.63 | -13.22 | 254.47 | 55.27 | 252.88 | 0.8393 | -423.5 | -383.6 | |
| 0.00 | 1.54 | 0.00 | 1.34 | -10.12 | 253.40 | 54.20 | 256.34 | 0.8239 | 530.0 | 425.5 | |
| 0.00 | 0.86 | 0.00 | 0.76 | -12.70 | 253.50 | 54.30 | 253.27 | 0.8294 | 151.0 | 57.6 | |
| 1.80 | 3.60 | 1.54 | 3.07 | -9.95 | 252.69 | 53.49 | 256.40 | 0.8167 | -542.6 | -433.9 | |
| 0.34 | 1.63 | 0.29 | 1.38 | -9.91 | 252.38 | 53.18 | 256.39 | 0.8136 | -720.8 | -610.3 | |
| 0.00 | 0.77 | 0.00 | 0.80 | -22.14 | 257.27 | 58.07 | 243.47 | 0.8806 | 432.0 | 437.2 | |
| 0.00 | 1.20 | 0.00 | 1.01 | -9.84 | 252.06 | 52.86 | 256.41 | 0.8103 | -648.0 | -603.6 | |
| 0.00 | 0.69 | 0.00 | 0.71 | -21.97 | 257.10 | 57.90 | 243.61 | 0.8790 | 236.0 | 299.5 | |
| 0.00 | 0.94 | 0.00 | 0.79 | -10.14 | 252.08 | 52.88 | 256.04 | 0.8111 | -569.0 | -511.8 | |
| 12.25 | 19.80 | 11.49 | 18.54 | -18.06 | 254.69 | 55.49 | 247.34 | 0.8511 | 663.5 | 394.9 | |
| 0.00 | 2.23 | 0.00 | 1.87 | -10.04 | 251.91 | 52.71 | 256.12 | 0.8092 | -838.0 | -584.5 | |
| 1.80 | 237.64 | 1.56 | 202.62 | -13.38 | 252.63 | 53.43 | 252.26 | 0.8225 | 449.3 | 319.6 | |
| 0.00 | 1.03 | 0.00 | 0.92 | -16.15 | 253.53 | 54.33 | 249.22 | 0.8367 | 610.0 | 536.7 | |
| 0.00 | 1.11 | 0.00 | 1.01 | -16.62 | 253.67 | 54.47 | 248.71 | 0.8390 | 393.0 | 394.2 | |
| 38.99 | -16.00 | 33.31 | -16.00 | -12.82 | 252.15 | 52.95 | 252.82 | 0.8168 | 1035.3 | 999999 | |
| 0.00 | 2.06 | 0.00 | 1.85 | -16.74 | 253.40 | 54.20 | 248.50 | 0.8369 | 108.0 | 160.6 | |
| 0.00 | 1.03 | 0.00 | 0.96 | -18.98 | 254.09 | 54.89 | 246.11 | 0.8482 | -194.0 | -166.6 | |
| 0.00 | 0.69 | 0.00 | 0.56 | -10.75 | 250.99 | 51.79 | 255.06 | 0.8012 | -282.0 | -303.2 | |
| 0.00 | 0.43 | 0.00 | 0.35 | -11.45 | 251.02 | 51.81 | 254.21 | 0.8028 | 666.0 | 620.6 | |
| 0.00 | 3.43 | 0.00 | 3.20 | -19.93 | 254.02 | 54.82 | 245.01 | 0.8499 | -378.0 | -242.7 | |
| 0.77 | 24.25 | 0.63 | 19.71 | -11.79 | 250.13 | 50.93 | 253.58 | 0.7946 | 604.9 | 303.2 | |
| 5.57 | -25.00 | 4.53 | -25.00 | -12.06 | 250.15 | 50.95 | 253.24 | 0.7954 | 684.2 | 999999 | |
| 2.57 | 5.06 | 2.20 | 4.33 | -16.50 | 251.43 | 52.23 | 248.23 | 0.8184 | -495.4 | -384.0 | |
| 0.00 | 2.06 | 0.00 | 1.62 | -8.89 | 249.20 | 50.00 | 256.99 | 0.7791 | -407.0 | -363.4 | |
| 18.51 | 33.85 | 16.81 | 30.72 | -20.15 | 252.83 | 53.63 | 244.39 | 0.8404 | -655.1 | -298.9 | |
| 0.00 | 1.63 | 0.00 | 1.65 | -24.93 | 255.50 | 56.30 | 239.90 | 0.8741 | 160.0 | 150.5 | |
| 0.00 | 0.77 | 0.00 | 0.61 | -9.84 | 248.92 | 49.72 | 255.72 | 0.7780 | -443.0 | -400.0 | |
| 0.00 | 0.60 | 0.00 | 0.46 | -8.41 | 248.42 | 49.22 | 257.43 | 0.7698 | -540.0 | -464.3 | |
| 10.46 | 22.54 | 7.94 | 17.10 | -13.25 | 246.54 | 47.34 | 250.73 | 0.7607 | 680.5 | 501.8 | |
| 2.57 | -33.00 | 1.94 | -33.00 | -13.18 | 246.12 | 46.92 | 250.69 | 0.7559 | 769.7 | 999999 | |
| 0.00 | 2.06 | 0.00 | 1.57 | -16.41 | 245.95 | 46.75 | 246.52 | 0.7641 | -592.0 | -434.4 | |
| 0.00 | 0.60 | 0.00 | 0.46 | -16.28 | 245.82 | 46.62 | 246.63 | 0.7624 | -488.0 | -430.4 | |
| 0.00 | 2.49 | 0.00 | 1.90 | -16.63 | 245.89 | 46.68 | 246.22 | 0.7642 | -470.0 | -262.4 | |
| 0.00 | 1.29 | 0.00 | 0.94 | -12.69 | 244.81 | 45.61 | 250.90 | 0.7401 | 549.0 | 445.4 | |
| 1.89 | 7.46 | 1.42 | 5.61 | -15.71 | 245.25 | 46.05 | 247.14 | 0.7544 | -681.3 | -425.1 | |
| 0.00 | 0.69 | 0.00 | 0.51 | -15.27 | 244.99 | 45.79 | 247.61 | 0.7502 | -387.0 | -330.6 | |
| 0.00 | 0.86 | 0.00 | 0.64 | -16.32 | 244.85 | 45.65 | 246.21 | 0.7523 | -197.0 | -196.7 | |
| 0.00 | 0.69 | 0.00 | 0.55 | -21.45 | 246.62 | 47.41 | 240.62 | 0.7887 | -97.0 | -208.5 | |
| 0.00 | 1.89 | 0.00 | 1.36 | -12.72 | 243.65 | 44.45 | 250.46 | 0.7272 | -697.0 | -473.5 | |
| 0.00 | 1.03 | 0.00 | 0.71 | -6.32 | 242.46 | 43.26 | 258.93 | 0.6964 | -532.0 | -426.9 | |
| 2.74 | 1242.64 | 2.04 | 879.43 | -17.49 | 243.93 | 44.73 | 244.36 | 0.7468 | 479.3 | -285.6 | |
| 1.11 | -45.00 | 0.81 | -45.00 | -15.76 | 243.38 | 44.18 | 246.35 | 0.7345 | -139.2 | 999999 | |
| 17.40 | -45.00 | 12.58 | -45.00 | -15.35 | 243.18 | 43.98 | 246.81 | 0.7309 | -725.9 | 999999 | |
| 13.45 | -45.00 | 9.80 | -45.00 | -16.31 | 243.27 | 44.07 | 245.59 | 0.7354 | -491.9 | 999999 | |
| 30.08 | -45.00 | 21.40 | -45.00 | -15.02 | 242.33 | 43.13 | 246.89 | 0.7202 | -984.3 | 999999 | |
| 4.03 | -45.00 | 2.88 | -45.00 | -15.49 | 242.41 | 43.21 | 246.31 | 0.7229 | -801.2 | 999999 | |
| 1.80 | -45.00 | 1.26 | -45.00 | -13.47 | 241.92 | 42.72 | 248.80 | 0.7100 | -715.0 | 999999 | |
| 1.71 | -45.00 | 1.24 | -45.00 | -16.52 | 242.65 | 43.44 | 245.06 | 0.7294 | -565.8 | 999999 | |
| 1.54 | -45.00 | 1.09 | -45.00 | -15.32 | 241.99 | 42.79 | 246.35 | 0.7175 | -951.3 | 999999 | |
| 0.26 | -45.00 | 0.18 | -45.00 | -16.28 | 242.03 | 42.83 | 245.10 | 0.7218 | -800.0 | 999999 | |
| 0.00 | 0.77 | 0.00 | 0.53 | -12.90 | 241.22 | 42.02 | 249.30 | 0.6999 | -526.0 | -454.1 | |
| 2.14 | -45.00 | 1.51 | -45.00 | -15.31 | 241.69 | 42.49 | 246.23 | 0.7142 | -920.9 | 999999 | |
| 0.00 | 3.17 | 0.00 | 2.30 | -18.08 | 242.46 | 43.26 | 242.97 | 0.7337 | 248.0 | 157.6 | |
| 37.28 | -45.00 | 26.64 | -45.00 | -16.69 | 242.01 | 42.81 | 244.56 | 0.7232 | -957.4 | 999999 | |
| 2.40 | -45.00 | 1.70 | -45.00 | -15.63 | 241.73 | 42.53 | 245.84 | 0.7158 | -938.0 | 999999 | |
| 32.22 | -45.00 | 22.47 | -45.00 | -14.38 | 241.34 | 42.14 | 247.34 | 0.7067 | -1134.8 | 999999 | |
| 4.37 | -45.00 | 3.06 | -45.00 | -15.00 | 241.45 | 42.25 | 246.55 | 0.7102 | -957.7 | 999999 | |
| 0.51 | 13.20 | 0.37 | 9.58 | -18.77 | 242.42 | 43.22 | 242.07 | 0.7362 | 284.8 | -29.6 | |
| 59.48 | -45.00 | 41.66 | -45.00 | -16.66 | 240.79 | 41.59 | 244.04 | 0.7096 | -1264.0 | 999999 | |
| 15.17 | -45.00 | 10.47 | -45.00 | -15.22 | 240.39 | 41.19 | 245.78 | 0.6991 | 626.1 | 999999 | |
| 0.26 | -45.00 | 0.18 | -45.00 | -15.69 | 240.50 | 41.30 | 245.20 | 0.7023 | -1369.7 | 999999 | |
| 2.31 | -45.00 | 1.59 | -45.00 | -15.52 | 239.93 | 40.73 | 245.16 | 0.6951 | -1070.0 | 999999 | |
| 0.00 | 2.66 | 0.00 | 1.86 | -18.06 | 240.30 | 41.10 | 241.96 | 0.7105 | 63.0 | -4.4 | |
| 12.08 | -45.00 | 8.30 | -45.00 | -16.60 | 239.63 | 40.42 | 243.56 | 0.6964 | -1230.6 | 999999 | |
| 0.00 | 1.20 | 0.00 | 0.81 | -15.38 | 239.09 | 39.89 | 244.96 | 0.6848 | -591.0 | -533.1 | |
| 0.00 | 1.54 | 0.00 | 0.98 | -9.53 | 236.80 | 37.60 | 252.43 | 0.6335 | -703.0 | -611.3 | |
| 0.00 | 1.37 | 0.00 | 0.94 | -19.02 | 238.45 | 39.25 | 239.71 | 0.6950 | -679.0 | -524.1 | |
| 0.00 | 1.80 | 0.00 | 1.24 | -20.22 | 238.06 | 38.86 | 237.92 | 0.6972 | 238.0 | 218.7 | |
| 0.00 | 0.60 | 0.00 | 0.43 | -23.21 | 238.87 | 39.67 | 234.62 | 0.7219 | -667.0 | -553.9 | |
| 0.94 | 2.06 | 0.64 | 1.40 | -19.61 | 237.56 | 38.36 | 238.44 | 0.6885 | -654.4 | -553.5 | |
| 0.51 | 2.06 | 0.34 | 1.38 | -18.39 | 236.87 | 37.67 | 239.66 | 0.6743 | -699.3 | -467.1 | |
| 0.00 | 1.03 | 0.00 | 0.73 | -23.22 | 238.17 | 38.96 | 234.18 | 0.7151 | -542.0 | -398.2 | |
| 0.00 | 1.71 | 0.00 | 1.16 | -20.76 | 236.29 | 37.09 | 236.15 | 0.6814 | -592.0 | -549.0 | |
| 0.00 | 1.29 | 0.00 | 0.86 | -20.15 | 236.04 | 36.84 | 236.79 | 0.6750 | -588.0 | -477.5 | |
| 0.00 | 0.60 | 0.00 | 0.40 | -20.56 | 236.03 | 36.83 | 236.24 | 0.6775 | -665.0 | -471.0 | |
| 0.00 | 1.20 | 0.00 | 0.81 | -20.98 | 236.15 | 36.95 | 235.77 | 0.6812 | -556.0 | -447.2 | |
| 0.00 | 0.86 | 0.00 | 0.60 | -23.62 | 236.78 | 37.57 | 232.82 | 0.7036 | -621.0 | -529.4 | |
| 0.00 | 2.23 | 0.00 | 1.49 | -20.52 | 235.55 | 36.35 | 235.99 | 0.6720 | -686.0 | -630.3 | |
| 0.00 | 0.77 | 0.00 | 0.50 | -18.40 | 234.39 | 35.19 | 238.09 | 0.6464 | -725.0 | -534.3 | |
| 0.00 | 1.11 | 0.00 | 0.68 | -10.44 | 232.48 | 33.28 | 248.97 | 0.5803 | -720.0 | -570.5 | |
| 0.00 | 0.94 | 0.00 | 0.68 | -28.19 | 236.61 | 37.41 | 227.27 | 0.7313 | -658.0 | -529.5 | |
| 0.00 | 0.69 | 0.00 | 0.42 | -13.02 | 232.46 | 33.26 | 244.80 | 0.5928 | -617.0 | -498.8 | |
| 0.00 | 1.03 | 0.00 | 0.67 | -23.81 | 231.76 | 32.56 | 228.99 | 0.6549 | -793.0 | -634.6 | |
| 0.00 | 1.37 | 0.00 | 0.86 | -22.19 | 229.09 | 29.88 | 228.84 | 0.6151 | -710.0 | -563.0 | |
| 0.00 | 1.80 | 0.00 | 1.13 | -22.35 | 228.72 | 29.52 | 228.30 | 0.6125 | -682.0 | -526.3 | |
| 0.00 | 0.51 | 0.00 | 0.31 | -22.52 | 225.45 | 26.25 | 224.94 | 0.5806 | -415.0 | -530.7 | |
| 0.00 | 0.86 | 0.00 | 0.50 | -21.45 | 221.30 | 22.10 | 221.68 | 0.5287 | -651.0 | -586.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
