SDO HMI 2014-11-23 12:00:26 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 28.36 | 134.55 | 57.62 | 278.91 | -18.51 | 124.69 | -74.51 | 109.61 | 0.9708 | 301.0 | 33.5 | |
|
previous
or next observation for the same group /

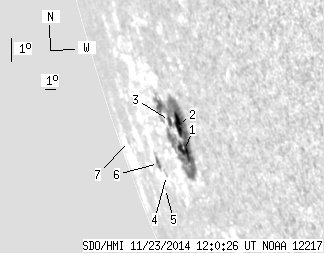

back to the solar disc SDO HMI 2014-11-23 12:00:26 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 12.25 | 126.23 | 24.26 | 253.24 | -18.87 | 125.16 | -74.04 | 110.03 | 0.9695 | 316.7 | 53.5 | |
| 10.88 | -1.00 | 21.06 | -1.00 | -18.05 | 125.45 | -73.75 | 109.22 | 0.9679 | 507.9 | 999999 | |
| 3.00 | -1.00 | 6.17 | -1.00 | -17.95 | 124.51 | -74.69 | 109.01 | 0.9716 | 84.4 | 999999 | |
| 0.00 | 1.03 | 0.00 | 2.69 | -19.78 | 121.51 | -77.70 | 110.55 | 0.9827 | -403.0 | -358.9 | |
| 0.00 | 0.69 | 0.00 | 1.96 | -20.23 | 120.56 | -78.64 | 110.91 | 0.9856 | -56.0 | -17.8 | |
| 2.23 | 5.23 | 6.13 | 14.39 | -19.42 | 120.88 | -78.32 | 110.13 | 0.9845 | 8.8 | -82.3 | |
| 0.00 | 1.37 | 0.00 | 6.63 | -18.89 | 116.02 | -83.18 | 109.20 | 0.9953 | -250.0 | -254.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
