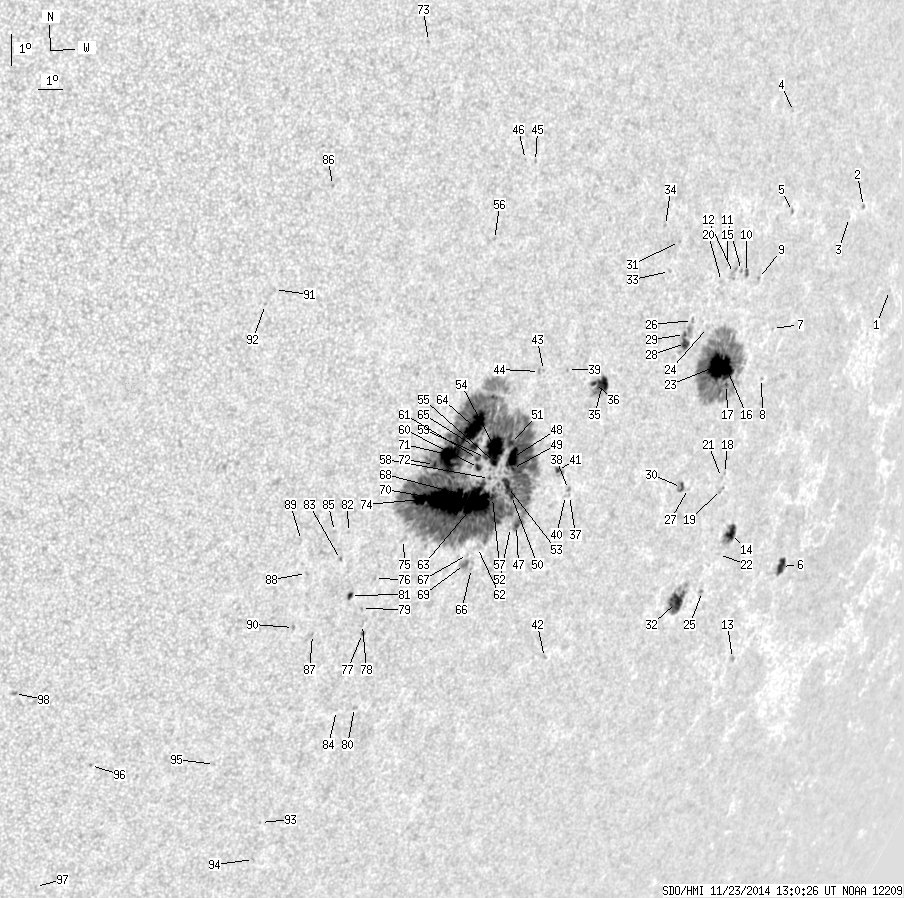

SDO HMI 2014-11-23 13:00:26 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 338.04 | 1660.66 | 258.72 | 1249.56 | -15.41 | 244.50 | 45.85 | 247.22 | 0.7499 | -383.2 | -152.3 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-11-23 13:00:26 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.03 | 0.00 | 1.14 | -10.75 | 261.22 | 62.56 | 257.02 | 0.8967 | 128.0 | 197.2 | |
| 0.00 | 1.37 | 0.00 | 1.39 | -8.14 | 258.78 | 60.12 | 259.61 | 0.8747 | 498.0 | 445.0 | |
| 0.00 | 0.26 | 0.00 | 0.25 | -8.45 | 258.02 | 59.36 | 259.15 | 0.8686 | 351.0 | 268.0 | |
| 0.00 | 0.51 | 0.00 | 0.46 | -5.17 | 254.27 | 55.62 | 262.50 | 0.8312 | -432.0 | -391.0 | |
| 0.00 | 1.71 | 0.00 | 1.55 | -8.18 | 254.73 | 56.08 | 258.98 | 0.8390 | -429.0 | -375.4 | |
| 8.48 | 12.51 | 9.03 | 13.30 | -19.19 | 258.40 | 59.74 | 247.15 | 0.8872 | 564.6 | 386.8 | |
| 0.00 | 1.03 | 0.00 | 0.94 | -11.71 | 254.57 | 55.92 | 254.79 | 0.8426 | 160.0 | 247.2 | |
| 0.00 | 1.20 | 0.00 | 1.10 | -13.23 | 254.47 | 55.81 | 252.99 | 0.8442 | -416.0 | -379.1 | |
| 0.00 | 1.29 | 0.00 | 1.13 | -10.16 | 253.39 | 54.73 | 256.39 | 0.8291 | 445.0 | 427.3 | |
| 1.29 | 3.17 | 1.11 | 2.75 | -9.96 | 252.71 | 54.06 | 256.50 | 0.8223 | -565.9 | -459.8 | |
| 0.00 | 1.54 | 0.00 | 1.33 | -9.89 | 252.44 | 53.79 | 256.53 | 0.8196 | -736.0 | -626.3 | |
| 0.00 | 5.66 | 0.00 | 4.82 | -9.97 | 252.05 | 53.40 | 256.35 | 0.8159 | -753.0 | -565.1 | |
| 0.00 | 2.31 | 0.00 | 2.43 | -22.09 | 257.18 | 58.53 | 243.66 | 0.8839 | 398.0 | 280.6 | |
| 10.45 | 19.79 | 9.96 | 18.83 | -18.04 | 254.75 | 56.10 | 247.52 | 0.8562 | 667.7 | 454.1 | |
| 0.00 | 0.60 | 0.00 | 0.51 | -9.72 | 251.69 | 53.04 | 256.59 | 0.8119 | -453.0 | -512.3 | |
| 18.59 | 244.90 | 16.22 | 211.71 | -12.84 | 252.48 | 53.83 | 253.00 | 0.8252 | 723.1 | 289.0 | |
| 1.11 | -16.00 | 0.98 | -16.00 | -13.36 | 252.65 | 53.99 | 252.42 | 0.8278 | 386.8 | 999999 | |
| 0.00 | 0.94 | 0.00 | 0.86 | -16.13 | 253.57 | 54.91 | 249.40 | 0.8419 | 505.0 | 503.5 | |
| 0.00 | 2.83 | 0.00 | 2.59 | -16.63 | 253.61 | 54.96 | 248.83 | 0.8434 | 396.0 | 375.0 | |
| 0.00 | 1.89 | 0.00 | 1.59 | -10.20 | 251.50 | 52.85 | 255.97 | 0.8108 | -236.0 | -213.4 | |
| 0.00 | 0.77 | 0.00 | 0.70 | -16.26 | 253.45 | 54.80 | 249.23 | 0.8412 | 499.0 | 418.2 | |
| 0.00 | 1.11 | 0.00 | 1.06 | -18.69 | 254.40 | 55.75 | 246.68 | 0.8547 | 211.0 | 184.2 | |
| 24.51 | -16.00 | 21.08 | -16.00 | -12.79 | 251.90 | 53.25 | 252.92 | 0.8196 | 1218.2 | 999999 | |
| 0.00 | 1.71 | 0.00 | 1.44 | -11.58 | 251.15 | 52.50 | 254.20 | 0.8099 | 234.0 | 220.4 | |
| 0.00 | 0.51 | 0.00 | 0.49 | -19.85 | 254.10 | 55.45 | 245.28 | 0.8549 | -325.0 | -299.0 | |
| 0.00 | 1.46 | 0.00 | 1.20 | -11.35 | 250.35 | 51.69 | 254.30 | 0.8014 | -29.0 | -103.8 | |
| 0.00 | 1.03 | 0.00 | 0.90 | -16.55 | 251.83 | 53.18 | 248.44 | 0.8272 | 332.0 | 366.2 | |
| 4.63 | 18.68 | 3.81 | 15.38 | -12.05 | 250.19 | 51.53 | 253.41 | 0.8013 | 674.3 | 345.7 | |
| 1.03 | -28.00 | 0.84 | -28.00 | -11.77 | 250.06 | 51.41 | 253.72 | 0.7994 | 599.2 | 999999 | |
| 2.23 | 5.83 | 1.94 | 5.06 | -16.51 | 251.45 | 52.80 | 248.38 | 0.8237 | -483.7 | -458.8 | |
| 0.00 | 0.86 | 0.00 | 0.68 | -8.93 | 249.18 | 50.53 | 257.05 | 0.7848 | -362.0 | -349.9 | |
| 18.25 | 35.39 | 16.80 | 32.55 | -20.17 | 252.83 | 54.18 | 244.55 | 0.8451 | -647.4 | -280.9 | |
| 0.00 | 1.20 | 0.00 | 0.95 | -9.83 | 248.89 | 50.24 | 255.86 | 0.7834 | -459.0 | -427.0 | |
| 0.00 | 1.11 | 0.00 | 0.87 | -8.43 | 248.43 | 49.78 | 257.53 | 0.7759 | -557.0 | -425.8 | |
| 10.20 | 24.42 | 7.83 | 18.74 | -13.20 | 246.57 | 47.92 | 250.97 | 0.7667 | 671.0 | 443.9 | |
| 1.80 | -35.00 | 1.37 | -35.00 | -13.16 | 246.20 | 47.55 | 250.91 | 0.7626 | 838.4 | 999999 | |
| 0.00 | 1.29 | 0.00 | 1.00 | -16.62 | 246.06 | 47.41 | 246.51 | 0.7716 | -308.0 | -276.9 | |
| 0.00 | 1.71 | 0.00 | 1.32 | -16.43 | 245.96 | 47.30 | 246.70 | 0.7699 | -548.0 | -485.9 | |
| 0.00 | 0.86 | 0.00 | 0.64 | -12.70 | 244.88 | 46.23 | 251.08 | 0.7470 | 494.0 | 498.7 | |
| 0.00 | 0.86 | 0.00 | 0.66 | -16.61 | 245.88 | 47.23 | 246.45 | 0.7697 | -319.0 | -332.3 | |
| 1.46 | 5.91 | 1.11 | 4.50 | -15.82 | 245.27 | 46.62 | 247.22 | 0.7608 | -627.2 | -397.0 | |
| 0.00 | 1.46 | 0.00 | 1.19 | -21.76 | 246.87 | 48.22 | 240.58 | 0.7973 | -535.0 | -431.2 | |
| 0.00 | 0.60 | 0.00 | 0.44 | -12.70 | 243.84 | 45.18 | 250.73 | 0.7354 | -439.0 | -425.6 | |
| 0.00 | 2.14 | 0.00 | 1.56 | -12.73 | 243.67 | 45.02 | 250.64 | 0.7336 | -695.0 | -421.2 | |
| 0.00 | 1.20 | 0.00 | 0.83 | -6.36 | 242.45 | 43.80 | 258.99 | 0.7031 | -350.0 | -327.8 | |
| 0.00 | 0.77 | 0.00 | 0.53 | -6.29 | 242.03 | 43.38 | 259.00 | 0.6978 | -588.0 | -474.0 | |
| 1.89 | 1195.11 | 1.41 | 853.44 | -17.50 | 243.96 | 45.31 | 244.59 | 0.7529 | 493.5 | -282.6 | |
| 12.51 | -47.00 | 9.13 | -47.00 | -15.36 | 243.16 | 44.50 | 247.00 | 0.7366 | -778.3 | 999999 | |
| 0.77 | -47.00 | 0.56 | -47.00 | -15.71 | 243.25 | 44.60 | 246.59 | 0.7389 | -315.1 | 999999 | |
| 3.43 | -47.00 | 2.53 | -47.00 | -16.55 | 243.45 | 44.79 | 245.59 | 0.7441 | -433.3 | 999999 | |
| 2.91 | -47.00 | 2.11 | -47.00 | -14.92 | 242.95 | 44.30 | 247.49 | 0.7329 | -446.3 | 999999 | |
| 0.00 | 2.31 | 0.00 | 1.73 | -17.56 | 243.71 | 45.06 | 244.42 | 0.7506 | -238.0 | -75.6 | |
| 8.83 | -47.00 | 6.48 | -47.00 | -16.26 | 243.19 | 44.54 | 245.85 | 0.7402 | -546.8 | 999999 | |
| 29.22 | -47.00 | 20.99 | -47.00 | -15.06 | 242.35 | 43.70 | 247.07 | 0.7267 | -959.7 | 999999 | |
| 3.94 | -47.00 | 2.84 | -47.00 | -15.50 | 242.42 | 43.77 | 246.53 | 0.7291 | -778.7 | 999999 | |
| 0.00 | 0.94 | 0.00 | 0.64 | -8.67 | 241.05 | 42.40 | 255.36 | 0.6913 | -624.0 | -503.8 | |
| 1.54 | -47.00 | 1.12 | -47.00 | -16.59 | 242.64 | 43.98 | 245.20 | 0.7355 | -524.6 | 999999 | |
| 0.51 | -47.00 | 0.37 | -47.00 | -15.99 | 242.34 | 43.69 | 245.85 | 0.7300 | -735.2 | 999999 | |
| 0.69 | -47.00 | 0.49 | -47.00 | -15.33 | 241.99 | 43.34 | 246.57 | 0.7237 | -944.5 | 999999 | |
| 2.74 | -47.00 | 1.96 | -47.00 | -15.64 | 241.78 | 43.12 | 246.08 | 0.7225 | -933.8 | 999999 | |
| 1.80 | -47.00 | 1.28 | -47.00 | -15.36 | 241.66 | 43.01 | 246.40 | 0.7201 | -931.8 | 999999 | |
| 0.00 | 4.11 | 0.00 | 3.02 | -18.15 | 242.46 | 43.80 | 243.12 | 0.7398 | 89.0 | 128.5 | |
| 35.48 | -47.00 | 25.58 | -47.00 | -16.70 | 241.98 | 43.33 | 244.78 | 0.7289 | -963.1 | 999999 | |
| 34.02 | -47.00 | 23.93 | -47.00 | -14.39 | 241.30 | 42.64 | 247.54 | 0.7124 | -1108.2 | 999999 | |
| 4.28 | -47.00 | 3.03 | -47.00 | -14.98 | 241.44 | 42.79 | 246.81 | 0.7162 | -942.8 | 999999 | |
| 0.00 | 1.11 | 0.00 | 0.82 | -18.81 | 242.41 | 43.76 | 242.26 | 0.7420 | 260.0 | 265.6 | |
| 0.00 | 0.69 | 0.00 | 0.50 | -18.36 | 242.09 | 43.44 | 242.68 | 0.7368 | -402.0 | -362.2 | |
| 1.97 | -47.00 | 1.41 | -47.00 | -16.50 | 241.46 | 42.81 | 244.81 | 0.7224 | -965.0 | 999999 | |
| 0.00 | 6.43 | 0.00 | 4.70 | -18.68 | 242.06 | 43.41 | 242.27 | 0.7378 | -162.0 | -87.3 | |
| 57.41 | -47.00 | 40.55 | -47.00 | -16.64 | 240.74 | 42.09 | 244.30 | 0.7150 | -1263.3 | 999999 | |
| 12.85 | -47.00 | 8.95 | -47.00 | -15.20 | 240.37 | 41.72 | 246.05 | 0.7051 | 666.0 | 999999 | |
| 2.48 | -47.00 | 1.72 | -47.00 | -15.50 | 239.91 | 41.26 | 245.44 | 0.7010 | -1035.5 | 999999 | |
| 0.00 | 1.11 | 0.00 | 0.72 | -2.68 | 237.94 | 39.28 | 263.54 | 0.6388 | -632.0 | -455.2 | |
| 12.34 | -47.00 | 8.55 | -47.00 | -16.58 | 239.61 | 40.95 | 243.84 | 0.7022 | -1227.1 | 999999 | |
| 0.00 | 3.26 | 0.00 | 2.26 | -17.82 | 239.24 | 40.59 | 242.01 | 0.7038 | -185.0 | -184.5 | |
| 0.00 | 1.20 | 0.00 | 0.83 | -19.03 | 238.39 | 39.74 | 239.97 | 0.7004 | -522.0 | -475.9 | |
| 0.51 | 1.63 | 0.36 | 1.14 | -20.79 | 238.43 | 39.77 | 237.72 | 0.7098 | 638.8 | 546.2 | |
| 0.00 | 2.31 | 0.00 | 1.62 | -20.50 | 238.34 | 39.68 | 238.04 | 0.7073 | 594.0 | 522.6 | |
| 0.00 | 0.77 | 0.00 | 0.54 | -19.98 | 238.14 | 39.49 | 238.60 | 0.7025 | 469.0 | 449.2 | |
| 0.00 | 2.14 | 0.00 | 1.54 | -23.19 | 238.91 | 40.26 | 234.99 | 0.7276 | -548.0 | -448.3 | |
| 1.89 | 3.43 | 1.29 | 2.35 | -19.55 | 237.57 | 38.91 | 238.83 | 0.6942 | -606.2 | -450.5 | |
| 0.00 | 1.11 | 0.00 | 0.75 | -17.55 | 236.95 | 38.30 | 241.15 | 0.6769 | -623.0 | -471.5 | |
| 0.00 | 1.29 | 0.00 | 0.87 | -18.40 | 236.85 | 38.19 | 239.95 | 0.6802 | -744.0 | -670.7 | |
| 0.00 | 0.69 | 0.00 | 0.49 | -23.27 | 238.18 | 39.53 | 234.46 | 0.7208 | -477.0 | -392.4 | |
| 0.00 | 1.37 | 0.00 | 0.91 | -17.51 | 236.39 | 37.73 | 240.89 | 0.6703 | -381.0 | -372.8 | |
| 0.00 | 1.03 | 0.00 | 0.64 | -6.91 | 234.59 | 35.94 | 255.93 | 0.6029 | -612.0 | -578.3 | |
| 0.00 | 0.69 | 0.00 | 0.47 | -20.77 | 236.39 | 37.73 | 236.54 | 0.6883 | -620.0 | -550.2 | |
| 0.00 | 1.20 | 0.00 | 0.80 | -18.81 | 235.61 | 36.96 | 238.65 | 0.6687 | -577.0 | -499.4 | |
| 0.00 | 0.94 | 0.00 | 0.62 | -17.77 | 235.16 | 36.50 | 239.81 | 0.6577 | -727.0 | -584.4 | |
| 0.00 | 1.29 | 0.00 | 0.86 | -20.53 | 235.56 | 36.91 | 236.33 | 0.6781 | -765.0 | -680.6 | |
| 0.00 | 0.86 | 0.00 | 0.52 | -10.00 | 232.78 | 34.13 | 250.13 | 0.5898 | -571.0 | -489.2 | |
| 0.00 | 1.11 | 0.00 | 0.68 | -10.45 | 232.51 | 33.86 | 249.26 | 0.5881 | -673.0 | -513.3 | |
| 0.00 | 0.94 | 0.00 | 0.68 | -26.94 | 236.36 | 37.71 | 228.91 | 0.7259 | -569.0 | -444.9 | |
| 0.00 | 1.37 | 0.00 | 1.00 | -28.20 | 236.58 | 37.93 | 227.60 | 0.7359 | -647.0 | -440.8 | |
| 0.00 | 1.03 | 0.00 | 0.70 | -24.95 | 233.76 | 35.11 | 229.50 | 0.6881 | -464.0 | -314.8 | |
| 0.00 | 1.11 | 0.00 | 0.72 | -24.88 | 228.92 | 30.27 | 225.73 | 0.6409 | -651.0 | -509.8 | |
| 0.00 | 0.26 | 0.00 | 0.17 | -28.95 | 228.00 | 29.34 | 220.15 | 0.6674 | -474.0 | -506.3 | |
| 0.00 | 2.40 | 0.00 | 1.46 | -22.46 | 225.54 | 26.89 | 225.66 | 0.5866 | -747.0 | -652.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
