SDO HMI 2014-11-23 14:00:26 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 23.22 | 134.26 | 44.38 | 255.19 | -18.44 | 124.99 | -73.12 | 109.71 | 0.9652 | 342.0 | 88.7 | |
|
previous
or next observation for the same group /

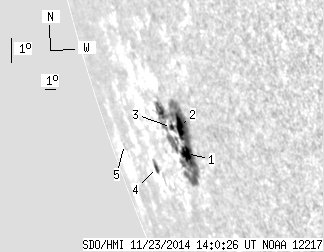

back to the solar disc SDO HMI 2014-11-23 14:00:26 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 9.77 | 128.86 | 18.07 | 241.09 | -18.83 | 125.25 | -72.86 | 110.14 | 0.9645 | 365.4 | 96.7 | |
| 9.17 | -1.00 | 16.61 | -1.00 | -17.98 | 125.43 | -72.67 | 109.28 | 0.9632 | 533.1 | 999999 | |
| 1.88 | -1.00 | 3.61 | -1.00 | -18.04 | 124.49 | -73.61 | 109.23 | 0.9673 | 122.7 | 999999 | |
| 2.40 | 5.14 | 6.09 | 13.03 | -19.42 | 120.73 | -77.37 | 110.22 | 0.9816 | -20.5 | -91.1 | |
| 0.00 | 0.26 | 0.00 | 1.07 | -18.85 | 116.09 | -82.01 | 109.24 | 0.9932 | -257.0 | -270.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
