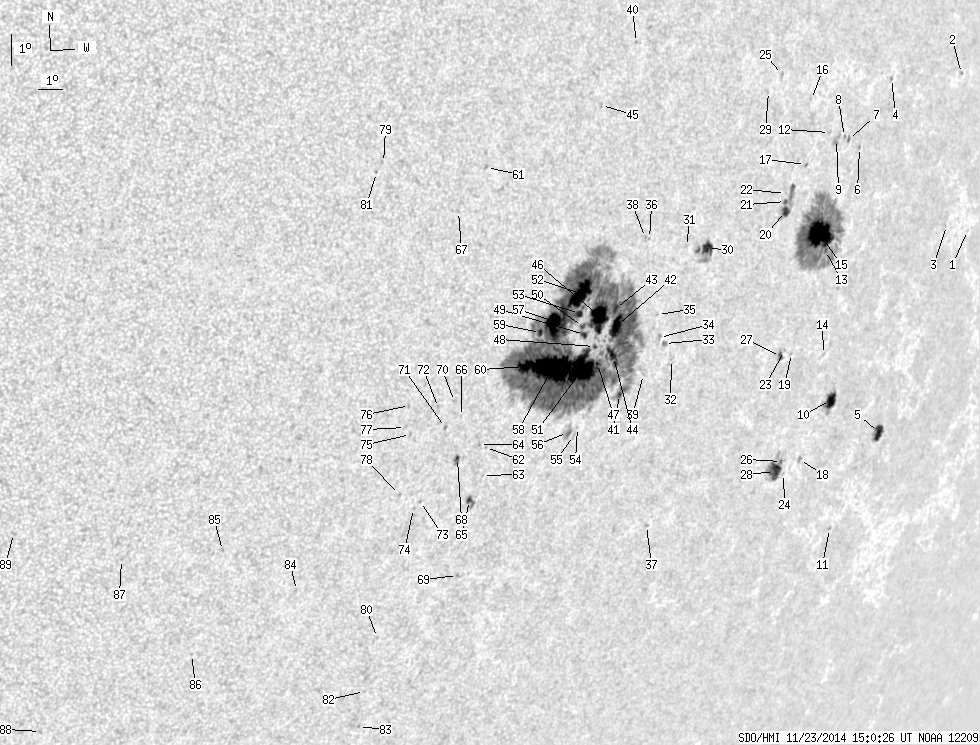

SDO HMI 2014-11-23 15:00:26 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 317.04 | 1685.44 | 247.14 | 1289.65 | -15.41 | 244.31 | 46.76 | 247.55 | 0.7594 | -394.9 | -154.4 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-11-23 15:00:26 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.86 | 0.00 | 0.99 | -12.96 | 260.95 | 63.40 | 254.71 | 0.9051 | 242.0 | 220.1 | |
| 0.00 | 0.94 | 0.00 | 0.99 | -8.15 | 258.84 | 61.28 | 259.75 | 0.8842 | 188.0 | 332.5 | |
| 0.00 | 0.86 | 0.00 | 0.94 | -12.77 | 259.46 | 61.91 | 254.69 | 0.8939 | 462.0 | 370.7 | |
| 0.00 | 1.37 | 0.00 | 1.28 | -8.18 | 254.72 | 57.16 | 259.15 | 0.8489 | -317.0 | -330.4 | |
| 8.31 | 15.08 | 9.16 | 16.60 | -19.16 | 258.41 | 60.86 | 247.44 | 0.8953 | 576.1 | 382.9 | |
| 0.00 | 1.54 | 0.00 | 1.40 | -10.22 | 253.46 | 55.91 | 256.54 | 0.8402 | 414.0 | 303.4 | |
| 0.00 | 2.14 | 0.00 | 1.91 | -9.96 | 252.81 | 55.25 | 256.73 | 0.8337 | -529.0 | -440.7 | |
| 0.00 | 1.03 | 0.00 | 0.91 | -9.87 | 252.57 | 55.02 | 256.80 | 0.8313 | -519.0 | -557.3 | |
| 0.00 | 6.60 | 0.00 | 5.79 | -9.95 | 252.17 | 54.62 | 256.63 | 0.8276 | -646.0 | -531.2 | |
| 11.39 | 20.05 | 11.22 | 19.70 | -18.04 | 254.84 | 57.29 | 247.83 | 0.8659 | 637.0 | 423.0 | |
| 0.00 | 1.20 | 0.00 | 1.31 | -22.19 | 257.27 | 59.71 | 243.86 | 0.8926 | 407.0 | 294.1 | |
| 0.00 | 1.37 | 0.00 | 1.19 | -9.72 | 251.75 | 54.20 | 256.81 | 0.8233 | -422.0 | -437.6 | |
| 2.23 | 237.57 | 2.01 | 210.81 | -13.33 | 252.58 | 55.03 | 252.70 | 0.8373 | 431.9 | 287.1 | |
| 0.00 | 1.03 | 0.00 | 0.97 | -16.57 | 253.74 | 56.19 | 249.22 | 0.8539 | 501.0 | 399.9 | |
| 37.95 | -13.00 | 33.71 | -13.00 | -12.83 | 252.15 | 54.60 | 253.19 | 0.8324 | 1029.7 | 999999 | |
| 0.00 | 0.51 | 0.00 | 0.43 | -8.70 | 250.61 | 53.06 | 257.84 | 0.8104 | -566.0 | -517.7 | |
| 0.00 | 1.20 | 0.00 | 1.02 | -10.66 | 250.76 | 53.20 | 255.48 | 0.8151 | -307.0 | -312.1 | |
| 0.00 | 2.23 | 0.00 | 2.17 | -19.88 | 254.02 | 56.47 | 245.54 | 0.8632 | -444.0 | -261.0 | |
| 0.00 | 0.86 | 0.00 | 0.77 | -16.49 | 251.96 | 54.40 | 248.85 | 0.8382 | 440.0 | 363.8 | |
| 4.28 | 21.67 | 3.61 | 18.29 | -12.07 | 250.12 | 52.57 | 253.63 | 0.8116 | 718.6 | 274.4 | |
| 0.86 | -20.00 | 0.72 | -20.00 | -11.77 | 250.04 | 52.49 | 253.98 | 0.8101 | 609.8 | 999999 | |
| 0.00 | 0.60 | 0.00 | 0.50 | -11.52 | 249.97 | 52.42 | 254.26 | 0.8090 | 225.0 | 263.0 | |
| 0.00 | 1.46 | 0.00 | 1.30 | -16.39 | 251.54 | 53.99 | 248.86 | 0.8342 | -376.0 | -412.8 | |
| 0.00 | 0.77 | 0.00 | 0.74 | -20.31 | 253.34 | 55.79 | 244.87 | 0.8587 | -155.0 | -99.4 | |
| 0.00 | 1.80 | 0.00 | 1.46 | -7.90 | 249.04 | 51.48 | 258.53 | 0.7930 | -546.0 | -427.6 | |
| 0.69 | 26.04 | 0.65 | 24.61 | -19.92 | 253.02 | 55.47 | 245.22 | 0.8552 | -466.0 | -386.2 | |
| 2.06 | 4.37 | 1.83 | 3.89 | -16.57 | 251.41 | 53.85 | 248.61 | 0.8334 | -559.8 | -345.9 | |
| 12.85 | -26.00 | 12.16 | -26.00 | -20.23 | 252.80 | 55.24 | 244.80 | 0.8541 | -677.2 | 999999 | |
| 0.00 | 0.86 | 0.00 | 0.69 | -8.40 | 248.45 | 50.90 | 257.80 | 0.7877 | -554.0 | -514.1 | |
| 8.22 | 22.27 | 6.46 | 17.50 | -13.11 | 246.64 | 49.09 | 251.44 | 0.7787 | 652.8 | 403.3 | |
| 0.00 | 0.77 | 0.00 | 0.59 | -13.02 | 245.65 | 48.09 | 251.25 | 0.7680 | 526.0 | 463.0 | |
| 0.00 | 0.26 | 0.00 | 0.20 | -16.52 | 245.99 | 48.43 | 247.00 | 0.7816 | -547.0 | -520.0 | |
| 0.00 | 2.91 | 0.00 | 2.27 | -16.01 | 245.50 | 47.94 | 247.46 | 0.7750 | -729.0 | -479.5 | |
| 0.00 | 1.97 | 0.00 | 1.53 | -15.81 | 245.21 | 47.65 | 247.60 | 0.7715 | -552.0 | -503.6 | |
| 0.00 | 1.03 | 0.00 | 0.79 | -15.09 | 244.90 | 47.34 | 248.39 | 0.7660 | -337.0 | -267.4 | |
| 0.00 | 0.86 | 0.00 | 0.64 | -12.73 | 243.91 | 46.36 | 251.08 | 0.7485 | -492.0 | -430.4 | |
| 0.00 | 1.63 | 0.00 | 1.36 | -21.79 | 246.90 | 49.34 | 241.00 | 0.8076 | -450.0 | -324.9 | |
| 0.00 | 1.29 | 0.00 | 0.95 | -12.70 | 243.73 | 46.18 | 251.07 | 0.7464 | -393.0 | -405.0 | |
| 0.00 | 1.37 | 0.00 | 1.06 | -16.95 | 244.84 | 47.28 | 246.04 | 0.7714 | 362.0 | 296.3 | |
| 0.00 | 0.94 | 0.00 | 0.67 | -6.77 | 242.31 | 44.76 | 258.64 | 0.7155 | -641.0 | -488.3 | |
| 1.71 | 1237.87 | 1.31 | 900.93 | -17.56 | 243.94 | 46.39 | 244.95 | 0.7643 | 526.8 | -271.6 | |
| 15.51 | -41.00 | 11.54 | -41.00 | -15.42 | 243.11 | 45.56 | 247.34 | 0.7482 | -734.5 | 999999 | |
| 4.28 | -41.00 | 3.17 | -41.00 | -14.86 | 242.96 | 45.40 | 248.00 | 0.7446 | -443.9 | 999999 | |
| 11.22 | -41.00 | 8.41 | -41.00 | -16.35 | 243.30 | 45.74 | 246.21 | 0.7534 | -509.6 | 999999 | |
| 0.00 | 1.71 | 0.00 | 1.19 | -8.63 | 241.09 | 43.54 | 255.74 | 0.7050 | -518.0 | -466.8 | |
| 35.55 | -41.00 | 26.01 | -41.00 | -15.09 | 242.32 | 44.77 | 247.46 | 0.7385 | -949.2 | 999999 | |
| 0.94 | -41.00 | 0.70 | -41.00 | -16.56 | 242.65 | 45.09 | 245.70 | 0.7472 | -551.0 | 999999 | |
| 1.03 | -41.00 | 0.76 | -41.00 | -16.02 | 242.36 | 44.81 | 246.27 | 0.7422 | -672.7 | 999999 | |
| 2.66 | -41.00 | 1.93 | -41.00 | -15.63 | 241.82 | 44.27 | 246.56 | 0.7350 | -950.8 | 999999 | |
| 1.71 | -41.00 | 1.24 | -41.00 | -15.38 | 241.67 | 44.11 | 246.82 | 0.7324 | -922.3 | 999999 | |
| 32.81 | -41.00 | 24.11 | -41.00 | -16.76 | 242.01 | 44.46 | 245.18 | 0.7412 | -971.8 | 999999 | |
| 33.07 | -41.00 | 23.70 | -41.00 | -14.36 | 241.32 | 43.76 | 248.03 | 0.7249 | -1108.2 | 999999 | |
| 3.68 | -41.00 | 2.65 | -41.00 | -14.98 | 241.43 | 43.88 | 247.26 | 0.7284 | -975.3 | 999999 | |
| 0.00 | 1.11 | 0.00 | 0.83 | -18.55 | 242.40 | 44.85 | 243.07 | 0.7522 | -352.0 | -245.9 | |
| 0.00 | 3.00 | 0.00 | 2.25 | -18.80 | 242.31 | 44.75 | 242.72 | 0.7522 | -64.0 | 1.1 | |
| 0.00 | 9.85 | 0.00 | 7.33 | -18.70 | 242.01 | 44.45 | 242.71 | 0.7488 | -267.0 | -213.5 | |
| 15.59 | -41.00 | 11.05 | -41.00 | -15.20 | 240.39 | 42.83 | 246.54 | 0.7176 | 653.8 | 999999 | |
| 55.00 | -41.00 | 39.55 | -41.00 | -16.63 | 240.73 | 43.17 | 244.80 | 0.7269 | -1264.3 | 999999 | |
| 3.00 | -41.00 | 2.11 | -41.00 | -15.53 | 239.93 | 42.37 | 245.90 | 0.7137 | -991.3 | 999999 | |
| 7.45 | -41.00 | 5.25 | -41.00 | -16.58 | 239.62 | 42.06 | 244.38 | 0.7145 | -1247.7 | 999999 | |
| 0.00 | 1.71 | 0.00 | 1.12 | -10.41 | 236.73 | 39.18 | 251.74 | 0.6566 | -698.0 | -528.9 | |
| 0.00 | 0.77 | 0.00 | 0.54 | -19.10 | 238.62 | 41.07 | 240.60 | 0.7150 | -330.0 | -318.7 | |
| 0.00 | 0.86 | 0.00 | 0.61 | -19.99 | 238.78 | 41.22 | 239.53 | 0.7209 | 282.0 | 347.9 | |
| 0.00 | 1.20 | 0.00 | 0.84 | -18.99 | 238.34 | 40.79 | 240.59 | 0.7115 | -637.0 | -474.0 | |
| 1.88 | 6.17 | 1.34 | 4.41 | -20.78 | 238.49 | 40.93 | 238.37 | 0.7217 | 752.0 | 564.4 | |
| 0.00 | 0.94 | 0.00 | 0.65 | -18.09 | 237.35 | 39.79 | 241.25 | 0.6963 | -521.0 | -368.0 | |
| 0.00 | 1.80 | 0.00 | 1.17 | -11.72 | 235.85 | 38.30 | 249.43 | 0.6505 | -675.0 | -455.5 | |
| 1.11 | 4.37 | 0.78 | 3.04 | -19.42 | 237.56 | 40.01 | 239.62 | 0.7052 | -675.0 | -548.0 | |
| 0.00 | 1.29 | 0.00 | 0.94 | -23.21 | 238.83 | 41.28 | 235.54 | 0.7377 | -583.0 | -509.6 | |
| 0.00 | 1.71 | 0.00 | 1.17 | -17.61 | 236.94 | 39.38 | 241.67 | 0.6894 | -557.0 | -448.8 | |
| 0.00 | 1.54 | 0.00 | 1.05 | -18.42 | 236.79 | 39.24 | 240.51 | 0.6918 | -773.0 | -574.4 | |
| 0.00 | 1.54 | 0.00 | 1.04 | -17.78 | 236.34 | 38.79 | 241.11 | 0.6836 | -634.0 | -458.8 | |
| 0.00 | 1.37 | 0.00 | 0.95 | -20.76 | 236.45 | 38.90 | 237.25 | 0.7005 | -637.0 | -486.2 | |
| 0.00 | 1.03 | 0.00 | 0.71 | -20.98 | 236.23 | 38.68 | 236.84 | 0.6994 | -509.0 | -418.3 | |
| 0.00 | 1.46 | 0.00 | 0.98 | -18.61 | 235.44 | 37.89 | 239.49 | 0.6779 | -627.0 | -528.1 | |
| 0.00 | 0.51 | 0.00 | 0.34 | -17.69 | 235.17 | 37.61 | 240.57 | 0.6699 | -608.0 | -554.0 | |
| 0.00 | 1.54 | 0.00 | 1.03 | -18.39 | 235.18 | 37.63 | 239.64 | 0.6738 | -630.0 | -503.6 | |
| 0.00 | 1.11 | 0.00 | 0.76 | -20.52 | 235.53 | 37.97 | 237.01 | 0.6894 | -708.0 | -664.2 | |
| 0.00 | 0.69 | 0.00 | 0.43 | -10.17 | 232.80 | 35.25 | 250.40 | 0.6052 | -492.0 | -519.1 | |
| 0.00 | 0.86 | 0.00 | 0.61 | -25.19 | 236.18 | 38.63 | 231.58 | 0.7234 | -508.0 | -406.2 | |
| 0.00 | 1.03 | 0.00 | 0.64 | -10.47 | 232.58 | 35.03 | 249.82 | 0.6036 | -615.0 | -493.2 | |
| 0.00 | 0.86 | 0.00 | 0.62 | -27.00 | 236.34 | 38.79 | 229.54 | 0.7359 | -606.0 | -505.3 | |
| 0.00 | 0.77 | 0.00 | 0.57 | -28.19 | 236.59 | 39.03 | 228.33 | 0.7455 | -568.0 | -483.7 | |
| 0.00 | 0.69 | 0.00 | 0.46 | -23.55 | 232.34 | 34.78 | 230.99 | 0.6753 | -159.0 | -197.6 | |
| 0.00 | 1.29 | 0.00 | 0.82 | -22.19 | 229.11 | 31.56 | 230.27 | 0.6324 | -700.0 | -524.9 | |
| 0.00 | 0.86 | 0.00 | 0.56 | -25.60 | 228.86 | 31.30 | 225.74 | 0.6566 | -618.0 | -472.5 | |
| 0.00 | 0.94 | 0.00 | 0.58 | -22.41 | 225.44 | 27.88 | 226.71 | 0.5962 | -704.0 | -603.0 | |
| 0.00 | 1.54 | 0.00 | 0.99 | -28.11 | 223.82 | 26.27 | 218.19 | 0.6337 | -663.0 | -545.1 | |
| 0.00 | 2.14 | 0.00 | 1.27 | -21.51 | 221.42 | 23.87 | 223.72 | 0.5469 | -676.0 | -492.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
