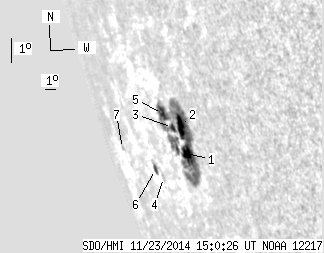

SDO HMI 2014-11-23 15:00:26 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 33.49 | 146.83 | 62.25 | 272.79 | -18.18 | 124.36 | -73.20 | 109.43 | 0.9651 | 272.6 | 65.3 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-11-23 15:00:26 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 8.65 | 139.04 | 15.51 | 251.56 | -18.82 | 125.16 | -72.39 | 110.18 | 0.9624 | 352.4 | 90.8 | |
| 10.37 | -1.00 | 18.20 | -1.00 | -17.96 | 125.45 | -72.11 | 109.33 | 0.9606 | 553.8 | 999999 | |
| 2.91 | -1.00 | 5.38 | -1.00 | -18.02 | 124.54 | -73.02 | 109.28 | 0.9647 | 142.6 | 999999 | |
| 0.00 | 1.88 | 0.00 | 4.39 | -19.70 | 121.33 | -76.23 | 110.62 | 0.9780 | -400.0 | -395.8 | |
| 9.68 | -1.00 | 18.55 | -1.00 | -17.60 | 123.89 | -73.66 | 108.77 | 0.9672 | 91.9 | 999999 | |
| 1.88 | 4.28 | 4.61 | 10.48 | -19.47 | 120.57 | -76.99 | 110.31 | 0.9804 | 31.5 | -71.8 | |
| 0.00 | 1.63 | 0.00 | 6.36 | -18.97 | 115.76 | -81.80 | 109.38 | 0.9928 | -247.0 | -268.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
