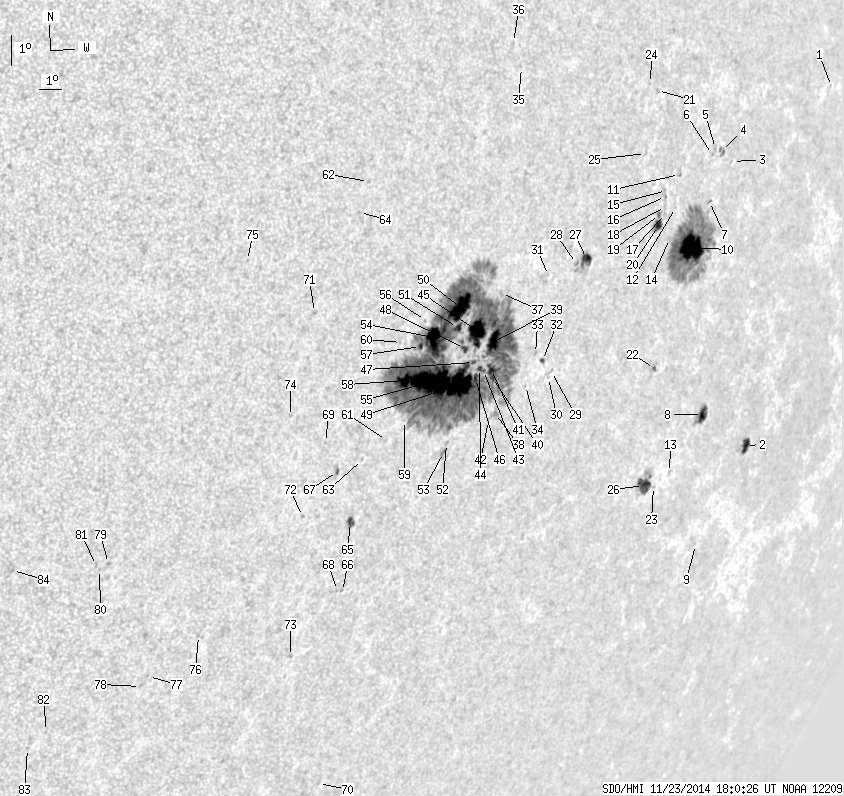

SDO HMI 2014-11-23 18:00:26 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 306.04 | 1559.53 | 245.66 | 1229.00 | -15.46 | 244.14 | 48.24 | 248.04 | 0.7750 | -390.0 | -153.6 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-11-23 18:00:26 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.60 | 0.00 | 0.67 | -8.14 | 259.05 | 63.15 | 259.99 | 0.8987 | 436.0 | 382.3 | |
| 7.79 | 9.94 | 9.10 | 11.60 | -19.15 | 258.47 | 62.57 | 247.83 | 0.9073 | 515.7 | 315.0 | |
| 0.00 | 0.60 | 0.00 | 0.57 | -10.24 | 253.58 | 57.68 | 256.83 | 0.8561 | 471.0 | 401.1 | |
| 0.00 | 4.54 | 0.00 | 4.24 | -9.92 | 252.87 | 56.97 | 257.08 | 0.8494 | -702.0 | -472.8 | |
| 0.00 | 1.88 | 0.00 | 1.74 | -9.82 | 252.51 | 56.61 | 257.14 | 0.8460 | -670.0 | -574.8 | |
| 0.00 | 1.20 | 0.00 | 1.11 | -10.00 | 252.39 | 56.50 | 256.91 | 0.8452 | -547.0 | -505.4 | |
| 0.00 | 1.71 | 0.00 | 1.60 | -11.43 | 252.64 | 56.74 | 255.29 | 0.8495 | 261.0 | 250.9 | |
| 9.25 | 16.62 | 9.60 | 17.21 | -18.07 | 255.03 | 59.14 | 248.25 | 0.8806 | 624.3 | 507.5 | |
| 0.00 | 0.69 | 0.00 | 0.79 | -22.27 | 257.30 | 61.41 | 244.19 | 0.9044 | 295.0 | 265.4 | |
| 38.37 | 222.87 | 35.54 | 206.28 | -12.82 | 252.10 | 56.20 | 253.56 | 0.8469 | 987.5 | 278.0 | |
| 0.00 | 1.54 | 0.00 | 1.37 | -10.56 | 250.77 | 54.87 | 255.95 | 0.8310 | -299.0 | -383.1 | |
| 0.00 | 0.26 | 0.00 | 0.23 | -11.56 | 250.84 | 54.94 | 254.77 | 0.8333 | 413.0 | 420.3 | |
| 0.00 | 1.71 | 0.00 | 1.75 | -19.87 | 254.05 | 58.16 | 246.01 | 0.8765 | -407.0 | -224.1 | |
| 0.00 | 1.11 | 0.00 | 1.00 | -12.50 | 250.81 | 54.91 | 253.65 | 0.8346 | 315.0 | 280.5 | |
| 0.00 | 0.77 | 0.00 | 0.67 | -11.03 | 250.21 | 54.32 | 255.28 | 0.8265 | 332.0 | 281.9 | |
| 0.00 | 1.28 | 0.00 | 1.13 | -11.21 | 250.21 | 54.31 | 255.06 | 0.8268 | 55.0 | 18.2 | |
| 0.00 | 0.60 | 0.00 | 0.53 | -11.73 | 250.36 | 54.46 | 254.47 | 0.8291 | 182.0 | 145.7 | |
| 0.00 | 2.31 | 0.00 | 2.03 | -11.52 | 250.30 | 54.40 | 254.71 | 0.8281 | 266.0 | 187.5 | |
| 0.00 | 2.66 | 0.00 | 2.32 | -11.75 | 250.05 | 54.15 | 254.38 | 0.8262 | 469.0 | 330.7 | |
| 5.31 | 8.91 | 4.65 | 7.80 | -12.09 | 250.10 | 54.20 | 253.99 | 0.8273 | 670.7 | 531.6 | |
| 0.00 | 2.14 | 0.00 | 1.80 | -7.98 | 249.06 | 53.16 | 258.74 | 0.8104 | -569.0 | -471.1 | |
| 1.03 | 3.17 | 0.96 | 2.95 | -16.53 | 251.50 | 55.60 | 249.13 | 0.8487 | -607.1 | -457.2 | |
| 0.00 | 1.03 | 0.00 | 1.03 | -20.29 | 253.35 | 57.45 | 245.35 | 0.8719 | -46.0 | -65.2 | |
| 0.00 | 0.60 | 0.00 | 0.50 | -7.76 | 248.67 | 52.77 | 258.95 | 0.8061 | -376.0 | -284.3 | |
| 0.00 | 1.88 | 0.00 | 1.59 | -9.87 | 248.85 | 52.95 | 256.39 | 0.8113 | -374.0 | -383.1 | |
| 12.16 | 23.13 | 12.01 | 22.82 | -20.24 | 252.73 | 56.83 | 245.24 | 0.8669 | -629.0 | -341.5 | |
| 6.17 | 15.42 | 5.03 | 12.56 | -13.01 | 246.75 | 50.86 | 252.07 | 0.7965 | 655.6 | 455.3 | |
| 0.00 | 1.80 | 0.00 | 1.45 | -13.15 | 246.31 | 50.41 | 251.77 | 0.7924 | 692.0 | 620.4 | |
| 0.00 | 1.63 | 0.00 | 1.33 | -16.47 | 246.17 | 50.27 | 247.66 | 0.7996 | -299.0 | -297.6 | |
| 0.00 | 0.26 | 0.00 | 0.21 | -16.66 | 246.09 | 50.19 | 247.42 | 0.7993 | -321.0 | -333.7 | |
| 0.00 | 0.26 | 0.00 | 0.20 | -13.48 | 245.08 | 49.18 | 251.01 | 0.7806 | -253.0 | -174.0 | |
| 1.03 | 2.23 | 0.83 | 1.80 | -16.12 | 245.61 | 49.71 | 247.92 | 0.7931 | -513.9 | -426.1 | |
| 0.00 | 1.37 | 0.00 | 1.10 | -15.89 | 245.20 | 49.30 | 248.06 | 0.7884 | -322.0 | -272.7 | |
| 0.00 | 0.86 | 0.00 | 0.69 | -16.88 | 245.06 | 49.17 | 246.81 | 0.7900 | 490.0 | 490.6 | |
| 0.00 | 0.77 | 0.00 | 0.56 | -7.12 | 242.58 | 46.68 | 258.59 | 0.7388 | -439.0 | -354.2 | |
| 0.00 | 1.11 | 0.00 | 0.81 | -6.36 | 242.14 | 46.24 | 259.52 | 0.7323 | -524.0 | -452.4 | |
| 0.00 | 2.14 | 0.00 | 1.63 | -13.98 | 243.06 | 47.16 | 249.74 | 0.7608 | -222.0 | -186.6 | |
| 0.00 | 4.37 | 0.00 | 3.45 | -17.73 | 243.95 | 48.05 | 245.38 | 0.7816 | 310.0 | 220.4 | |
| 16.45 | 1172.61 | 12.61 | 878.55 | -15.46 | 243.12 | 47.22 | 247.89 | 0.7659 | -692.7 | -269.4 | |
| 2.31 | -39.00 | 1.80 | -39.00 | -16.59 | 243.42 | 47.52 | 246.59 | 0.7726 | -437.1 | 999999 | |
| 5.74 | -39.00 | 4.44 | -39.00 | -16.34 | 243.30 | 47.40 | 246.86 | 0.7705 | -474.3 | 999999 | |
| 0.00 | 0.94 | 0.00 | 0.74 | -17.94 | 243.70 | 47.80 | 245.02 | 0.7798 | -181.0 | -148.0 | |
| 0.69 | -39.00 | 0.53 | -39.00 | -16.36 | 242.94 | 47.04 | 246.70 | 0.7669 | -434.9 | 999999 | |
| 1.80 | -39.00 | 1.38 | -39.00 | -16.29 | 242.73 | 46.84 | 246.71 | 0.7645 | -487.6 | 999999 | |
| 31.35 | -39.00 | 23.63 | -39.00 | -15.13 | 242.30 | 46.40 | 248.02 | 0.7562 | -945.9 | 999999 | |
| 2.48 | -39.00 | 1.90 | -39.00 | -16.60 | 242.65 | 46.75 | 246.29 | 0.7647 | -406.1 | 999999 | |
| 0.94 | -39.00 | 0.72 | -39.00 | -16.10 | 242.40 | 46.51 | 246.83 | 0.7605 | -684.1 | 999999 | |
| 2.66 | -39.00 | 1.99 | -39.00 | -15.65 | 241.87 | 45.97 | 247.20 | 0.7533 | -902.2 | 999999 | |
| 38.12 | -39.00 | 28.86 | -39.00 | -16.77 | 242.03 | 46.13 | 245.84 | 0.7588 | -905.8 | 999999 | |
| 31.18 | -39.00 | 23.00 | -39.00 | -14.37 | 241.34 | 45.44 | 248.65 | 0.7434 | -1128.8 | 999999 | |
| 4.28 | -39.00 | 3.17 | -39.00 | -14.99 | 241.37 | 45.47 | 247.87 | 0.7458 | -936.3 | 999999 | |
| 0.00 | 1.97 | 0.00 | 1.51 | -18.62 | 242.01 | 46.11 | 243.53 | 0.7653 | -519.0 | -399.7 | |
| 0.00 | 3.94 | 0.00 | 3.02 | -18.90 | 241.98 | 46.08 | 243.16 | 0.7660 | -38.0 | -62.8 | |
| 17.47 | -39.00 | 12.75 | -39.00 | -15.27 | 240.41 | 44.51 | 247.13 | 0.7363 | 333.1 | 999999 | |
| 54.30 | -39.00 | 40.15 | -39.00 | -16.64 | 240.71 | 44.81 | 245.48 | 0.7445 | -1254.9 | 999999 | |
| 0.00 | 0.86 | 0.00 | 0.62 | -14.73 | 239.92 | 44.02 | 247.64 | 0.7291 | 477.0 | 439.1 | |
| 1.80 | -39.00 | 1.30 | -39.00 | -15.54 | 239.92 | 44.02 | 246.59 | 0.7319 | -967.0 | 999999 | |
| 10.11 | -39.00 | 7.32 | -39.00 | -16.59 | 239.56 | 43.67 | 245.08 | 0.7320 | -1208.6 | 999999 | |
| 0.00 | 1.20 | 0.00 | 0.88 | -17.84 | 239.90 | 44.00 | 243.60 | 0.7405 | -444.0 | -296.4 | |
| 0.00 | 0.60 | 0.00 | 0.43 | -15.39 | 239.07 | 43.17 | 246.43 | 0.7220 | -663.0 | -646.4 | |
| 0.00 | 0.51 | 0.00 | 0.38 | -18.46 | 239.31 | 43.41 | 242.56 | 0.7369 | 237.0 | 251.3 | |
| 0.00 | 1.71 | 0.00 | 1.15 | -10.42 | 236.69 | 40.79 | 252.35 | 0.6767 | -641.0 | -552.0 | |
| 0.00 | 0.94 | 0.00 | 0.68 | -19.04 | 238.46 | 42.57 | 241.42 | 0.7305 | -484.0 | -413.5 | |
| 0.00 | 0.86 | 0.00 | 0.57 | -11.35 | 236.49 | 40.59 | 250.93 | 0.6773 | -620.0 | -488.7 | |
| 3.25 | 5.82 | 2.39 | 4.28 | -21.01 | 238.61 | 42.71 | 239.01 | 0.7410 | 758.4 | 565.2 | |
| 0.00 | 0.60 | 0.00 | 0.45 | -23.29 | 239.13 | 43.23 | 236.49 | 0.7569 | -480.0 | -476.1 | |
| 0.00 | 2.91 | 0.00 | 2.08 | -19.40 | 237.52 | 41.62 | 240.50 | 0.7222 | -708.0 | -572.1 | |
| 0.00 | 1.03 | 0.00 | 0.77 | -23.25 | 238.89 | 42.99 | 236.41 | 0.7544 | -676.0 | -554.3 | |
| 0.00 | 0.86 | 0.00 | 0.60 | -18.46 | 236.73 | 40.84 | 241.31 | 0.7094 | -649.0 | -536.8 | |
| 0.00 | 1.46 | 0.00 | 1.21 | -29.78 | 241.18 | 45.29 | 230.08 | 0.8064 | -144.0 | -127.2 | |
| 0.00 | 1.46 | 0.00 | 0.97 | -14.38 | 235.28 | 39.38 | 246.11 | 0.6745 | -649.0 | -587.8 | |
| 0.00 | 0.86 | 0.00 | 0.61 | -20.80 | 236.50 | 40.60 | 238.17 | 0.7184 | -554.0 | -482.7 | |
| 0.00 | 1.20 | 0.00 | 0.90 | -25.39 | 237.70 | 41.80 | 233.22 | 0.7542 | -494.0 | -439.0 | |
| 0.00 | 0.69 | 0.00 | 0.47 | -17.61 | 235.07 | 39.18 | 241.57 | 0.6870 | -602.0 | -491.0 | |
| 0.00 | 0.60 | 0.00 | 0.38 | -12.72 | 232.37 | 36.47 | 247.08 | 0.6319 | -591.0 | -547.4 | |
| 0.00 | 1.28 | 0.00 | 0.90 | -24.60 | 233.48 | 37.58 | 231.62 | 0.7097 | -536.0 | -439.9 | |
| 0.00 | 0.51 | 0.00 | 0.36 | -25.93 | 231.89 | 36.00 | 228.95 | 0.7033 | -600.0 | -547.8 | |
| 0.00 | 1.20 | 0.00 | 0.83 | -26.26 | 231.69 | 35.79 | 228.41 | 0.7036 | -389.0 | -283.4 | |
| 0.00 | 1.54 | 0.00 | 1.00 | -22.16 | 229.15 | 33.25 | 231.65 | 0.6499 | -693.0 | -562.2 | |
| 0.00 | 0.86 | 0.00 | 0.56 | -22.35 | 228.86 | 32.96 | 231.18 | 0.6482 | -594.0 | -542.8 | |
| 0.00 | 1.46 | 0.00 | 0.94 | -22.22 | 228.71 | 32.81 | 231.24 | 0.6456 | -780.0 | -535.8 | |
| 0.00 | 0.60 | 0.00 | 0.41 | -27.71 | 228.40 | 32.51 | 224.24 | 0.6843 | -390.0 | -341.9 | |
| 0.00 | 1.37 | 0.00 | 0.93 | -28.28 | 227.84 | 31.94 | 223.13 | 0.6839 | -537.0 | -355.1 | |
| 0.00 | 1.11 | 0.00 | 0.70 | -22.32 | 225.59 | 29.69 | 228.51 | 0.6140 | -676.0 | -614.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
