SDO HMI 2014-11-23 19:00:26 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 21.23 | 0.00 | 12.78 | -12.79 | 226.72 | 31.38 | 243.93 | 0.5670 | 152.9 | 239.7 | |
|
previous
or next observation for the same group /

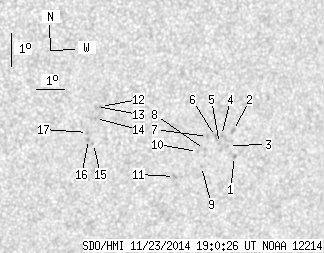

back to the solar disc SDO HMI 2014-11-23 19:00:26 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.54 | 0.00 | 0.95 | -13.31 | 228.72 | 33.37 | 244.44 | 0.5956 | 621.0 | 510.5 | |
| 0.00 | 2.48 | 0.00 | 1.52 | -12.51 | 228.56 | 33.21 | 245.60 | 0.5894 | 687.0 | 574.9 | |
| 0.00 | 0.60 | 0.00 | 0.37 | -12.96 | 228.44 | 33.10 | 244.81 | 0.5903 | 471.0 | 466.1 | |
| 0.00 | 1.11 | 0.00 | 0.68 | -12.65 | 228.15 | 32.80 | 245.12 | 0.5849 | 536.0 | 580.0 | |
| 0.00 | 1.03 | 0.00 | 0.63 | -12.90 | 228.11 | 32.76 | 244.71 | 0.5857 | 498.0 | 380.2 | |
| 0.00 | 2.57 | 0.00 | 1.56 | -12.68 | 227.93 | 32.59 | 244.95 | 0.5823 | 811.0 | 645.6 | |
| 0.00 | 1.03 | 0.00 | 0.62 | -12.67 | 227.64 | 32.30 | 244.77 | 0.5785 | 645.0 | 540.6 | |
| 0.00 | 1.28 | 0.00 | 0.78 | -13.07 | 227.59 | 32.25 | 244.10 | 0.5800 | 633.0 | 503.6 | |
| 0.00 | 1.03 | 0.00 | 0.63 | -13.59 | 227.56 | 32.22 | 243.26 | 0.5825 | 701.0 | 590.1 | |
| 0.00 | 0.60 | 0.00 | 0.36 | -13.13 | 227.35 | 32.00 | 243.86 | 0.5772 | 662.0 | 619.4 | |
| 0.00 | 1.97 | 0.00 | 1.19 | -13.88 | 226.64 | 31.29 | 242.16 | 0.5724 | 702.0 | 588.9 | |
| 0.00 | 1.03 | 0.00 | 0.60 | -11.69 | 223.76 | 28.41 | 243.73 | 0.5217 | -766.0 | -667.9 | |
| 0.00 | 1.28 | 0.00 | 0.74 | -11.69 | 223.62 | 28.28 | 243.63 | 0.5199 | -787.0 | -566.1 | |
| 0.00 | 0.77 | 0.00 | 0.45 | -12.05 | 223.63 | 28.28 | 242.99 | 0.5222 | -801.0 | -682.6 | |
| 0.00 | 0.77 | 0.00 | 0.45 | -12.82 | 223.65 | 28.30 | 241.68 | 0.5273 | -683.0 | -529.9 | |
| 0.00 | 1.11 | 0.00 | 0.65 | -12.69 | 223.46 | 28.12 | 241.75 | 0.5240 | -769.0 | -733.7 | |
| 0.00 | 1.03 | 0.00 | 0.60 | -12.48 | 223.40 | 28.06 | 242.07 | 0.5219 | -561.0 | -500.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
