SDO HMI 2014-11-23 19:00:26 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 34.17 | 195.55 | 56.28 | 329.34 | -18.34 | 124.14 | -71.20 | 109.86 | 0.9558 | 317.5 | 38.5 | |
|
previous
or next observation for the same group /

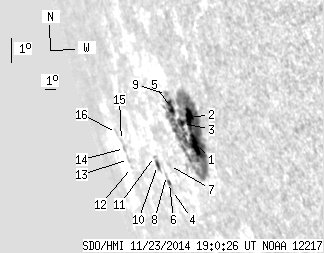

back to the solar disc SDO HMI 2014-11-23 19:00:26 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 11.99 | 172.93 | 19.03 | 277.60 | -18.74 | 125.31 | -70.04 | 110.43 | 0.9512 | 594.8 | 100.7 | |
| 9.68 | -1.00 | 15.07 | -1.00 | -17.89 | 125.54 | -69.80 | 109.57 | 0.9493 | 713.6 | 999999 | |
| 2.40 | -1.00 | 3.90 | -1.00 | -18.10 | 124.69 | -70.65 | 109.67 | 0.9538 | 309.5 | 999999 | |
| 0.00 | 2.06 | 0.00 | 4.19 | -20.33 | 121.14 | -74.21 | 111.50 | 0.9709 | -274.0 | -265.4 | |
| 6.85 | -1.00 | 11.49 | -1.00 | -17.62 | 124.09 | -71.26 | 109.09 | 0.9564 | 177.6 | 999999 | |
| 1.11 | 2.48 | 2.27 | 5.05 | -20.08 | 121.12 | -74.22 | 111.24 | 0.9708 | -340.8 | -326.2 | |
| 0.00 | 1.28 | 0.00 | 2.48 | -19.52 | 121.83 | -73.51 | 110.75 | 0.9676 | -392.0 | -369.1 | |
| 0.00 | 1.46 | 0.00 | 2.96 | -19.86 | 121.05 | -74.29 | 111.00 | 0.9710 | -406.0 | -344.0 | |
| 0.00 | 3.00 | 0.00 | 5.03 | -17.22 | 123.98 | -71.37 | 108.66 | 0.9567 | 185.0 | 120.4 | |
| 2.14 | 4.63 | 4.52 | 9.77 | -19.56 | 120.36 | -74.99 | 110.62 | 0.9735 | -60.2 | -85.5 | |
| 0.00 | 0.86 | 0.00 | 1.81 | -19.28 | 120.37 | -74.97 | 110.33 | 0.9733 | -222.0 | -180.3 | |
| 0.00 | 0.26 | 0.00 | 0.75 | -19.76 | 116.34 | -79.01 | 110.40 | 0.9865 | -451.0 | -447.0 | |
| 0.00 | 1.71 | 0.00 | 5.06 | -19.51 | 116.31 | -79.04 | 110.14 | 0.9865 | -453.0 | -457.8 | |
| 0.00 | 1.88 | 0.00 | 5.55 | -19.16 | 116.27 | -79.07 | 109.79 | 0.9865 | -488.0 | -470.0 | |
| 0.00 | 0.94 | 0.00 | 2.79 | -18.91 | 116.23 | -79.12 | 109.53 | 0.9865 | -400.0 | -405.0 | |
| 0.00 | 2.06 | 0.00 | 6.30 | -18.67 | 115.80 | -79.55 | 109.26 | 0.9876 | -330.0 | -308.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
