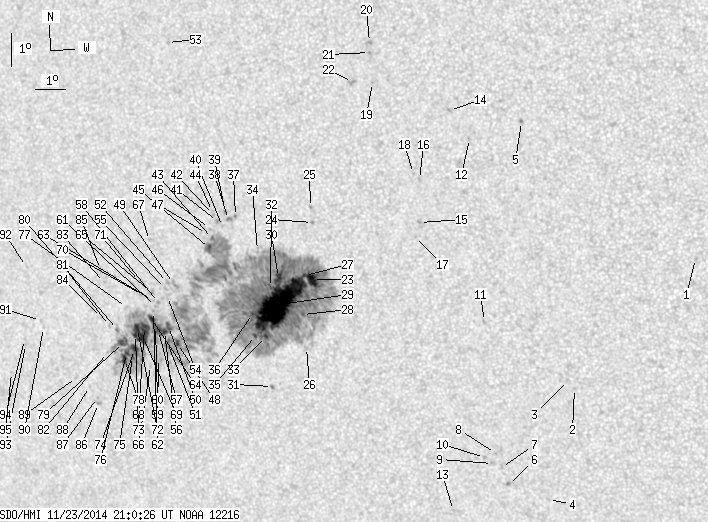

SDO HMI 2014-11-23 21:00:26 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 204.72 | 1385.05 | 121.98 | 823.85 | -13.28 | 163.97 | -30.27 | 117.67 | 0.5553 | 282.5 | 37.8 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-11-23 21:00:26 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.37 | 0.00 | 0.72 | -11.51 | 179.30 | -14.94 | 132.26 | 0.3428 | 781.0 | 697.1 | |
| 0.00 | 0.86 | 0.00 | 0.47 | -15.54 | 175.14 | -19.10 | 133.26 | 0.4347 | 830.0 | 676.6 | |
| 0.00 | 1.20 | 0.00 | 0.66 | -15.29 | 174.94 | -19.30 | 132.54 | 0.4346 | 782.0 | 573.4 | |
| 0.00 | 1.46 | 0.00 | 0.82 | -19.03 | 173.89 | -20.35 | 137.12 | 0.4851 | 704.0 | 538.5 | |
| 0.00 | 1.54 | 0.00 | 0.82 | -7.43 | 174.04 | -20.20 | 114.87 | 0.3790 | 931.0 | 739.3 | |
| 0.00 | 1.54 | 0.00 | 0.88 | -18.57 | 172.61 | -21.63 | 134.74 | 0.4940 | 883.0 | 748.2 | |
| 0.00 | 1.71 | 0.00 | 0.97 | -18.04 | 172.44 | -21.79 | 133.71 | 0.4904 | 671.0 | 531.9 | |
| 0.00 | 1.03 | 0.00 | 0.58 | -17.60 | 172.30 | -21.94 | 132.84 | 0.4877 | 765.0 | 634.2 | |
| 0.00 | 2.23 | 0.00 | 1.27 | -17.91 | 172.16 | -22.08 | 133.16 | 0.4924 | 682.0 | 548.5 | |
| 0.00 | 1.28 | 0.00 | 0.73 | -17.73 | 171.91 | -22.32 | 132.57 | 0.4933 | 840.0 | 665.3 | |
| 0.00 | 1.54 | 0.00 | 0.85 | -13.50 | 172.40 | -21.84 | 125.92 | 0.4485 | 573.0 | 570.8 | |
| 0.00 | 1.28 | 0.00 | 0.70 | -7.95 | 172.35 | -21.89 | 114.39 | 0.4072 | 716.0 | 599.1 | |
| 0.00 | 0.86 | 0.00 | 0.50 | -19.42 | 170.62 | -23.62 | 133.59 | 0.5238 | 780.0 | 646.8 | |
| 0.00 | 1.54 | 0.00 | 0.84 | -7.12 | 171.75 | -22.49 | 111.95 | 0.4110 | 876.0 | 725.3 | |
| 0.00 | 1.46 | 0.00 | 0.81 | -10.51 | 170.54 | -23.70 | 118.08 | 0.4498 | 857.0 | 753.5 | |
| 0.00 | 1.54 | 0.00 | 0.85 | -9.21 | 170.64 | -23.60 | 115.52 | 0.4397 | 682.0 | 487.1 | |
| 0.00 | 0.86 | 0.00 | 0.48 | -10.93 | 170.37 | -23.87 | 118.76 | 0.4551 | 650.0 | 510.4 | |
| 0.00 | 1.11 | 0.00 | 0.61 | -9.03 | 170.46 | -23.78 | 114.98 | 0.4412 | 789.0 | 580.2 | |
| 0.00 | 0.94 | 0.00 | 0.52 | -6.31 | 169.28 | -24.96 | 108.27 | 0.4435 | 746.0 | 612.1 | |
| 0.00 | 2.23 | 0.00 | 1.23 | -5.12 | 169.24 | -25.00 | 105.64 | 0.4389 | 969.0 | 742.4 | |
| 0.00 | 0.94 | 0.00 | 0.52 | -5.42 | 169.23 | -25.01 | 106.29 | 0.4404 | 869.0 | 727.1 | |
| 0.00 | 3.34 | 0.00 | 1.85 | -6.32 | 168.62 | -25.62 | 107.86 | 0.4534 | 788.0 | 654.0 | |
| 8.91 | 1285.62 | 5.13 | 764.76 | -12.29 | 166.78 | -27.46 | 118.07 | 0.5127 | 1332.6 | 51.9 | |
| 0.00 | 1.28 | 0.00 | 0.73 | -10.55 | 166.96 | -27.28 | 115.07 | 0.4994 | 838.0 | 656.5 | |
| 0.00 | 0.94 | 0.00 | 0.54 | -10.10 | 166.94 | -27.30 | 114.21 | 0.4971 | 779.0 | 601.5 | |
| 0.00 | 1.46 | 0.00 | 0.85 | -14.38 | 166.31 | -27.93 | 121.26 | 0.5329 | -424.0 | -265.0 | |
| 0.26 | -23.00 | 0.15 | -23.00 | -12.17 | 166.52 | -27.72 | 117.65 | 0.5154 | 1117.7 | 999999 | |
| 1.46 | -23.00 | 0.85 | -23.00 | -13.37 | 166.30 | -27.94 | 119.54 | 0.5260 | 103.3 | 999999 | |
| 112.04 | -23.00 | 65.54 | -23.00 | -13.07 | 165.55 | -28.69 | 118.43 | 0.5339 | 1290.7 | 999999 | |
| 7.02 | -23.00 | 4.09 | -23.00 | -12.25 | 165.61 | -28.62 | 117.06 | 0.5279 | 978.5 | 999999 | |
| 0.00 | 1.71 | 0.00 | 1.02 | -15.61 | 164.94 | -29.30 | 122.09 | 0.5586 | -285.0 | -336.3 | |
| 2.74 | -23.00 | 1.60 | -23.00 | -12.56 | 165.30 | -28.94 | 117.36 | 0.5339 | 901.1 | 999999 | |
| 1.54 | -23.00 | 0.91 | -23.00 | -14.06 | 164.96 | -29.28 | 119.62 | 0.5479 | 786.9 | 999999 | |
| 0.00 | 1.71 | 0.00 | 1.00 | -11.43 | 164.98 | -29.26 | 115.18 | 0.5314 | 614.0 | 479.2 | |
| 1.63 | -23.00 | 0.97 | -23.00 | -14.04 | 164.58 | -29.66 | 119.28 | 0.5526 | 563.2 | 999999 | |
| 1.20 | -23.00 | 0.71 | -23.00 | -13.36 | 164.57 | -29.67 | 118.16 | 0.5485 | 757.6 | 999999 | |
| 0.00 | 1.03 | 0.00 | 0.60 | -10.41 | 164.33 | -29.90 | 112.95 | 0.5346 | -866.0 | -745.8 | |
| 0.00 | 1.71 | 0.00 | 1.01 | -10.51 | 164.08 | -30.16 | 112.95 | 0.5386 | -918.0 | -819.2 | |
| 0.00 | 1.28 | 0.00 | 0.75 | -10.29 | 164.00 | -30.24 | 112.53 | 0.5386 | -943.0 | -771.8 | |
| 0.00 | 1.28 | 0.00 | 0.76 | -10.72 | 163.85 | -30.39 | 113.18 | 0.5429 | -716.0 | -490.7 | |
| 0.00 | 2.06 | 0.00 | 1.21 | -10.57 | 163.69 | -30.55 | 112.82 | 0.5443 | -911.0 | -742.7 | |
| 0.00 | 1.20 | 0.00 | 0.71 | -10.36 | 163.57 | -30.67 | 112.38 | 0.5448 | -599.0 | -525.5 | |
| 0.86 | -23.00 | 0.51 | -23.00 | -11.09 | 163.45 | -30.79 | 113.56 | 0.5501 | -1077.1 | 999999 | |
| 0.00 | 0.69 | 0.00 | 0.40 | -10.27 | 163.55 | -30.69 | 112.21 | 0.5447 | -792.0 | -534.8 | |
| 3.60 | -23.00 | 2.14 | -23.00 | -11.40 | 163.31 | -30.93 | 113.99 | 0.5536 | -935.7 | 999999 | |
| 0.00 | 0.94 | 0.00 | 0.56 | -10.79 | 163.38 | -30.86 | 113.00 | 0.5495 | -650.0 | -603.0 | |
| 0.00 | 0.69 | 0.00 | 0.41 | -10.94 | 163.26 | -30.98 | 113.18 | 0.5519 | -824.0 | -694.2 | |
| 3.00 | -23.00 | 1.84 | -23.00 | -14.33 | 161.75 | -32.49 | 117.70 | 0.5901 | -955.3 | 999999 | |
| 0.00 | 2.74 | 0.00 | 1.66 | -12.49 | 161.88 | -32.35 | 114.88 | 0.5782 | -776.0 | -669.8 | |
| 2.91 | -23.00 | 1.78 | -23.00 | -13.81 | 161.50 | -32.74 | 116.73 | 0.5902 | -1113.8 | 999999 | |
| 1.71 | -23.00 | 1.05 | -23.00 | -14.30 | 161.39 | -32.85 | 117.43 | 0.5945 | -855.2 | 999999 | |
| 0.00 | 1.88 | 0.00 | 1.14 | -12.46 | 161.67 | -32.57 | 114.70 | 0.5808 | -865.0 | -722.2 | |
| 0.00 | 1.03 | 0.00 | 0.60 | -5.22 | 162.40 | -31.84 | 102.63 | 0.5406 | 791.0 | 587.4 | |
| 0.00 | 3.43 | 0.00 | 2.09 | -12.89 | 161.61 | -32.63 | 115.35 | 0.5839 | -688.0 | -636.4 | |
| 0.00 | 1.20 | 0.00 | 0.73 | -12.64 | 161.57 | -32.67 | 114.94 | 0.5830 | -701.0 | -636.5 | |
| 2.40 | -23.00 | 1.47 | -23.00 | -13.97 | 161.33 | -32.91 | 116.87 | 0.5933 | -960.3 | 999999 | |
| 3.08 | -23.00 | 1.90 | -23.00 | -13.94 | 161.12 | -33.12 | 116.69 | 0.5958 | -914.6 | 999999 | |
| 0.00 | 0.86 | 0.00 | 0.52 | -13.08 | 161.25 | -32.98 | 115.43 | 0.5894 | -926.0 | -873.9 | |
| 0.00 | 6.34 | 0.00 | 3.93 | -14.80 | 160.97 | -33.27 | 117.92 | 0.6025 | -214.0 | -144.2 | |
| 1.97 | -23.00 | 1.21 | -23.00 | -13.82 | 161.03 | -33.21 | 116.44 | 0.5963 | -997.2 | 999999 | |
| 0.00 | 0.86 | 0.00 | 0.53 | -13.20 | 161.13 | -33.11 | 115.54 | 0.5917 | -1014.0 | -902.0 | |
| 0.00 | 0.94 | 0.00 | 0.58 | -13.36 | 161.03 | -33.21 | 115.73 | 0.5938 | -977.0 | -893.5 | |
| 0.00 | 0.94 | 0.00 | 0.58 | -13.02 | 161.05 | -33.19 | 115.21 | 0.5918 | -744.0 | -619.7 | |
| 3.34 | -23.00 | 2.06 | -23.00 | -13.57 | 160.92 | -33.32 | 116.00 | 0.5963 | -1132.9 | 999999 | |
| 0.00 | 2.91 | 0.00 | 1.78 | -12.78 | 161.05 | -33.19 | 114.82 | 0.5905 | -771.0 | -673.3 | |
| 0.00 | 1.71 | 0.00 | 1.07 | -15.03 | 160.64 | -33.60 | 118.04 | 0.6079 | -17.0 | -94.6 | |
| 0.00 | 0.51 | 0.00 | 0.31 | -11.19 | 161.20 | -33.04 | 112.36 | 0.5806 | -759.0 | -617.0 | |
| 6.17 | -23.00 | 3.81 | -23.00 | -13.86 | 160.62 | -33.62 | 116.24 | 0.6016 | -1045.0 | 999999 | |
| 10.96 | -23.00 | 6.80 | -23.00 | -14.17 | 160.53 | -33.71 | 116.66 | 0.6044 | -944.0 | 999999 | |
| 0.00 | 1.97 | 0.00 | 1.21 | -12.84 | 160.67 | -33.57 | 114.70 | 0.5956 | -698.0 | -584.6 | |
| 0.00 | 1.80 | 0.00 | 1.10 | -12.45 | 160.66 | -33.58 | 114.07 | 0.5938 | -802.0 | -613.4 | |
| 5.65 | -23.00 | 3.51 | -23.00 | -13.89 | 160.36 | -33.88 | 116.14 | 0.6051 | -991.7 | 999999 | |
| 3.00 | -23.00 | 1.87 | -23.00 | -14.08 | 160.25 | -33.99 | 116.36 | 0.6074 | -756.2 | 999999 | |
| 6.08 | -23.00 | 3.80 | -23.00 | -14.54 | 160.13 | -34.11 | 116.99 | 0.6114 | -916.5 | 999999 | |
| 1.46 | -23.00 | 0.91 | -23.00 | -14.76 | 160.02 | -34.22 | 117.24 | 0.6139 | -783.0 | 999999 | |
| 1.97 | -23.00 | 1.24 | -23.00 | -14.67 | 159.81 | -34.43 | 116.98 | 0.6160 | -848.6 | 999999 | |
| 0.00 | 1.80 | 0.00 | 1.12 | -13.25 | 160.06 | -34.18 | 114.97 | 0.6055 | -683.0 | -544.9 | |
| 3.68 | -23.00 | 2.32 | -23.00 | -14.86 | 159.70 | -34.53 | 117.20 | 0.6183 | -721.9 | 999999 | |
| 6.08 | -23.00 | 3.81 | -23.00 | -14.33 | 159.76 | -34.48 | 116.44 | 0.6148 | -712.0 | 999999 | |
| 0.00 | 3.77 | 0.00 | 2.36 | -13.94 | 159.61 | -34.63 | 115.75 | 0.6146 | -652.0 | -420.0 | |
| 0.00 | 1.37 | 0.00 | 0.86 | -13.82 | 159.33 | -34.91 | 115.41 | 0.6175 | -555.0 | -398.1 | |
| 0.00 | 0.77 | 0.00 | 0.49 | -14.65 | 159.11 | -35.13 | 116.53 | 0.6246 | -410.0 | -306.6 | |
| 0.00 | 1.20 | 0.00 | 0.75 | -12.50 | 159.36 | -34.87 | 113.42 | 0.6106 | -346.0 | -258.0 | |
| 0.00 | 0.60 | 0.00 | 0.38 | -13.58 | 159.08 | -35.16 | 114.90 | 0.6195 | -546.0 | -513.6 | |
| 0.00 | 1.54 | 0.00 | 0.96 | -12.11 | 159.28 | -34.96 | 112.76 | 0.6099 | -680.0 | -594.5 | |
| 0.00 | 1.71 | 0.00 | 1.10 | -16.24 | 158.45 | -35.79 | 118.46 | 0.6409 | -696.0 | -633.6 | |
| 0.00 | 0.86 | 0.00 | 0.55 | -16.06 | 158.45 | -35.79 | 118.19 | 0.6399 | -800.0 | -663.2 | |
| 0.00 | 1.03 | 0.00 | 0.66 | -15.72 | 158.22 | -36.02 | 117.57 | 0.6409 | -587.0 | -429.9 | |
| 0.00 | 1.46 | 0.00 | 0.94 | -15.45 | 157.78 | -36.46 | 116.92 | 0.6448 | -178.0 | -160.9 | |
| 0.00 | 0.77 | 0.00 | 0.50 | -13.93 | 156.81 | -37.42 | 114.19 | 0.6490 | -660.0 | -544.6 | |
| 0.00 | 0.51 | 0.00 | 0.33 | -13.71 | 156.74 | -37.50 | 113.84 | 0.6489 | -558.0 | -407.0 | |
| 0.00 | 0.51 | 0.00 | 0.33 | -12.07 | 156.50 | -37.74 | 111.31 | 0.6448 | -520.0 | -424.5 | |
| 0.00 | 0.69 | 0.00 | 0.45 | -14.46 | 156.01 | -38.23 | 114.56 | 0.6611 | -595.0 | -482.9 | |
| 0.00 | 1.11 | 0.00 | 0.73 | -14.31 | 156.00 | -38.24 | 114.33 | 0.6605 | -562.0 | -419.7 | |
| 0.00 | 0.77 | 0.00 | 0.52 | -15.34 | 155.27 | -38.97 | 115.42 | 0.6739 | -554.0 | -450.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
