SDO HMI 2014-11-23 23:00:26 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 265.28 | 1402.18 | 225.94 | 1167.68 | -15.48 | 244.05 | 50.92 | 248.91 | 0.8015 | -372.0 | -158.3 | |
|
previous
or next observation for the same group /

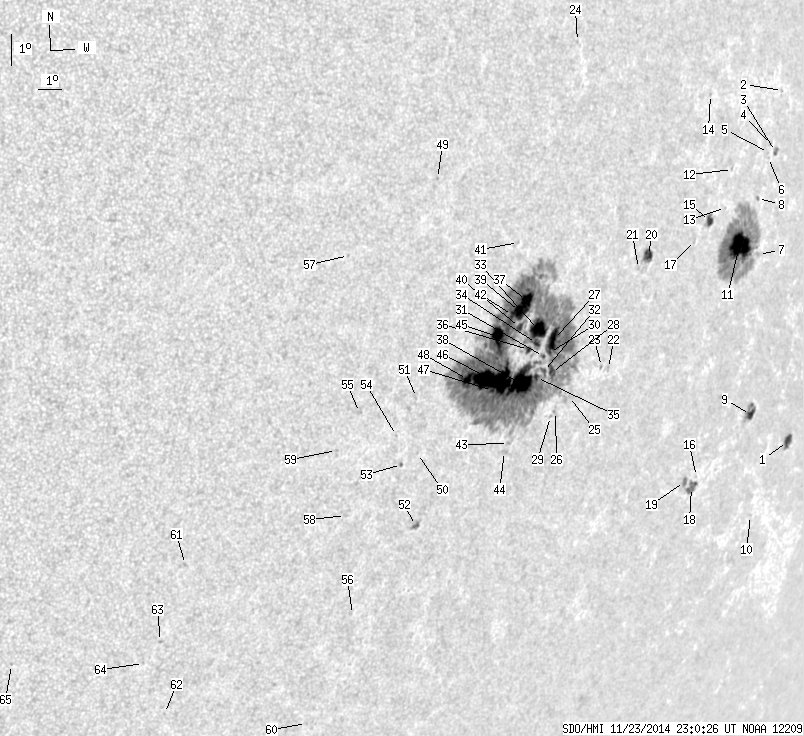

back to the solar disc SDO HMI 2014-11-23 23:00:26 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 7.28 | 10.02 | 9.46 | 13.02 | -19.09 | 258.63 | 65.50 | 248.47 | 0.9261 | 472.3 | 299.7 | |
| 0.00 | 0.51 | 0.00 | 0.52 | -8.15 | 253.12 | 59.98 | 259.60 | 0.8735 | -314.0 | -251.7 | |
| 1.54 | 3.26 | 1.57 | 3.32 | -9.99 | 253.20 | 60.07 | 257.52 | 0.8761 | -480.5 | -333.9 | |
| 0.00 | 0.51 | 0.00 | 0.52 | -9.77 | 252.89 | 59.76 | 257.72 | 0.8733 | -570.0 | -495.5 | |
| 0.00 | 1.11 | 0.00 | 1.12 | -10.01 | 252.79 | 59.65 | 257.43 | 0.8727 | -659.0 | -512.3 | |
| 0.00 | 0.34 | 0.00 | 0.35 | -10.16 | 252.83 | 59.70 | 257.27 | 0.8733 | -553.0 | -541.2 | |
| 0.00 | 1.88 | 0.00 | 1.95 | -13.13 | 253.28 | 60.15 | 254.00 | 0.8807 | -222.0 | -210.3 | |
| 0.51 | 1.46 | 0.52 | 1.47 | -11.40 | 252.57 | 59.44 | 255.82 | 0.8726 | 285.2 | 224.4 | |
| 4.88 | 13.71 | 5.58 | 15.62 | -18.14 | 255.33 | 62.19 | 248.85 | 0.9031 | 565.8 | 470.2 | |
| 0.00 | 1.03 | 0.00 | 1.31 | -21.41 | 257.69 | 64.56 | 245.82 | 0.9232 | 412.0 | 357.5 | |
| 34.95 | 204.14 | 34.87 | 203.52 | -12.81 | 252.01 | 58.88 | 254.11 | 0.8699 | 908.8 | 273.3 | |
| 0.00 | 0.94 | 0.00 | 0.90 | -10.47 | 250.82 | 57.69 | 256.59 | 0.8565 | -504.0 | -425.0 | |
| 0.00 | 0.69 | 0.00 | 0.66 | -11.62 | 250.78 | 57.65 | 255.25 | 0.8577 | 398.0 | 351.0 | |
| 0.00 | 0.94 | 0.00 | 0.85 | -8.16 | 249.03 | 55.89 | 259.00 | 0.8371 | -527.0 | -476.7 | |
| 4.71 | 8.14 | 4.42 | 7.64 | -11.99 | 250.00 | 56.87 | 254.67 | 0.8514 | 608.9 | 434.5 | |
| 0.00 | 0.51 | 0.00 | 0.55 | -20.03 | 252.99 | 59.86 | 246.27 | 0.8894 | -398.0 | -362.5 | |
| 0.00 | 1.03 | 0.00 | 0.95 | -12.59 | 249.42 | 56.29 | 253.86 | 0.8473 | -264.0 | -185.2 | |
| 6.51 | 9.68 | 7.00 | 10.40 | -20.37 | 252.89 | 59.76 | 245.87 | 0.8894 | -504.3 | -361.2 | |
| 2.14 | 3.86 | 2.26 | 4.07 | -20.17 | 252.32 | 59.19 | 245.96 | 0.8848 | -649.0 | -513.6 | |
| 7.45 | 11.74 | 6.51 | 10.25 | -12.98 | 247.04 | 53.90 | 252.88 | 0.8261 | 614.9 | 420.7 | |
| 0.00 | 1.11 | 0.00 | 0.97 | -13.37 | 246.64 | 53.51 | 252.32 | 0.8232 | 500.0 | 486.5 | |
| 0.00 | 1.80 | 0.00 | 1.57 | -16.44 | 246.20 | 53.06 | 248.56 | 0.8258 | -325.0 | -293.4 | |
| 0.00 | 1.54 | 0.00 | 1.33 | -16.37 | 245.81 | 52.67 | 248.54 | 0.8220 | -621.0 | -488.8 | |
| 0.00 | 1.03 | 0.00 | 0.79 | -6.39 | 242.17 | 49.04 | 260.04 | 0.7643 | -561.0 | -465.9 | |
| 0.00 | 0.94 | 0.00 | 0.80 | -17.27 | 244.54 | 51.40 | 247.09 | 0.8125 | 258.0 | 258.5 | |
| 0.00 | 3.60 | 0.00 | 3.02 | -17.72 | 244.02 | 50.89 | 246.38 | 0.8089 | 571.0 | 283.8 | |
| 13.62 | 1087.54 | 11.03 | 858.50 | -15.46 | 243.10 | 49.97 | 248.82 | 0.7937 | -616.5 | -277.9 | |
| 7.11 | -27.00 | 5.83 | -27.00 | -16.49 | 243.36 | 50.23 | 247.65 | 0.7991 | -352.9 | 999999 | |
| 0.00 | 0.94 | 0.00 | 0.79 | -17.88 | 243.83 | 50.70 | 246.14 | 0.8076 | -182.0 | -139.2 | |
| 1.11 | -27.00 | 0.90 | -27.00 | -15.86 | 243.05 | 49.91 | 248.31 | 0.7943 | -386.8 | 999999 | |
| 0.77 | -27.00 | 0.62 | -27.00 | -15.98 | 242.80 | 49.66 | 248.09 | 0.7921 | -500.8 | 999999 | |
| 2.48 | -27.00 | 2.02 | -27.00 | -16.45 | 242.96 | 49.83 | 247.57 | 0.7951 | -356.3 | 999999 | |
| 21.16 | -27.00 | 16.83 | -27.00 | -15.13 | 242.28 | 49.15 | 248.97 | 0.7846 | -888.3 | 999999 | |
| 3.43 | -27.00 | 2.73 | -27.00 | -15.56 | 242.33 | 49.19 | 248.45 | 0.7863 | -786.4 | 999999 | |
| 2.48 | -27.00 | 2.01 | -27.00 | -16.63 | 242.69 | 49.55 | 247.26 | 0.7929 | -382.3 | 999999 | |
| 2.66 | -27.00 | 2.11 | -27.00 | -15.74 | 242.01 | 48.87 | 248.13 | 0.7836 | -841.1 | 999999 | |
| 14.39 | -27.00 | 11.21 | -27.00 | -14.21 | 241.45 | 48.32 | 249.85 | 0.7735 | -1003.3 | 999999 | |
| 33.15 | -27.00 | 26.46 | -27.00 | -16.80 | 241.98 | 48.85 | 246.82 | 0.7865 | -797.2 | 999999 | |
| 12.59 | -27.00 | 9.78 | -27.00 | -14.55 | 241.22 | 48.09 | 249.36 | 0.7721 | -1097.7 | 999999 | |
| 3.68 | -27.00 | 2.88 | -27.00 | -15.04 | 241.37 | 48.24 | 248.78 | 0.7751 | -933.0 | 999999 | |
| 0.00 | 0.69 | 0.00 | 0.52 | -12.42 | 240.62 | 47.48 | 251.87 | 0.7598 | 405.0 | 330.6 | |
| 2.57 | -27.00 | 1.98 | -27.00 | -14.66 | 240.94 | 47.80 | 249.12 | 0.7694 | -893.5 | 999999 | |
| 0.00 | 1.63 | 0.00 | 1.32 | -18.68 | 242.11 | 48.97 | 244.58 | 0.7936 | 144.0 | 88.0 | |
| 0.00 | 2.91 | 0.00 | 2.36 | -18.93 | 242.01 | 48.88 | 244.24 | 0.7935 | -448.0 | -285.8 | |
| 13.79 | -27.00 | 10.59 | -27.00 | -15.30 | 240.44 | 47.30 | 248.15 | 0.7661 | 310.2 | 999999 | |
| 54.40 | -27.00 | 42.28 | -27.00 | -16.67 | 240.68 | 47.55 | 246.52 | 0.7730 | -1114.6 | 999999 | |
| 0.26 | -27.00 | 0.20 | -27.00 | -16.98 | 240.74 | 47.61 | 246.15 | 0.7746 | -969.0 | 999999 | |
| 5.23 | -27.00 | 3.97 | -27.00 | -16.61 | 239.48 | 46.35 | 246.15 | 0.7604 | -1165.0 | 999999 | |
| 0.00 | 0.77 | 0.00 | 0.54 | -10.38 | 236.69 | 43.56 | 253.37 | 0.7098 | -624.0 | -557.8 | |
| 0.00 | 0.77 | 0.00 | 0.58 | -18.89 | 238.00 | 44.86 | 242.68 | 0.7535 | -531.0 | -409.4 | |
| 0.00 | 0.69 | 0.00 | 0.50 | -17.12 | 237.39 | 44.25 | 244.66 | 0.7402 | -448.0 | -380.4 | |
| 0.00 | 6.00 | 0.00 | 4.64 | -21.20 | 238.76 | 45.63 | 240.18 | 0.7705 | 696.0 | 544.1 | |
| 0.43 | 1.46 | 0.32 | 1.08 | -19.22 | 237.41 | 44.27 | 242.00 | 0.7488 | -464.6 | -371.3 | |
| 0.00 | 0.77 | 0.00 | 0.57 | -18.30 | 236.88 | 43.75 | 242.94 | 0.7396 | -636.0 | -552.2 | |
| 0.00 | 1.88 | 0.00 | 1.34 | -17.53 | 235.08 | 41.94 | 243.09 | 0.7171 | -601.0 | -467.6 | |
| 0.00 | 0.60 | 0.00 | 0.46 | -24.05 | 237.08 | 43.95 | 235.97 | 0.7671 | -548.0 | -462.4 | |
| 0.00 | 0.94 | 0.00 | 0.63 | -12.64 | 233.48 | 40.34 | 249.02 | 0.6788 | -572.0 | -448.4 | |
| 0.00 | 1.80 | 0.00 | 1.31 | -20.80 | 235.51 | 42.38 | 239.13 | 0.7365 | -260.0 | -347.2 | |
| 0.00 | 1.11 | 0.00 | 0.79 | -18.71 | 234.46 | 41.33 | 241.25 | 0.7157 | -704.0 | -598.7 | |
| 0.00 | 0.77 | 0.00 | 0.61 | -27.67 | 236.66 | 43.53 | 231.55 | 0.7812 | -422.0 | -408.1 | |
| 0.00 | 1.54 | 0.00 | 1.04 | -22.24 | 229.37 | 36.24 | 233.71 | 0.6813 | -628.0 | -513.6 | |
| 0.00 | 0.77 | 0.00 | 0.55 | -27.18 | 230.21 | 37.08 | 228.23 | 0.7214 | -645.0 | -534.3 | |
| 0.00 | 1.03 | 0.00 | 0.71 | -24.76 | 229.17 | 36.04 | 230.42 | 0.6955 | -670.0 | -597.2 | |
| 0.00 | 0.94 | 0.00 | 0.65 | -25.48 | 228.73 | 35.59 | 229.23 | 0.6961 | -603.0 | -502.3 | |
| 0.00 | 1.11 | 0.00 | 0.72 | -25.41 | 223.53 | 30.40 | 225.23 | 0.6461 | -668.0 | -502.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
