SDO HMI 2014-11-23 23:00:26 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 22.78 | 0.00 | 14.04 | -12.83 | 226.76 | 33.63 | 245.33 | 0.5960 | 268.3 | 215.8 | |
|
previous
or next observation for the same group /

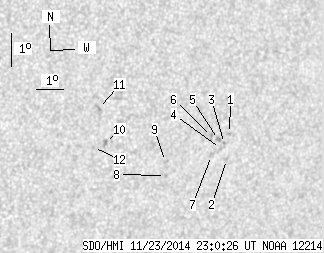

back to the solar disc SDO HMI 2014-11-23 23:00:26 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.11 | 0.00 | 0.70 | -12.54 | 228.64 | 35.50 | 246.88 | 0.6187 | 632.0 | 565.6 | |
| 0.00 | 1.71 | 0.00 | 1.08 | -13.34 | 228.65 | 35.52 | 245.68 | 0.6227 | 525.0 | 410.5 | |
| 0.00 | 1.11 | 0.00 | 0.70 | -12.84 | 228.50 | 35.36 | 246.34 | 0.6184 | 565.0 | 510.1 | |
| 0.00 | 1.46 | 0.00 | 0.92 | -12.99 | 228.37 | 35.24 | 246.04 | 0.6175 | 515.0 | 462.9 | |
| 0.00 | 2.40 | 0.00 | 1.50 | -12.72 | 228.25 | 35.12 | 246.40 | 0.6147 | 802.0 | 666.6 | |
| 0.00 | 2.23 | 0.00 | 1.39 | -12.62 | 227.98 | 34.85 | 246.40 | 0.6107 | 754.0 | 637.3 | |
| 0.00 | 2.74 | 0.00 | 1.72 | -13.20 | 228.07 | 34.94 | 245.56 | 0.6147 | 581.0 | 529.3 | |
| 0.00 | 1.37 | 0.00 | 0.85 | -13.78 | 226.47 | 33.34 | 243.71 | 0.5976 | 407.0 | 441.1 | |
| 0.00 | 1.71 | 0.00 | 1.05 | -13.35 | 226.40 | 33.27 | 244.33 | 0.5944 | 626.0 | 594.0 | |
| 0.00 | 3.08 | 0.00 | 1.84 | -12.73 | 224.16 | 31.02 | 243.87 | 0.5621 | -685.0 | -555.3 | |
| 0.00 | 2.83 | 0.00 | 1.68 | -11.69 | 223.77 | 30.64 | 245.35 | 0.5513 | -789.0 | -600.4 | |
| 0.00 | 1.03 | 0.00 | 0.61 | -12.88 | 223.75 | 30.62 | 243.35 | 0.5577 | -713.0 | -583.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
