SDO HMI 2014-11-23 23:00:26 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 50.89 | 254.17 | 76.47 | 391.37 | -18.53 | 123.74 | -69.40 | 110.31 | 0.9466 | 270.5 | 29.3 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-11-23 23:00:26 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |

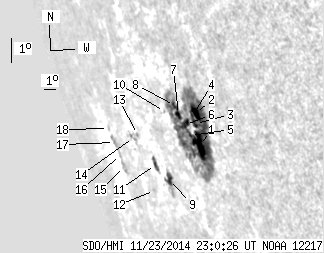

| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 19.10 | 217.25 | 27.42 | 315.03 | -18.78 | 125.17 | -67.97 | 110.78 | 0.9402 | 566.7 | 112.4 | |
| 6.17 | -1.00 | 8.59 | -1.00 | -17.76 | 125.67 | -67.46 | 109.78 | 0.9363 | 872.4 | 999999 | |
| 3.34 | -1.00 | 4.73 | -1.00 | -18.08 | 125.41 | -67.72 | 110.08 | 0.9381 | 589.2 | 999999 | |
| 0.26 | -1.00 | 0.36 | -1.00 | -17.83 | 125.37 | -67.77 | 109.81 | 0.9382 | 487.3 | 999999 | |
| 1.11 | -1.00 | 1.63 | -1.00 | -18.48 | 124.66 | -68.48 | 110.38 | 0.9427 | 66.9 | 999999 | |
| 6.08 | -1.00 | 8.97 | -1.00 | -18.14 | 124.52 | -68.62 | 110.00 | 0.9432 | 224.8 | 999999 | |
| 3.43 | -1.00 | 5.12 | -1.00 | -17.84 | 124.16 | -68.97 | 109.63 | 0.9448 | 222.7 | 999999 | |
| 2.83 | -1.00 | 4.23 | -1.00 | -17.56 | 124.05 | -69.09 | 109.32 | 0.9452 | 322.8 | 999999 | |
| 5.23 | 11.82 | 9.22 | 20.95 | -19.98 | 121.21 | -71.92 | 111.43 | 0.9611 | -632.3 | -396.9 | |
| 0.00 | 0.94 | 0.00 | 1.49 | -17.78 | 122.95 | -70.18 | 109.40 | 0.9511 | -263.0 | -277.7 | |
| 3.34 | 5.40 | 6.20 | 10.01 | -19.53 | 120.24 | -72.89 | 110.84 | 0.9650 | -37.2 | -31.5 | |
| 0.00 | 1.37 | 0.00 | 2.76 | -20.40 | 119.05 | -74.08 | 111.58 | 0.9704 | -195.0 | -110.9 | |
| 0.00 | 1.20 | 0.00 | 2.35 | -18.62 | 119.32 | -73.81 | 109.79 | 0.9683 | -100.0 | -86.8 | |
| 0.00 | 3.08 | 0.00 | 6.27 | -18.73 | 118.72 | -74.41 | 109.83 | 0.9708 | 399.0 | 182.2 | |
| 0.00 | 4.54 | 0.00 | 11.21 | -19.73 | 116.16 | -76.97 | 110.56 | 0.9804 | -485.0 | -464.6 | |
| 0.00 | 1.63 | 0.00 | 4.00 | -19.35 | 116.19 | -76.94 | 110.18 | 0.9802 | -509.0 | -505.5 | |
| 0.00 | 5.48 | 0.00 | 13.63 | -18.98 | 115.90 | -77.23 | 109.78 | 0.9810 | -509.0 | -471.1 | |
| 0.00 | 1.46 | 0.00 | 3.67 | -18.54 | 115.70 | -77.43 | 109.32 | 0.9815 | -276.0 | -305.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
