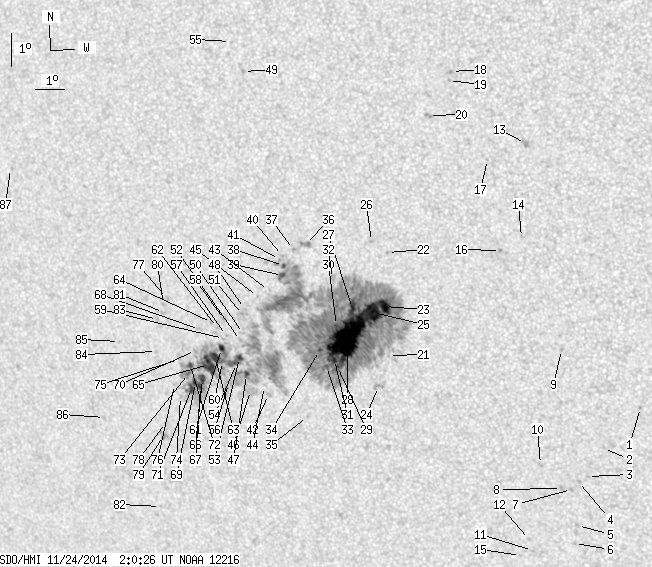

SDO HMI 2014-11-24 02:00:26 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 189.21 | 1335.56 | 109.54 | 772.32 | -13.24 | 164.34 | -27.14 | 120.02 | 0.5144 | 338.2 | 63.0 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-11-24 02:00:26 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.94 | 0.00 | 0.51 | -15.22 | 174.80 | -16.69 | 136.41 | 0.4036 | 812.0 | 691.5 | |
| 0.00 | 0.34 | 0.00 | 0.19 | -16.50 | 173.49 | -18.00 | 136.51 | 0.4322 | 733.0 | 621.5 | |
| 0.00 | 1.20 | 0.00 | 0.66 | -17.38 | 172.87 | -18.61 | 137.01 | 0.4485 | 711.0 | 574.0 | |
| 0.00 | 0.86 | 0.00 | 0.48 | -17.54 | 172.56 | -18.92 | 136.80 | 0.4536 | 826.0 | 784.3 | |
| 0.00 | 1.63 | 0.00 | 0.91 | -18.93 | 172.37 | -19.12 | 138.66 | 0.4709 | 705.0 | 633.1 | |
| 0.00 | 1.11 | 0.00 | 0.63 | -19.50 | 172.20 | -19.29 | 139.25 | 0.4789 | 749.0 | 570.8 | |
| 0.00 | 1.63 | 0.00 | 0.91 | -17.79 | 172.30 | -19.18 | 136.83 | 0.4591 | 855.0 | 689.9 | |
| 0.00 | 1.97 | 0.00 | 1.10 | -17.77 | 171.98 | -19.51 | 136.31 | 0.4623 | 630.0 | 526.0 | |
| 0.00 | 1.63 | 0.00 | 0.88 | -13.45 | 172.41 | -19.08 | 129.39 | 0.4131 | 795.0 | 645.8 | |
| 0.00 | 2.48 | 0.00 | 1.39 | -17.02 | 171.37 | -20.11 | 134.26 | 0.4611 | 810.0 | 687.6 | |
| 0.00 | 0.77 | 0.00 | 0.44 | -19.74 | 170.76 | -20.72 | 137.62 | 0.4961 | 632.0 | 593.2 | |
| 0.00 | 1.03 | 0.00 | 0.58 | -19.39 | 170.71 | -20.78 | 137.04 | 0.4930 | 868.0 | 677.8 | |
| 0.00 | 5.14 | 0.00 | 2.74 | -7.22 | 171.67 | -19.82 | 114.69 | 0.3718 | 819.0 | 669.7 | |
| 0.00 | 0.86 | 0.00 | 0.46 | -10.05 | 171.38 | -20.10 | 120.97 | 0.3965 | 782.0 | 672.6 | |
| 0.00 | 0.69 | 0.00 | 0.39 | -19.90 | 170.33 | -21.15 | 137.29 | 0.5022 | 627.0 | 610.2 | |
| 0.00 | 1.37 | 0.00 | 0.74 | -10.45 | 170.68 | -20.81 | 121.00 | 0.4093 | 1047.0 | 815.6 | |
| 0.00 | 0.94 | 0.00 | 0.51 | -7.71 | 170.43 | -21.05 | 114.58 | 0.3931 | 661.0 | 514.9 | |
| 0.00 | 1.63 | 0.00 | 0.88 | -5.09 | 169.40 | -22.09 | 107.40 | 0.3942 | 949.0 | 816.5 | |
| 0.00 | 0.86 | 0.00 | 0.46 | -5.36 | 169.29 | -22.19 | 107.97 | 0.3971 | 777.0 | 644.1 | |
| 0.00 | 3.00 | 0.00 | 1.63 | -6.41 | 168.60 | -22.88 | 109.93 | 0.4128 | 803.0 | 703.7 | |
| 0.00 | 0.94 | 0.00 | 0.53 | -13.70 | 166.70 | -24.79 | 122.96 | 0.4874 | 83.0 | 63.9 | |
| 0.00 | 1.46 | 0.00 | 0.81 | -10.55 | 166.98 | -24.50 | 117.34 | 0.4610 | 851.0 | 668.2 | |
| 10.54 | 916.87 | 5.93 | 524.34 | -12.20 | 166.72 | -24.76 | 120.25 | 0.4759 | 1356.9 | 253.9 | |
| 0.00 | 4.97 | 0.00 | 2.84 | -14.66 | 166.24 | -25.24 | 124.18 | 0.5007 | -723.0 | -553.7 | |
| 21.34 | -23.00 | 12.06 | -23.00 | -12.39 | 166.30 | -25.18 | 120.20 | 0.4828 | 1261.9 | 999999 | |
| 0.00 | 0.94 | 0.00 | 0.53 | -10.23 | 166.48 | -25.01 | 116.25 | 0.4658 | 820.0 | 732.0 | |
| 5.48 | -23.00 | 3.11 | -23.00 | -12.27 | 165.64 | -25.84 | 119.38 | 0.4908 | 1044.8 | 999999 | |
| 87.40 | -23.00 | 49.94 | -23.00 | -13.16 | 165.37 | -26.11 | 120.73 | 0.5006 | 1329.0 | 999999 | |
| 1.54 | -23.00 | 0.89 | -23.00 | -14.06 | 164.93 | -26.56 | 121.88 | 0.5128 | 747.1 | 999999 | |
| 0.26 | -23.00 | 0.15 | -23.00 | -12.80 | 165.04 | -26.44 | 119.79 | 0.5023 | 931.0 | 999999 | |
| 2.66 | -23.00 | 1.53 | -23.00 | -13.84 | 164.85 | -26.63 | 121.44 | 0.5122 | 836.8 | 999999 | |
| 0.00 | 4.54 | 0.00 | 2.58 | -11.37 | 165.06 | -26.42 | 117.21 | 0.4925 | 387.0 | 395.8 | |
| 1.89 | -23.00 | 1.09 | -23.00 | -14.06 | 164.55 | -26.93 | 121.55 | 0.5177 | 532.3 | 999999 | |
| 1.11 | -23.00 | 0.64 | -23.00 | -13.57 | 164.37 | -27.11 | 120.55 | 0.5165 | 567.3 | 999999 | |
| 0.00 | 1.03 | 0.00 | 0.60 | -15.62 | 163.68 | -27.81 | 123.34 | 0.5399 | -784.0 | -634.1 | |
| 0.00 | 5.91 | 0.00 | 3.37 | -10.35 | 164.25 | -27.23 | 114.66 | 0.4974 | -938.0 | -791.2 | |
| 0.00 | 1.46 | 0.00 | 0.83 | -10.50 | 163.83 | -27.65 | 114.63 | 0.5041 | -912.0 | -807.9 | |
| 1.20 | -23.00 | 0.69 | -23.00 | -10.99 | 163.44 | -28.05 | 115.23 | 0.5123 | -1031.8 | 999999 | |
| 3.17 | -23.00 | 1.83 | -23.00 | -11.30 | 163.37 | -28.11 | 115.73 | 0.5150 | -941.3 | 999999 | |
| 0.00 | 0.94 | 0.00 | 0.54 | -10.69 | 163.43 | -28.05 | 114.68 | 0.5106 | -811.0 | -684.7 | |
| 0.00 | 1.37 | 0.00 | 0.79 | -10.81 | 163.32 | -28.16 | 114.82 | 0.5129 | -845.0 | -705.4 | |
| 0.00 | 2.83 | 0.00 | 1.68 | -14.96 | 162.41 | -29.07 | 121.19 | 0.5509 | -103.0 | -119.2 | |
| 0.00 | 0.94 | 0.00 | 0.55 | -11.76 | 162.84 | -28.65 | 116.15 | 0.5250 | -618.0 | -603.4 | |
| 0.00 | 0.43 | 0.00 | 0.25 | -14.71 | 162.31 | -29.17 | 120.71 | 0.5506 | -555.0 | -563.2 | |
| 0.00 | 0.86 | 0.00 | 0.50 | -11.95 | 162.43 | -29.05 | 116.18 | 0.5315 | -809.0 | -710.0 | |
| 0.00 | 8.57 | 0.00 | 5.11 | -14.84 | 161.80 | -29.69 | 120.51 | 0.5579 | -224.0 | -207.1 | |
| 2.74 | 144.73 | 1.63 | 85.41 | -14.35 | 161.73 | -29.75 | 119.67 | 0.5555 | -881.7 | -313.9 | |
| 0.00 | 0.69 | 0.00 | 0.40 | -12.32 | 161.94 | -29.55 | 116.46 | 0.5403 | -701.0 | -572.1 | |
| 0.00 | 1.80 | 0.00 | 1.03 | -5.18 | 162.53 | -28.95 | 103.67 | 0.4982 | 851.0 | 612.0 | |
| 0.00 | 0.94 | 0.00 | 0.56 | -13.09 | 161.80 | -29.68 | 117.65 | 0.5466 | -811.0 | -661.5 | |
| 0.00 | 3.43 | 0.00 | 2.02 | -12.51 | 161.84 | -29.64 | 116.70 | 0.5426 | -787.0 | -692.1 | |
| 0.00 | 1.71 | 0.00 | 1.01 | -13.31 | 161.67 | -29.82 | 117.91 | 0.5497 | -876.0 | -762.0 | |
| 2.83 | 160.15 | 1.68 | 96.53 | -13.83 | 161.56 | -29.92 | 118.69 | 0.5544 | -1058.8 | -555.9 | |
| 0.26 | -53.00 | 0.15 | -53.00 | -14.02 | 161.42 | -30.06 | 118.89 | 0.5572 | -967.0 | 999999 | |
| 0.00 | 0.69 | 0.00 | 0.39 | -4.29 | 162.13 | -29.35 | 101.76 | 0.5013 | 548.0 | 463.0 | |
| 0.00 | 7.63 | 0.00 | 4.57 | -14.64 | 161.05 | -30.44 | 119.61 | 0.5659 | -336.0 | -304.2 | |
| 0.00 | 0.86 | 0.00 | 0.51 | -13.16 | 161.19 | -30.29 | 117.32 | 0.5549 | -849.0 | -669.9 | |
| 0.00 | 1.37 | 0.00 | 0.81 | -12.67 | 161.19 | -30.29 | 116.51 | 0.5521 | -946.0 | -730.7 | |
| 0.00 | 1.20 | 0.00 | 0.71 | -13.25 | 161.08 | -30.41 | 117.39 | 0.5570 | -699.0 | -759.1 | |
| 1.80 | -53.00 | 1.08 | -53.00 | -13.96 | 160.94 | -30.55 | 118.44 | 0.5631 | -921.5 | 999999 | |
| 3.00 | -53.00 | 1.79 | -53.00 | -13.56 | 160.96 | -30.52 | 117.81 | 0.5604 | -1126.5 | 999999 | |
| 0.00 | 1.11 | 0.00 | 0.66 | -12.92 | 160.91 | -30.57 | 116.72 | 0.5572 | -815.0 | -657.4 | |
| 7.88 | -53.00 | 4.73 | -53.00 | -13.84 | 160.71 | -30.78 | 118.08 | 0.5653 | -1098.6 | 999999 | |
| 0.00 | 0.94 | 0.00 | 0.56 | -12.77 | 160.72 | -30.76 | 116.34 | 0.5588 | -848.0 | -724.8 | |
| 15.77 | -53.00 | 9.49 | -53.00 | -14.06 | 160.42 | -31.06 | 118.23 | 0.5702 | -932.6 | 999999 | |
| 4.80 | -53.00 | 2.90 | -53.00 | -14.50 | 160.14 | -31.34 | 118.72 | 0.5764 | -938.9 | 999999 | |
| 2.83 | -53.00 | 1.72 | -53.00 | -14.75 | 160.03 | -31.45 | 119.03 | 0.5794 | -864.7 | 999999 | |
| 0.00 | 2.14 | 0.00 | 1.28 | -12.99 | 160.26 | -31.22 | 116.39 | 0.5660 | -764.0 | -607.2 | |
| 2.83 | -53.00 | 1.72 | -53.00 | -14.63 | 159.87 | -31.61 | 118.73 | 0.5806 | -903.5 | 999999 | |
| 0.00 | 1.97 | 0.00 | 1.19 | -13.64 | 160.02 | -31.46 | 117.27 | 0.5728 | -217.0 | -210.8 | |
| 4.37 | -53.00 | 2.66 | -53.00 | -14.81 | 159.69 | -31.79 | 118.90 | 0.5839 | -716.6 | 999999 | |
| 2.14 | -53.00 | 1.30 | -53.00 | -14.10 | 159.77 | -31.71 | 117.84 | 0.5787 | -752.6 | 999999 | |
| 1.37 | -53.00 | 0.83 | -53.00 | -14.35 | 159.66 | -31.82 | 118.15 | 0.5816 | -720.9 | 999999 | |
| 0.00 | 1.46 | 0.00 | 0.89 | -15.07 | 159.25 | -32.23 | 118.98 | 0.5909 | -223.0 | -131.5 | |
| 0.00 | 0.69 | 0.00 | 0.42 | -13.93 | 159.37 | -32.11 | 117.28 | 0.5828 | -385.0 | -369.6 | |
| 0.00 | 1.20 | 0.00 | 0.73 | -14.70 | 159.10 | -32.39 | 118.31 | 0.5907 | -426.0 | -363.2 | |
| 0.00 | 2.14 | 0.00 | 1.29 | -12.06 | 159.25 | -32.23 | 114.21 | 0.5741 | -792.0 | -619.2 | |
| 0.00 | 1.20 | 0.00 | 0.74 | -15.89 | 158.56 | -32.92 | 119.74 | 0.6044 | -652.0 | -545.4 | |
| 0.00 | 4.11 | 0.00 | 2.56 | -16.29 | 158.41 | -33.08 | 120.24 | 0.6086 | -875.0 | -652.7 | |
| 0.00 | 1.54 | 0.00 | 0.93 | -12.25 | 159.08 | -32.40 | 114.41 | 0.5773 | -661.0 | -523.0 | |
| 0.00 | 2.06 | 0.00 | 1.25 | -12.49 | 159.04 | -32.44 | 114.78 | 0.5790 | -685.0 | -620.8 | |
| 0.00 | 0.77 | 0.00 | 0.49 | -18.53 | 157.83 | -33.65 | 123.07 | 0.6293 | -551.0 | -397.0 | |
| 0.00 | 0.94 | 0.00 | 0.57 | -12.71 | 158.80 | -32.69 | 114.98 | 0.5834 | -635.0 | -494.5 | |
| 0.00 | 1.03 | 0.00 | 0.63 | -13.69 | 158.61 | -32.87 | 116.41 | 0.5911 | -610.0 | -532.2 | |
| 0.00 | 0.86 | 0.00 | 0.53 | -13.41 | 157.30 | -34.18 | 115.17 | 0.6061 | -543.0 | -456.1 | |
| 0.00 | 1.63 | 0.00 | 1.04 | -15.77 | 156.31 | -35.17 | 118.11 | 0.6308 | -278.0 | -401.6 | |
| 0.00 | 0.43 | 0.00 | 0.27 | -8.22 | 153.96 | -37.52 | 105.51 | 0.6279 | -599.0 | -584.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
